Iron separator is widely used in metallurgy, mining, coal counseling plant, energy plant, ceramics, glass, cement, building materials, chemical enterprises, food, feed processing, and other industries. Waste treatment companies also want iron separators to process and recover iron from scrap metal. Do you know the iron dividers suspended above long belt conveyors? The operation procedure of iron separator is: when most of the material is installed on the rear support of the ferromagnetic separator (rotating DC magnet), the ferromagnetic impurities inside the material are sucked away, the ferromagnetic impurities are dragged to the electric roller, so as to achieve the purpose of the automatic ferromagnetic separator. Iron sorting function produces a strong magnetic suction, may be combined with the ferromagnetic impurities in the fabric for processing, to ensure that the mechanical device and crusher, grinder, at the same time can effectively prevent the occurrence of large or long iron through cracks accident conveyor belt, significantly improve the grade of raw materials. According to the way of iron discharge, it can be divided into comprehensive iron discharge, automatic iron discharge, programmed iron discharge, etc. In addition to metal mines, energy plants, moderate enterprises, refractory materials, and other different industries, it has been applied in many large iron and metal enterprises and plays a very important role.

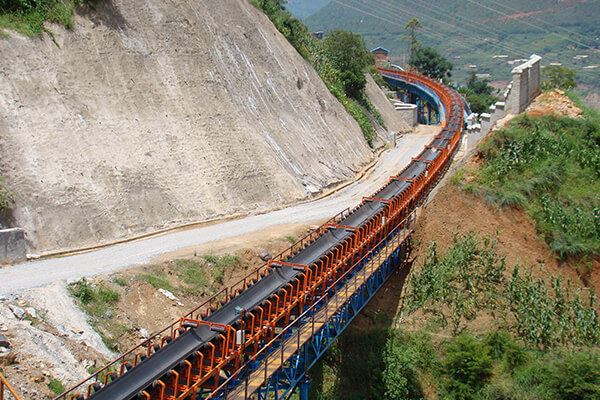

Noise Analysis of Long Distance Belt Conveyor
1. Eccentric conveyor tensioner will cause abnormal noise. In the process of conveyor running, the tensioner often produces abnormal noise, accompanied by periodic vibration, especially because of the distance between the tensioner and the heavy object, the noise of the return tensioner is large. The causes of abnormal noise are as follows:1) the thickness of the steel tube wall is not uniform, resulting in large centrifugal force. 2) In the processing process, there is a gap between the center hole on both sides of the bearing and the center of the rim, generating more centrifugal force.
2. The coupling shaft is different, resulting in abnormal noise. Abnormal noise is generated by the coupling installed between the motor and the gearbox, accompanied by vibration at the same frequency of rotation of the motor. This noise is usually caused by the loosening of the anchor bolts of the motor or reducer, in which case displacement of the motor and reducer occurs.
3. The solution is to adjust the position of the motor and the gearbox to prevent the gearbox input shaft from wearing and burning the bearing.
