Belt Conveyor Components

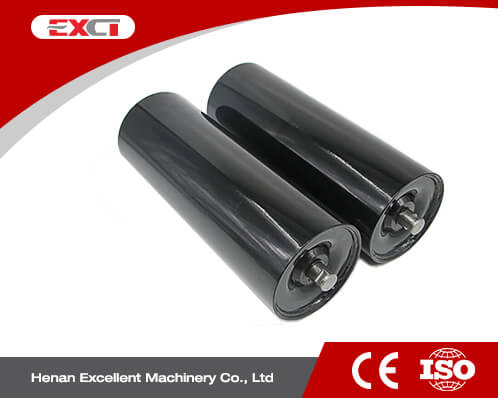

The whole Belt Conveyor Components should include the belt, idler group, roller group, driving device (including motor, reducer, mechanical coupling, driving device base, etc.), disc brake, backstop, tensioning device, material guide trough, belt cleaner, intermediate frame, outrigger, roller support, feeder plate, safety shield, guardrail and other steel structure parts, paint and solvent for on-site paint repair, oil and lubricant for commissioning, installation, all consumables and wearing parts required during commissioning and trial operation, special tools, instruments, instruments and meters for equipment installation, maintenance, inspection and operation, such as Carrying Idler, Carrying Roller, Return Roller and so on.
The most important component is the conveyor belt, which pulls and carries the material. It should not only have sufficient strength, but also have corresponding bearing capacity. When selecting, the flame retardant and antistatic whole core PVG conveyor belt PVG680S~PVG2500S can be used according to the tension; the flame retardant antistatic whole core PVC conveyor belt PVC680S~PVC2500S. Flame retardant steel rope core with ST/S630~ST/S4000N/mm. There is also a drive device, which is a drive unit composed of a motor, a reducer, a liquid-viscous soft start, a brake, a backstop, a high-speed shaft coupling, and a low-speed shaft coupling. It is fixed on the drive frame, and the drive frame is fixed on the foundation.
