1. The installation of the belt conveyor frame frame is from the beginning of the installation, and then sequential installation of each section of the middle frame, after the installation of the tail frame. Belt conveyor covers the main installation process and way, the installation of the belt conveyor frame frame is from the beginning, and then the installation of each section of the middle frame, after the tail frame. Before installing the frame, first pull the center line on the full length of the conveyor, because keeping the center line of the conveyor in line is an important condition for the normal operation of the conveyor belt.
Therefore, when installing each frame, align with the center line, but also build shelf leveling, the allowable error of the frame to the center line, the length of each meter is ±0.1mm.
However, the error of the frame center on the full length of the conveyor shall not exceed 35mm. When all the sections are installed and identified, the sections can be connected.
2. Install the driving device:
When installing the driving device, pay attention to the belt conveyor's drive shaft and the belt conveyor's center line vertical, so that the width of the driving drum and conveyor's center line coincide, the axis of the reducer and the transmission axis parallel.
At the same time, all shafts and rollers should be levelled. The horizontal error of the shaft is allowed in the range of 0.5~1.5mm according to the width and narrowness of the conveyor.
When installing the driving device, the tail wheel and other tensioning devices can be installed. The roller axis of the tensioning device should be perpendicular to the center line of the belt conveyor.
3. Roller installation:
After the frame, transmission device and tensioning device are installed, the roller frames of upper and lower rollers can be installed to make the conveyor belt have a slowly changing arc. The spacing of roller frames in the bending section is 1/2 ~ 1/3 of the normal spacing of roller frames. After the roller installation, it should be flexible and light rotation.

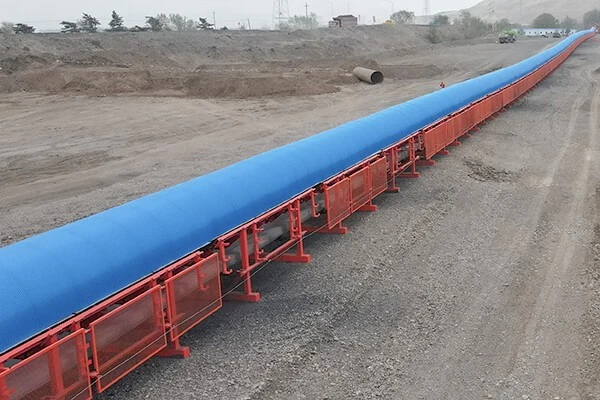

Frp belt conveyor covers rain proof, dust proof and wind proof for the transport belt of power plants, cement factories, coal mines and other major factories and mining enterprises. Goods are cut and lost in the transmission process, so that the conveyor belt is in operation and has the effect of purifying the environment. Belt conveyor covers are made of glass steel, which is useful to maintain the conveyor belt, reduce the waste of material in the transmission process, prolong the service life of the conveyor, for the maintenance of the conveyor cover, also attributed to environmental protection products.
Installation and fixing method:
1) The frame used as a fixed conveyor hood is connecting angle steel or z-type steel, whose length is equal to the length of the conveyor hood device. Weld the connecting angle or z-type steel to the channel or small angle steel on both sides of the transport frame.
2) If it is necessary to install the supporting angle, weld the supporting angle to both sides of the frame first, and then weld the connecting angle or z-type steel to the supporting angle.
3) In the belt conveyor covers of the four ways, the fixed cover and the open and closed cover are made of fiberglass steel. Usually, there are 9 fixed covers and 1 open and closed cover in every 10 cover positions, and the two covers can also be replaced.
4) When the device is installed, press the closed cover on the left and right two adjacent fixed covers, and the coincidence length is one wave distance or two wave distances. Note that the hinged side of the open and closed housing is placed on the non-passable side of the conveyer, while the side with the lock is placed on the passable side of the conveyer.
5) the belt conveyor covers are fixed on the connecting angle steel or z-type steel with self-tapping nails, and there are many 4 fixing points for each piece.
6) the folding point cover is only used at the folding point of the convex arc of the conveyor, and the deviation switch cover is designed to cover the deviation switch. Both are mounted on stationary covers.
7) every 10 pieces can also be equipped with 1 piece of investigative belt conveyor covers, convenient repair and inspection.
