Belt Misalignment Switches

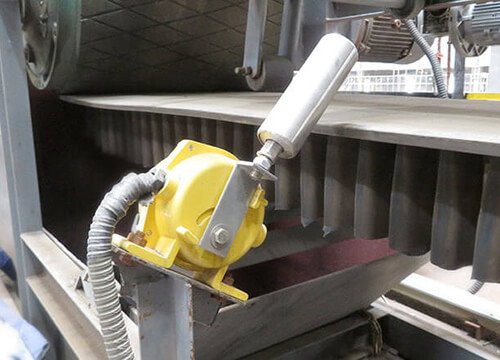

A Belt Misalignment Switch is used to detect the deviation of the conveyor belt of a belt conveyor product, for the conveyor belt in the case of deviation an automatic alarm and stopping a safety device. The Belt Misalignment Switch is located at both sides of the conveyor belt. The vertical roll should be vertical to the side plane of the conveyor belt and make both sides of the conveyor belt be located at 1/3 of the height of the vertical roll. The distance between the vertical roll and conveyor belt should be 50 ~ 100mm.

Technical Specifications:

Feature:

1. High precision, lightweight, easy to install, convenient replace and maintenance.

2. 2.A Belt Misalignment Switch can detect the different deviation degrees of a belt.

3. Belt Misalignment Switch quickly reaction, action sensitive, high stability, reliable performance.

4. Belt Misalignment Switch is one of the important protective devices for belt conveyor, its function can not be replaced.

Application:

EXCT has a comprehensive international trade service system from marketing promotion to negotiation and cooperation, from domestic one-stop consultation services to localized services in dozens of countries and regions abroad. EXCT 's international trade market has been steady forwarded in developing countries and regions such as Asia, Africa and Latin America, and has already successfully entered EU, US and other developed countries and regions. Until now, EXCT has provided plenty of crushing, screening, conveying and complete set of equipment to 70 countries and regions, such as US, Pakistan, AU, Indonesia, South Africa, Brazil, UK, Russia, Egypt, Germany, Chile and so on. EXCT adheres to the service concept of win-win cooperation, creates more value for customers, keeps pace with the times, persist in innovation, and provides higher quality products, more advanced technical support and faster global service.

Installation Method:

1. The deviation switch shall be installed on both sides of the belt conveyor, and the position of the deviation switch should be such that the vertical roller is perpendicular to the belt side plane and the belt side edge is fixed at 1/4-1/3 of the roller in a suitable position.

2. The distance between the vertical roller and the belt should normally be within the natural offset of the belt, plus 50~100 mm.

3. The deviation switches are mounted in pairs at the head, tail, and intermediate positions. In general, three pairs of tapes having a length of 100 meters are suitable.

4. After the mounting bracket is welded or bolted to the machine frame, tighten the running switch to the mounting bracket with bolts.
