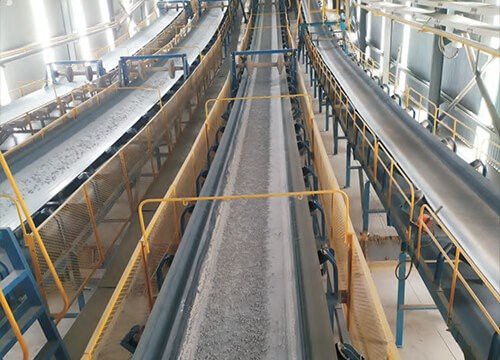

Gravel Belt Conveyor

Gravel Belt Conveyor is a kind of conveying equipment with efficiency and continuity. Compared with other transportation equipment, Gravel Belt Conveyor has the advantages of long conveying distance, large capacity, long service life, and stable operation. Moreover, it can be designed according to different requirements.

The structure of the Gravel Belt Conveyor is relatively simple, the main driving force is generated by the mechanical friction between the driving pulley and belt. It is widely used for conveying bulk material and packaging materials. The capacity of the Gravel Belt Conveyor can be achieved 12000t/h. So, The Gravel Belt Conveyor widely used in power, construction, mining and other industries.

Feature:

1. The Gravel Belt Conveyor has a flexible layout, therefore, it can convey materials up or down.

2. Wide application, large processing capacity, long-distance, stable operation, convenient maintenance.

3. All kinds of protection switches give early warning of possible accidents.

4. Conveyor idlers are manufactured by our advanced production line, available of types of idlers to ensure Sand Belt Conveyor running smoothly.

5. Conveyor length can be customized according to your need.

6. 0° – 30° inclination to suit the on-site conditions.

7. Belt width can be 500-2400mm as you require.

Cases:

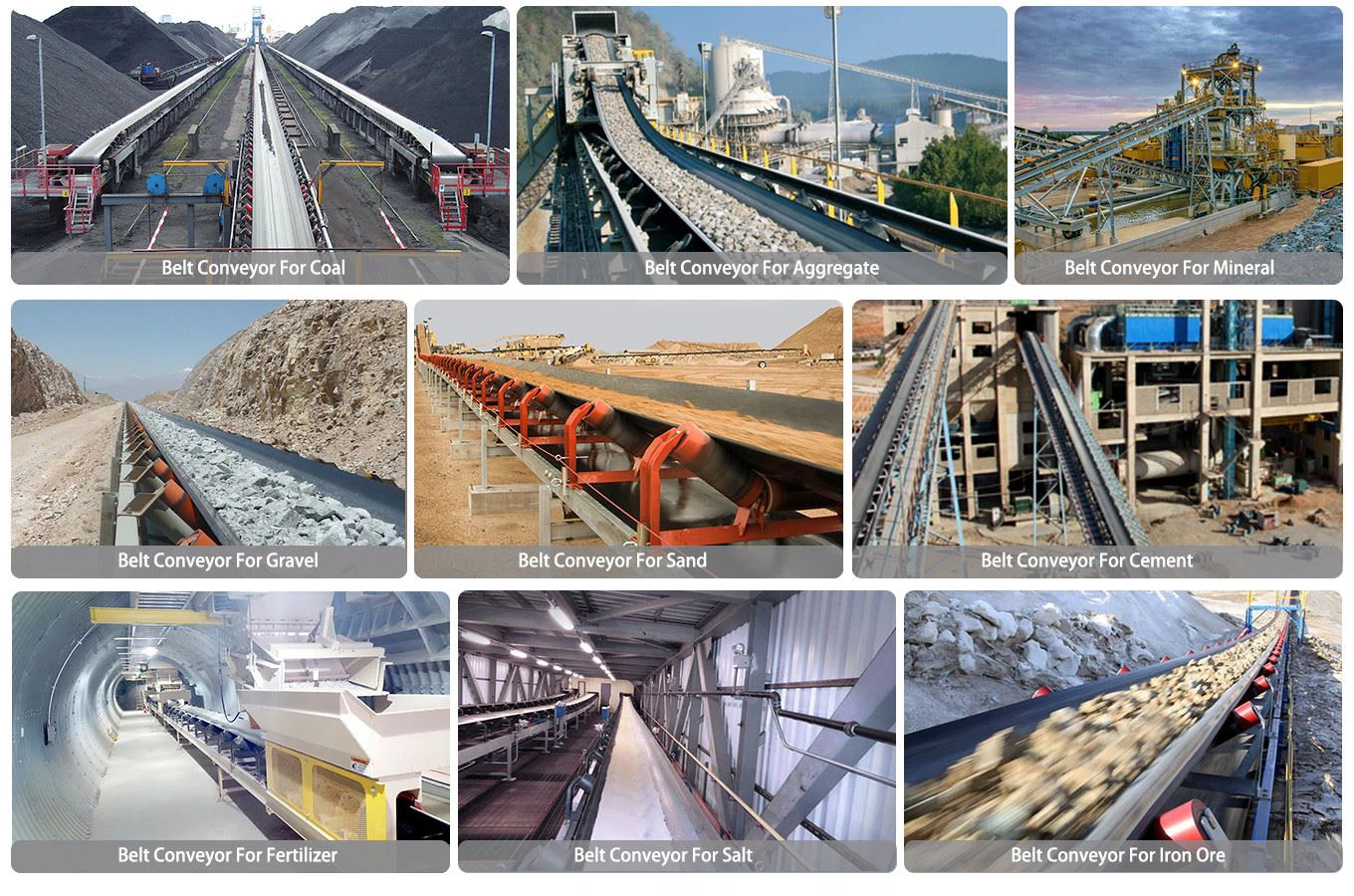

Application:

Why Choose Us:

1. Experienced engineer team provides scientific and reasonable feeder technology solutions for each end-user. After the device is introduced to the customer's factory, The professional technicians of EXCT will guide the set up of the equipment, including on-site infrastructure confirmation, installation drawing confirmation, installation of required equipment and tools, and so on to ensure the smooth setup of the equipment.

2. In-depth market research, grasp the surrounding market dynamics of customers, for customers to evaluate the investment plan. Assist customers to make decisions and provide project feasibility reports.

3. In the production process, We arrange an experienced and responsible professional QC engineer to inspect the whole process of equipment production and writes the QC report to the customer in time. In the equipment transportation process, We dispatched experienced personnel to monitor the whole process of transportation until the equipment arrived at the installation site.

Manufacturing Facilities:

Idlers and pulleys are important parts of belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.

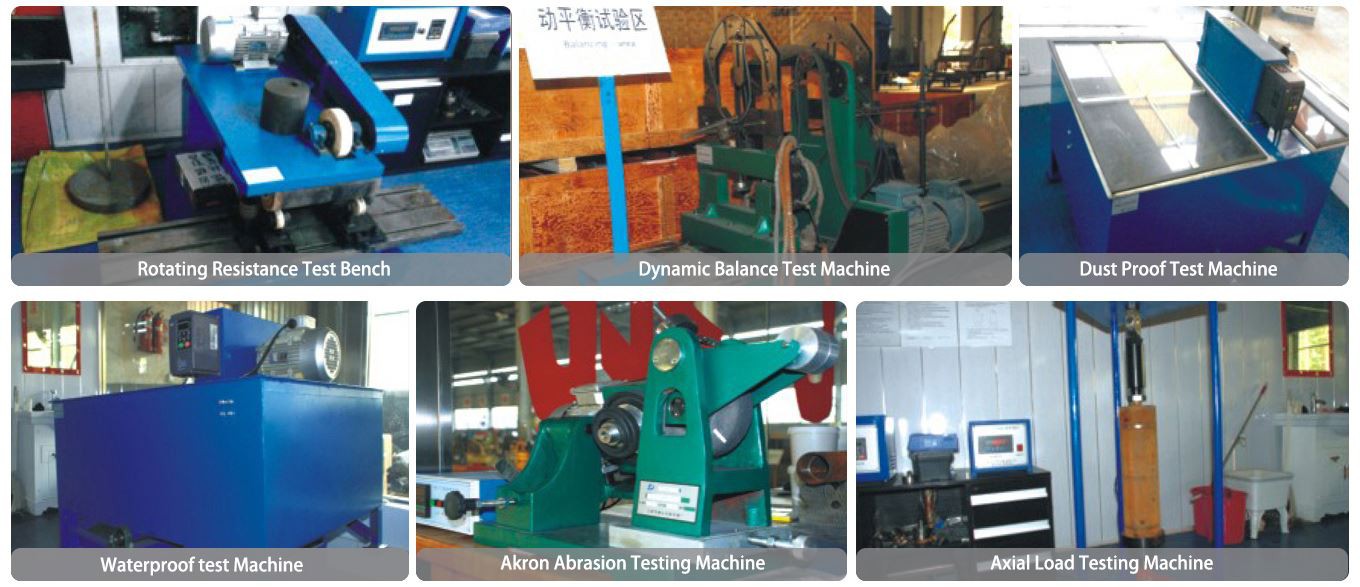

Strict Quality Control:

Test of drum

Idler testing laboratory

Specification:

There are many types of aligning roller groups, such as intermediate rotating shaft type, four-link type, vertical roller type, and so on. Its principle is to use the blocking or roller rotation in the horizontal direction to block or produce transverse thrust so that the belt automatically is centripetal to adjust the belt deviation. Generally, this method is more reasonable when the total length of the Gravel belt conveyor is short or the Gravel belt conveyor runs in both directions because the shorter belt conveyor is easier to run off and not easy to adjust. And the long Gravel belt conveyor is best not to use this method because the use of the core adjustment roller group will have a certain impact on the service life of the belt.

Then the installation method will directly affect the operation of the equipment and the life of the conveyor belt. So we should meet in the installation to ensure that the longitudinal centerline of the conveyor has good straightness, and the centerline of the head and the tail frame has good neutrality; Keep the levelness of the roller axis and the vertical centerline of the conveyor.

An enterprise belt machine spindle wears brush inner ring phenomenon, wear is 5mm, bearing model: 22244CC/W33, inner diameter: 220m, width: 108mm, speed: 37r/min. Because it is not the maintenance period now, the downtime is limited, so how to quickly solve the belt machine spindle brush inner ring problem in the limited downtime is very important for enterprises.

Belt machine spindle brush inner ring phenomenon, nothing more than bearing wear. And axial appear to wear many reasons, but the main reason is the nature of metal used to manufacture shaft, metal while high hardness, poor but concessions cannot recover after (deformation), shock resistance is poorer, anti-fatigue performance is poor, so easy to cause adhesion wear, abrasive wear, fatigue wear and fretting wear, most of the axial wear subtle, Only appear machine high temperature, jump range, abnormal sound and so on, will cause people's awareness, but to people found, most of the shaft has been worn, resulting in machine shutdown.



Why choose us?

• At our factory, we use the latest technologies to manufacture Belt Conveyors that are efficient and reliable.
• Our company adheres to the business philosophy of 'honesty first, quality first', and strives to seek common development with domestic and foreign merchants on the basis of mutual benefit.
• We are constantly investing in new technologies and equipment to improve the quality and efficiency of our Belt Conveyor manufacturing.
• So far, our company have developed into a relatively influential Gravel Belt Conveyor manufacturer in China, and sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
• Our Belt Conveyors are built to withstand the toughest working conditions and operate reliably year after year.
• We continuously improve the quality of products and services, develop high-quality xx products, and build a beautiful home.
• Our extensive experience in Belt Conveyor manufacturing allows us to provide customized solutions for your unique needs.
• Our business policy is, driven by science and technology, seeking survival by quality, and seeking development by reputation.
• Our products are top-notch and our customer service is second to none.
• The company has a good reputation in the Gravel Belt Conveyor field, and the market share of its products ranks among the top three in the country.
