Belt Conveyor System

Belt Conveyor System is one of the most widely used and the most widely used mechanical conveying system, it can be used for conveying materials horizontally or inclinedly. The Belt Conveyor System is mainly composed of belt, roller, pulley, drive device and steel structure. The pulley is used to support, move and control the tension of the Conveyor belt. The drive device is used to provide power to one or more pulleys to move belts and loads. The steel structure is used to support and keep the rollers and pulleys aligned and to support the driving device. Belt Conveyor System has three structural forms: channel steel, frame, and trussed construction.

When the user is ordering the Belt Conveyor System, it is necessary to indicate with or without repairing the walkway.

Feature:

1. According to different transportation requests, it can be singly used or multiple combined using also can be used together with other equipment to organize a horizontal or declining conveying system.

2. Reliable quality,reasonable design,long service life.

3. It can be used between -25ºC~+40ºC working environment, the temperature of conveying material under 80ºC with high adaptability.

4. The driving device can be used according to different purposes of use and site conditions.

5. Large load, long conveying distance, stable operation, convenient replacement of spare parts.

Cases

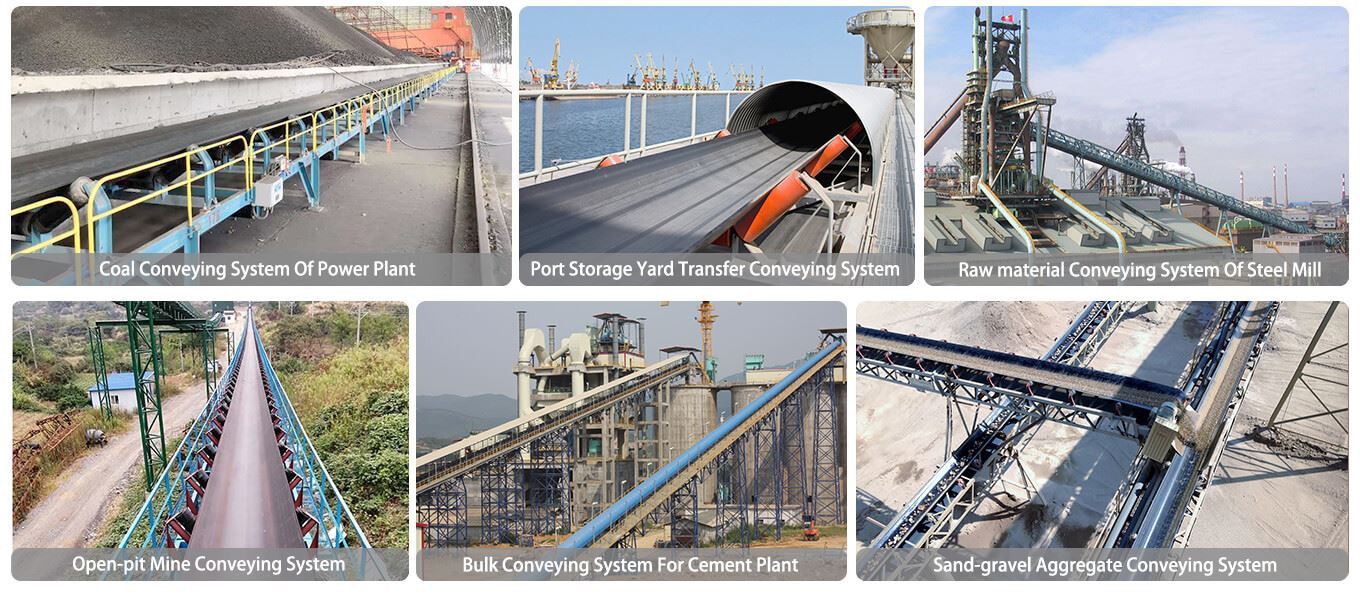

Application:

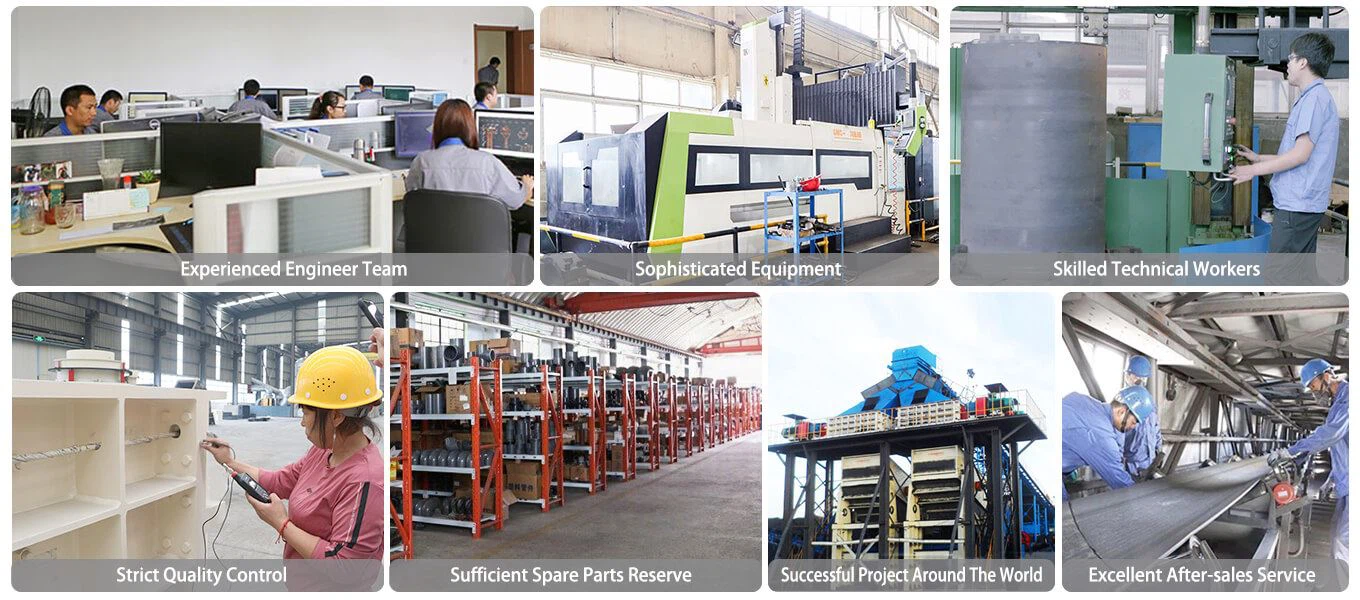

Why Choose Us:

Manufacturing Facilities:

Strict Quality Control:

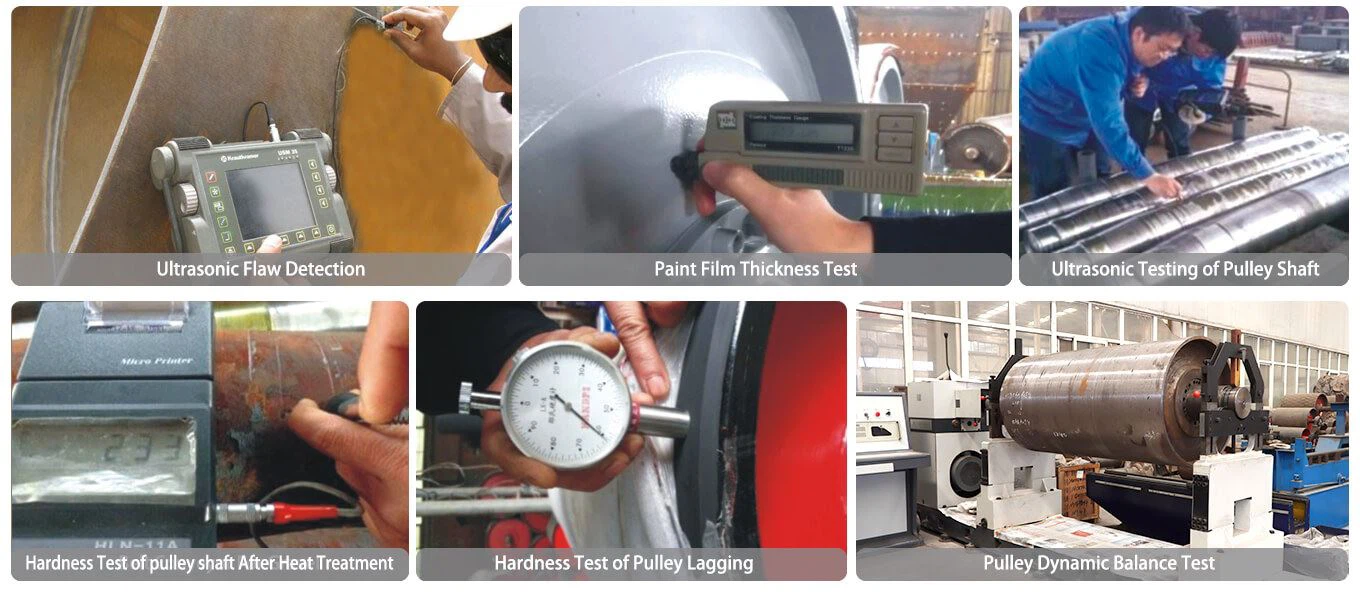

Test of conveyor pulley

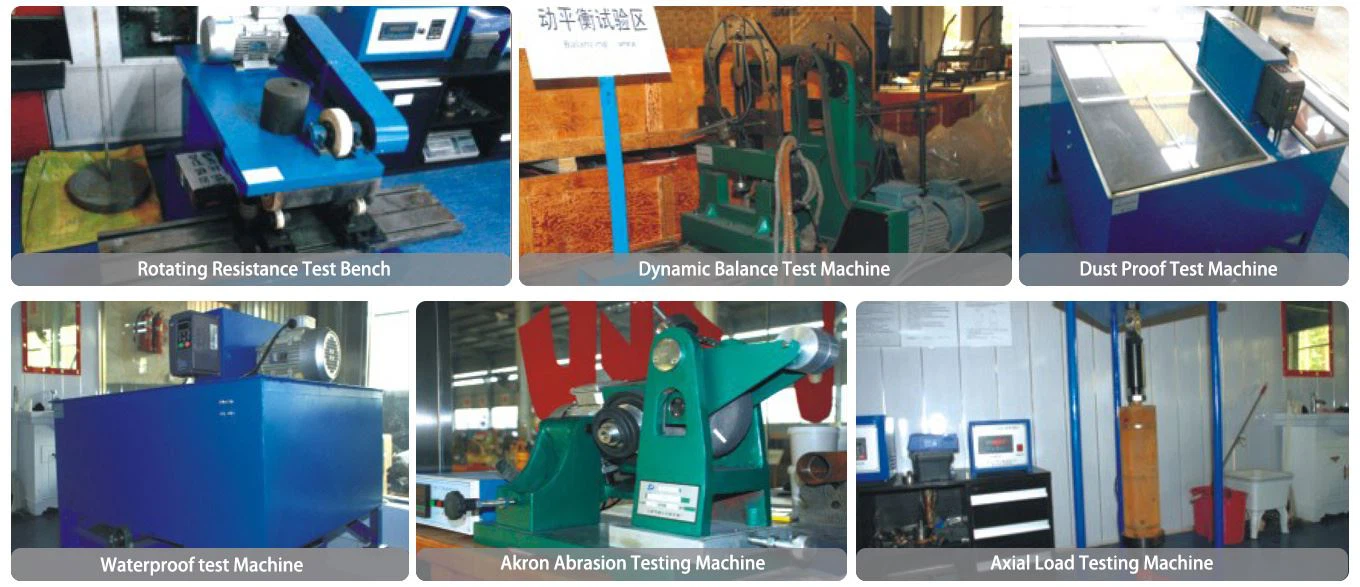

Idler testing laboratory

Specification:

Confirm the content of belt conveyor system before debugging：

1. The belt conveyor system basic strength, coordinates, elevations, geometric dimensions and position of anchor bolt holes of the equipment must meet the design requirements and specifications. Inspection method: check the process handover data and check the drawing.

2. Anchor bolts should be installed in accordance with the following requirements: bolts should be vertically fixed reliably, nuts should be tightened, the force should be uniform, and the length of exposed thread of bolts should not be less than 1.5 times of pitch.

3. The belt conveyor system specification and position of the pad should be correct, smooth placement, close contact, and firm positioning welding between the pad layers.

4. The appearance of the equipment is intact and the paint is intact.

5. All fasteners shall be securely fastened: the connecting bolts shall meet the following requirements: Nuts and washers shall be fully configured according to the design, and be tightened evenly. The exposed thread of bolts shall be 2-3 wires.

6. The grade and quantity of grease added in each lubrication point and reducer shall conform to the provisions of the equipment technical documents. If there is no clear provision, the oil level in reducer shall be at the position of 113-2/3 of the oil window.

7. Safety protection facilities of rotating equipment such as head wheel, tail wheel, belt wheel, coupling, counterweight roller, tensioning roller and both sides of belt machine are in place, and there should be no obstacles affecting the test run along the conveyor line and channel of belt machine.

8. Check that the coupling between the motor and the reducer meets the requirements.

9. The belt joint strength meets the test run strength requirements.

10.Check whether the equipment grounding cable is fixed securely, whether the sectional area of the grounding cable meets the requirements of the specification, whether the grounding of the control cabinet is effective, and use a shaking meter to check whether the grounding resistance is greater than 4 ohms:

11. Check belt conveyor system whether the wiring of the control box beside the machine is correct and the grounding wire is reliable:

12. Check belt conveyor system and electrical wiring and motor insulation not less than 0.5 megohm:

13. Belt conveyor system Electrical system, safety interlock device, brake device, operation control coefficient and signal system shall be inspected by simulation or operation, and their working performance shall be sensitive, correct and reliable.



Why choose us?

• Our skilled team of professionals works tirelessly to provide the best possible Belt Conveyor products and service.
• After years of accumulation, we have the strength to independently research and develop products with a group of professional technical talents.
• Our team of skilled professionals ensures that all of our products meet the highest standards of quality and safety.
• Our company adheres to the market demand as the guidance, the scientific and technological progress as the driving force and we take the strong strength as the guarantee and widely listen to the customer's opinion.
• We believe that integrity and honesty are the foundation of our business, and we conduct ourselves accordingly.
• We will continue to rely on the network platform, increase investment, and continue to grow and develop!
• Our experienced and knowledgeable staff is always available to answer any questions and provide guidance on our Belt Conveyor products.
• We strive to ensure that every input from our customers creates the value they deserve.
• Our Belt Conveyors are built with safety in mind, to maximize the safety of your employees and operations.
• Our Belt Conveyor System are very popular, and our integrity, strength and product quality have been recognized by the industry.
