Wharf Belt Conveyor is a kind of conveying equipment with efficiency and continuity. Compared with other transportation equipment, Wharf Belt Conveyor has the advantages of long conveying distance, large capacity long service life, and stable operation. Moreover, it can be designed according to different requirements.
The structure of the Wharf Belt Conveyor is relatively simple, the main driving force is generated by the mechanical friction between the driving pulley and belt. It is widely used for conveying bulk material and packaging materials. The capacity of the terminal belt Conveyor can be achieved 12000t/h. So, it widely used in power, construction, mining and other industries.
Feature:
1. It can be combined with other Conveyor s to form a horizontal or inclined conveying system.
2. Low noise, suitable for occasions where the working environment requires quiet.
3. Rapid replacement of spare parts, significantly reducing costly downtime.
4. Automatic control, reduce maintenance personnel, save labor costs.
Cases:
Why Choose Us:
Manufacturing Facilities:
Henan Excellent Machinery Co., Ltd has more than 30 years of production experience and has maintained long-term cooperation with many domestic universities and design institutes, committed to the world's advanced bulk material processing technology research so that our products are in the industry-leading level. EXCT not only owns more than 140 sets of high-end manufacturing equipment such as laser cutting machine, CNC turret punch, automatic production line of the idler, welding robot, CNC planer, and horizontal milling but also has a large number of experienced technical workers to ensure the reliability of product quality. EXCT equipment has served more than 2,000 customers in more than 60 countries.

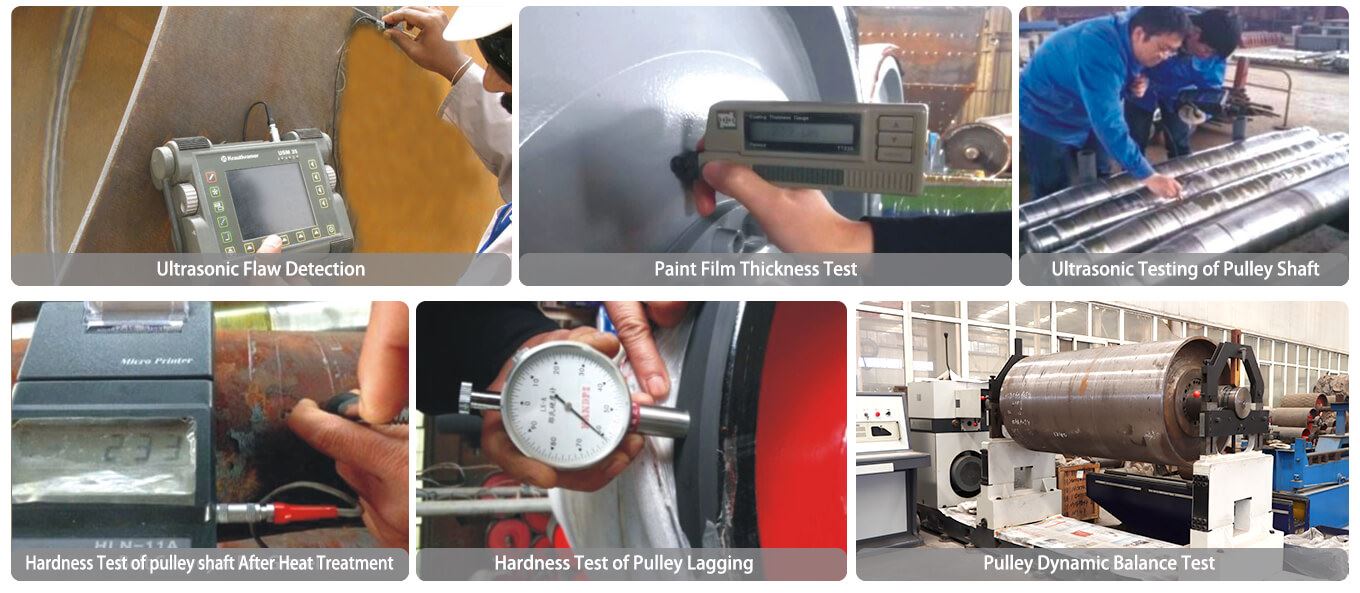

Strict Quality Control:
Test of drum
Idler testing laboratory
EXCT's quality control procedures specify different inspection requirements at different stages. After the production starts, engineers in the quality control department will test and mark the products at different control nodes according to their own detection scope, so as to realize the whole process of quality control tracking.
After the product is finished, the QC engineer will cooperate with a technical engineer to carry out a no-load test on the product as required to ensure that the main technical indicators meet the design requirements.
General Technical Parameter:
Belt Conveyor Technical Specifications | ||||||||||
Belt width(mm) | Belt speed （m/s) | |||||||||
0.8 | 1.0 | 1.3 | 1.6 | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 6.5 | |
Capacity （m³/h） | ||||||||||
500 | 69 | 87 | 108 | 139 | 174 | 217 | ||||
650 | 127 | 159 | 198 | 254 | 318 | 397 | ||||
800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 | |||
1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 | 1622 | ||
1200 | 593 | 742 | 951 | 1188 | 1486 | 1872 | 2377 | 2971 | ||
1400 | 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3304 | 4130 | ||
1600 | 2186 | 2733 | 3444 | 4373 | 5466 | |||||
1800 | 2795 | 3494 | 4403 | 5591 | 6989 | 9083 | ||||
2000 | 3470 | 4338 | 5466 | 6941 | 8676 | 11277 | ||||
2200 | 6843 | 8690 | 10863 | 14120 | ||||||
2400 | 8289 | 10526 | 13158 | 17104 | ||||||
Remark：Capacity is caculated by material horizontal conveyoring, 20°Operating stacking Angle, 35°roller groove Angle. | ||||||||||
Customized according to your requirements
Why choose us?
- We go above and beyond to ensure that our customers are completely satisfied with our Belt Conveyor products and services.
- We continue to innovate in operation, management and system to maintain the vitality of the enterprise.
- We are committed to providing timely delivery and exceptional customer service.
- We adhere to the people-oriented, hand in hand with the staff, in the same boat, to achieve a perfect fit between the development of employees and corporate needs.
- Our Belt Conveyor products are a reliable, efficient, and cost-effective solution for your material handling needs.
- Our Wharf Belt Conveyor is designed and manufactured carefully on the basis of many years of production based on the needs of the majority of customers, integrating the features of products of other brands.
- Our experienced and knowledgeable staff is always available to answer any questions and provide guidance on our Belt Conveyor products.
- We always adhere to improve product quality, positioning and design precision, to ensure that the product is exquisite.
- Our Belt Conveyors are designed with precision and attention to detail.
- The company takes the promotion of Wharf Belt Conveyor preparation level as its own responsibility, and always puts independent technology research and development and product innovation and transformation at an important position in enterprise development.
