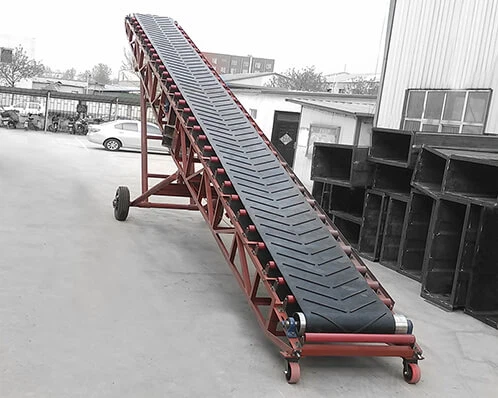

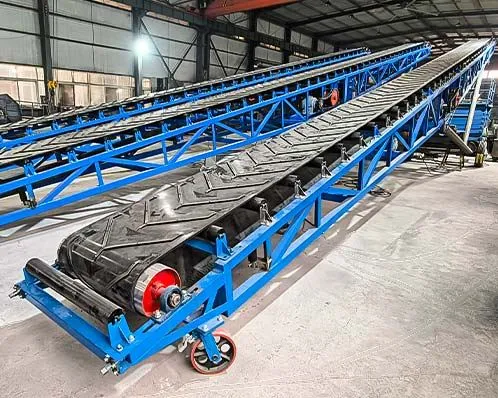

Portable Belt Conveyor

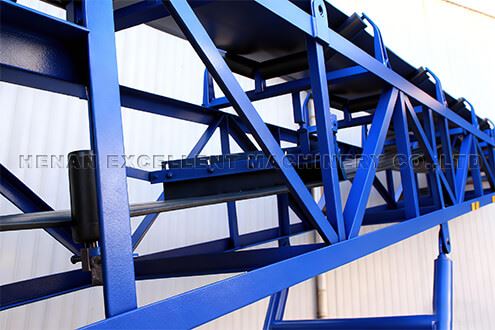

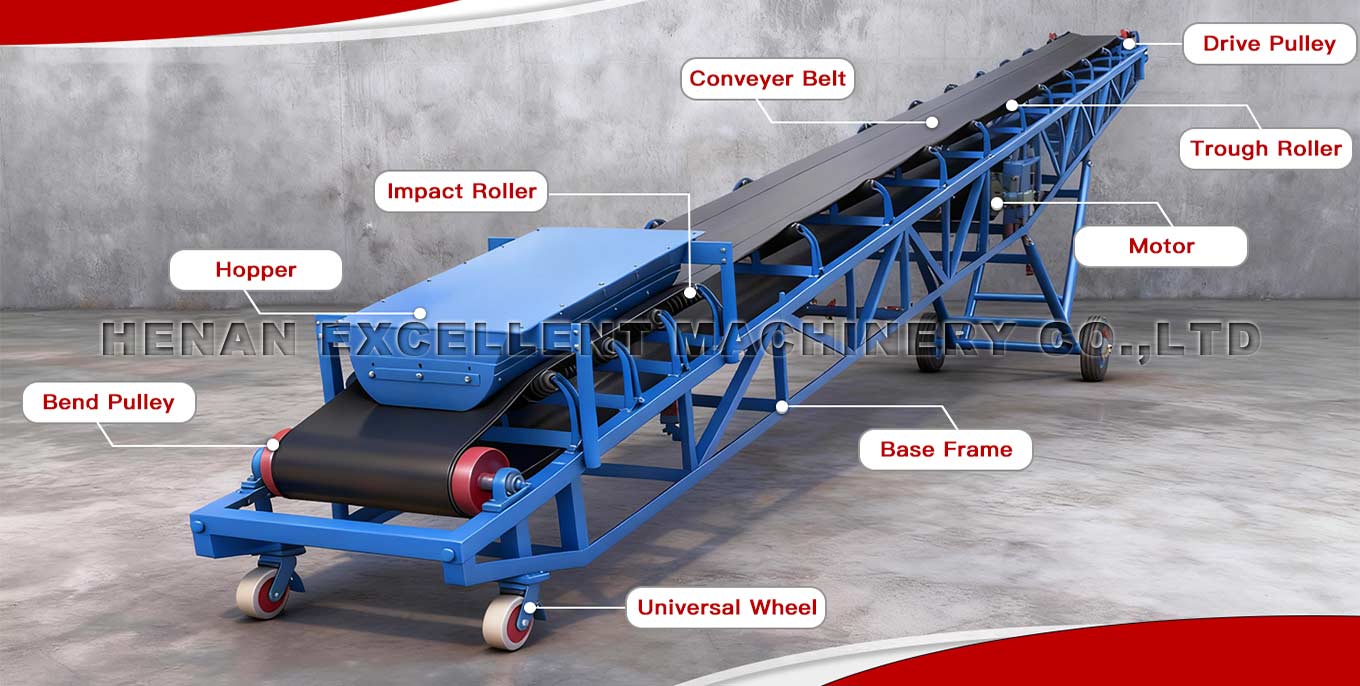

Portable Belt Conveyor is a Belt Conveyor, by the head and tail drum, idler, frame, universal wheel, support wheel, Belt, lifting device Belt sway switch components./nThe portable belt conveyor has the advantages of flexible arrangement, convenient movement, light weight of the fuselage, energy saving and consumption reduction.

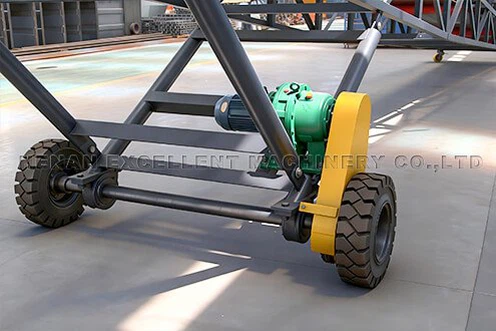

The conveyor is a kind of portable belt conveyor, which is mainly used for the loading of bulk in bungalows.  Grain conveyor is mainly composed of conveying part, steering part and walking part.  It is mainly suitable for the warehousing operation of large and medium-sized grain warehouse.

The portable belt conveyor can be used by a single, or a plurality of the conveyor into a belt conveyor system, which is carried out in tandem.

The portable belt conveyor adopts electric roller transmission, high efficiency, simple structure, adjustable height, convenient use and maintenance, portable leather

The length and lifting height can be customized according to the actual situation of the site.















1. Safe and reliable to use, a wide range of applications, and easy maintenance.

2. Simple structure, easy maintenance, low energy consumption, low cost of use

3. Smooth conveying, no relative movement between the material and the conveyor belt, can avoid the damage to the conveying.

4. Using the electric lifting device, which reduces risk.

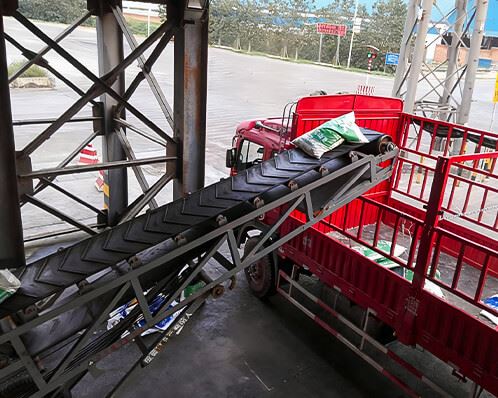

5. Can transport a wide variety of materials, not only can transport a variety of bulk materials, but also can transport a variety of cartons, packaging bags and other single lightweight products, can also be used in large supermarkets at the checkout goods transport, a wide range of uses.

6. Belt conveyor adopts special food-grade conveyor belt, which can meet the requirements of food, pharmaceutical, daily chemical and other industries.

7. Wide range of bulk materials can be handled, including powder, granular, and block materials.

8. Compared with other conveyors, the noise is less, suitable for the quiet working environment.

9. Portable Belt conveyor can be used as a single machine or as a belt machine system with multiple machines

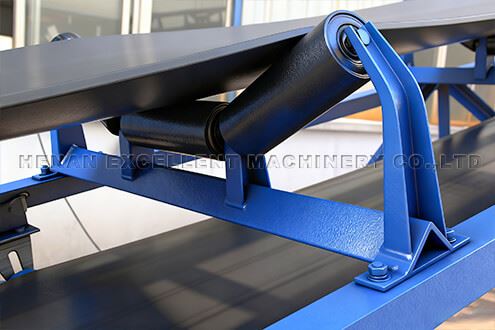

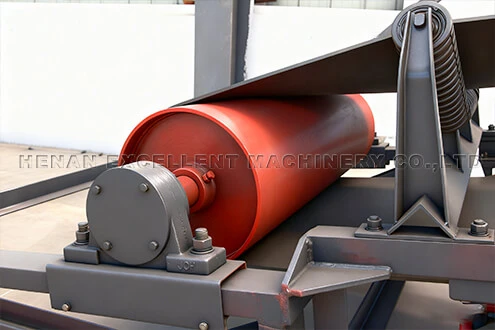

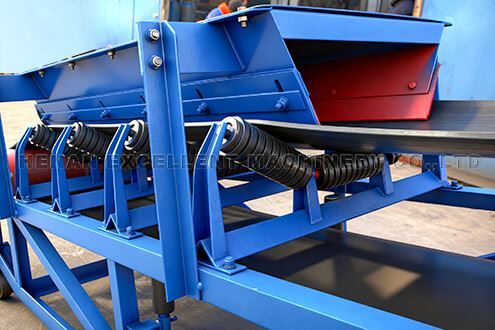

Idlers and pulleys are important parts of the belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.

















EXCT's after-sales service team can quickly respond to the needs of end-users.

EXCT has a complete product and spare parts management system, and an adequate spare parts inventory.

Detect whether the material in the head funnel is too full, when it is too full, the material pressure switch will send a signal. Mounted on the side of the hopper (the head funnel) from which the material cannot be thrown.

The mechanical properties of materials used in welded structures shall not be less than those specified in GB699 for A3.

One or more inspection doors should be set above the shell of the dust collector of the belt machine according to the size of the model for observation and maintenance. Manhole and inspection door should be pressed tightly.

The carbon nano-polymer material repair technology can be completely repaired in the field, and its use effect is far better than the repair welding process. More importantly, the whole repair process will not cause any impact on the material and structure of the shaft itself, safe and reliable. The repair process is not only simple and fast: the wear parts of the surface baking oil, grinding, cleaning and other treatment → with anhydrous ethanol cleaning tooling and brush release agent for standby → blending materials and smear to the parts to be repaired → installation tooling, material curing → disassembly tooling, verify the size → back bearing, complete repair.









1. Conveyor before use to check the running part, belt buckle and bearing device is normal, protective equipment is complete.  The tension of the tape must be adjusted to a suitable degree before starting.

2. The belt conveyor should be started without load.  Material can be fed after normal operation.  No feeding before driving.

3. When several conveyors run in series, they should start from the unloading end in sequence.  After all normal operation, can feed.

4. When the tape deviates in operation, it should be stopped and adjusted. It should not be used reluctantly, so as not to wear the edge and increase the load.

5, the working environment and the temperature of the material shall not be higher than 50℃ and lower than -10℃.

6. No pedestrians or passengers are allowed on the conveyor belt.

7, before parking must stop feeding, such as belt storage material unloading can stop.

8. The motor of the conveyor must be well insulated.  Mobile conveyor cable not disorderly pull and drag.  The motor should be grounded reliably.

9. When the belt slips, it is strictly forbidden to pull the belt by hand to avoid accidents.
