Z Bucket Elevator is in addition to unloading through the unloading device to make the bucket rotating unloading, the rest of the running part regardless of parallel or vertical conveying hopper always feed up (by gravity natural sagging), through the chain drive bucket in the closed shell conveying materials. Horizontal - vertical - horizontal combination of transport. Single point or multi-point feeding can be completed through the unloading device. Fully enclosed, no leakage, no pollution. Suitable for conveying all kinds of powdery materials and granular materials, with non-viscous material as the best. The biggest advantage of this equipment is the form of flexible, because the running resistance is small, so the drive power consumption is low, the material damage rate is basically zero. This machine adopts PLC control and frequency conversion speed regulation to realize intelligent unattended so as to save manpower greatly.
Feature:
1, the Z Bucket Elevator bucket is molded by polypropylene (PP) material, beautiful appearance, not easy to deformation, high and low temperature;
2, its compact structure, small footprint, lifting height and size can be customized according to customer needs;
3, the Z Bucket Elevator use of fully closed structure, no leakage, low damage rate of materials, to transport non-sticky materials is better;
4, Transmission speed adjustable frequency conversion and simple maintenance, easy disassembly and assembly, convenient cleaning.
5, Can realize the material level and vertical height of the rapid ascension.
6. The whole machine is composed of 304 stainless steel and PP plastic, which can be used for conveying materials. Z Bucket Elevator is also called rotary bucket elevator, horizontal - vertical - horizontal combination of transport. Can single point or multi-point feeding, through the unloading device to complete single point or multi-point unloading can transport all kinds of powder materials and granular materials, more suitable for conveying non-viscous materials. It has the characteristics of small occupation area, large lifting height, good sealing performance and no damage to materials. Z Bucket Elevator bucket material modified plastic hopper, carbon steel hopper, stainless steel bucket.

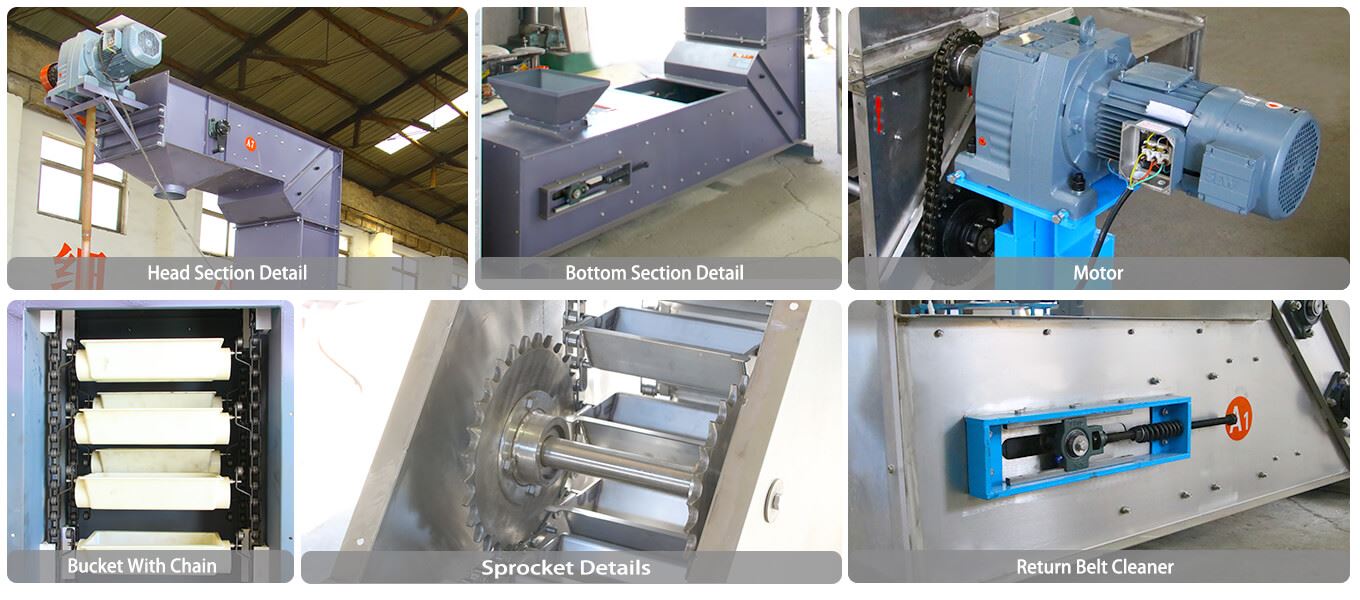

Details:

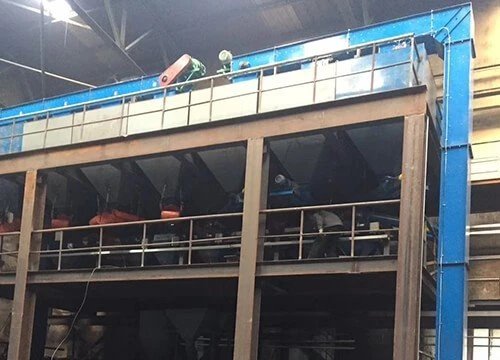

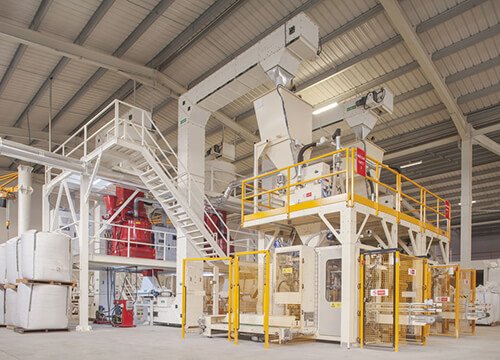

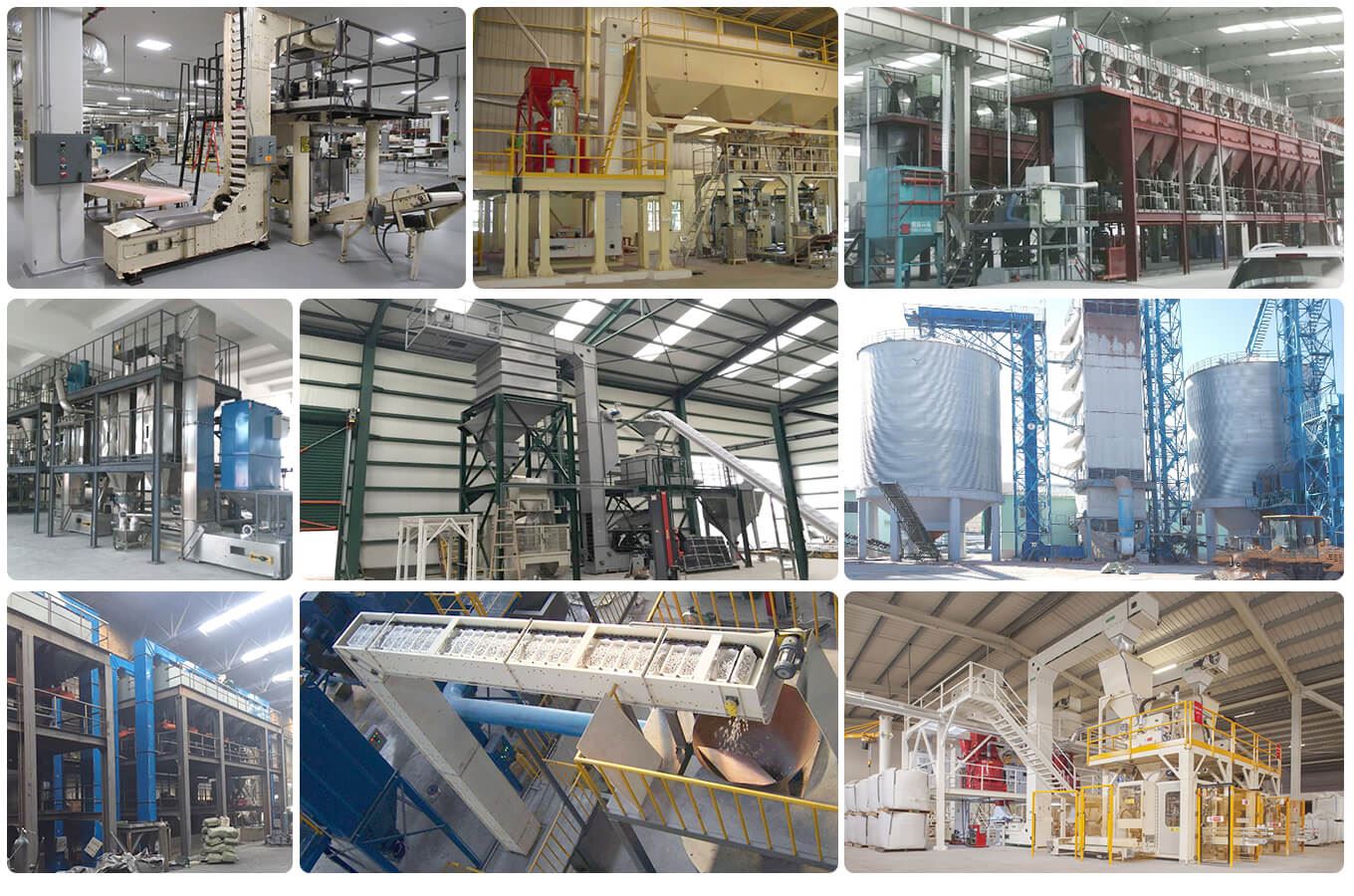

Application:
Package & Delivery:

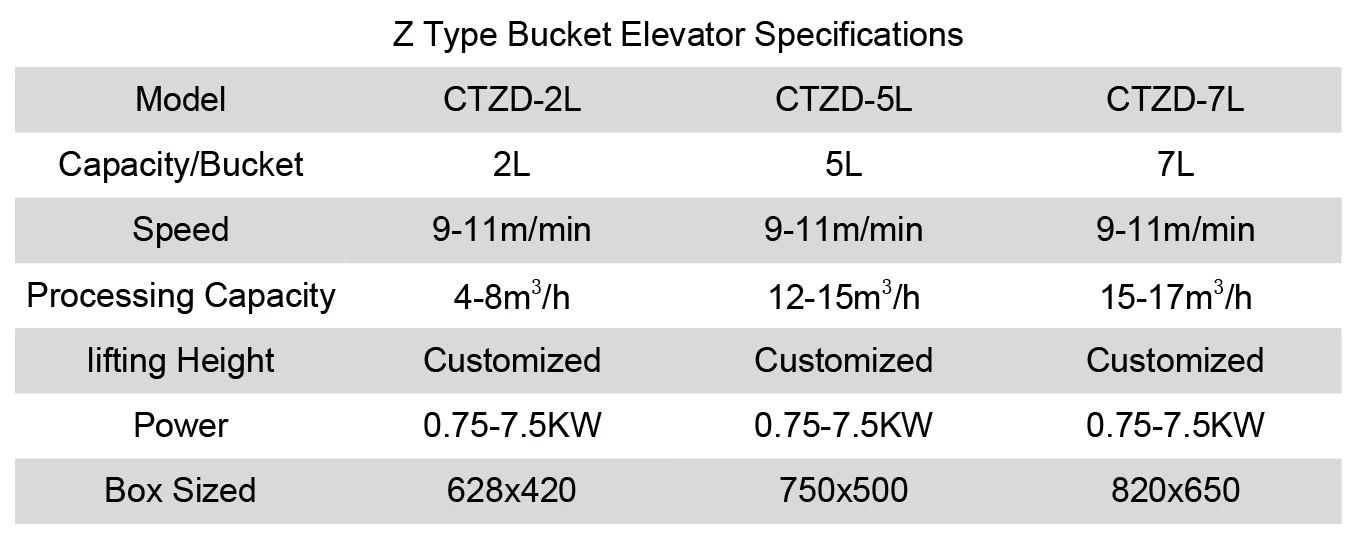

Specification:
Z Bucket Elevator type selection skills and matters needing attention:
Z Bucket Elevator is mainly used for vertical lifting block, granular, powdery temperature pressure not more than 250℃ material, its model can be divided into many kinds, but how to choose the right vertical bucket elevator model number can, the following small series will be introduced in detail for you.
1. Shape and nature of materials
Shape and properties of different materials, the choice of Z Bucket Elevator model number is different, such as the material is powder, granular or small block, water content, whether to have adsorption, etc., the material will affect the choice of the ways of bucket elevator unloading, powder material choose centrifugal unloading, block material choose gravity discharge, And different unloading methods and affect the choice of vertical bucket elevator hopper, centrifugal unloading more shallow or arc bucket, gravity unloading is the use of deep bucket.
2. The proportion of materials
Z Bucket Elevator is generally mainly aimed at the bulk proportion of the material in the following 1.6, if the proportion is too large you need to calculate the traction and transmission part of the tensile strength.
3. throughput
The throughput of Z Bucket Elevator per unit time determines the choice of its bucket speed, the greater the throughput, the greater the running speed of the equipment, for different throughput of the equipment, the size of the choice is not the same, the larger the model, the greater the throughput.
4. lifting height
According to the customer's actual gay love situation, materials need to improve the height of different materials to determine the lifting height, and then determine the total height of the equipment, that is, the material lifting height plus the height of the head and the base.
