Sizer Mining are specifically engineered to handle challenging materials that are often problematic for traditional primary crushers, such as Jaws, Gyratories, and Impactors.
These crushers are highly effective in processing clay-ridden, sticky, and abrasive materials, which are common in many mining operations, including coal, limestone, and ore mining.
Unlike other crushers, Sizer Mining excel in breaking down tough and sticky substances without excessive wear, reducing operational downtime and improving overall efficiency.
How Sizer Mining Work?
Sizer Mining crusher utilizes the shear force and tensile force between the toothed rollers to break the materials.
Sizer Mining has two inwardly rotating toothed rollers with replaceable crushing teeth. The most suitable feeding method is by apron feeder or screening equipment, which conveys the material at a uniform rate and distributes it evenly over the toothed rollers.
1.The mineral is gripped by the leading faces of opposed rotor teeth,and to be subjected to stress under the concentrated load of the rotor teeth.The stress causes mineral to be break along its natural texture.
2.Mineral is broken in tension by being subjected to a three point loading, which between the front tooth faces on one rotor and rear tooth faces on the other rotor.
3.For the mineral that has not been fully broken, through the rotor teeth and fixed teeth of the breaker bar can be further broken to ensure the 3d dimension requirements of the discharging material.
Sizer Mining Details
Drive Device

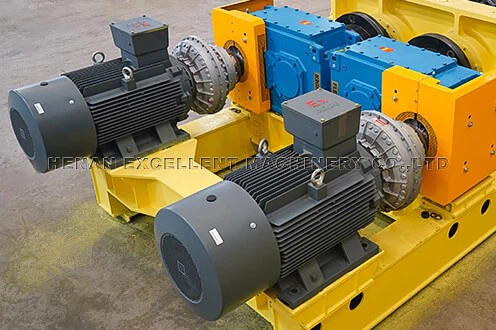

Two independent drive units, each drive units includes: motor, high-speed end coupling, gear box, low-speed end coupling. The high-speed end coupling uses a hydraulic coupling to connect the motor to the gearbox. The gearbox adopts parallel shaft helical gear structure to meet the requirements of power transmission, speed ratio and torque under extreme load of the Coal Mineral Sizer.
Toothed Roller

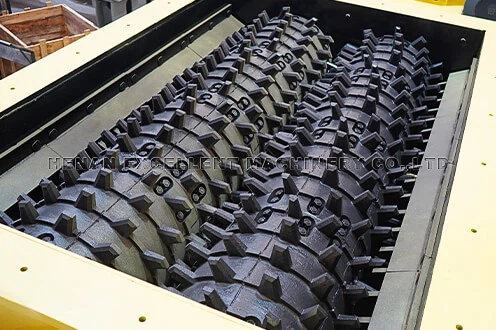

Toothed roller can be divided into Primary Sizer Mining Toothed Roller and Secondary Sizer Mining Toothed Roller. Easy installation and disassembly of the Sizer Mining tooth head, which can significantly reduce the maintenance time and lower the maintenance cost.
Housing
Sizer Mining housing is designed as a rigid host frame, and the housing is made of cast steel and connected by high strength bolts. Wear-resistant plates are installed around the inside of the housing, and comb shaped wear plates are installed on both sides of the housing to prevent excessive material from adhering to the crusher tooth rollers.
Synchromesh Gear

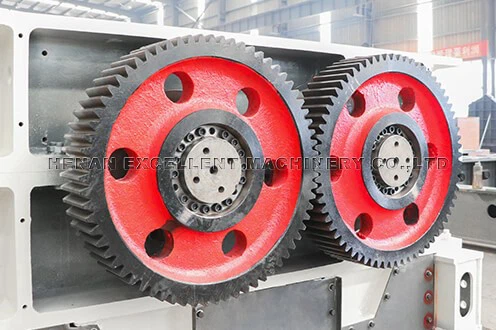

The primary Sizer Mining is equipped with synchronizing gears at the end of the toothed rolls. Synchronous gears and roll shafts are connected by the expansion sleeve, which can guarantee the relative stability of the biting position of the crushing teeth on the double rolls, and can force the breaking of large pieces of materials, making the material discharge size uniform.
Lubrication Device
Sizer Mining adopts centralized automatic lubrication system, it can be more oil filling times, oil filling time Settings, reliable to ensure the effective and reliable lubrication of each part. Automatic control of oil supply interval time, oil supply pressure is large, oil supply speed is fast, the bearing is fully lubricated effectively, so that the core part of the teeth roller bearing to achieve good lubrication, greatly extend the service life of the teeth roller.
Running Gear
The tramming device is installed at the bottom of the Sizer Mining and driven by a motor to move along a track to the maintenance access, facilitating easy maintenance and avoiding disassembly. This design allows the equipment to move smoothly between the operating and maintenance areas, reducing manual labor and minimizing downtime during maintenance, thus improving operational efficiency.
Sizers Toothed Roller
Toothed roller can be divided into Primary Sizer Mining Toothed Roller and Secondary Sizer Mining Toothed Roller. Easy installation and disassembly of the Sizer Mining tooth head, which can significantly reduce the maintenance time and lower the maintenance cost.
Primary Sizers Toothed Roller
The feeding granularity of primary sizers is less than or equal to 1500mm and the discharging granularity is less than 300mm. The arrangement of crushing tooth shapes and tooth shapes are arranged by special spiral tooth shapes. The crushing teeth are cast from abrasion resistant and impact resistant alloy steel. Primary Sizer toothed roller has a unique and novel tooth design structure with deep spiral distribution for high productivity. The passing cavities are formed between the two toothed rollers and the side plate body for screening and crushing materials respectively.
Secondary Sizers Toothed Roller
The Feeding size of Secondary sizer less than or equal to 300 mm (a small amount of 400mm is allowed), and the discharging granularity is less than 50mm. The connection form of the teeth plate adopts a single dovetail groove, which is complementary to the bevel of the insert clamping block, and then the crushing tooth plate is installed on the fixing seat of the teeth plate, formed a surface to surface connection, which is tightened and pressed by high-strength bolts. The function of the bolt becomes a fixed insert clamping block, avoiding the problem of the fixed lock bolt breaking, teeth plate falling off or difficult to disassemble and replace.
Sizer Mining Features
The handling capacity of primary sizer can be reached 10,000 t/h, and the secondary sizer range covers up to 4,000 t/h.
Sizer Mining matching PLC control system can realize automatic control start and close, overload protection and other functions.
Integrated moving unit allows the sizer to be moved into maintenance position quickly for easy maintenance and reduced downtime.
Sizer Mining include overload protection device, preventing the equipment from sustaining damage by unbreakable material.
Sizer Mining's unique tooth alloy formula is sufficient to handle material from soft coal (30 MPa) to hard granite (250MPa).
Sizer Mining Brochure Download
Manufacturing Facilities
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
Strict Quality Control
At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.
EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.
Sizer Mining Cases

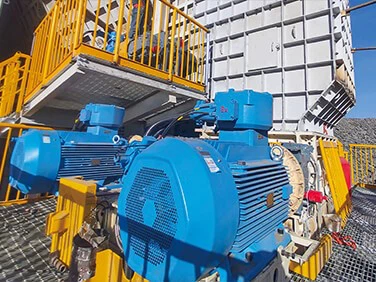

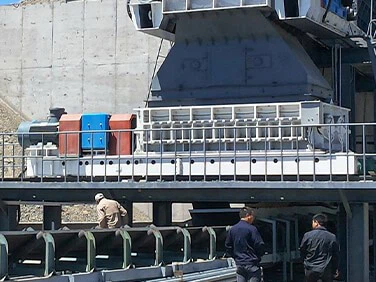

Our Sizer Mining covers more than 20 countries and regions all over the world. They are mainly used for crushing raw coal, coal gangue, lignite, coke, topsoil and other materials, and are used in coal-related industries such as thermal power plants, coal mining, coal washing plants and so on.
General Technical Specifications
Sizer Mining are customized for each application material to provide the best configuration and meet all your requirements.engineers.
|
Primary Coal Mineral Sizers Technical Specifications |
||||
|
Model |
2PLF800 |
2PLF1000 |
2PLF1200 |
2PLF1500 |
|
Teeth Roller Dia (mm) |
800 |
1000 |
1200 |
1400 |
|
Roll length (mm) |
1500-2500 |
1500-3000 |
1500-3000 |
2000-3500 |
|
Max feed size (mm) |
800 |
1000 |
1200 |
1500 |
|
Output size (mm) |
≤300 |
≤300 |
≤300 |
≤300 |
|
Capacity (t/h) |
≤2000 |
≤3500 |
≤6000 |
≤10000 |
|
Secondary Coal Mineral Sizers Technical Specifications |
||||
|
Model |
2PLS600 |
2PLS800 |
2PLS1000 |
2PLS1200 |
|
Teeth Roller Dia ( mm ) |
600 |
800 |
1000 |
1200 |
|
Roll length(mm) |
1000-2500 |
1500-3000 |
2000-3500 |
2000-4000 |
|
Max feed size (mm) |
200 |
300 |
350 |
400 |
|
Output size (mm) |
50-80 |
50-100 |
50-120 |
50-140 |
|
Capacity ( t/h ) |
250-800 |
500-2000 |
600-3000 |
800-4000 |
Note: Tooth configurations vary depending on the material type, infeed size and discharge size.
Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.
Selection Instruction
1. Which material to be crushed:______
2. Handling capacity:______t/h.
3. Bulk material density: ______t/m3
4. The material compressive strength:______Mpa
5. The material HGI (hardgrove grindability index) range:
6. Material particle distribution percentage?
7. Max. grain size of the feeding material: ______mm
8. What is the grain size of the finished product after crushing?
9. What equipment is used to feed the material into the sizer?
10. What equipment is used to discharge the material from the sizer?
11. As we know,the sizer should form a system with other equipment, do you have preliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
Sizer Mining Spare Parts
Primary Sizer Toothed Roller
Secondary Sizer Toothed Roller
Side Toothed Plate
Bearings
Sizer Mining Service
Project Feasibility Report
Site Design and Planning
Model Selection and Proposal
Model Selection Calculation
3D Modeling and Drawings
Civil Design
Installation and Commissioning
Remote Diagnosis
