Spin Vibration Sieve

The spin vibration sieve is equipped with a vertical vibration motor as the vibration source to provide power for material classification. When it works, the material jumps on the surface of the screen in a three-dimensional motion path. Vertical vibration motors have eccentric blocks at both ends that can be used to adjust the path of material movement. The outlet can be arbitrarily changed 360° in the circumferential direction.

Product Details:

Feature:

1. Fully enclosed, no dust and spillage, continuous operation.

2. High screening precision, high efficiency, and large capacity.

3. The direction of the outlet can be arbitrarily changed.

4. Fully automated, continuous operation, easy to maintain.

5. High precision screening machinery, used for grading, filtering, impurity removal, etc.

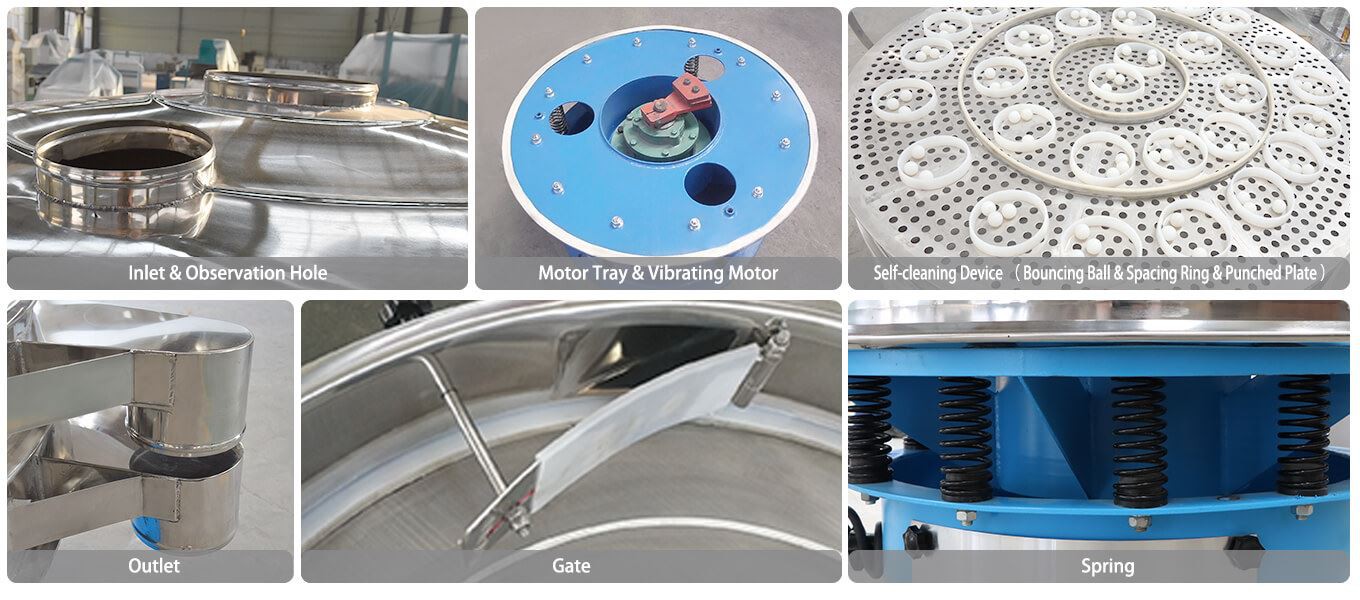

Structure:

Cases & Application:

Food industry: sugar powder, starch, salt, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, tea, etc.

Chemical industry: Resins, coatings, industrial chemicals, cosmetics, paints, etc.

Metallurgical powder industry: Aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.

Other industries: Waste oil, wastewater, dyeing, and finishing wastewater, paper making, additives, activated carbon, Chinese medicine powder, granule pills, pellets, etc.

The spin vibration sieve are used in a wide range of applications and are not limited to the above industries.

Why Choose Us:

Experienced engineer team provides scientific and reasonable feeder technology solutions for each end-user.

Excellent tooling, skilled technical workers, and more than 30 years of production experience ensuring quality.

EXCT's after-sales service team can quickly respond to the needs of end-users.

EXCT has a complete product and spare parts management system, and an adequate spare parts inventory.

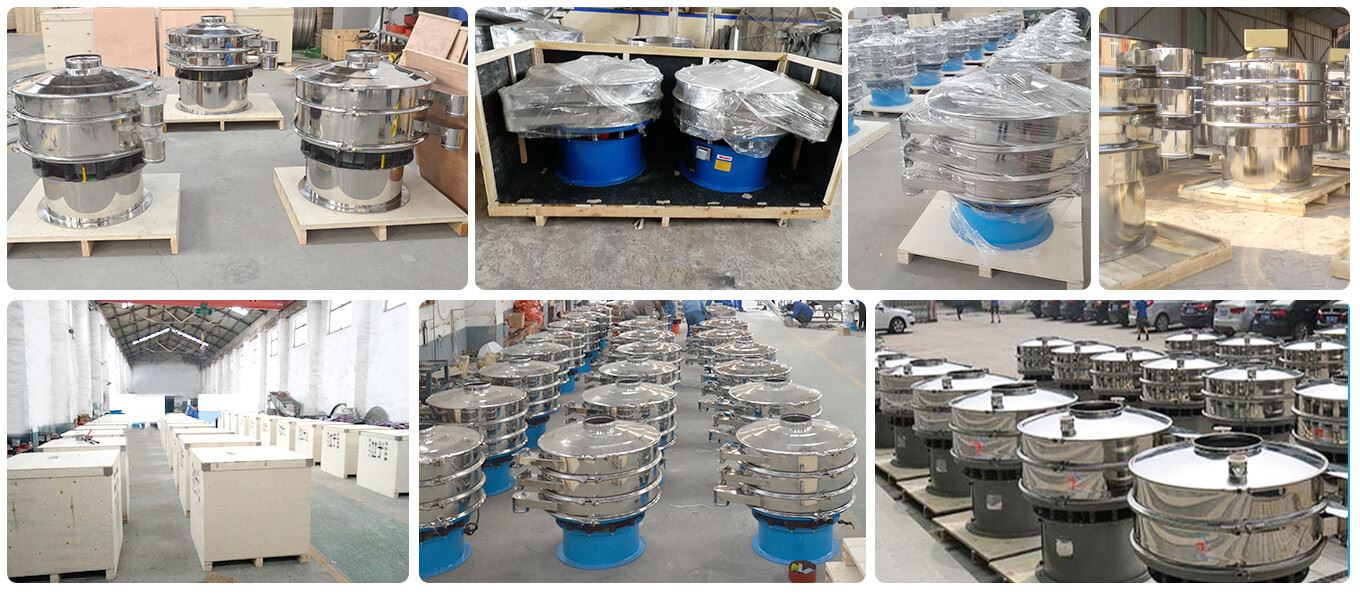

Packag ＆Delivery:

General Technical Parameter:

Model	A	B	C	D	E	F	H	I	1 deck height （mm）	2 deck height （mm）	3 deck height （mm）	Vibarion motor （kw）
XZ600	530	430	246	600	100	391	70	415	785	910	1040	0.25
XZ800	680	580	246	800	125	514	80	430	855	1005	1155	0.55
XZ1000	800	700	246	1000	150	615	95	430	865	1015	1065	1.1
XZ1200	975	855	400	1200	180	717	100	550	1020	1170	1320	1.1
XZ1500	1190	1050	400	1500	180	866	116	545	1090	1270	1440	1.5
XZ1800	1580	1440	400	1800	200	1070	150	675	1230	1400	1570	3
XZ2000	1800	1640	400	2000	200	1210	190	685	1280	1445	1615	3

The spin vibration sieve Selection Instruction:

1. Which material to be screened:______

2. Handling capacity:______t/h.

3. Bulk material density: ______t/m³

4. Max. Granule size of the material: ______mm

5. Layer number: ______.

6. Mesh size of each layer: ______mm

7. What equipment is used to feed the material into the vibratory separator:______

8. What equipment is used to discharge the material from the vibratory separator :______

9. Working power supply: ______v ______hz

10. Quantity:______

11. Does the vibratory separator work alone or with other equipment to form a system? If forming a system, do you have reliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
