With its advantages of strong sorting ability, high-cost performance, strong adaptability to working conditions, convenient replacement of sieve plate, and easy maintenance, the MSW Trommel Screen is an important piece of equipment in the comprehensive treatment line of domestic garbage.
MSW Trommel Screen Working environment: contact with acid, alkali, oil, leachate, and corrosive materials, dust, easy to wear and other conditions.
Moreover, the drum adopts a 16Mn or 16MnMoV steel plate rolling system, rotating part of the structure for thick wall ring whose shape tolerance, and running conditions, after special equipment machining, can ensure the use of the function.
The drum runs in lines with the guide sheet, and the drum runs in a balanced manner, without collision and friction with other parts, and the radial runout is ≤0.8mm; Axial series movement ≤1.0mm to ensure the coaxiality and cylindricity of the rotating body keel and drum.
After debugging, the rotating body rotates smoothly, with stable conveying speed and low noise(≤85dB). Its gear meshing is good and its feeding and unloading devices work well without material leakage and falling. The connection is firm as the welding gap is even and smooth.
Sieve plate adopts high-quality structural steel plate, the thickness of 10 mm, the aperture can be adjusted according to the material situation and process requirements, after anti-corrosion strengthening treatment, acid and alkali resistance, corrosion resistance.
The frame is welded with steel as a whole, and the sieve plate and drum frame are connected with a bolt connection structure, which has the advantages of long life and good stiffness. According to the process requirements to determine the shape and aperture of the screen, at the same time with good interchangeability.
The overall equipment acid and alkali resistance, corrosion resistance, keel, and other key parts are surface strengthening treatment.
The wheel core of the load-bearing wheel is made of high-strength and high-quality structural steel, with polyester composite material injected outside, which is wear-resistant, pressure-resistant, and acid-resistant. Bearing roller shaft does not jump, and wear and corrosion resistance; The driving unit is the motor reducer that directly drives the front and rear supporting wheels, which has a smooth start, large driving force, large friction, impact resistance, and long life.
Feature:
1. Various types of screen mesh to meet the screening requirements for different materials
2. Screen mesh adopts a modular design, which is fixed to frame with bolts, so it is easy to replace.
3. Widely used in various industries, suitable for screening all kinds of materials, such as compost, coal, waste, sand, gravel.
4. Installing an enclosed cover entirely the screen drum, so that no material leakage, no dust pollution, improve working condition for operators as well.
5. Automatic cleansing brush at the pinnacle of the MSW trommel screen to lessen the blockage rate of the screen mesh.

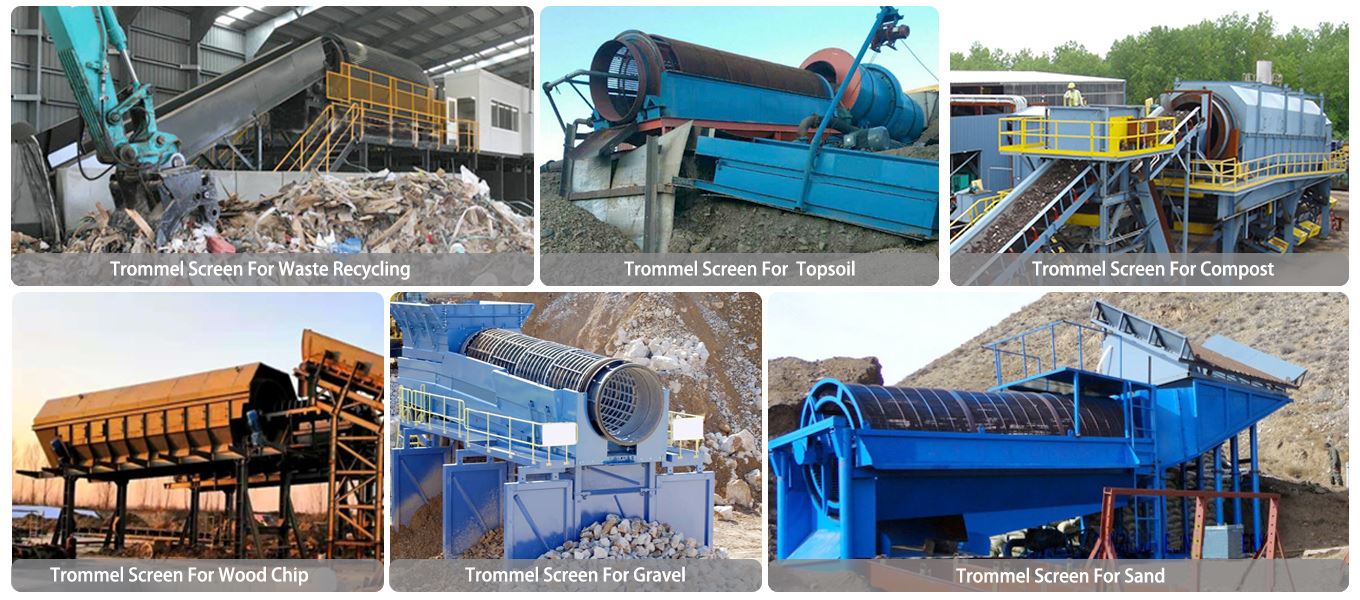

Application:
Why Choose Us:
After the device is introduced to the customer's factory, The professional technicians of EXCT will guide the set up of the equipment, including on-site infrastructure confirmation, installation drawing confirmation, installation of required equipment and tools, and so on to ensure the smooth setup of the equipment.
In-depth market research, grasp the surrounding market dynamics of customers, for customers to evaluate the investment plan. Assist customers to make decisions and provide project feasibility reports.
Over 2000 successful cases in 60 countries and regions around the world.

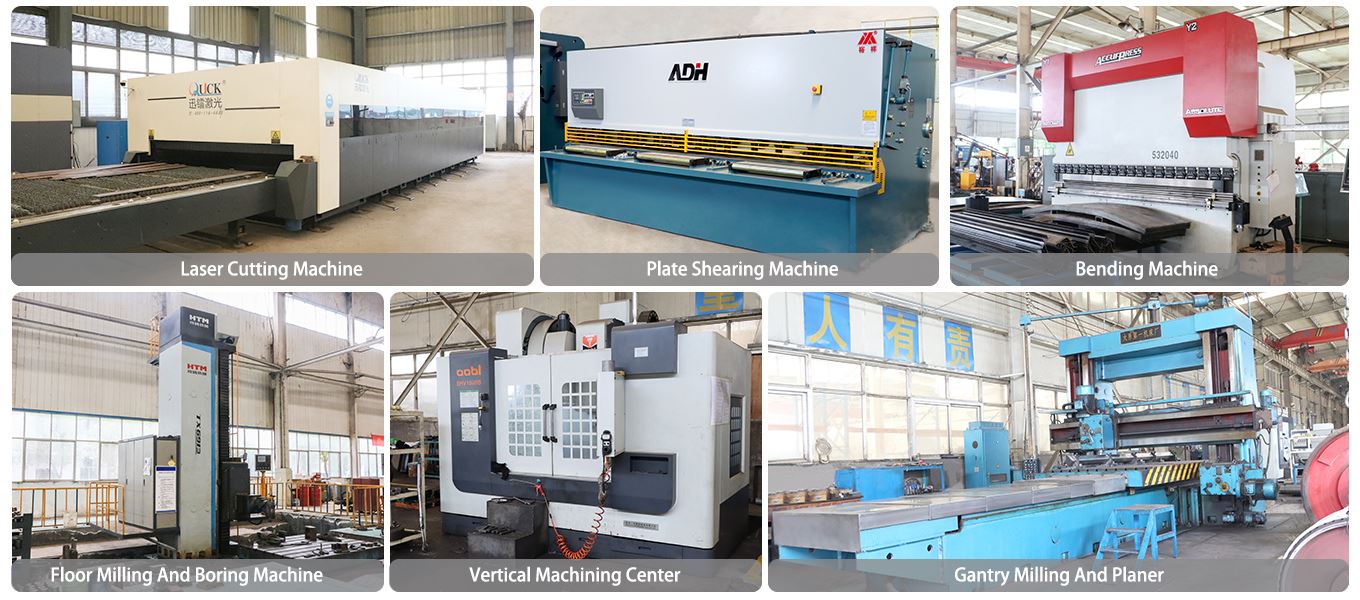

Manufacturing Facilities:

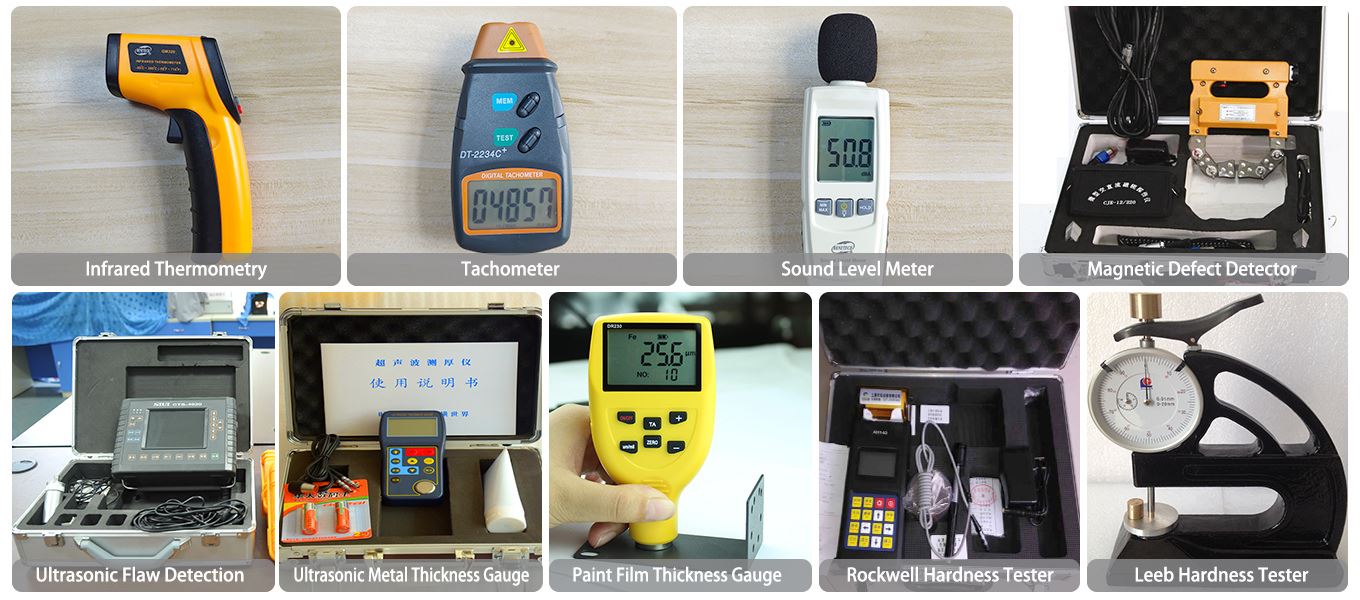

Strict Quality Control:
Oversea:
Under the background of economic globalization, EXCT is committed to providing customers with world-class products and quality services, striving to optimize customer value and effectiveness, and creating a bright future with high quality.

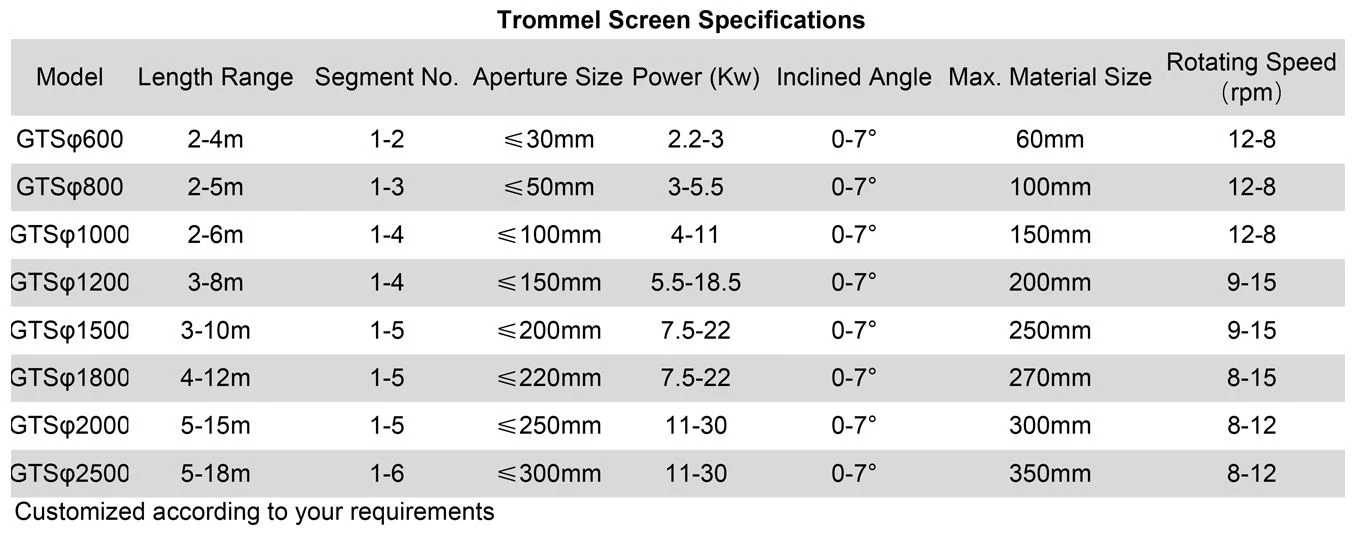

Specification:
Why choose us?
- Our Trommel Screens are manufactured in-house, giving us complete control over quality and delivery.
- Our staff members actively integrate into the team and are willing to accept help from colleagues and cooperate with the team to complete their work.
- We are committed to maintaining the highest standards of quality and safety in the manufacture of our Trommel Screen products.
- We firmly believe that only by providing high-quality products, reasonable, competitive prices and good service, can we achieve win-win situation with our customers, so that our company and customers can grow together.
- We offer a comprehensive range of Trommel Screen products and accessories to ensure that you get what you need.
- Since its establishment, the company has been adhering to the business philosophy of "customer first, honesty based", and has established long-term cooperative relations with customers around the world with high-quality products and services and won a good reputation.
- As a trusted supplier and manufacturer of Trommel Screens, we are committed to providing excellent customer service and support.
- Our MSW Trommel Screen uses raw materials provided by well-known suppliers, and the entire production process of our products is under the strict supervision of the manufacturer. We have eliminated all unstable factors to ensure stable product quality. In addition, our products have passed a variety of quality system certifications, allowing you to export worry-free.
- Our Trommel Screens are widely used in mining, construction, waste management, and other industries.
- We are devoted to provide professional purification technology and solutions for you!
