In industries such as coal, mining and building materials, the Mineral Sizer is the core equipment for the coarse and medium crushing processes. The stability of your equipment and the efficiency of crushing largely depend on the drive device. Next, from a professional perspective, I will systematically disassemble and analyze the core components of the mineral sizer's drive device.
Mineral Sizer Drive Device
The overall structure of the mineral sizer drive device mainly consists of an explosion-proof motor, a torque-limiting hydraulic coupling, a gearbox, and a coupling. It is a complete power transmission system designed to provide rotational power for the crushing tooth roller, ensure synchronous operation of the two rollers, and achieve overload protection.
Its core functions are:
- Provide stable power to ensure continuous crushing
- Transmit torque and control operating speed
- Achieve synchronous opposite rotation of the two tooth rollers
- Buffer impact and serve as a key component for overload protection
- Reduce failure probability and extend equipment lifespan

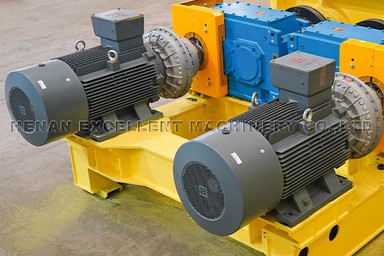

Roll Crusher motor adopts a special explosion-proof motor for mining, with the explosion-proof mark EXD I, the ICE-34 standard, the protection level IP55, the insulation level F, the stator winding uses high-quality copper core, with a large temperature rise margin and long life, the cooling method is IC411 (air cooling), and the motor is a continuous working system SI. It has the characteristics of high efficiency, novel structure, beautiful appearance, low noise, and low vibration.

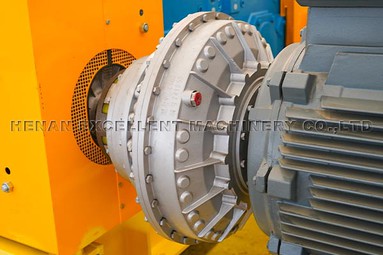

Fluid Coupling
YOX series torque-limited hydraulic coupling can protect the motor and improve the motor's starting ability, shorten the motor starting time, and reduce the average current during the starting process. Reduce the shock and vibration of starting and prevent the motor from overloading. In a multi-machine drive system, it can balance the load of each motor. The structure is simple and reliable, and no special maintenance is required.

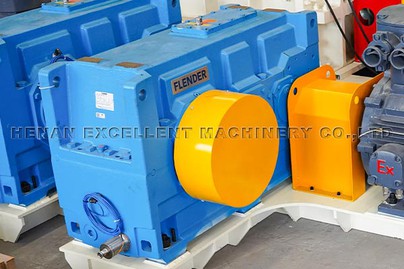

The gearbox adopts the imported brand gearbox of Flender, with modular design, which can be combined according to customer requirements. The gearbox adopts involute planetary gear drive, and reasonably utilizes internal and external meshing and power splitting.
The gears of this machine are all carburized and quenched to obtain a high-hardness and wear-resistant surface. After heat treatment, all gears are ground to reduce noise and improve the efficiency and service life of the whole machine.
The gearbox has the characteristics of light weight, small size, wide drive ratio range, high efficiency, stable operation, low noise and strong adaptability. The gearbox is widely used in metallurgy, mining, lifting and transportation, electricity, energy, construction and building materials, light industry, transportation and other industrial sectors.

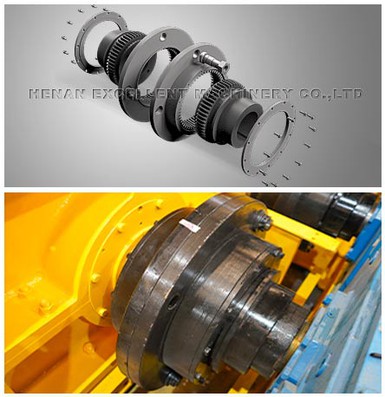

Coupling
Our company uses a self-aligning drum gear coupling that is independently developed. It has a mechanical protective function with safety pins (the safety pins are specially designed and undergo quenching heat treatment. Different safety pins are provided for different motor power and gearbox speed ratios to achieve true safety protection). It has now adopted a modular design, featuring axial, radial, and angular self-aligning performance. It has strong versatility, is safe and reliable to use, and operates smoothly. Installation and disassembly, as well as daily maintenance, are convenient.
The selection of materials and processing techniques strictly follow the principle of "excellence in every detail", and are precisely manufactured.
How To Select A Reliable Drive Device?
- 1. Match the motor power and reducer model to your crushing capacity.
2. Select the overload protection level according to the hardness of your material.
3. Configure the drive unit with explosion-proof, low-temperature resistant, and dustproof features according to your site environment.
4. Prioritize drive systems with intelligent monitoring.
5. Focus on component versatility to reduce your later maintenance costs.
The drive device is the true "power core" of the Mineral Sizer Crusher.
The four core components - motor, hydraulic coupling, gearbox, and coupling - are all indispensable for you.
A stable and reliable drive system can significantly enhance your crushing efficiency, reduce failure rates, and extend the equipment's lifespan.
Reasonable selection and proper maintenance are the keys to the long-term stable operation of the crushing station.
If you want to gain a deeper understanding of the structure, component selection, and troubleshooting of the Mineral Sizer drive device, or if you need to customize a drive system solution based on your production capacity, materials, and on-site conditions, please feel free to contact us at any time.
We have many years of experience in mineral sizer technology and can provide you with professional technical solutions, system optimization suggestions, and full-cycle operation guidance, ensuring that your crushing equipment operates more stably, with higher efficiency, and longer lifespan.
