The portable dirt conveyor is a convenient-to-use, highly efficient and highly mobile continuous conveying and loading/unloading equipment. It can be divided into two types: the lifting type and the non-lifting type. The operation of the conveyor belt is driven by electric rollers, and the lifting and operation of the entire machine are not motorized.
The portable dirt conveyor is mainly applicable to loading and unloading sites in construction sites, mines, factories, quarries, stations, docks, warehouses, coal mine sites, etc., where frequent exchanges occur. It is an ideal transportation equipment for short-distance transportation and loading/unloading of loose materials or packaged items.

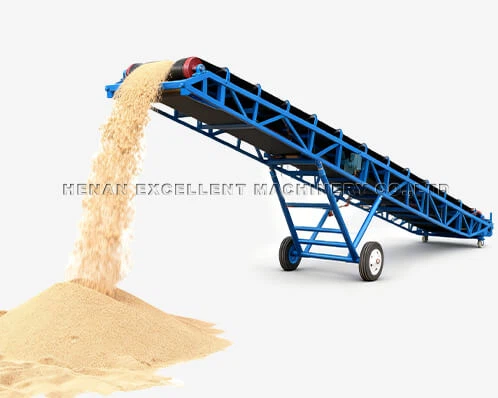

It is made of steel pipe structure, lightweight and beautiful, with good mobility. The rotating device is an electric roller, and it is equipped with two types of walking wheels: pneumatic tires and steel wheels. The machine length is over 10 meters and the inclination angle can be adjusted.

Portable Dirt Conveyor Working Principle

Our portable dirt conveyor achieves material transportation through the coordinated transmission of the belt and the rollers:

The motor-driven active pulley rotates, using friction to propel the conveyor belt in a continuous cyclical motion. When material falls onto the conveyor belt from the inlet, it moves forward with the belt until it reaches the outlet for unloading.

The equipment is equipped with bend pulleys to change the conveyor belt's direction of travel. Idler rollers support the conveyor belt and material throughout the entire process, reducing running resistance and ensuring stable belt tension. Simultaneously, adjustable hydraulic outriggers or a mechanical leveling system assist in adjusting the machine's angle. Combined with an adjustable conveyor tilt angle of 0°-20°, it can perform both horizontal conveying and material lifting at different heights.

Universal wheels (high-strength rubber tires/all-steel wheels) give the equipment mobility. After relocation, simple leveling is all that's needed to restart operations. The overall transmission system, combined with a compact integrated frame design, ensures continuous and stable material conveying even in mobile environments.

Portable Sand Conveyor Structure

Conveyor Pulley

Roller / Idler

Frame Contruction

Lifting Drive Unit

Lifting frive device

Return Belt Cleaner

It adopts high-precision hard-faced gears, which have a high load-bearing capacity (2-3 times higher than soft-faced gears).

It can handle a large amount of materials. The belt uses a zigzag-shaped rubber belt, and when it is inclined upward for transportation, the materials will not slip on the belt.

It has a long service life, a compact structure, a small floor space, and a light weight.

It has high efficiency, is easy to use, has good mobility, and is a continuous conveying and loading/unloading equipment mainly used in situations where the loading and unloading locations frequently change.

The structure is simple, maintenance is convenient, and it is equipped with universal wheels at the bottom, making it mobile and flexible.

Idlers and pulleys are important parts of belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.

Portable Dirt Conveyor Package Delivery

Portable Dirt Conveyor Application

The portable dirt conveyor not only can transport soil, but is also suitable for various loading and unloading sites such as construction sites, mines, factories, quarries, stations, docks, warehouses, and coal mines where items need to be frequently transferred. By using the continuous or intermittent movement of its conveyor belt, it can transport items weighing up to 100KG or powder and granular items. The operation is smooth and it can be used for uphill and downhill transportation.

Portable Dirt Conveyor Selection instructions

For the bulk material

Material to be processed: ______
Bulk density:______t/m3
Handling capacity: ______t/h
Material temperature: °C
Material is corrosive or not:______Ps. Yes or No
Working power supply: ______V ______HZ
Whether the conveying height can be adjusted :______(Ps. Yes or No)
If it can not be adjusted, please tell us the lifting height(vertical height from ground to loading point)______ m;
If it can be adjusted, please give us the min lifting height ______m
and the max lifting height______m
Max. granule size of the feeding material: ______mm
Max. Granule's percentage in whole material:______%
Upstream equipment (using for feed the material):______
Downstream equipment (using for discharge the material):______
Quantity:______

For the bagged material

Number of conveyed bags per hour:_____
Weight of full-load bag:______kg
Whether the conveying height can be adjusted :______(Ps.Yes or No)
If it can not be adjusted, please tell us the lifting height :______m
If it can be adjusted, please give us the min lifting height: ______m and the max lifting height:______m
Please refer to the following picture and provide the relevant size of the full-load bag:L______m, W______m, H______m
Working power supply: ______V______HZ
Quantity :______
( If you can provide us the quantity, we can give you the more suitable transportation solutions to save you costs )

Portable Dirt Conveyor Maintenance Items

①. Try to avoid working in humid environments and during rainy days to prevent the machine body and components from rusting and being damaged due to prolonged contact with water.
②. Regularly check the direction of the conveyor belt to ensure its smooth running and avoid unnecessary losses caused by the conveyor belt deviating.
③. Regularly inspect the fasteners of the machine body to ensure the good condition of the bolts and tensioning devices, add lubricating oil in time to ensure the lubrication of the bearings, regularly inspect the idlers and other parts, replace damaged components, and ensure the normal operation of the belt conveyor.
