Whether you need a radial, telescopic, or mobile track-mounted stacker, our systems provide flexible configuration to seamlessly integrate with your existing crushing and screening equipment.
Stacking Conveyor Basic Parameters
|
Technical Feature：
|
Specification Range
|
|
Capacity：
|
100 – 3,000+ TPH (Tons Per Hour)
|
|
Belt Width
|
650 mm – 1,600 mm (Customizable)
|
|
Conveyor Length：
|
15 m – 60+ m
|
|
Mobility Type：
|
Fixed / Radial Wheeled / Tracked
|
|
Drive System：
|
Electric Motor / Diesel Hydraulic / Hybrid
|
|
Applicable Materials：
|
Aggregate, Iron Ore, Coal, Sand, Limestone, Slag
|
Why Choose a Stacker Conveyor?
Maximized Stockpile Capacity
Features a wide rotation/radial sweep and adjustable discharge height to optimize stockpile footprint and increase effective storage volume by up to 30%.
Product Customisation Services
Controls drop heights during operation to preserve material quality, making it ideal for high-specification aggregate, coal, and mineral handling.
Heavy-Duty & Durable Construction
Built with high-tensile structural steel frames, heavy-duty rollers, and premium wear-resistant conveyor belts to withstand harsh working environments.
Flexible Mobility Options
Available in stationary, towable (wheeled), and self-propelled tracked designs for quick site movement and rapid setup.
High Operational Efficiency
Equipped with energy-efficient drive units (electric, diesel, or hybrid) to reduce fuel consumption and maintain continuous, low-maintenance throughput.
Intelligent System Integration
Our stacker conveyors can be integrated with crushers, screens, feeders and overland conveyors to create efficient automated bulk material handling solutions.
Stacking Conveyor Type

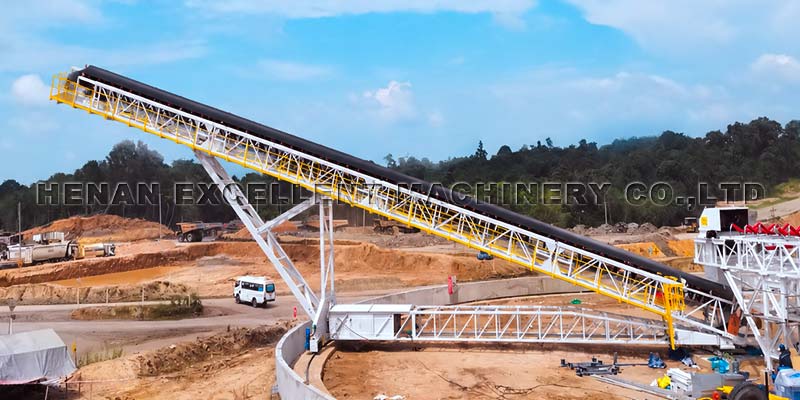

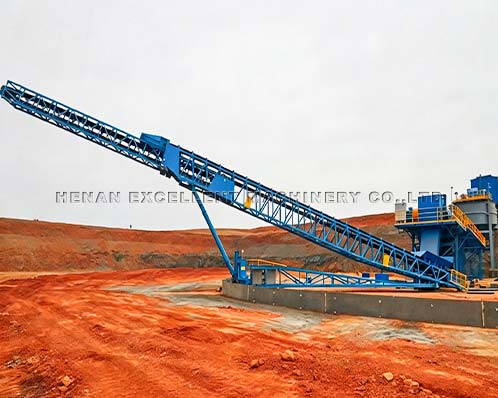

Radial Stacker Conveyor
Application: Ideal for precision stockpiles requiring strict dust control and anti-segregation material handling.

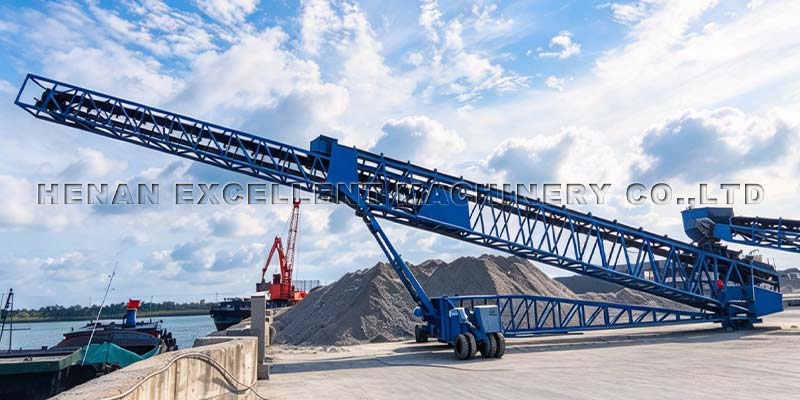

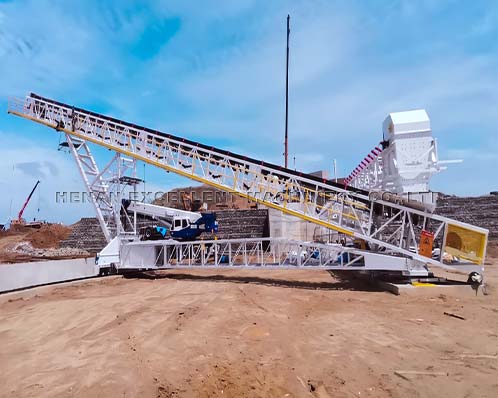

Telescopic Radial Stacker
Application: Best for stationary or semi-stationary yards with limited space needing maximum storage capacity via radial stockpiling.

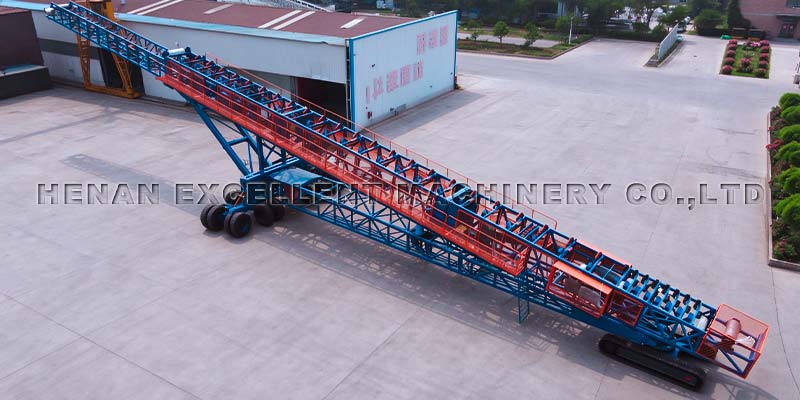

All-Terrain Tracked Stacker Conveyor
Application: Designed for rugged mines and quarries requiring frequent relocation and seamless integration with mobile crushing plants.
Need The Right Stacker Conveyor For Your Application?
Tell us your material type, feed size, required capacity and material size. EXCT engineers will recommend a suitable solution for your plant.
Stacker Conveyor Structure

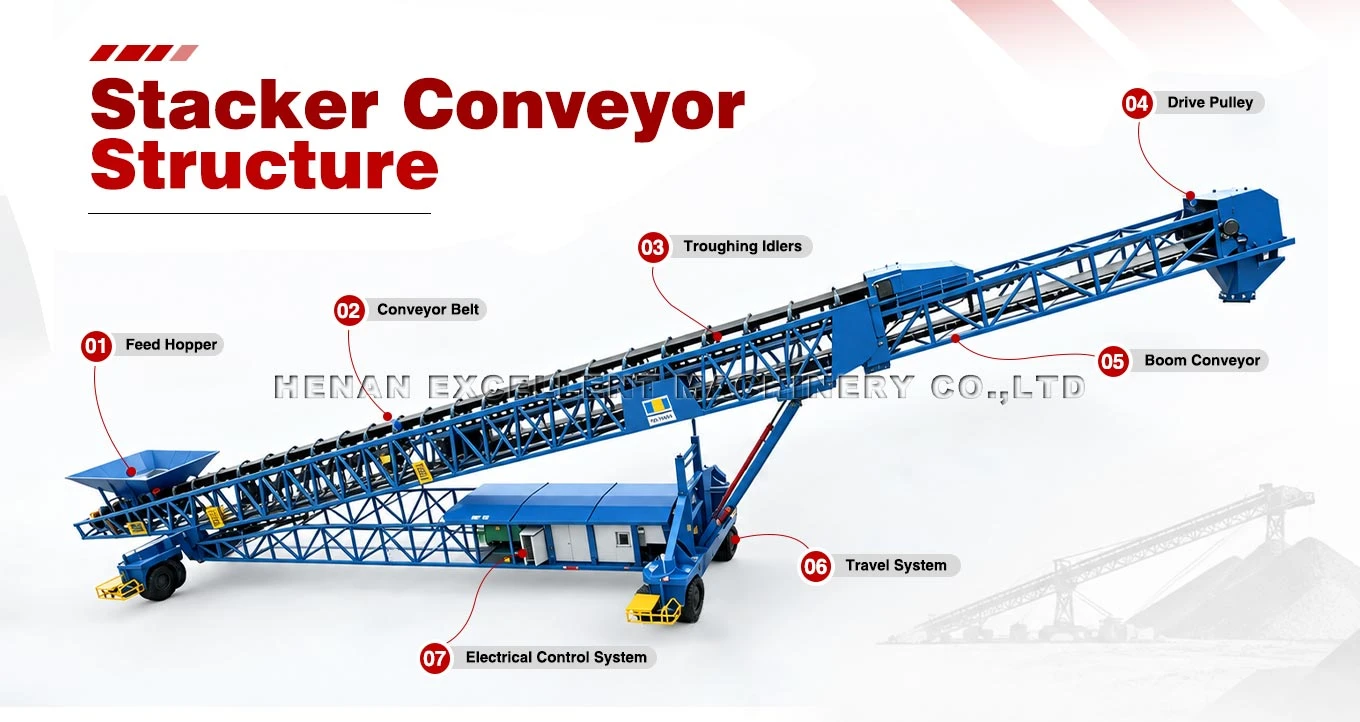

The stacker conveyor primarily consists of components such as a Feed Hopper, Drive Pulley, Bend Pulley, Troughing Idlers, Return Idlers, Conveyor Belt, Boom Conveyor, Slewing System, Travel System, And Electrical Control System; these components work in coordination to achieve the efficient stacking and conveying of bulk materials.
Stacker Conveyor Working Process

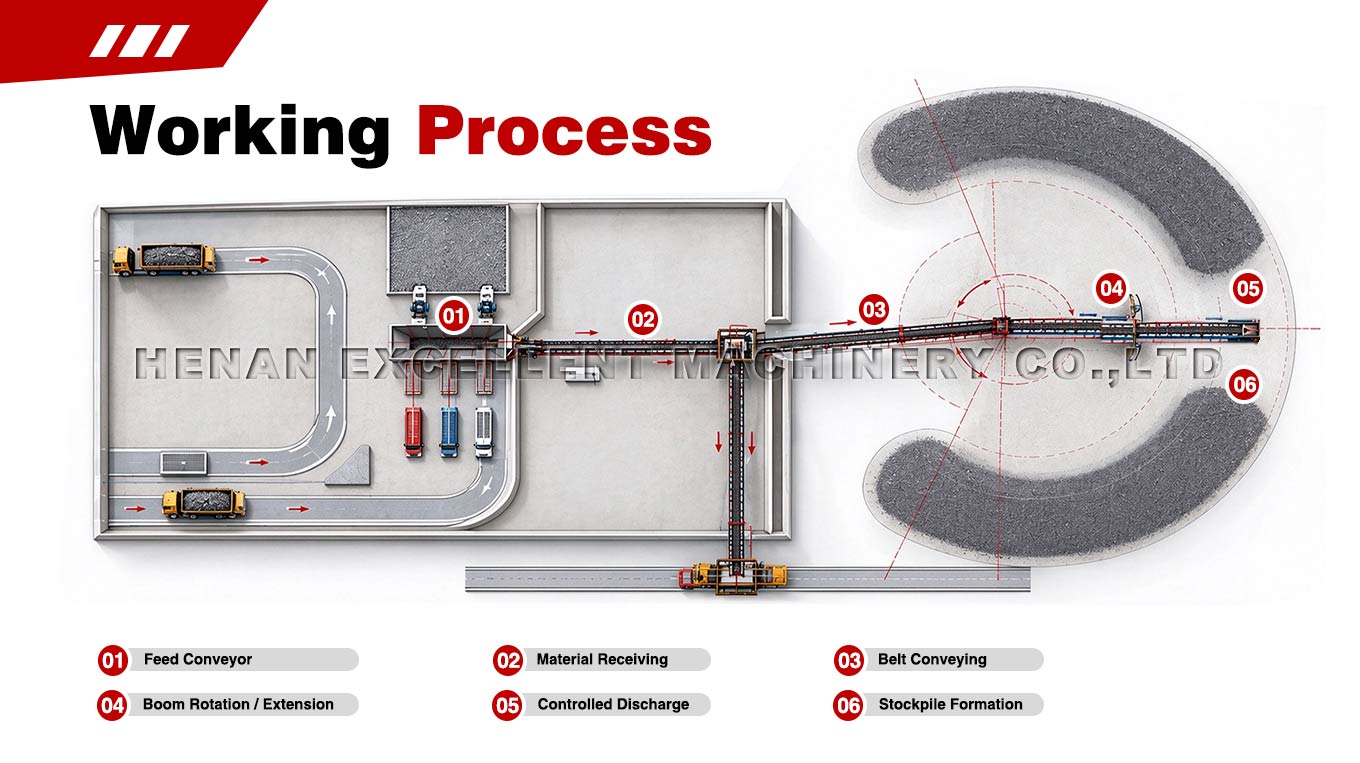

Feed Conveyor→Material Receiving→Belt Conveying→Boom Rotation / Extension→Controlled Discharge→Stockpile Formation
Stacker Conveyor Application
01
Quarries & Aggregates
Applications: Precision stockpiling for crushed rock, sand, gravel, and high-spec concrete aggregates with zero segregation.
02

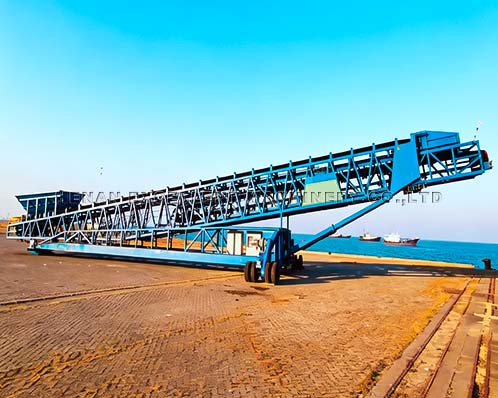

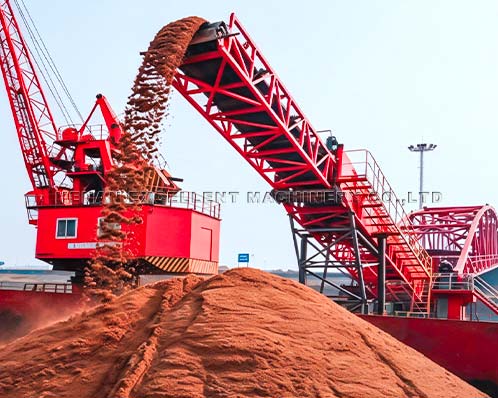

Ports & Marine Terminals

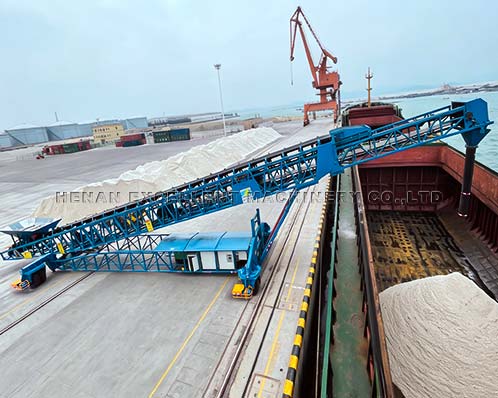

Applications: High-capacity bulk cargo staging, barge/ship loading, and terminal yard storage management.
03

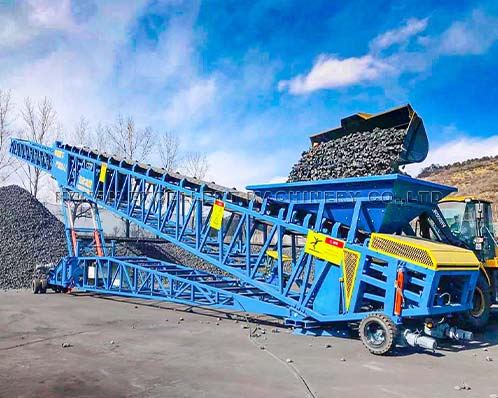

Coal Industry & Storage Yards
Applications: Stockpiling for ROM coal, washed coal, coal preparation plants, and coal logistics hubs.
04
Thermal Power Plants
Applications: Continuous fuel coal feeding, strategic coal reserve storage, and bottom ash/slag disposal.
05
Mining & Heap Leaching
Applications: Primary/secondary crushed ore stockpiling, overburden removal, and automated heap leaching pad construction.
06
Cement Plants
Applications: Pre-homogenization storage yards for limestone, clay, gypsum, clinker, and alternative raw materials.
07
Chemical & Mineral Processing
Applications: Handling bulk chemicals, fertilizers, salt, sulfur, phosphate rock, and synthetic resins.
08
Grain & Agricultural Bulk
Applications: High-speed gentle transfer and flat warehouse/silo loading for wheat, corn, soybeans, and rice.

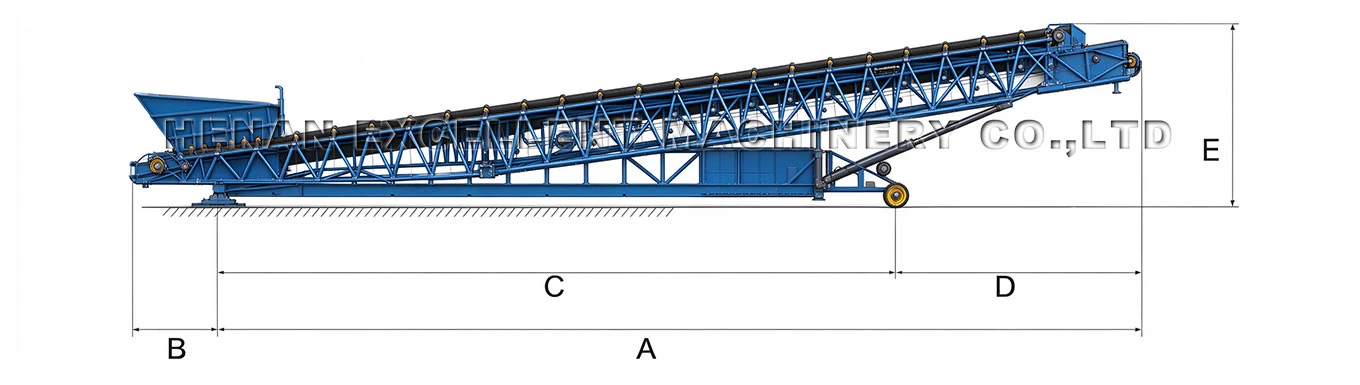

Stacker Conveyor Technical Specifications
|
Parameter |
Specification |
||||
|
33(23+10)m |
40(28+12)m |
46(31+15)m |
52(33+18)m |
60(40+20)m |
|
|
A: Length ( m ) |
33 |
40 |
46 |
52 |
60 |
|
B: Discharge Height ( m ) |
10.3 |
12 |
14.6 |
15.2 |
17.5 |
|
C: Horizontal Length ( m ) |
32.6 |
41 |
46.4 |
47.8 |
57.4 |
|
D: Maximum Angle (° ) |
17 |
17 |
18 |
17 |
17 |
|
E: Tail feeding Height ( m ) |
3.6 |
3.6 |
3.6 |
4 |
4 |
|
Parameter |
Specification |
||||
|
A |
B |
C |
D |
E |
|
|
33(23+10)m |
20.3 |
2.9 |
16 |
4.3 |
5.5 |
|
40(28+12)m |
28.8 |
2.8 |
21.1 |
7.7 |
5.7 |
|
46(31+15)m |
29.3 |
6.4 |
19 |
10.2 |
6.9 |
|
52(33+18)m |
38.1 |
6 |
26.1 |
12 |
8.1 |
|
60(40+20)m |
47.8 |
6 |
30 |
17.8 |
10 |
FAQ
How Does a Stacker Conveyor Reduce Material Segregation?
What Is The Main Structural Advantage Of a Lattice Frame Over a Channel Frame?
Radial VS Telescopic VS Tracked Stacker: How To choose?
Radial: Max storage on a fixed footprint.
Telescopic: Zero-segregation and fully automated 3D layering.
Tracked: Self-propelled mobility for rugged terrain and mobile crushers.
Can It Integrate Automatically With Existing Crushing or Screening Plants?
Yes. Integrated PLC panels and ultrasonic sensors automatically track pile height, adjust the boom, and rotate or index backward without manual intervention.
What Wear Protection Is Used For Abrasive Mining Materials?
How Does an Automated Stacker Lower Operating Costs (opex)?
It eliminates wheel loaders and haul trucks for stockpile management, cutting daily diesel usage, reducing labor needs, and preventing material compaction from tires.
High Quality Services
EXCT offer our customers a comprehensive professional service process for mobile conveyor. We provide them with professional technical solutions, tailor-made overall plans, assist in formulating construction plans, guide installation and commissioning services, offer professional product knowledge training in the later stage, as well as regular inspections and follow-ups to help customers identify and solve problems.
