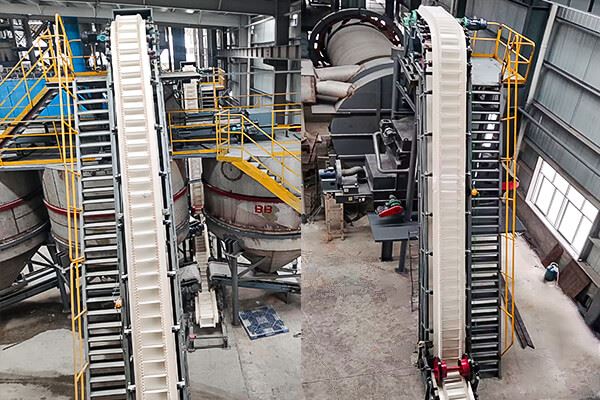

The steep angle sidewall belt conveyor is a new type of continuous conveying equipment. It has the following features: large conveying capacity (compared with other conveyors, the conveying capacity is increased by 1.5 to 2 times); strong versatility (the basic components are the same as those of the general belt conveyor), wide application range (suitable for conveying materials such as crushed stones, coal, limestone, fertilizers, sand, clay, wood chips, grains, etc.; applicable to materials with a unit weight of 500 to 2500 kg/m3 and a particle size of about 100 to 250 mm); simple structure, convenient maintenance, small space occupation and cost savings (it can replace the combined layout form of conveyors and bucket elevators and can directly adopt this model for installation); easy to arrange. Therefore, it has been widely promoted and used in industries such as coal, power, metallurgy, chemical industry and grain industry.

Steep Angle Sidewall Belt Conveyor Working Principle

The working principle of the steep angle sidewall belt conveyor is relatively simple. It mainly consists of two stages: the ascending section and the horizontal section.
In the ascending section, the conveyor belt carries the materials and moves upwards from the initial position. Due to the presence of the sidewall and the cleat, the materials do not slide or roll during the conveying process, thus ensuring the stability and efficiency of the conveying. Throughout the process, the conveyor belt is in a bent state, and by rapidly lifting the materials, a high-angle inclined plane is formed. Then, the materials are transferred to the horizontal section and continue to move in the horizontal direction until they are sent to the destination.

Steep Angle Sidewall Belt Conveyor Structure

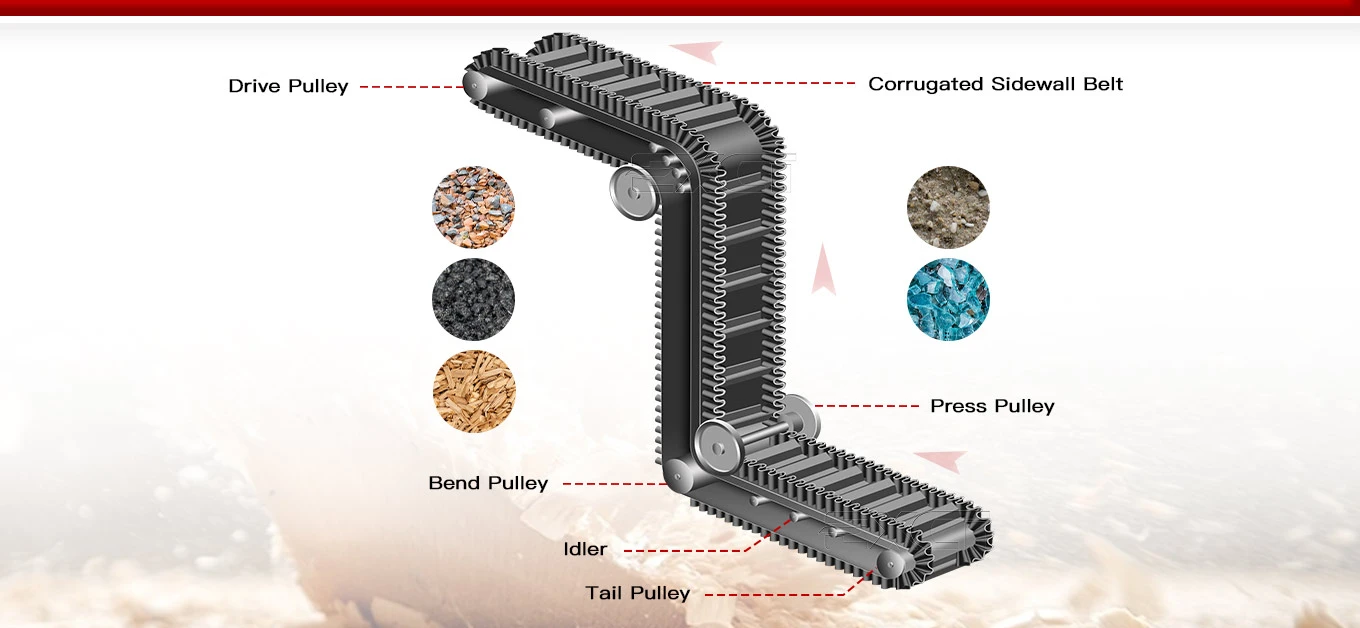

The steep angle sidewall belt conveyor is mainly composed of components such as the conveyor belt, drive device, drive pulley, bend pulley, idler, frame, tension device, material guide chute, discharge chute, electrical and safety protection devices, etc.

Steep Angle Sidewall Belt Conveyor Structure

Details

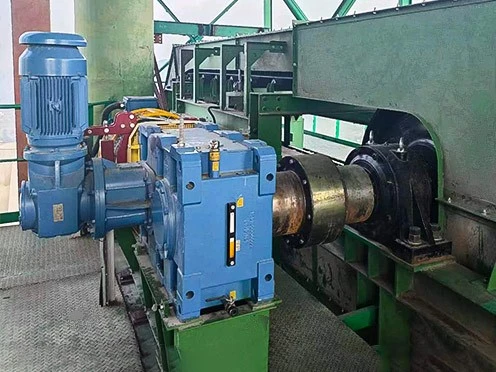

Motor

The kinetic energy part in the conveyor system has the characteristics of simple structure, high reliability and convenient maintenance.

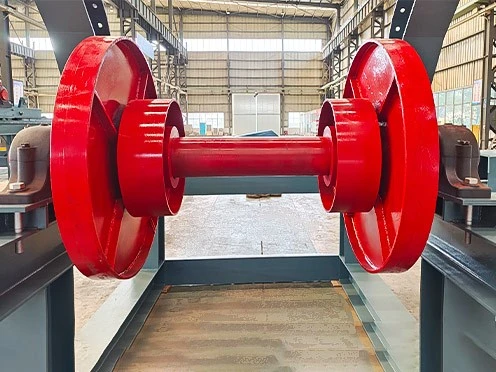

Press Pulley

It is used to change the running direction of the conveyor belt. The pressure wheel is located on the upper surface (loading surface) of the conveyor belt.

Idler

It is used to support the conveyor belt and the materials on the belt, ensuring its stable operation.

Steep Angle Sidewall Belt Conveyor Belts

Corrugated Sidewall Belts

The corrugated sidewall, cleat and base belt form a box-shaped hopper for transporting materials, thereby enabling large-angle transportation.

Steep Angle Sidewall Belt Conveyor Contact Us

Contact Us For Best Price

Submit your requirements and talk with one of our technical engineer about your project.

Send Inquiry Now

Steep Angle Sidewall Belt Conveyor Feature

High-Angle Transportation

The maximum angle can reach 90°. It is an ideal equipment for high-angle transportation and vertical lifting. It can achieve a transportation angle that ordinary belt conveyors cannot reach. Therefore, it can significantly save the equipment's floor space and construction costs (about 20%-30%).

Strong Conveying Capacity

Due to the cleat structure, the material filling rate is usually above 80% and the material is not prone to sliding, enabling it to carry a large amount of material. The conveying capacity can be customized according to different needs. Whether it is powder, granular or block material, it can be transported stably.

Runs Smoothly And Reliably

There are no phenomena such as chain jamming, chain slipping, or chain breakage that often occur with scraper conveyors, nor are there problems like slippage or bucket dropping that are common in bucket elevators. Its running stability is almost equivalent to that of a general belt conveyor.

Simple Structure

The main components can be compatible with common belt conveyors. The overall structure is relatively simple, making it easy to install, maintain and repair. This not only reduces the usage cost of the equipment, but also enhances the reliability and stability of the equipment.

Adapt To Complex Working Conditions

It can transport various bulk materials with a bulk density ranging from 0.5 to 2.5 t/m³ in an environment from -15℃ to +40℃. For special materials such as high-temperature, acidic, alkaline, and oily substances, special edge-guard conveyor belts are required.

Steep Angle Sidewall Belt Conveyor Package & Delivery

Quality begins with craftsmanship and is achieved through delivery. We strictly pack each factory-finished product with high standards and strict requirements. Through multiple layers of protection and targeted reinforcement, we minimize the risk of damage during transportation. This dedication to details is solely to ensure that what you receive is not only a high-quality product, but also our consistent reliable commitment.

Steep Angle Sidewall Belt Conveyor Package Delivery

Steep Angle Sidewall Belt Conveyor Application

Mining Industry	In mining scenarios such as those involving metal ores and coal mines, the steep angle sidewall belt conveyor can efficiently transport materials like ores and coal.
Power & Energy Sector	The coal conveying system in thermal power plants often encounters space limitations. By adopting a steep-angle side-wall belt conveyor, the length of the coal conveying corridor is shortened, and at the same time, its edge guard structure can solve the material spillage problem that occurs in traditional belt conveyors at a 45° inclination.
Building Materials & Metallurgical Industry	This product can be applied throughout the entire process from raw material crushing to clinker transportation in cement production lines. Its high-temperature resistant edge band (able to withstand 120℃ materials) is particularly suitable for the transportation of high-temperature materials such as sintered ore and cement clinker.
Port Logistics & Grain Storage & Transportation	In the loading and unloading operations at the bulk cargo terminal, the steep-angle sidewall belt conveyor can achieve direct inclined transportation from the ship to the storage area, avoiding multiple intermediate transfers. In the grain storage field, its closed design (with added covers) is utilized to ensure dust-proof transportation of crops such as corn and wheat. The inclination angle can reach 60° without affecting the transportation volume.
Chemical & Environmental Protection Industry	It is used for the transportation of powder and granular products such as fertilizers and salt. Special material edge bands (such as acid and alkali resistant rubber) extend the service life of the equipment.

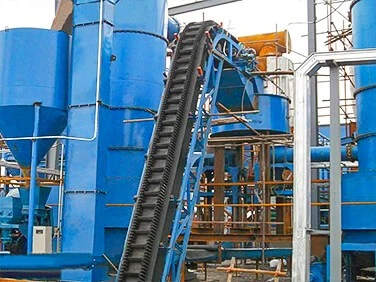

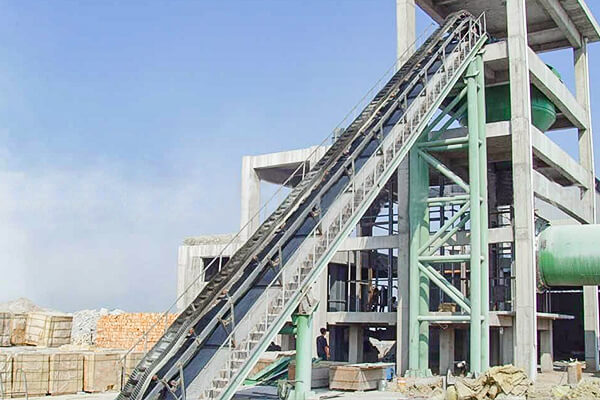

Steep Angle Sidewall Belt Conveyor Application Site-2

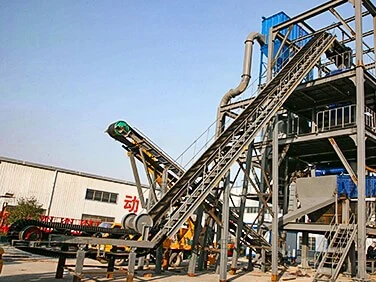

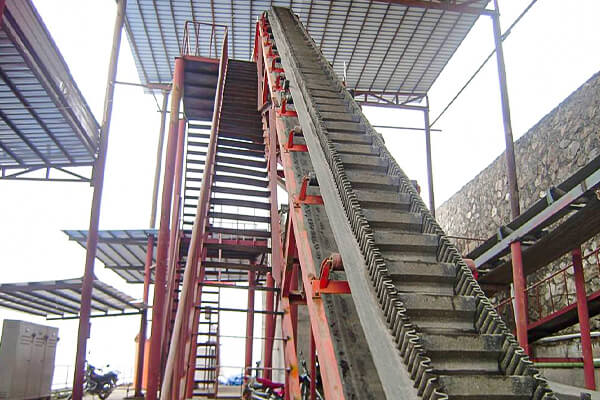

Steep Angle Sidewall Belt Conveyor Application Site-3

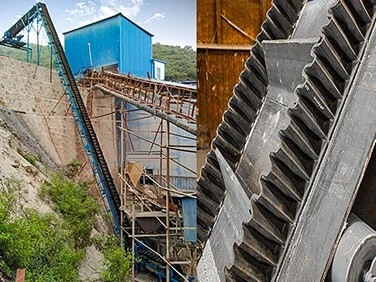

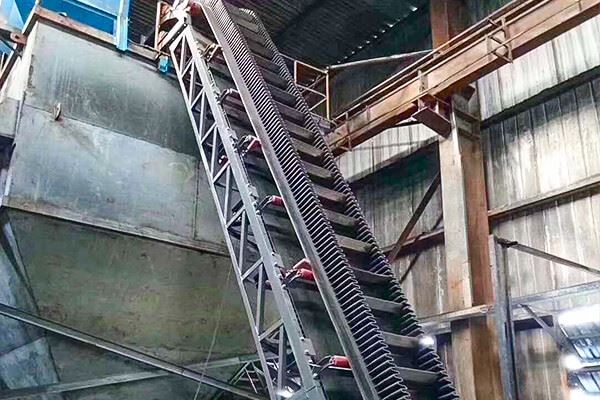

Steep Angle Sidewall Belt Conveyor Application Site-4

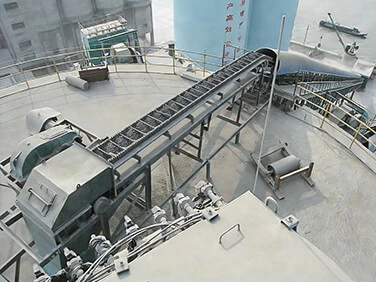

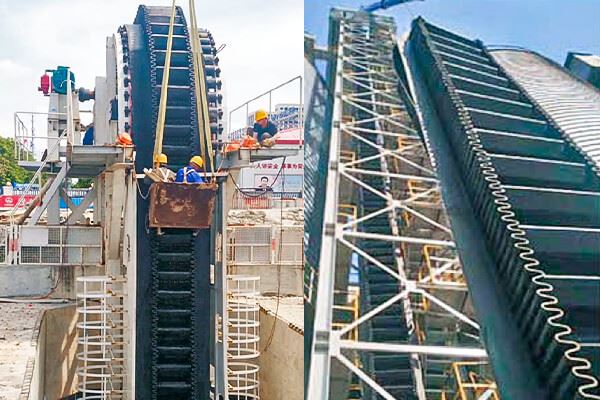

Steep Angle Sidewall Belt Conveyor Application Site-5

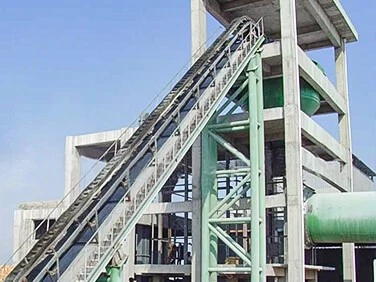

Steep Angle Sidewall Belt Conveyor Application Site-6

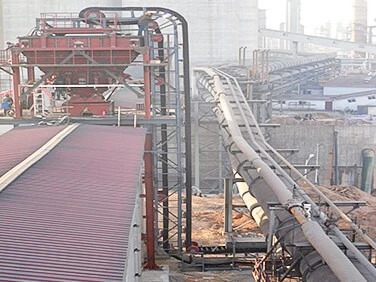

Steep Angle Sidewall Belt Conveyor Application Site-7

Steep Angle Sidewall Belt Conveyor Application Site-8

5 Reasons to Choose EXCT Steep Angle Sidewall Belt Conveyor

Factory direct sales

Direct supply from the factory, eliminating the middle links, resulting in more favorable prices. The service is not discounted, allowing you to save money, worry less and work more efficiently.

Quality Assurance

We have our own physical workshop. We strictly follow national standards and conduct a complete process control from production to inspection. Products are guaranteed to be qualified and of reliable quality.

5 Reasons to Choose EXCT Corrugated Sidewall Conveyor

Professional Technical Team Support

he professional technical team meticulously designs and improves the equipment, tailoring it to your specific working conditions, and provides comprehensive technical guidance throughout the process to ensure the optimal matching of the equipment.

Uninterrupted After-sales Service

Quick response within 2 hours, solution provided within 24 hours, and arrival at the site within 48 hours; free replacement and repair within the 12-month warranty period, ensuring you have no worries.

General Technical Parameter

Belt Width (mm)	Sidewall Height (mm)	Cleat Spacing (mm)	Inclination Angle
			30°	35°	40°	45°	50°	55°	60°	65°	70°	75°	80°	85°	90°
			Capacity(m³/h)
500	80	126	42	38	36	31	28	25	22	20	18	16	15	13	11
	80	252	23	20	18	16	14	13	12	-	-	-	-	-	-
	100	126	56	52	48	44	40	36	32	29	26	24	21	19	16
	100	252	34	29	26	23	21	19	17	15	-	-	-	-	-
	120	126	-	-	-	-	58	53	48	44	39	35	32	28	24
		252	49	44	39	34	31	28	25	23	20	-	-	-	-
		378	33	29	25	23	-	-	-	-	-	-	-	-	-
650	100	126	78	73	67	61	56	50	45	41	37	33	30	26	23
	100	252	47	41	36	32	28	26	24	21	-	-	-	-	-
	120	126	-	-	-	-	81	75	68	61	56	50	44	39	34
		252	70	61	54	48	43	39	35	32	29	-	-	-	-
		378	46	40	35	32	-	-	-	-	-	-	-	-	-
	160	252	93	84	75	67	60	54	49	44	40	36	32	28	25
	160	378	64	56	49	44	40	36	32	29	26	24	-	-	-
800	120	126	-	-	-	-	106	98	89	80	72	65	58	51	46
		252	93	80	71	63	56	51	46	42	38	-	-	-	-
		378	61	53	47	42	-	-	-	-	-	-	-	-	-
	160	252	127	115	103	91	82	74	67	60	54	49	44	38	34
	160	378	88	76	67	60	54	49	44	40	35	32	-	-	-
	200	252	-	-	-	-	135	122	110	100	90	81	72	64	55
		378	144	126	111	99	89	80	72	65	60	53	47	42	36
		504	110	96	85	75	-	-	-	-	-	-	-	-	-
1000	160	252	171	154	138	122	110	99	90	81	73	66	59	52	45
	160	378	118	102	91	81	72	65	59	53	48	43	-	-	-
	200	252	-	-	-	-	182	164	148	134	121	108	97	85	75
		378	193	164	149	133	119	108	98	88	79	71	64	56	48
		504	148	129	113	101	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	242	221	200	180	162	144	127	111
		378	273	248	223	199	179	161	146	132	119	107	95	84	73
		504	221	192	170	151	136	-	-	-	-	-	-	-	-
1200	160	252	214	193	173	154	138	124	112	102	92	82	73	65	57
	160	378	148	128	113	101	91	82	74	69	60	-	-	-	-
	200	252	-	-	-	250	228	206	185	168	152	136	121	107	93
		378	243	212	188	167	150	135	122	111	100	90	80	70	61
		504	186	161	143	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	303	278	251	226	203	181	160	136
		378	342	311	280	250	224	202	183	165	149	134	119	105	91
		504	278	241	213	190	170	-	-	-	-	-	-	-	-
	300	336	431	406	380	354	326	296	268	242	218	196	175	154	134
	300	504	350	312	276	246	221	199	180	163	147	132	117	104	90
1400	200	252	-	-	-	301	274	247	224	202	183	164	146	129	112
		378	292	255	226	201	181	163	147	133	120	108	96	85	73
		504	224	194	171	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	365	339	302	272	245	218	192	167
		378	412	374	337	300	270	243	220	199	180	161	143	127	110
		504	334	290	256	228	205	-	-	-	-	-	-	-	-
	300	336	526	495	463	431	397	361	326	295	266	239	213	188	163
	300	504	426	380	336	299	269	243	219	198	178	160	143	126	109
	400	420	756	717	678	673	595	549	500	452	408	366	327	288	250
	400	504	707	661	614	566	515	465	420	380	343	308	274	242	210
1600	200	252	-	-	-	352	320	289	261	236	213	191	171	150	131
		378	341	299	263	235	211	190	172	155	140	126	112	99	86
		504	261	227	200	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	427	390	353	318	286	255	225	195
		378	481	437	393	351	315	284	257	232	209	188	168	148	128
		504	390	339	299	267	239	-	-	-	-	-	-	-	-
	300	336	620	584	546	508	468	426	385	348	314	282	251	222	192
	300	504	503	448	396	353	317	286	259	234	211	189	169	149	129
	400	420	891	846	799	751	701	648	590	533	481	432	385	340	295
	400	504	834	779	724	667	608	548	496	448	404	362	324	285	247
1800	240	252	-	-	-	-	-	488	447	404	364	327	292	257	223
	240	378	550	501	450	401	360	325	294	266	240	215	192	169	147
	300	504	432	387	342	305	274	-	-	-	-	-	-	-	-
		336	681	641	600	558	514	467	422	382	344	309	276	243	211
		504	579	516	456	407	365	300	297	269	243	218	194	172	149
	400	420	1027	974	921	866	808	747	680	614	554	498	444	391	340
	400	504	960	898	835	769	700	632	571	516	466	418	373	329	286
	500	525	1259	1197	1133	1067	999	925	846	765	690	619	552	487	423
	500	735	1094	1006	917	826	741	669	604	546	493	442	394	348	302

Hot Tags: steep angle sidewall belt conveyor for coal, limestone, fertilizer, China steep angle sidewall belt conveyor for coal, limestone, fertilizer suppliers, manufacturers

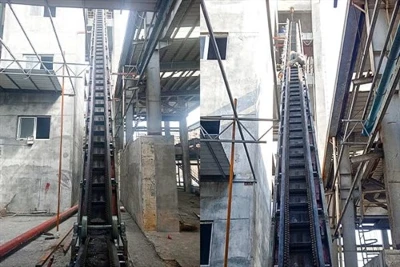

Previous: Sidewall Belt Conveyor
