En Masse Chain Conveyor

En Masse Chain Conveyor is mainly composed of enclosed section shell, scraper chain, driving device, and tensioning device. Its structure is simple, small in size, good sealing performance. It is worn resistant en masse conveyor in special design to convey coal slag, grain, cement, fertilizer, food, aggregates, or animal food. It also can be used for many industries, such as the metallurgy industry, construction industry to transport dust and ash.

How It Works:

When transporting horizontally, the material is subjected to the thrust of the scraper chain in the running direction.The material is conveyed forward with the scraper chain to form a continuous overall material flow.

When these forces are greater than the friction between the material and the shell wall and the weight of the material, the material forms a continuous overall stream that is lifted.

Product Details:

1 Driving device:The standard configuration adopts the orthogonal shaft reducer and the fluid coupling, and is equipped with a backstop device. Allows the material to remain stable during shutdown.

2 Scraper & Chain:Core hardness is set at 300-400 BHN for strength and ductility.

3 Casing:The head, tail and middle casing of the machine are effectively sealed, which will not cause environmental pollution.

4 Tensioning device:The tensioning device is connected with the tensioning wheel to obtain the necessary initial tension of the traction member to ensure operation of drag conveyor.

Feature:

1. En Masse Chain Conveyor is widely used in conveying powdery and granular materials, and can realize multi-point feeding and multi-point unloading.

2. En Masse Chain Conveyor has the advantages of simple structure, lightweight, small volume, etc.

3. In addition to horizontal conveyance, inclined and vertical conveyance can be carried out.

4. Good sealing structure, especially suitable for conveying ash, toxic, explosive materials.

5. The En Masse Chain Conveyor is reasonable in design, simple in structure, and small in cross-section, which can reduce the installation space.

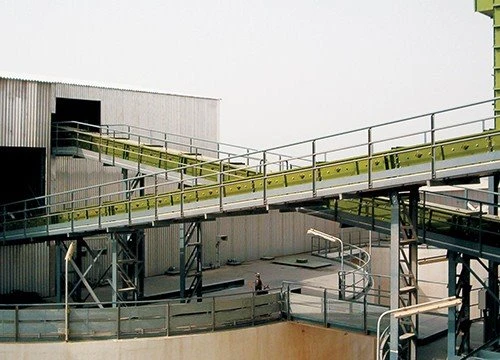

Cases:

General Technical Parameter:

En Masse Chain Conveyor Technical Specifications
Machine Item		MS25	MS32	MS40	MS50	MS63	MS80
Chute Width（mm)		250	315	400	500	630	800
Capacity（t/h)		25/31.5	40/50	80/100	160/200	200/250	315/400
Max Conveying Distance（m)		50	50	50	50	50	50
Scrapper Chain	Model	3002T	3002T	3003T	3003T	3003T	3003T
	Allowable load（kn)	33.4	45	100	100	275	2100
	Weight（kg/m)	13.87	15.36	25.34	25.34	47.6	52.32
	Operating speed（m/s)	0.16/0.20/0.25/0.32

Selection Instruction:

Material to be processed: ______

Handling capacity: ______ t/h

Bulk Density: ______t/m3

Conveying distance(from inlet to outlet):______ m

Material temperature: ______ ℃;

Working environment temperature: ______ ℃

Material is corrosive or not:______ (Ps. Yes or No)

Water content:______%

Max. granule size of the feeding material:______mm

Max. Granule’s percentage in whole material:______ %

Installation form is horizontal or inclined : ______ ; If it is inclined,what is the inclined degree______°

Upstream equipment (using for feed the material): ______

Downstream equipment (using for discharge the material): ______

Whether needing supporting equipment?______(Ps. Yes or No)

Working power supply: ______ V ______HZ

Quantity:______
