Scraper Conveyor

Scraper Conveyor is a closed rectangular section of the shell, with the help of the movement of the Scraper Conveyor powder, small particles, small blocks and other continuous conveying equipment. Because when conveying materials, scraper chain is buried in the material, so called "Scraper Conveyor". Scraper Conveyor simple structure, light weight, small volume, good sealing, easy installation and maintenance. It can be transported not only horizontally but also inclinedly and vertically; Not only can single machine transmission, and can be combined layout, serial transmission; Can be multi - point feeding, can also be multi - point unloading, process layout is more flexible. Because the shell is closed, working conditions can be significantly improved when conveying materials and environmental pollution can be prevented. Scraper Conveyor, can be widely used in chemical industry, machinery, metallurgy, light industry, food, medicine, transportation, power and other departments, used to transport powder, small particles and small block materials.

Scraper conveyor has the following requirements for conveying materials:

 1, material bulk density: γ= 0.2-1.8T /m3;

 2, material temperature: T <100°C;

 3, moisture content: for general materials, shall not make the material by hand knead into a group is not easy to loose;  For the increase of moisture content will increase the adhesion and compaction, can not make the material seriously adhere to the scraper.

 4, particle size: the particle size of the material is related to its hardness, particle size is too large, it is not suitable for transportation.  Products such as special needs, our factory can be customized processing!

Scope of application: scraper conveyor is suitable for the temperature below 250° powder, granular, small block and mixed material sealed transport, mainly horizontal transport.  Also can tilt conveying, its maximum conveying Angle is 20°, mainly suitable for all kinds of material conveying, can be applied to mining, metallurgy, coal mine, chemical industry for moisture content without too high requirements of material conveying, particle size in the system is below 300mm.

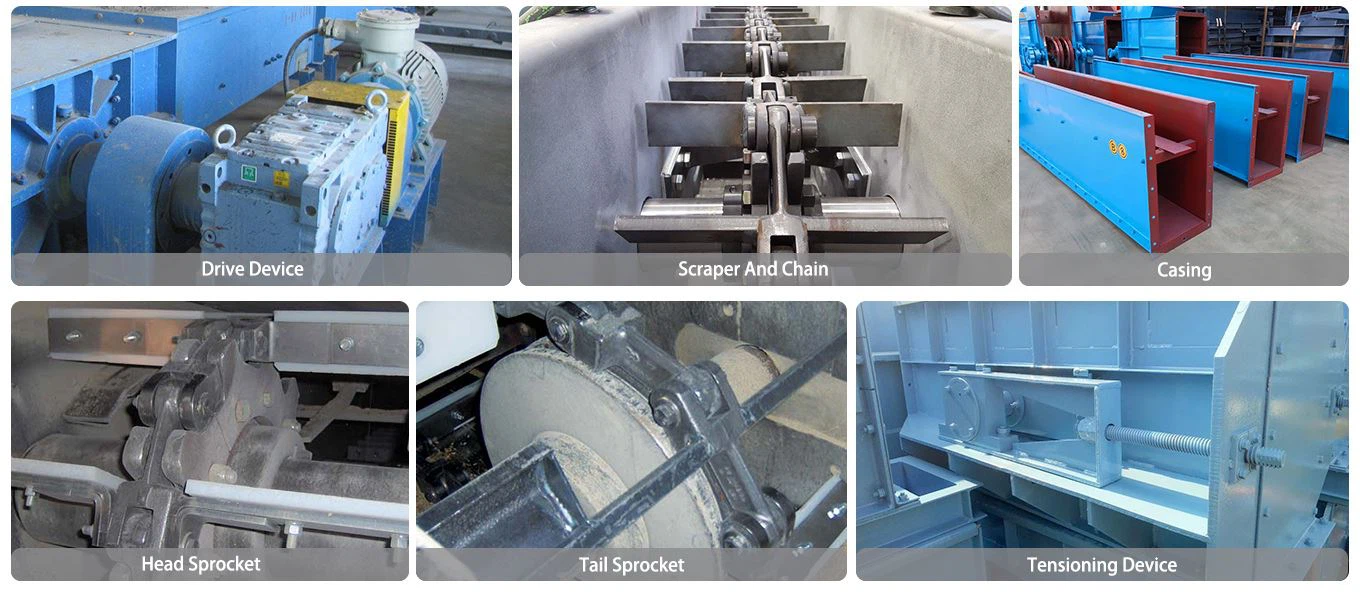

Product Details:

Feature:

1. Solid structure.  Can withstand coal, gangue or other materials impact, impact, pressure and other external forces.

2. In addition to horizontal conveyance, inclined and vertical conveyance can be carried out.

3. Scraper Conveyor can adapt to the need of uneven and bending floor of mining face, and can bear the bending in vertical or horizontal direction.

4. The enclosure is closed, which can prevent the dust from flying and polluting the environment when conveying materials.

5. The Scraper Conveyor is reasonable in design, simple in structure, and small in cross-section, which can reduce the installation space.

6. Flexible operation, low fuselage, easy to install, in length can be any point of feeding and unloading.

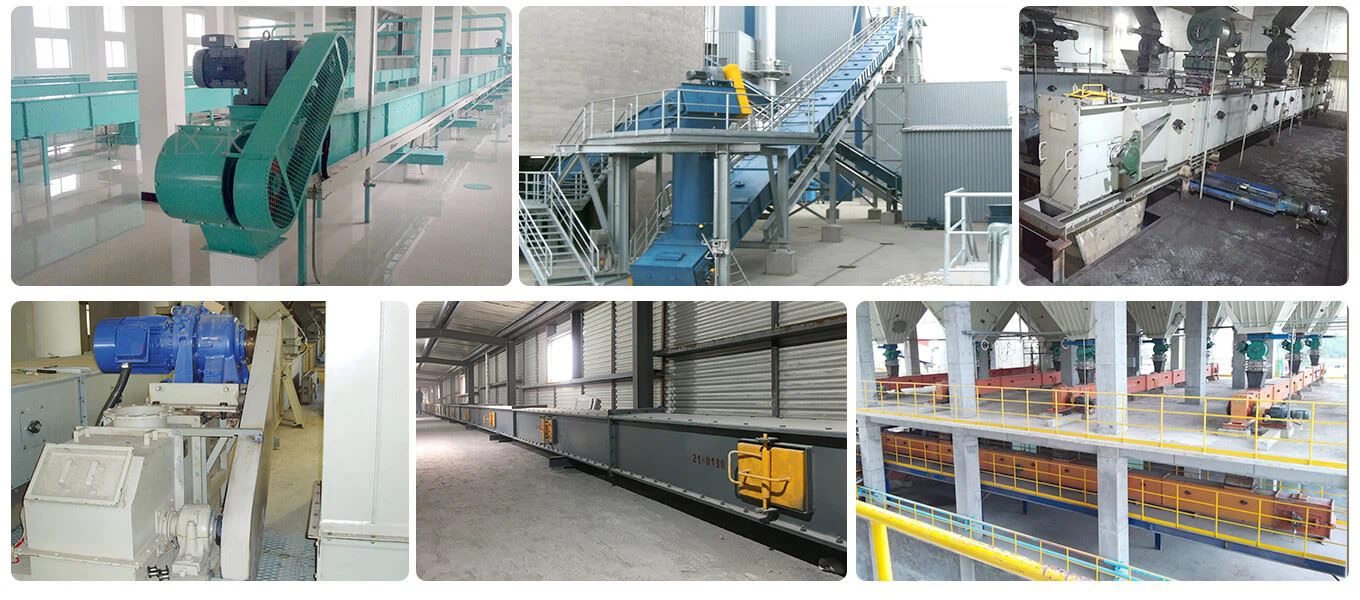

Cases:

General Technical Parameter:

En Masse drag Conveyor Technical Specifications
Machine Item		MS25	MS32	MS40	MS50	MS63	MS80
Chute Width（mm)		250	315	400	500	630	800
Capacity（t/h)		25/31.5	40/50	80/100	160/200	200/250	315/400
Max Conveying Distance（m)		50	50	50	50	50	50
Scrapper Chain	Model	3002T	3002T	3003T	3003T	3003T	3003T
	Allowable load（kn)	33.4	45	100	100	275	2100
	Weight（kg/m)	13.87	15.36	25.34	25.34	47.6	52.32
	Operating speed（m/s)	0.16/0.20/0.25/0.32



Why choose us?

• Our company is a supplier and manufacturer with affordable prices.
• All the staff of our company will work with more firm pace and sincerely cooperate with you to create a better tomorrow.
• Our company’s mission is to provide customers with only the best Trough or Drag Chain Conveyor products and services.
• We will pursue the perfection of products with our technology and modern management methods.
• We are a reliable and trusted provider of Trough or Drag Chain Conveyor solutions.
• We also have a team of professional personnel to provide you with the most efficient solutions.
• Our company is dedicated to providing the best customer service in the industry.
• Our company attaches great importance to product quality. We will carefully check every product to ensure the high quality, high standard and high safety of the product.
• We offer a diverse range of Trough or Drag Chain Conveyor products to meet all of our customer's needs.
• We deepen our innovative concepts, comprehensively use new technologies, and improve our manufacturing level so that we have achieved remarkable results in reducing costs and improving the quality of our Scraper Conveyor.
