The EXCT Banana Style Screens utilizes our independently developed and manufactured ZYQX series high-efficiency gear-driven, oil-lubricated box-type vibrator. This vibrator provides powerful vibration sufficient to break the surface tension of the coal slurry, ensuring excellent screening efficiency and anti-clogging capabilities even when processing sticky, fine coal slurries.

Choosing our Banana Style Screens means lower product moisture, higher media recovery rates, impressive processing capacity, and extremely low maintenance costs due to its stable and reliable equipment.

How Banana Style Screens Work?

Banana Style Screens adopts multi-slope screen deck, which has high handling capacity and high screening efficiency.

Banana Style Screens consists of several sections of screen deck, and the angle of inclination of screen deck gradually decreases from the feeding end to the discharging end.

When the Banana Style Screens operation, the feeding end screen surface due to the larger angle, the material into the screen surface with a large acceleration rapidly forward and rapid stratification, materials smaller than the screen holes is in full contact with the screen surface and smooth through the screen.

The angle of the screen surface at the discharge end is gentle, and the material movement speed gradually slows down, fully allowing the remaining materials smaller than the screen hole to pass through the screen, greatly improving the screening efficiency.

The Banana Style Screens can meet specific application requirements by changing the inclination angle of the multi-slope screen deck. The angle of the multi-slope screen deck determines the running speed of the material on the screen deck and the handling capacity of the Banana Style Screens .

Banana Style Screens Details

Drive Device

The motor drives the vibration exciter to rotate through the small pulley, V-belt, large pulley, and the end bearing seat, thereby causing the screen machine to produce linear motion. The frequency of the Banana Style Screens can be easily adjusted by replacing the motor pulley, so as to adapt to the grading and dewatering and demediation operation of materials under different working conditions. This transmission method has large transmission torque, good transmission effect, long service life, and can achieve long-term continuous and reliable operation.

Vibration Exciter

The vibration exciter adopts the ZYQX series high-efficiency gear-driven thin oil lubricated box-type vibration exciter which is independently developed and manufactured by ourselves. It is equipped with imported SKF large clearance vibration machinery special bearings. The specially designed special sealing structure of the shaft end can ensure that dust or other foreign matter cannot enter the inside of the vibration exciter. The eccentric torque of the vibration exciter eccentric wheel is adjustable to meet the different amplitude requirements of the equipment for materials.

Vibration Exciter Base Beam

Banana Style Screens beam is a rectangular hollow structure with high rigidity and light weight, and completely eliminates splicing in the vertical direction. This structural design has a high safety factor and is suitable for complex working conditions. The base beam of the vibration exciter plays a vital role in the operation of the Banana Style Screens . It adopts a box-shaped cross-section design and is equipped with reinforced plates, which are high in stiffness and light in weight. The special design of the reinforced flange can effectively improve the strength of the Banana Style Screens .

Screen Body

The side plate of frame is made of high quality low alloy and high strength structural steel plate. The high precision laser cutting machine is used to complete the feeding and drilling of the whole steel plate at one time, without splicing, and the appearance is smooth and beautiful. In the area where the force of the side plate is large, the strengthening plate, the protection plate and the strengthening Angle steel are reasonably arranged to effectively increase the strength of the side plate, so that the load of the side plate is evenly distributed, so as to prevent elastic deformation.

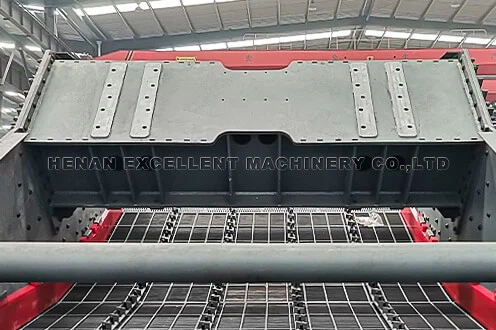

Screen Plate

The screen plate is made of foreign advanced technology, modular design, high degree of universality, and the screen plate can be completely interchangeable between different models. It is fixed by polyurethane slot, easy to install and disassemble. The two sides of the screen plate are mounted with polyurethane side bar and polyurethane wedge, which can fix the screen plate, effectively prevent the material from wearing the screen machine side plate, and extend the service life of the screen frame.

Damping Device

Screen using steel cylindrical spiral compression spring shock absorption, using special parameters design, large bearing capacity, long service life, excellent shock absorption effect.

Banana Style Screens Features

01/ Sturdy And Durable, Doubled Lifespan

The screen box assembly features strong wear resistance and low stress, significantly extending the equipment's service life.

02/ Modular Design For Quick Maintenance

The modular design and spare parts ensure quick and easy replacement of spare parts, reducing maintenance downtime and lowering operating costs.

03/ Super-Strong Frame, Unstoppable

The sturdiest and torsion-resistant frame withstands complex and extreme operating conditions. The sidewalls are constructed from a single piece of material, and the frame (sidewalls and crossbeams) is bolted and riveted, eliminating metal weaknesses and tension that can be caused by welding.

04/ Lightweight And Tough Structure, Stress-Free

The lower crossbeam of the screen plate utilizes a rectangular tube design; the excitation beam box structure is lightweight, high-strength, and excellent toughness. Post-weld heat treatment of major components effectively eliminates welding stress.

05/ Scientific Design Eliminates Resonance

Through finite element analysis, the screen structure and vibration parameters are optimized to avoid natural frequencies at all levels, reduce resonance effects, and extend the service life of the entire machine.

06/ Efficient Excitation, Smooth Operation

The vibrator utilizes a high-efficiency helical gearbox, delivering high excitation force, low noise, smooth operation, and a long service life. The eccentric weight is located outside the vibrator housing, allowing amplitude adjustment by varying the counterweight.

Submit your requirements and talk with one of our technical engineer about your project.

Banana Style Screens Brochure Download

Banana Style Screens Application And Process

Processes:

Dewatering Screening

Fine wet Screening

Secondary Screening

Dry Classification

Fine Removal/Desliming

Tertiary Screening

Wet Screening

Discharge Screening

Material:

Coal

Copper

Sand

Coke

Bauxite

Gravel

Coal Gangue

Rare Earth

Shale

Lignite

Gypsum

Slag

Gold

Diamond

Manufacturing Facilities

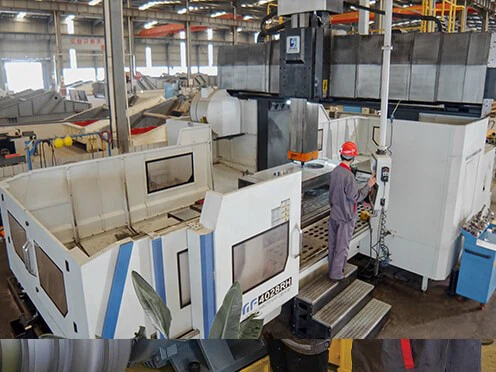

A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.

Five-axis Gantry Machining-center

Vertical CNC Machining Center

CNC Boring And Milling Machining Center

Vertical Machining Center

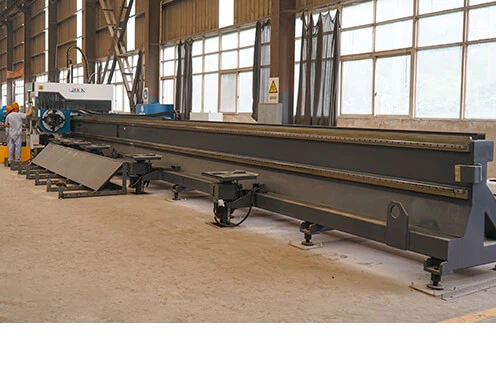

Laser Pipe Cutting Machine

Welding Robot Workstation

Strict Quality Control

At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.

EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

Customer quality inspection

Third-party quality inspection

Third-party quality inspection

Self-inspection

Self-inspection

Self-inspection

Self-inspection

Banana Style Screens Cases

Submit your requirements and talk with one of our technical engineer about your project.

Get The Most Suitable Product Solution And Quotation For Free!!!

General Technical Specifications

EXCT Banana Style Screens s are customized for each application material to provide the best configuration and meet all your requirements. For more configurations please contact our technical engineers.

Model	Layers	Screen Spec W×L(m)	Screen Area (㎡)	Feeding Size (mm)	Handling Capacity (t/h)	Power (Kw)
BMVS 1861	1	1.8×6.1	10.98	≤400	50-100	22kw
BMVS 2461	1	2.4×6.1	14.64	≤400	150-280	30Kw
BMVS 2473	1	2.4×7.3	17.52	≤400	150-300	30Kw
BMVS 3061	1	3.0×6.1	18.3	≤400	180-330	37Kw
BMVS 3073	1	3.0×7.3	21.9	≤400	240-380	37Kw
BMVS 3661	1	3.6×6.1	21.96	≤400	240-400	37Kw
BMVS 3673	1	3.6×7.3	26.28	≤400	290-480	45 Kw
BMVS 2461	2	2.4×6.1	29.28	Upper screen: ≤400 Lower screen: ≤150	180-520	37Kw
BMVS 3061	2	3.0×6.1	36.6	Upper screen: ≤400 Lower screen: ≤150	250-800	55Kw
BMVS 3073	2	3.0×7.3	43.8	Upper screen: ≤400 Lower screen: ≤150	300-1000	55Kw
BMVS 3661	2	3.6×6.1	43.92	Upper screen: ≤400 Lower screen: ≤150	300-1000	55Kw
BMVS 3673	2	3.6×7.3	52.56	Upper screen: ≤400 Lower screen: ≤150	350-1200	75Kw

Selection Instruction

1.Which material to be screened: ______

2.Handling capacity:______t/h

3.Material density: ______t/m3

4.Max. granule size of the feeding material: ______mm

5.Layer number: ______

6.Mesh size of each layer: ______mm

7.Particle distribution percentage:______
please check the following example to help you undertand it:
If the layer number is two, the mesh size of each layer is 50 mm and 25 mm, then after the material is screened, three different sizes of materials will be obtained:

Big material≥50 mm; 25mm≤ Middle material < 50mm; Small material<25mm.

We want to confirm the following information:
a.The percentage of big material in the whole material:______%;
b.The percentage of middle material in the whole material:______%;
c.The percentage of small material in the whole material:______%;

8.What equipment is used to feed the material into the Banana Style Screens :______

9.What equipment is used to discharge the material from the Banana Style Screens : ______

10.Working power supply: ______V ______HZ

11.Does the Banana Style Screens work alone or with other equipment to form a system? If forming a system, do you have preliminary design or hand-drawn sketch? If have, Please send it to our engineer for reference.
