Coal Sizers drives the two tooth rollers to rotate in the opposite direction by clicking to create pressure between the two tooth rollers to crush many kinds of minerals, and with the edge tooth and the bottom tooth can achieve a very good crushing effect.

Because of our in-depth research on the manufacturing materials of Coal Sizers processing base, and drawing lessons from the excellent hot spots of other brands of Coal Sizers, we have produced sizer with high efficiency, low maintenance cost, safety, wear resistance and durability. Its crushing efficiency can reach the world-famous brand Coal Sizers.

Coal Sizers are good at dealing with feed containing clay and other pollutants that cause problems with jaw crushers, rotary crushers and impact crushers.

Coal Sizers crusher utilizes the shear force and tensile force between the toothed rollers to break the materials.

Coal Sizers has two inwardly rotating toothed rollers with replaceable crushing teeth. The most suitable feeding method is by apron feeder or screening equipment, which conveys the material at a uniform rate and distributes it evenly over the toothed rollers.

1.The mineral is gripped by the leading faces of opposed rotor teeth,and to be subjected to stress under the concentrated load of the rotor teeth.The stress causes mineral to be break along its natural texture.

2.Mineral is broken in tension by being subjected to a three point loading, which between the front tooth faces on one rotor and rear tooth faces on the other rotor.

3.For the mineral that has not been fully broken, through the rotor teeth and fixed teeth of the breaker bar can be further broken to ensure the 3d dimension requirements of the discharging material.

product-496-330

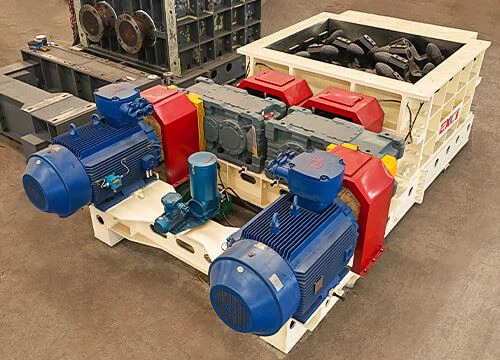

Drive Device

Two independent drive units, each drive units includes: motor, high-speed end coupling, gear box, low-speed end coupling. The high-speed end coupling uses a hydraulic coupling to connect the motor to the gearbox. The gearbox adopts parallel shaft helical gear structure to meet the requirements of power transmission, speed ratio and torque under extreme load of the Coal Mineral Sizer.

Toothed Roller

Toothed roller can be divided into Primary Coal Sizers Toothed Roller and Secondary Coal Sizers Toothed Roller. Easy installation and disassembly of the Coal Sizers tooth head, which can significantly reduce the maintenance time and lower the maintenance cost.

Housing

Coal Sizers housing is designed as a rigid host frame, and the housing is made of cast steel and connected by high strength bolts. Wear-resistant plates are installed around the inside of the housing, and comb shaped wear plates are installed on both sides of the housing to prevent excessive material from adhering to the crusher tooth rollers.

Synchromesh Gear

The primary Coal Sizers is equipped with synchronizing gears at the end of the toothed rolls. Synchronous gears and roll shafts are connected by the expansion sleeve, which can guarantee the relative stability of the biting position of the crushing teeth on the double rolls, and can force the breaking of large pieces of materials, making the material discharge size uniform.

Lubrication Device

Coal Sizers adopts centralized automatic lubrication system, it can be more oil filling times, oil filling time Settings, reliable to ensure the effective and reliable lubrication of each part. Automatic control of oil supply interval time, oil supply pressure is large, oil supply speed is fast, the bearing is fully lubricated effectively, so that the core part of the teeth roller bearing to achieve good lubrication, greatly extend the service life of the teeth roller.

Running Gear

The tramming device is installed at the bottom of the Coal Sizers and driven by a motor to move along a track to the maintenance access, facilitating easy maintenance and avoiding disassembly. This design allows the equipment to move smoothly between the operating and maintenance areas, reducing manual labor and minimizing downtime during maintenance, thus improving operational efficiency.

The feeding granularity of primary sizers is less than or equal to 1500mm and the discharging granularity is less than 300mm. The arrangement of crushing tooth shapes and tooth shapes are arranged by special spiral tooth shapes. The crushing teeth are cast from abrasion resistant and impact resistant alloy steel. Primary Sizer toothed roller has a unique and novel tooth design structure with deep spiral distribution for high productivity. The passing cavities are formed between the two toothed rollers and the side plate body for screening and crushing materials respectively.

product-1360-344

The Feeding size of Secondary sizer less than or equal to 300 mm (a small amount of 400mm is allowed), and the discharging granularity is less than 50mm. The connection form of the teeth plate adopts a single dovetail groove, which is complementary to the bevel of the insert clamping block, and then the crushing tooth plate is installed on the fixing seat of the teeth plate, formed a surface to surface connection, which is tightened and pressed by high-strength bolts. The function of the bolt becomes a fixed insert clamping block, avoiding the problem of the fixed lock bolt breaking, teeth plate falling off or difficult to disassemble and replace.

product-1360-344

Coal Sizers adopt unique tooth alloy, can handle material from soft coal (30 MPa) to hard granite (250MPa).

Flexible layout, compact structure, smooth running, easier replacement of worn parts and the latest remote status monitoring are designed.

The Coal Sizers is designed for the safety of operators, simple hydraulic crushing rod adjustment and disassembly, without the need for personnel under the classifier

Coal Sizers provides a more efficient way to crush clay-entangled viscous materials without having to recycle oversized materials produced by Jaws, Gyratories or Impactors.

Coal Sizers equipped withg overload protection device, prevent unbreakable materials from damaging the equipment in advance.

Mineral Sizer can not only control the product size, but also minimizes dust and fine matter generation compared to other types of crushers.

A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.

Left And Right Side Plate Blanking Process

Front And Rear End Cover Machining Process

Front And Rear End Cover processing

Left And Right Side Plate Machining Process

Left And Right Side Plate processing

Teeth Ring Internal Surface Machining Process

Teeth Ring Internal Surface processing

Teeth Base Processing

Teeth Roller Heat Treatment

At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.

EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

Current Detection

Voltage Detection

Shaft Temperature Detection

Vibration Detection

Noise Detection

Ultrasonic Flaw Detection

Hardness Detection

Coating Thickness Detection

Our Coal Sizers covers more than 20 countries and regions all over the world. They are mainly used for crushing raw coal, coal gangue, lignite, coke, topsoil and other materials, and are used in coal-related industries such as thermal power plants, coal mining, coal washing plants and so on.

Coal Sizers are customized for each application material to provide the best configuration and meet all your requirements.engineers.

Primary Coal Coal Sizers Technical Specifications
Model	2PLF800	2PLF1000	2PLF1200	2PLF1500
Teeth Roller Dia (mm)	800	1000	1200	1400
Roll length (mm)	1500-2500	1500-3000	1500-3000	2000-3500
Max feed size (mm)	800	1000	1200	1500
Output size (mm)	≤300	≤300	≤300	≤300
Capacity (t/h)	≤2000	≤3500	≤6000	≤10000

Secondary Coal Coal Sizers Technical Specifications
Model	2PLS600	2PLS800	2PLS1000	2PLS1200
Teeth Roller Dia ( mm )	600	800	1000	1200
Roll length(mm)	1000-2500	1500-3000	2000-3500	2000-4000
Max feed size (mm)	200	300	350	400
Output size (mm)	50-80	50-100	50-120	50-140
Capacity ( t/h )	250-800	500-2000	600-3000	800-4000

Note: Tooth configurations vary depending on the material type, infeed size and discharge size.

Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.

1. Which material to be crushed:______
2. Handling capacity:______t/h.
3. Bulk material density: ______t/m3
4. The material compressive strength:______Mpa
5. The material HGI (hardgrove grindability index) range:
6. Material particle distribution percentage?
7. Max. grain size of the feeding material: ______mm
8. What is the grain size of the finished product after crushing?
9. What equipment is used to feed the material into the sizer?
10. What equipment is used to discharge the material from the sizer?
11. As we know,the sizer should form a system with other equipment, do you have preliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
