The Mineral Sizer adopts a revolutionary crushing concept, achieving material crushing through the combined action of shearing and stretching. It completely breaks through the limitations of traditional crushers that rely on impact and compression.
This unique working principle can effectively reduce the phenomenon of over-crushing of materials, ensuring uniform and controllable output particle size.
The equipment features a specially designed tooth structure and optimized rotational speed parameters. During the crushing process, it forms a three-dimensional spatial restriction, significantly reducing the rate of oversized particles.
Compared to traditional equipment, this crushing method has lower energy consumption and higher efficiency. It is particularly suitable for working environments with strict requirements on output particle size.

Mineral Sizers crusher utilizes the shear force and tensile force between the toothed rollers to break the materials.

Mineral Sizers has two inwardly rotating toothed rollers with replaceable crushing teeth. The most suitable feeding method is by apron feeder or screening equipment, which conveys the material at a uniform rate and distributes it evenly over the toothed rollers.

1.The mineral is gripped by the leading faces of opposed rotor teeth,and to be subjected to stress under the concentrated load of the rotor teeth.The stress causes mineral to be break along its natural texture.

2.Mineral is broken in tension by being subjected to a three point loading, which between the front tooth faces on one rotor and rear tooth faces on the other rotor.

3.For the mineral that has not been fully broken, through the rotor teeth and fixed teeth of the breaker bar can be further broken to ensure the 3d dimension requirements of the discharging material.

Mineral Sizers Drive Device

Drive Device

Two independent drive units, each drive units includes: motor, high-speed end coupling, gear box, low-speed end coupling. The high-speed end coupling uses a hydraulic coupling to connect the motor to the gearbox. The gearbox adopts parallel shaft helical gear structure to meet the requirements of power transmission, speed ratio and torque under extreme load of the Mineral Sizers .

Toothed Roller

Toothed roller can be divided into Primary Mineral Sizers Toothed Roller and Secondary Mineral Sizers Toothed Roller. Easy installation and disassembly of the Mineral Sizers tooth head, which can significantly reduce the maintenance time and lower the maintenance cost.

Housing

Mineral Sizers housing is designed as a rigid host frame, and the housing is made of cast steel and connected by high strength bolts. Wear-resistant plates are installed around the inside of the housing, and comb shaped wear plates are installed on both sides of the housing to prevent excessive material from adhering to the crusher tooth rollers.

Synchromesh Gear

The primary Mineral Sizers is equipped with synchronizing gears at the end of the toothed rolls. Synchronous gears and roll shafts are connected by the expansion sleeve, which can guarantee the relative stability of the biting position of the crushing teeth on the double rolls, and can force the breaking of large pieces of materials, making the material discharge size uniform.

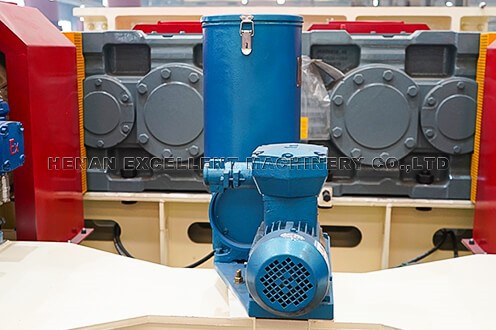

Lubrication Device

Mineral Sizers adopts centralized automatic lubrication system, it can be more oil filling times, oil filling time Settings, reliable to ensure the effective and reliable lubrication of each part. Automatic control of oil supply interval time, oil supply pressure is large, oil supply speed is fast, the bearing is fully lubricated effectively, so that the core part of the teeth roller bearing to achieve good lubrication, greatly extend the service life of the teeth roller.

Running Gear

The tramming device is installed at the bottom of the Mineral Sizers and driven by a motor to move along a track to the maintenance access, facilitating easy maintenance and avoiding disassembly. This design allows the equipment to move smoothly between the operating and maintenance areas, reducing manual labor and minimizing downtime during maintenance, thus improving operational efficiency.

The feeding granularity of primary sizers is less than or equal to 1500mm and the discharging granularity is less than 300mm. The arrangement of crushing tooth shapes and tooth shapes are arranged by special spiral tooth shapes. The crushing teeth are cast from abrasion resistant and impact resistant alloy steel. Primary Sizer toothed roller has a unique and novel tooth design structure with deep spiral distribution for high productivity. The passing cavities are formed between the two toothed rollers and the side plate body for screening and crushing materials respectively.

Primary Sizers Toothed Roller

The Feeding size of Secondary sizer less than or equal to 300 mm (a small amount of 400mm is allowed), and the discharging granularity is less than 50mm. The connection form of the teeth plate adopts a single dovetail groove, which is complementary to the bevel of the insert clamping block, and then the crushing tooth plate is installed on the fixing seat of the teeth plate, formed a surface to surface connection, which is tightened and pressed by high-strength bolts. The function of the bolt becomes a fixed insert clamping block, avoiding the problem of the fixed lock bolt breaking, teeth plate falling off or difficult to disassemble and replace.

Secondary Sizers Toothed Roller

01/ Low over-crushing rate

The Mineral Sizer adopts the principle of shearing and stretching for crushing, combined with a unique spiral tooth design. This enables the material to be crushed along its natural texture, resulting in products that are mostly in a regular shape. Moreover, the over-crushing rate of this crusher is much lower than that of traditional crushers, effectively reducing dust and fine particles, enhancing the economic value of the finished products, and is particularly suitable for scenarios with strict requirements on the material form.

02/ Full coverage of coarse and fine crushing

We offer both primary and secondary twin-disc crusher models. The primary model has an input size of ≤ 1500mm and an output size of ≤ 300mm. The secondary model has an input size of ≤ 300mm (allowing a small amount of 400mm) and an output size of ≤ 50mm. This can cover the entire production stage from coarse crushing to medium crushing, meeting the crushing needs of different production lines.

03/ High material adaptability

It can not only handle low-hardness materials such as soft coal, but also crush hard rocks. At the same time, it has excellent compatibility with both wet and dry materials. Even when wet and dry materials are mixed, it can still break down stably, avoiding the problems of blockage or efficiency decline caused by changes in material properties as seen in traditional equipment.

04/ Large production capacity

The Mineral Sizer s of different models have a wide range of production capacities. The primary model can reach a maximum production capacity of 10,000 tons per hour, and the secondary model can reach up to 4,000 tons per hour. They can easily meet the high-intensity and high-load production requirements of large mines, coal processing plants, etc., and ensure the efficient delivery of orders.

05/ Modular design

The core components of the equipment (such as the toothed rollers and toothed plates) adopt a modular design. The installation and disassembly of the tooth heads are simple. The tooth plates are connected through a single dovetail groove and an insert-type locking block. During replacement, there is no need for complex disassembly, which significantly shortens the maintenance time, reduces labor costs, and minimizes equipment downtime losses.

06/ Built-in overload protection

Equipped with a self-developed self-aligning drum-shaped gear coupling, which has a shear safety pin on both sides of the semi-couplings. When the tooth roller gets stuck, the counteracting force will instantly cut off the safety pin, disconnecting the tooth roller from the driving device, effectively protecting the driving system and preventing the equipment from being damaged due to overload.

Submit your requirements and talk with one of our technical engineer about your project.

Contact Us For Best Price

A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.

Left And Right Side Plate Blanking Process

Mineral Sizers Front And Rear End Cover Machining Process

Front And Rear End Cover processing

Mineral Sizers Left And Right Side Plate Machining Process

Left And Right Side Plate processing

Mineral Sizers Teeth Ring Internal Surface Machining Process

Teeth Ring Internal Surface processing

Teeth Base Processing

Teeth Roller Heat Treatment

At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.

EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

Mineral Sizers Currency Test When Running

Current Detection

Voltage Detection

Shaft Temperature Detection

Vibration Detection

Noise Detection

Ultrasonic Flaw Detection

Hardness Detection

Coating Thickness Detection

Our Mineral Sizers covers more than 20 countries and regions all over the world. They are mainly used for crushing raw coal, coal gangue, lignite, coke, topsoil and other materials, and are used in coal-related industries such as thermal power plants, coal mining, coal washing plants and so on.

Submit your requirements and talk with one of our technical engineer about your project.

Get The Most Suitable Product Solution And Quotation For Free!!!

Mineral Sizers are customized for each application material to provide the best configuration and meet all your requirements.engineers.

Primary Mineral Sizers s Technical Specifications
Model	2PLF800	2PLF1000	2PLF1200	2PLF1500
Teeth Roller Dia (mm)	800	1000	1200	1400
Roll length (mm)	1500-2500	1500-3000	1500-3000	2000-3500
Max feed size (mm)	800	1000	1200	1500
Output size (mm)	≤300	≤300	≤300	≤300
Capacity (t/h)	≤2000	≤3500	≤6000	≤10000

Secondary Mineral Sizers s Technical Specifications
Model	2PLS600	2PLS800	2PLS1000	2PLS1200
Teeth Roller Dia ( mm )	600	800	1000	1200
Roll length(mm)	1000-2500	1500-3000	2000-3500	2000-4000
Max feed size (mm)	200	300	350	400
Output size (mm)	50-80	50-100	50-120	50-140
Capacity ( t/h )	250-800	500-2000	600-3000	800-4000

Note: Tooth configurations vary depending on the material type, infeed size and discharge size.

Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.

1. Which material to be crushed:______
2. Handling capacity:______t/h.
3. Bulk material density: ______t/m3
4. The material compressive strength:______Mpa
5. The material HGI (hardgrove grindability index) range:
6. Material particle distribution percentage?
7. Max. grain size of the feeding material: ______mm
8. What is the grain size of the finished product after crushing?
9. What equipment is used to feed the material into the sizer?
10. What equipment is used to discharge the material from the sizer?
11. As we know,the sizer should form a system with other equipment, do you have preliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
