The disc screen separator is mainly used in coal classification in industries such as coal mines and power plants, as well as in the process of removing soil from sand and stone aggregates to separate mud and rock. Compared to traditional vibrating screens, the disc screen separator is less prone to clogging when classifying wet and sticky coal, ensuring the processing capacity and screening effect. Moreover, during operation, it has no vibration, low noise, and good sealing and dust-proof performance. In recent years, it has been widely used in the raw coal preparation screening, fine particle removal, and inspection screening operations in coal mines, achieving remarkable results.
How Disc Screen Separator Work?
The screening area consists of many parallel arranged roller shafts, the screen shaft is equipped with a number of staggered screen discs, the roller shafts rotate in the same direction, to realize the feeding and screen of materials.
The sieve surface of the disc screen separator is composed of multiple parallel-suspended sieve shafts with screen discs installed on them. The sieve shafts rotate under the drive device, and their rotation direction is the same as the flow direction of the materials.
The gap between the sieve shaft and the screen disc forms sieve holes. Materials smaller than the sieve holes are affected by their own weight and the rotational force of the sieve shaft, passing through the sieve holes and becoming the undersize materials. Materials larger than the sieve holes continue to move forward along the sieve surface and become the oversize materials, thus achieving the separation of the materials.
To prevent the materials from getting stuck on the sieve shaft, electrical and mechanical overload protection functions are provided.
The sieve size needs to be adjusted according to the user's requirements, by changing the gap of the sieve shaft and the size of the screen discs.
Disc Screen Separator Core Components
Our company has skilled technical workers and perfect quality management system, to ensure the high quality of the core components of the roller screen, to provide a guarantee for the high-performance operation of the product.
Screen Shaft Assembly
The screen shaft assembly is composed of motor + reducer, screen shaft, screen disc, flat key, locking nut, coupling, bearing seat and bearing seat accessories. The drive motor is connected with the reducer and screen shaft through the coupling.
The design of the screen shaft is reasonable and safe, which can effectively avoid the phenomenon of bending and breaking of the roller shaft.
When any group of screen shafts fails, the material can continue to move forward under the push of previous screen shaft, and the screening can operate as usual. The screen shaft bearing seat is installed on the outside of the screen box side plate for easy disassembly.
Screen Disc
The screen disc is made by casting a wear-resistant manganese-chromium alloy steel as a whole, which has excellent wear resistance. It can withstand the impact and wear of large pieces of materials and will not undergo any deformation or fracture.
The screen disc is designed as a parabolic sieve plate shape and is rounded to eliminate sharp corners, minimizing the rotational resistance of the sieve plate.
The parabolic screen disc can maximize the disturbance ability of the roller screen disc on the material flow and improve the screening rate.
Disc Screen Separator Details
Drive Device
It adopts single-axis single-motor drive or multi-axis chain combination transmission mode, reasonable power configuration and screen surface structure to evenly distribute the material load in the screen and ensure smooth operation.
The design structure of the driving device is simple, easy to install and disassemble, and the connected screen shaft is not moved when disassembling.
The driving device is compact in size, light in weight, long in life and low in maintenance cost.
Screen Disc
The roller screen disc is arranged in an alternating pattern, which makes the design more reasonable and resistant to impact. There will be no deformation or fracture at all.
The parabolic-shaped screen disc is well-designed, with high assembly accuracy. It can increase the screening rate and improve the screening accuracy. It has excellent wear resistance and a long service life.
Screen Box
The main body of the disc screen separator is welded with low-alloy high-strength structural steel. All screen shaft assemblies are fixed to the machine body through connecting bolts. Wear-resistant lining plates are installed on the side of the machine body to avoid direct contact between materials and the box, greatly extending the service life of the equipment. And the wear-resistant lining plate and the screen box are connected by bolts, which is easy to replace.
Protective Housing
The protective housing of the disc screen separator is welded with NM500 wear-resistant alloy steel plate, sprayed with anti-rust and anti-corrosion paint, and connected with the hopper and the outlet housing at the front and back.
The overall sealing of the screen box can effectively prevent dust pollution, reduce the impact on the environment, and meet the requirements of green construction.
The protective housing is provided with an observation window to facilitate the observation of the operation of the machine.
Wear-Resistant Lining Plate
The wear-resistant lining plate is made of alloy material, and the whole production process adopts welding, heat treatment, machining and other assembly line production, which has a long service life and strong wear resistance, toughness and impact resistance.
The inside of the screen box and the contact surface between the guide groove and the material are provided with wear-resistant lining plates, which can protect the screen box and increase the life of the guide groove. The lining plate is fixed together with the mother plate by bolts, and the replacement is convenient.
Self-cleaning Device
The self-cleaning device of the screen shaft is made of wear-resistant steel and is equipped with a cutting edge, which is inclined to the lower part of the screen shaft. Some fibrous debris and sticky materials attached to the screen will be automatically cleaned off by the cleaning device to solve the blockage of the screen surface.
Disc Screen Separator Features
Uniform Material Distribution
The screen axis is reasonably arranged at multiple angles at the equipment inlet section, with the angle between the screen axis and the horizontal plane being 15°, and at the outlet section, the angle is 5°. This ensures that the materials are evenly distributed within the equipment after entering.
Customizable Shaft Gap
The clearance between each screen shaft can be customized according to actual requirements.
Not Easy To Block
The screen discs are arranged in an interlaced manner and rotate at high speed. They clean the materials between the discs for each other, and are equipped with a self-cleaning device, which maximizes the prevention of blockages.
Easy To Maintain
The screen shaft operates independently and does not affect each other. Independent maintenance does not affect production. Moreover, inspection holes are installed on the upper part and the rear side of the machine body, making it convenient for inspection and maintenance.
Sealed & Eco-Friendly
The entire machine adopts a fully enclosed structure, without vibration. It effectively prevents dust from spilling out and has low noise. It is energy-saving and environmentally friendly.
Wide Application Range
The disc screen separator is widely applicable for the screening of solid materials in industries such as coal, power, metallurgy, and cement. It can also be used as a screening and separation equipment for cuttings of block materials like grains, sludge, coal cinders, and ores.
Contact Us For Best Price
Submit your requirements and talk with one of our technical engineer about your project.
Disc Screen Separator Brochure Download
Why Choose Disc Screen Separator?
Disc screen separator VS conventional screens, have the following advantages.
Disc screen separators distinctly outclass conventional screens, especially in the case of difficult to screen, wet, sticky bulk materials, feeding and screening is distinctly outclass to conventional screens, which often exhibit baking and sticking with these materials.
Disc screen separator operate with low energy consumption and low profile requirements, and without vibration, noise or transmitted stresses, making them ideal for both stationary and portable applications.
Compared with the traditional screen that uses vibration to separate materials, the disc screen separator does not vibrate, the equipment is relatively strong, does not require frequent maintenance and overhaul, and the overall life of the equipment is longer.
Disc screen separator are self-cleaning and designed to resist clogging and reduce blinding. They also feature an automatic lubrication system and a jog reverse function to quickly and easily solve any jamming situation.
Disc screen separator can be fed by an apron feeder or directly via trucks or loaders. No other equipment is required to assist the feeding, reducing the cost of civil construction and equipment.
EXCT Manufacturing Facilities
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
EXCT Strict Quality Control
At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.
EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.
Disc Screen Separator Application
Construction Waste
Mud And Stone
Various Waste
River Sand And Gravel
Various Ores
Coke & Coal
Disc Screen Separator Cases

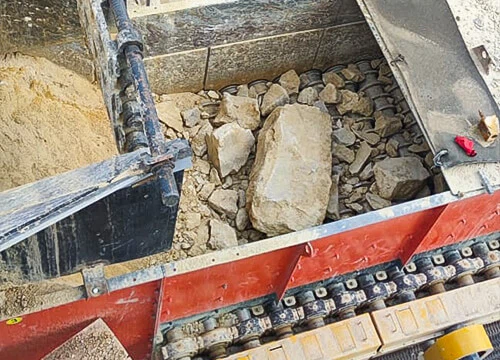

disc screen separator are especially suitable for wet, sticky materials, and stripping out materials with high percentages of clay. disc screen separator are used in aggregate and mining applications to sort the run-of-mine material before the primary crusher.
Submit your requirements and talk with one of our technical engineer about your project.
Get The Most Suitable Product Solution And Quotation For Free!!!
Disc Screen Separator General Technical Specifications
EXCT disc screen separator are customized for each application material to provide the best configuration and meet all your requirements. Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.
| Model | Screen Width (Mm) | Controlled Axis/Base | Graded Particle Size (Mm) | Drive Power (Kw) | Handling Capacity(T/H) |
| GZS1208 | 1200 | 8 | 10-100 | 15 | 150-300 |
| GZS1412 | 1 400 | 12 | 10-100 | 2x 15 | 200-500 |
| GZS1618 | 1600 | 18 | 10-100 | 3x 18.5 | 400-800 |
| GZS1824 | 1 800 | 24 | 10-100 | 4×22 | 600- 1000 |
| GZS2024 | 2000 | 24 | 10-100 | 4×30 | 800-1200 |
| GZS2430 | 2400 | 30 | 10-100 | 5×37 | 1000-1800 |
Note: The number of rolls can be customized according to customer requirements.
Disc Screen Separator Selection Instruction
1.Which material to be screened: ____________
2.Handling capacity: __________ (t/h)
3.Material density:___________(t/m3)
4.Max. granule size of the feeding material: ______mm
5.What is the percentage of the maximum material in the total feed materials? _________%
6.What is the size of the screen hole of the roller screen?__________(mm)
7.Are there any requirements for the arrangement of the roller screen? Is it horizontal or inclined?
8.Which kind of equipment will feed the material into roller screen?
9.Which kind of equipment will receive the material from roller screen?
10.Does the disc screen separator work alone or with other equipment to form a system? If forming a system, please provide the flow chart or layout drawing of the whole system for our engineers to reference.
Disc Screen Separator Spare Parts
Duplex Roller Chain
Screen Shaft Assembly
Bearing
