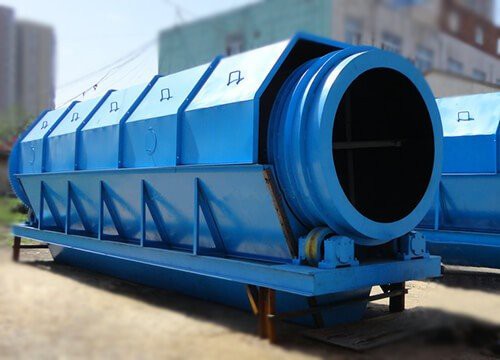

Trommel Screener

The working principle of the trommel screener: Bulk material be fed into the screen drum, the material will rise or fall with the rotating screen drum. When the material falls, the material smaller than the screen hole will pass through the screen, while the material larger than the screen hole will continue to rotate on the screen surface and move to the outlet of the back screen drum. It can be installed 1~5 segments different specifications of screen mesh according to the screening requirements. Installing an enclosed cover entirely the screen drum, so that no material leakage, no dust pollution, improve working condition for operators as well.

Product Details:

Feature:

1 Various types of screen mesh to meet the screening requirements for different materials

2 Automatic cleaning brush on the top of the trommel screener to reduce screen mesh blocking.

3 Screen mesh adopts a modular design, which is fixed to frame with bolts, so it is easy to replace.

4 Widely using the range, reasonable design, large capacity, high screening accuracy.

5 Stable operation, low energy consumption, convenient maintenance, long service life.

Application:

Why Choose Us:

After the device is introduced to the customer's factory, The professional technicians of EXCT will guide the set up of the equipment, including on-site infrastructure confirmation, installation drawing confirmation, installation of required equipment and tools, and so on to ensure the smooth setup of the equipment.

Manufacturing Facilities:

Henan Excellent Machinery Co.,Ltd (hereinafter referred as EXCT) owns more than 140 sets domestic and foreign leading high-end manufacturing equipment of Laser cutting machines, CNC turret punch press, Idler automation production lines, Welding robots, CNC planer horizontal milling and boring machines, CNC high-speed gantry moving flange drilling machines etc. The mission of EXCT is to provide high quality, reliable and superior performance products.

The modern manufacturing and processing production line and the perfect equipment processing system provide the strong equipment guarantee for product manufacturing, which also can satisfy the requirements of personalized orders, production and installation services for large orders and customers.

Strict Quality Control:

"A handy tool makes a handyman. EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

EXCT also has professional personnel to guide the on-site installation and commissioning of the equipment, and after the successful testing of the equipment, the end-user operators will be trained in the use and maintenance of the equipment system.

Oversea:

As an expert producer of bulk material handling equipment, EXCT, by the end of 2020, our products have been exported to over 50 countries and regions, such as United States, Pakistan, Australia, Indonesia, South Africa, Brazil, Guinea, Thailand, Russia, Egypt, Germany, Chile, and so on.

Trommel Screener Adjustment

I. Preparation before debugging:

1. After the installation of all parts of the roller screen and the inspection, a test run can be carried out. Before the test run, it should be checked in detail that each component is installed correctly as shown in the drawing, each fastener is firm, and whether there are obstacles around the screen body that hinder the operation of the roller screen;

2. Put the rectangular access door in an open position, and rotate the sieve cylinder by manual turning to observe whether the comb-type sieve cleaning mechanism is stuck or frictions, if so, it can be adjusted by adjusting bolts;

3. Check each bearing seat, transmission should be well lubricated, the transmission oil level should be appropriate;

4. The power supply joint should be firm and reliable, with good insulation, correct grounding.

Ⅱ No-load test

1. Point the motor control button, check the motor steering should be consistent with the cage drum screen as shown;

2. Start the equipment for 4-6 hours and observe the operation of the roller screen. If abnormal sound or other phenomena are found, stop the machine in time to check, find out the cause, and troubleshoot.

The following items should be checked during the test run for 4-6 hours:

A. Large shaft bearing temperature: the high temperature shall not exceed 75℃ and the temperature rise shall not exceed 45℃.

B. Tighten bolts in all places if they are loose.

Specification:



Why choose us?

• Our Trommel Screens are made with high-quality materials that are sourced from trusted suppliers, ensuring their durability and longevity.
• The warehouse of the company keeps a large number of Trommel Screener in stock all the year round, which provides a strong guarantee for timely delivery.
• Our Trommel Screens are manufactured using state-of-the-art technology and processes to ensure their precision and accuracy.
• Our quality is equally good, but due to our low labor costs and raw material costs, our Trommel Screener is more price-competitive.
• Our Trommel Screens are designed to be low-maintenance, reducing downtime and saving you money in the long run.
• We have a complete range of Trommel Screener with high technology, the best quality and timely and thoughtful after-sales work.
• We offer comprehensive technical support and training to help you get the most out of your Trommel Screen products.
• During the ten-year growth of the company, our company has found a green road that is in line with the development of the times and is beneficial to the country and the people.
• We use a range of quality control measures to ensure the consistency and reliability of our Trommel Screen products.
• We develop quality Trommel Screener that is oriented to the interests of consumers, so that each product can meet international first-class quality standards, become the industry benchmark, gain social recognition, and become the most secure choice for consumers.
