The Coal incline screen is driven by 2 motors through the triangle belt, driven by the end of the transmission device through the synchronous belt, drag 2 groups of vibrators rotate in the same direction, eccentric block generated centrifugal force on the screen box, the screen box for circular or approximately circular vibration, the material on the screen surface constantly flip and loose, so that the material less than the sieve hole through the screen, Material larger than the sieve is discharged through the discharge nozzle to complete the grading operation.
Coal incline screen includes: screen box, screen plate, vibrator, transmission device, damping spring, screen frame support, motor, motor support, accessories, etc.
Feature:
1. In the design, we should strengthen the optimization design of process connection, material transfer and other links, avoid the problem of "running, taking, dripping and leaking" of materials, eliminate the secondary dust, so as to achieve clean production.
2. Adopting new, reliable and practical process equipment and "three electric" equipment, the level of technical equipment has reached the advanced level of the same type in China.
3. Design requirements system safety, reliability, stable operation, energy saving and consumption reduction.
Inclined screen adopts cylindrical eccentric shaft exciter and eccentric block to adjust amplitude, easy to operate.
4. Screen surface inclination: select 25° inclination Angle, in the design inclination Angle can make the material to obtain the best running speed, so that the material is screened quickly and evenly filled with the whole screen surface, optimize the material flow, and effectively improve the screening efficiency.
5. Coal incline screen vibration intensity 5g, in the vibration intensity, the material thrown up generated inertia force can overcome the bonding force of the material and the screen, the relative motion speed between the material and the screen is accelerated accordingly, the material group loose after less than the size of the screen and the screen contact probability is high, so as to improve the screening efficiency, minimize the probability of plugging.
6. Coal incline screen vibration frequency: using the best vibration frequency of 780r/min, under the action of the vibration frequency, screen machine can maximize its advantages, so that the material to achieve the best stratification effect, so as to achieve the best screening efficiency.
Product Details:
Cases:

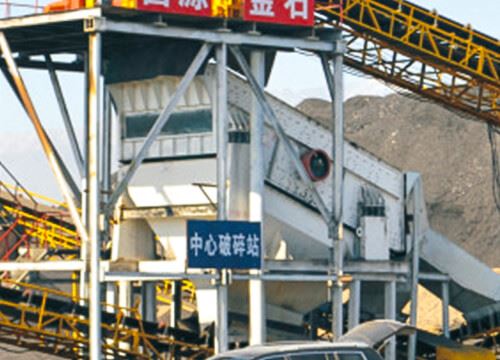

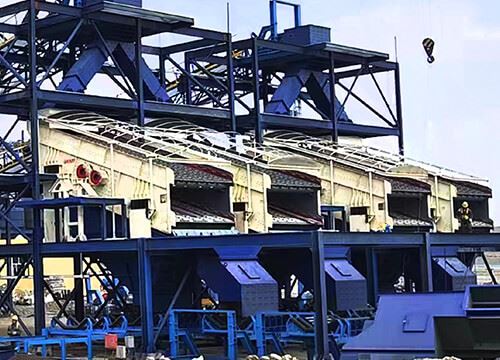

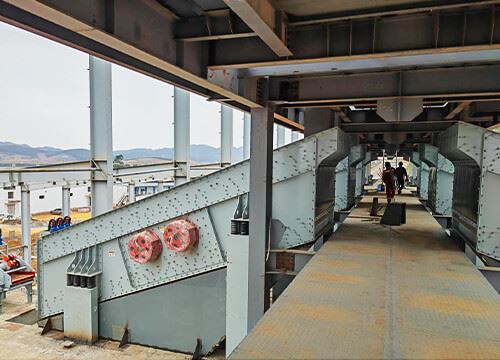

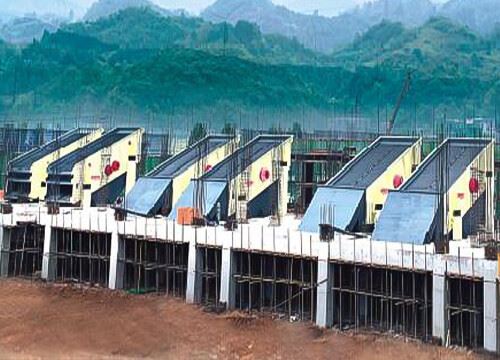

Inclined screen is widely used in dry classification of granular and bulk solid materials in mineral processing, building materials, power, light industry and chemical industry and screening of coal, limestone, non-metallic ore and other materials
Specifications:
Package & Deliver:
Manufacturer Ability:
Quality Inspection:
After manufacturing, the equipment is operated for 24 hours without load in the production workshop, and various technical indexes are tested by microcomputer detection system.
(1) Use the amplitude measuring instrument to measure the amplitude of the inlet and outlet end and the amplitude difference of the symmetrical points on both sides;
(2) Equipment lateral swing deviation, and describe the running track;
(3) Test bearing temperature with infrared thermometer
④ Detect noise with noise analyzer
(5) Testing welding joints and steel components with hardness instrument and ultrasonic flaw detector;
⑥ Use spring instrument to detect spring stiffness, elasticity, etc.;
The quality management department of the company will fill in the detailed and comprehensive test report based on the test conditions. The test report has complete data. The product quality meets the requirements of bidding documents and national standards, and meets the on-site requirements of different customers.
Safety & Environmental Measures:
(1) Safe operation measures
A. All exposed moving and rotating parts are provided with a firm and reliable protective cover, the length of the protective cover can cover all rotating parts, and there is a turning mark, the protective cover is reasonable in structure, easy to disassemble and install.
B. The dangerous area or rotating part shall be clearly marked.
C. Detachable parts such as shaker and motor are equipped with lifting lugs for easy lifting.
(2) Environmental protection measures
The upper part of the incline screen is equipped with a dust cover to prevent dust spill during operation and meet environmental requirements.
B. Under any operating conditions of the equipment, the decibels measured within one meter around the equipment shall be less than 60dB (A) according to the GB12348-1990 mixed zone evaluation standard II of the factory boundary noise standard for industrial enterprises.
Production Technology:
All coal incline screen components are manufactured in strict accordance with ISO9001 and national standards and are strictly monitored and controlled by the company's internal quality control department throughout the process of purchasing, processing, assembly and shop testing.
1. The quality of raw materials is tested in strict accordance with ISO9001 and national standards.
2. Welding and non-destructive rub testing (magnetic particle testing, ultrasonic testing, appearance testing) shall be conducted in accordance with JB/T5000-2007 standards.
3, in the production process, each process will be in accordance with the ISO9001 and JB/T5000.1-2007 standards for the parts of the strict size inspection.
4. Heat treatment process of processed parts shall be carried out in strict accordance with national standards.
5. Sandblasting operation and surface treatment process shall be carried out in accordance with GB8923-1988 standard.
6. Riveting of ring groove rivets is carried out according to the standards of GJB 381.1-1987 and GJB 381.9-1987.
7. Workshop test and adjustment shall be carried out according to JB/T4042-1999 standard.
8. Site installation and commissioning shall be carried out strictly in accordance with enterprise standards.
9. All parts are tracked and checked by our internal quality control department during the whole production process.
10. All parts are cut and drilled by laser cutting machine.
11. Sandblasting and priming of all parts shall be carried out in strict accordance with JB/T5000.12-2007.
12. All key stress components are connected with high strength bolts and ring groove rivets.
13, the beam adopts advanced polyurea coating process, anti-erosion and anti-corrosion.
14. The final finish spraying shall be carried out in strict accordance with JB/T5000.12-2007 and enterprise standards. Before assembly, all parts shall be sandblasted to grade 2.5 (metallic color) and coated with 75 micron epoxy antirust primer. After assembly, the painting process is completed as required.
15, the equipment in the workshop test run and corresponding adjustment to ensure that it has a longer trouble-free life.
Each screen machine is assembled in the workshop and runs for 48 hours without load. Various technical indexes are detected by microcomputer detection system.
a. Use noise detection instrument to detect noise.
b. Use flaw detector to detect welded joints and steel components.
c, use the spring instrument to detect the spring stiffness, elasticity, etc
d. Use infrared temperature measuring device to test and check the temperature of the shaker bearing. Qualified products are those whose temperature rise is lower than 45°.
To ensure that each vibrating screen can be safe and efficient operation.
