Tubular Screw Conveyors

When the Tubular Screw Conveyors, due to the gravitational force of the material and the friction force generated with the wall of the tank body, the material can only move forward along the groove bottom of the conveyor under the pushing of the blade. Tubular Screw Conveyor is like a non rotate nut along the rotating screw to do the offset movement. The movement of material in the middle bearing is based on the thrust of the material moving forward. Therefore, the transport of material in the conveyor is completely a kind of slip movement.

Feature:

1. Efficiently distributes bulk materials to various locations using multiple inlet and discharge points

2. Totally enclosed for dusty, corrosive or hazardous environments

3. Flange end bearing assemblies protected against material infiltration by shaft seals

4. Carbon steel, stainless steel, wear-resistant alloy, and other building materials can be selected.

5. Reasonable Tubular Screw Conveyor design, simple structure, low production cost, convenient maintenance.

Details:

Application:

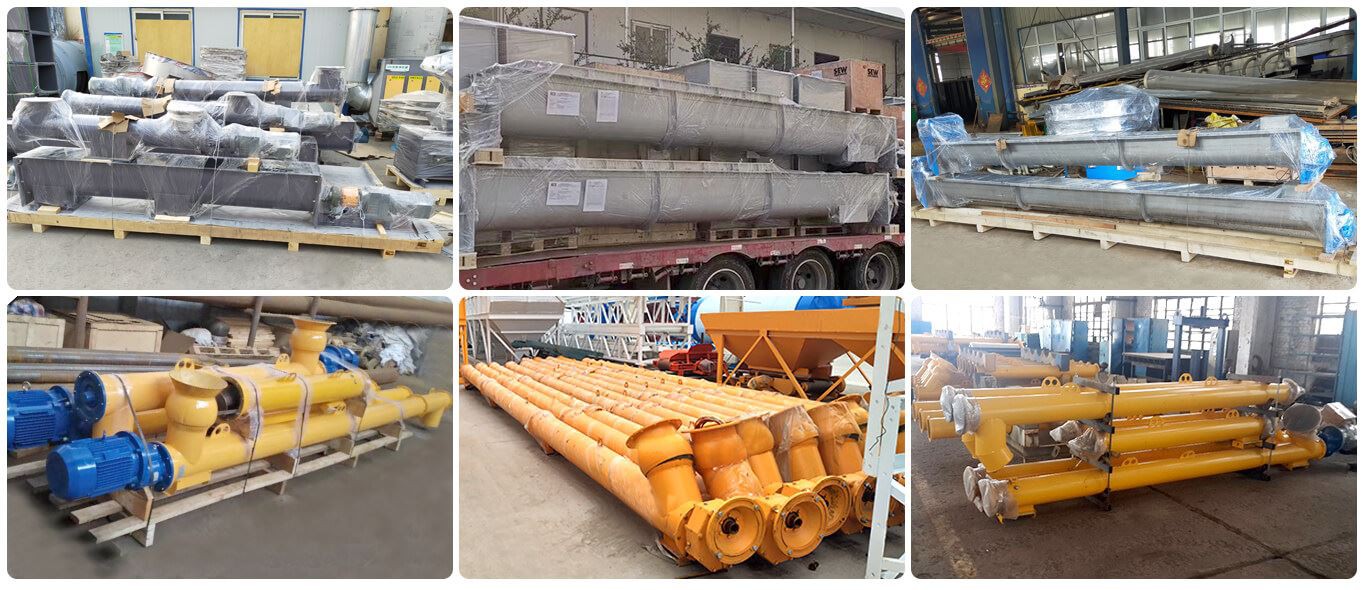

Package & Delivery:

General Technical Parameter:

Screw Conveyor Technical Specifications
Model		LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Screw diameter(mm)		100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch（mm）		100	160	200	250	315	355	400	450	500	560	630
Technical spec	n	140	112	100	90	80	71	63	50	40	32	25
	Q	2.2	8	14	24	34	64	100	145	208	300	388
	n	112	90	80	71	63	56	50	40	32	25	20
	Q	1.7	7	12	20	26	52	80	116	165	230	320
	n	90	71	63	56	50	45	40	32	25	20	16
	Q	1.4	6	10	16	21	41	64	94	130	180	260
	n	71	50	50	45	40	36	32	25	20	16	13
	Q	1.1	4	7	13	16	34	52	80	110	150	200
Remark: n＝rotate speed(rpm）; Q＝Capacity（m³/h）; Filling factor＝0.33
