Screw conveyor Price divided from the Angle of conveying material displacement direction, Screw conveyor Price is divided into horizontal screw conveyor and two types of vertical Screw conveyor Price, mainly used for the various powder, granulated and small lump of loose materials such as horizontal and vertical ascend, this machine is not suitable for transporting perishable, big viscosity, easy to agglomerate or high temperature, be afraid of pressure, special material is corrosive.
Screw conveyor Price is characterized by simple structure, small cross section size, good sealing, reliable work, low manufacturing cost, easy to load and discharge in the middle, the direction of delivery can be reversed, but also to the opposite two directions. During conveying, the material can also be stirred, mixed, heated and cooled. The material flow can be adjusted through the loading and unloading gate. But not easy to transport metamorphic, viscous, easy to agglomerate and large materials. During conveying, the material is easy to be broken, and the screw and groove are easy to be worn. The unit power is large. Use to maintain the groove sealing and proper clearance between the screw and groove.
Feature:
1,Hanging bearing, head, tail shaft connected with the screw shaft are made by tongue-type embedded, installation and removal does not require axial movement, and easy maintenance. Mandrel length, hanging, fewer points of failure.
2, Using adjustable structure, increase the hanging bearing volume, bearing contact with the material to avoid hanging, hanging bearing life can be more than two years.
3,Transmission parts are floating connection, suspended bearings universal structure, the spiral, hanging bearing and tail always formed an integral spin float within a certain range can convey resistance to rotate freely avoidance, not the material, not blocking material.
4,Head and tail are in the bearing housing, all bearings are sealed box with multi-layer sealing technology, long life bearings.
5,Compared with other transportation equipment, the machine has a small cross-sectional size of it, the sealing performance is good, smooth and reliable operation, the intermediate multi-point loading and unloading and safe operation, easy maintenance
6. The shell is made of thickened plates, which are not easy to corrode, durable, solid in materials, and long in equipment life. You get what you pay for, and you don't cut corners.
7. According to the working conditions, we can customize the spiral blades with shaft, shaftless and special shape, and adopt thickened wear-resistant steel with long service life.
Details:
Tumblar Type Screw Conveyor Detail:

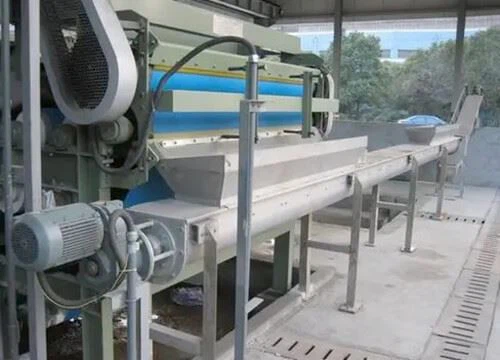

U Type Screw Conveyor Detail:
Screw conveyor price body by the head section, middle section, tail section of three components. Under normal circumstances, the middle section is arranged in order according to the length of the factory final assembly, the longest middle section is close to the head section, the same length of the middle section is next to each other, if there is a special requirement, the order will be given when ordering.
A thrust bearing is arranged in the head segment to bear the axial force, and a spiral shaft is supported by a bearing in the middle segment and the tail segment. In addition, a radial bearing that can move axially is arranged in the tail segment to compensate for the error in the length of the spiral shaft and adapt to the change of temperature. There are two kinds of helical surface: solid helical (S method) and belt helical (D method). Flange connection is adopted between each spiral shaft to ensure the interchangeability of the connecting shaft and facilitate maintenance.
The Screw conveyor cover is tiled and clamped on the shell with the cover buckle. If the sealing performance needs to be improved, the user can add tarpaulin between the cover and the shell by himself.
The feeding and discharging device has four kinds of feeding mouth, square discharging mouth, hand pushing discharging mouth and rack discharging mouth. The opening welding on the body is done by the user at the site of use. When arranging the position of inlet and outlet, attention should be paid to ensuring the distance between the inlet and the end, and avoiding the collision between the inlet and the hanging bearing refueling cup, the connecting flange of the housing, the base, etc.
Application:
Package & Delivery:
General Technical Parameter:
Why choose us?
- Our Screw Conveyor products are designed to provide reliable and efficient performance.
- Through instant social interaction, we focus on the harmonious development of individuals, enterprises and society.
- We are committed to providing you with the best possible experience when working with us.
- We have established a sound management system to improve service awareness and quality as the soul of business operations.
- Our Screw Conveyor products are made from high-quality materials for maximum durability.
- We actively introduce advanced technology at home and abroad, and continue to develop and improve Screw Conveyor Price to meet customer needs to the greatest extent, and enable users to enjoy the most perfect pre-sales and after-sales services.
- Our Screw Conveyor products are user-friendly and easy to operate.
- We sincerely welcome customers all over the world to cooperate with us.
- Our Screw Conveyor products are backed by a warranty for your peace of mind.
- We actively promote the simultaneous upgrading of industrial development and automation and information technology to form an endogenous driving force for the development of high-end chemical and high-tech industries.
