Spiral Conveyors is a continuous conveying equipment which used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device, etc. Single or combination of multiple screw equipment can be used to integrate with each other to meet particular on-site requirements. It has trough type tube with multiple inlets and outlets, which also has inclination angle of maximum 20°. The rotation of the blade initiated by the motor, then material transferred along the spiral to the outlets.
Feature:
1. Spiral Conveyor's simple structure, easy operation, low power consumption, flexible layout arrangement.
2. Cost-effective when compared to other conveying devices such as belt or pneumatic.
3. Whole sealing structure, no pollution to the environment, no material leakage.
4. According to the requirement of clients, Spiral Conveyor can be designed to multiple inlets and outlets.
5. Contacting the material parts can optional carbon steel, stainless steel and abrasion-resistant alloys to meet the conveying requirements for different material.

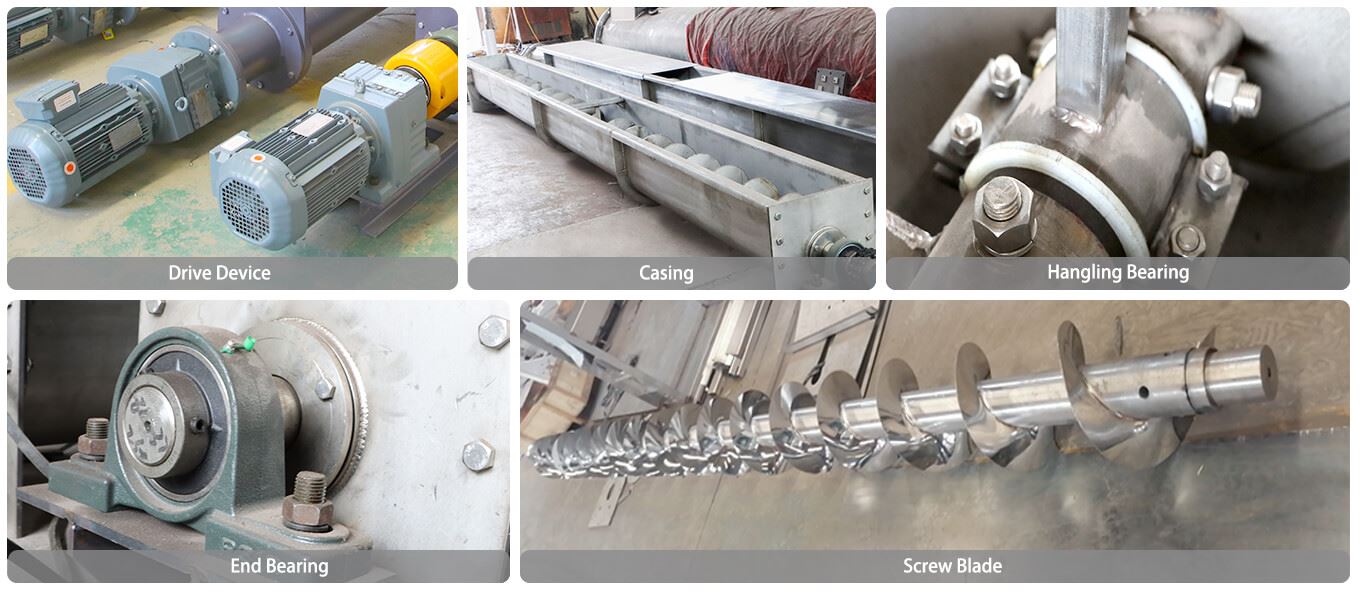

Details:

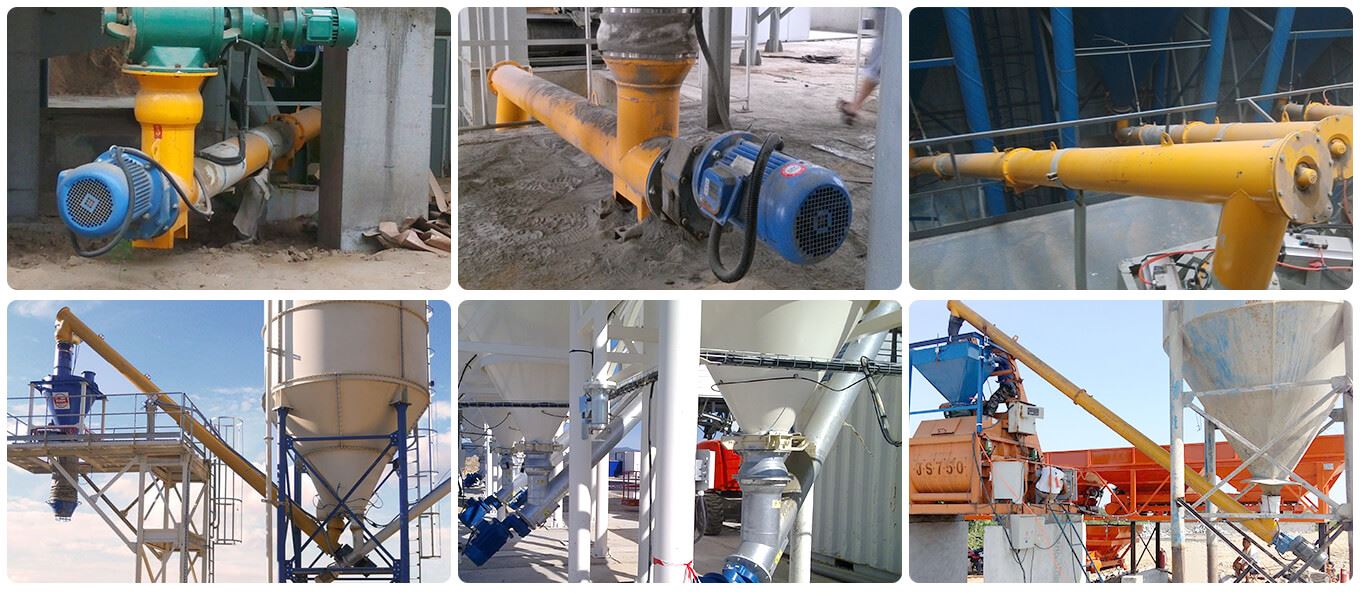

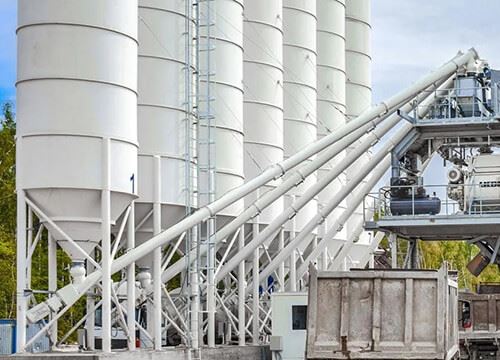

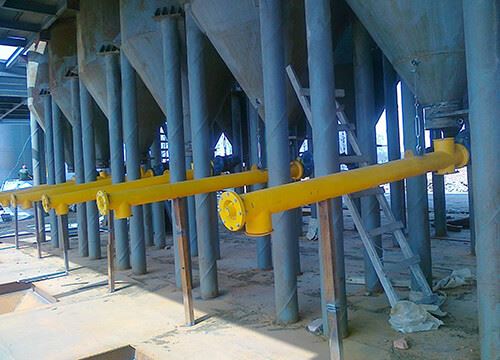

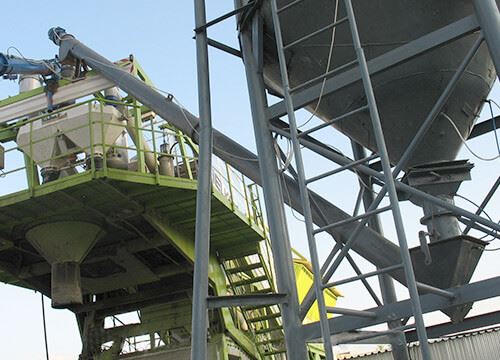

Application:

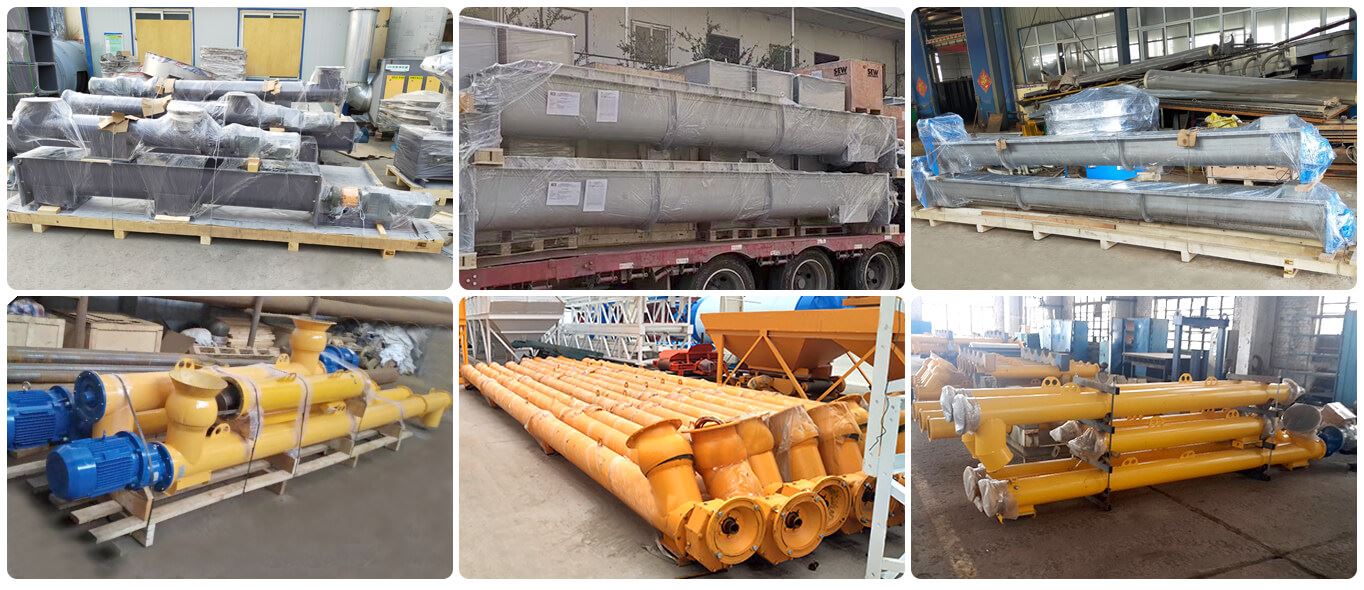

Package & Delivery:
General Technical Parameter:
Screw Conveyor Technical Specifications | ||||||||||||
Model | LS100 | LS160 | LS200 | LS250 | LS315 | LS400 | LS500 | LS630 | LS800 | LS1000 | LS1250 | |
Screw diameter(mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | |
Screw pitch（mm） | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 | |
Technical spec | n | 140 | 112 | 100 | 90 | 80 | 71 | 63 | 50 | 40 | 32 | 25 |
Q | 2.2 | 8 | 14 | 24 | 34 | 64 | 100 | 145 | 208 | 300 | 388 | |
n | 112 | 90 | 80 | 71 | 63 | 56 | 50 | 40 | 32 | 25 | 20 | |
Q | 1.7 | 7 | 12 | 20 | 26 | 52 | 80 | 116 | 165 | 230 | 320 | |
n | 90 | 71 | 63 | 56 | 50 | 45 | 40 | 32 | 25 | 20 | 16 | |
Q | 1.4 | 6 | 10 | 16 | 21 | 41 | 64 | 94 | 130 | 180 | 260 | |
n | 71 | 50 | 50 | 45 | 40 | 36 | 32 | 25 | 20 | 16 | 13 | |
Q | 1.1 | 4 | 7 | 13 | 16 | 34 | 52 | 80 | 110 | 150 | 200 | |
Remark: n＝rotate speed(rpm）; Q＝Capacity（m³/h）; Filling factor＝0.33 | ||||||||||||
