The working principle of the Misalignment Switch is: when the conveyor belt deviation, the conveyor belt touches the switch roller of the Misalignment Switch and deflects it. When the deflection angle of the roller reaches level 1 switch Angle, the switch sends an alarm signal. When the conveyor belt is seriously deviated and reaches the 2-level switching angle, the switch will send the stop signal, realizing the automatic stopping of the conveyor deviation fault.
Technical Specifications
Output Contacts | 1NO+1NC or 2NO+2NC Contacts Are Available As Per Customer Requirement. |
Termination | Suitable To Accept 2.5 Mm Sq Conductors. Separate Earthing Studs Are Provided |
Housing | Dmc Or Cast Aluminium, Dust And Water Tight To Ip – 65 Grade. Cast Iron Enclosure Available Optionally |
Contact Rating | 16 Amp At 440v Ac On Resistive Load. They Are Suitable For Lower Rating Also. (E.G. 5a At 240v Ac) |
Service Life | Reliable Action 100,000 Times |
Feature:
1. Misalignment Switch adapts special flameproof enclosure suitable for various complex working environments.
2. Misalignment Switch uses standardized design, modular production to ensure the interchangeability of parts.
3. Detecting conveyor deviations to shut off the belt conveyor, preventing material spillage and other failures.
4. The shell has high protection grade, good sealing, which is waterproof and dustproof, and can be used in harsh environments.
Application:
Installation Method:

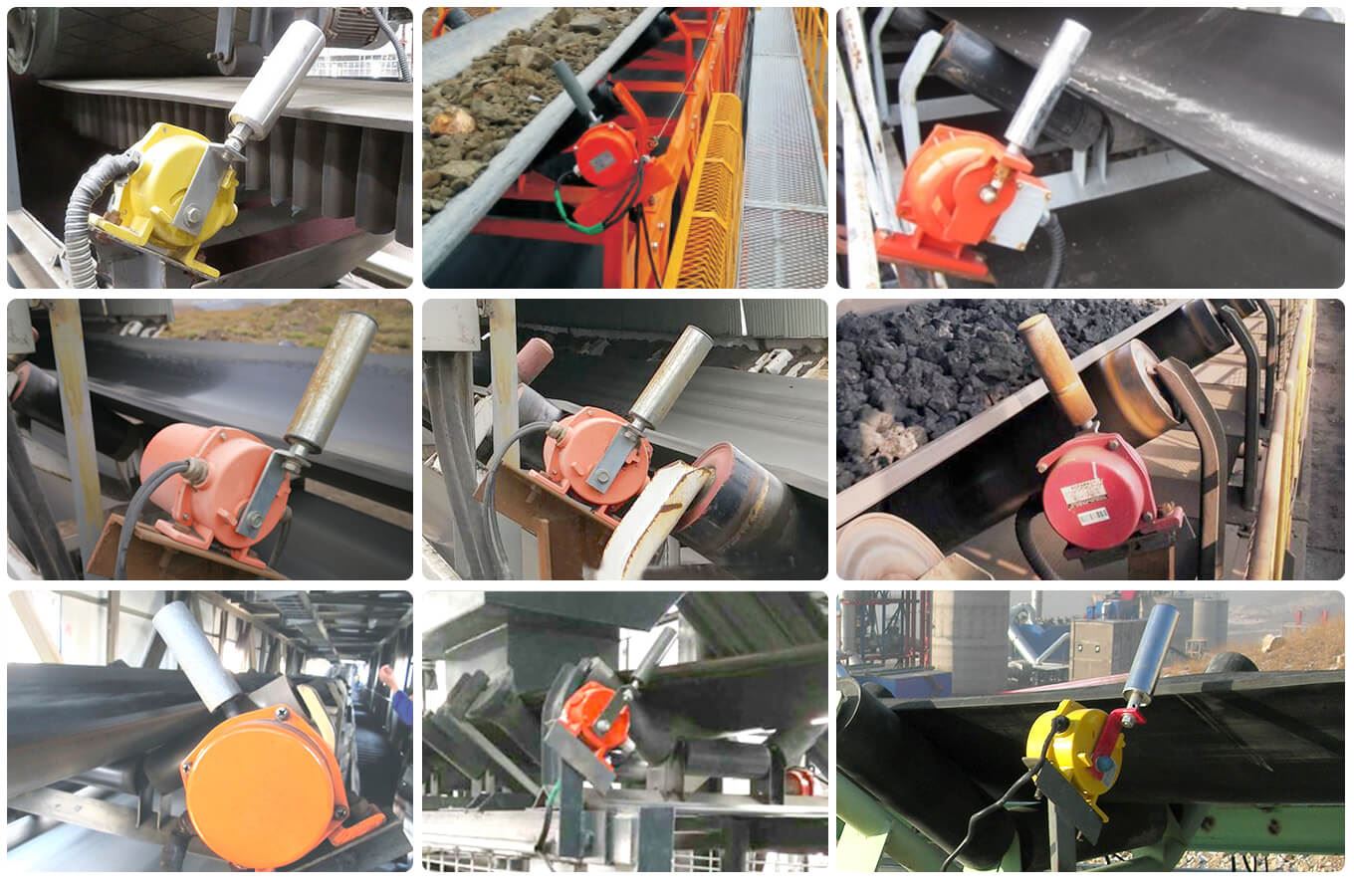

1. The deviation switch shall be installed on both sides of the belt conveyor, and the position of the deviation switch should be such that the vertical roller is perpendicular to the belt side plane and the belt side edge is fixed at 1/4-1/3 of the roller in a suitable position.
2. The distance between the vertical roller and the belt should normally be within the natural offset of the belt, plus 50~100 mm.
3. The deviation switches are mounted in pairs at the head, tail, and intermediate positions. In general, three pairs of tapes having a length of 100 meters are suitable.
4. After the mounting bracket is welded or bolted to the machine frame, tighten the running switch to the mounting bracket with bolts.
About Us:
Henan Excellent Machinery Co., Ltd (hereinafter referred as EXCT) is committed to the EPC project of bulk material crushing & screening and continuous conveying systems, which includes exploration & design, production & integration, engineering logistics, project implementation & management, project commissioning & operation and spare parts service etc.
Working Principle of Belt Sway Switch
The Belt sway switch has generally two operating points ⇒ One for the Alarm and The other for the Tripping.
There may be a chance that the conveyor belt touches the roller while running and it pushes the roller lever. When the lever tilts and reaches at 20 °C, it is the point at which it gives an alarm signal to the user. When the lever angle reaches above 35 °C, it gives an emergency stop signal to the belt conveyor and remains in this condition until the belt starts running in the proper position.
The belt sway switches detect any deviation or displacement in the running belt and thus prevents it from further damage. The belt sway switch is made of high-reliability micro switches, ball-bearing, and a roller lever which is tilted at 75 °C.
