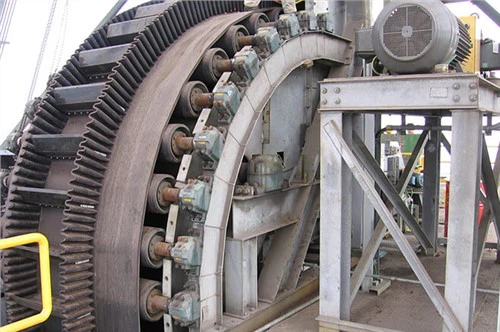

Side Wall Conveyor

The structure of the side wall conveyor is that rubber wave-shaped vertical "sidewall" that can freely expand and contract is adhered to both sides of the flat rubber transportation belt. Between the sidewalls, certain strength and elasticity cleats are adhered to form a box-shaped hopper, enabling continuous material transportation within the hopper.
The side wall conveyor can be widely used in industries such as coal, grain, building materials, chemicals, hydropower, and metallurgy. Within an environmental temperature range of -19℃ to +40℃, it can transport various bulk materials with a density ranging from 0.5 to 2.5 t/m³.
For materials with special transportation requirements, such as those with high temperatures, acidic, alkaline, oily substances, or organic solvents, special conveyor belts need to be adopted.

















The side wall conveyor adopts corrugated sidewall conveyor belt with horizontal cleat which is generally divided into the base belt, sidewall and cleat.



We require the base belt to have certain tensile strength and wear resistance. To meet the requirements of angle changes during conveying, the base belt must be flexible longitudinally and have certain rigidity transversely. The corrugated sidewall belts we produce adopt a transversely rigid base belt with a special structure, which effectively solves the deformation problem of large-sized conveyor belts during the return trip. In addition, the base belt standards fully comply with international standards.



Baseband Type	Strength  (N/mm)	Coating thickness (mm)	Weight  (G/m2)	Min Pulley Diameter (mm)
	250/2	2:2	9.40	200
	400/3	4:2	13.50	315
	400/3+2	4:2	12.10	315
	500/3+2	4:2	12.60	400
	630/4+2	4:2	14.40	500
	800/5+2	4:2	16.10	630
	1000/5+2	4:2	17.80	800
	1250/5+2	4:2	18.25	1000
	315/2+2	4:2	13.70	315
	400/3+2	4:2	14.80	315
	500/3+2	4:2	15.20	400
	630/4+2	4:2	16.70	500
	800/5+2	4:2	18.00	630
	1000/5+2	4:2	19.50	800
	1250/5+2	4:2	21.40	1000
	1600	8:8	/	1250
	2000	8:8	/	1250
	2500	8:8	/	1400
	3150	8:8	/	1400
	3500	8:8	/	1600
	4500	8:8	/	1600
	5000	8:8	/	1600
	5400	8:8	/	1800
	6000	8:8	/	1800



• We adopt special formulas and advanced production technology for the sidewalls to ensure their flexure and fatigue resistance at the edges.
• We strengthen the sidewalls with canvas and apply diagonal overlapping, which effectively prevents edge tearing and enhances their flexing performance.
• We adopt dynamic fatigue testing to conduct inspections and simulate real field application conditions.



Sidewall Height (H)	Wave Crest Width     (TW)	Wave Base Width   (BW)	Wave Spacing (P)	Weight (KG/m)
100	44	50	42	2.34
120	44	50	42	2.78
160	66	75	63	4.42
200	66	75	63	5.82
240	66	75	63	8.49
300	88	100	84	12.48
400	88	100	84	17.60
500	110	125	105	24.40
630	110	125	105	31.50

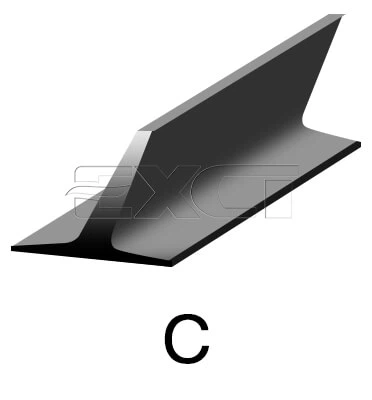

• We produce the cleats using a special rubber formula and advanced molding process, endowing them with high stiffness, wear resistance and impact resistance. Thus, they are not prone to deformation when conveying high-density materials.
• When connecting the cleats with the sidewalls, we ensure that the cleat spacing is an integer multiple of the wave distance. We do this to prevent mismatches in movement radii between the cleats and sidewalls when adjusting conveying angles or passing through pulleys, which in turn avoids material leakage from the gaps at the cleat-sidewall joints and eliminates blind-spot accumulation during discharging.



Cleat Type (mm)	Cleat Height (mm)	Sidewall Height(mm)	Bottom Width (mm)	Weight(kg/m)	Minimum Pulley Diameter (mm)
	90	100	110	2.81	250
	110	120	110	3.27	315
	90	100	110	2.7	250
	110	120	110	3.23	315
	140	160	160	5.49	400
	180	200	160	6.67	500
	230	240	160	8.6	630
	90	100	110	3.22	250
	110	120	110	3.94	315
	140	160	150	5.49	400
	180	200	150	6.81	500
	230	240	160	8.68	630
	280	300	180	14.9	800
	230	240	160	13.8	630
	280	300	160	15.3	800
	360	400	230	22.8	1000
	470	500	230	30.8	1250











• Large Inclination Conveying Capacity: The maximum inclination angle for material conveyance can reach 90°, making it particularly suitable for conveying scenarios on steep slopes and in narrow spaces.
• Wear-resistant And Tear-resistant: Utilizing high-strength polyester canvas or steel wire rope core base belts, combined with special rubber coating, the service life is increased by over 30% compared to ordinary conveyor belts.
• Anti-deviation Design: The flexible structure with wave-shaped edge can automatically adjust the tension, effectively reducing deviation and lowering the maintenance cost of the equipment.





















Mining And Building Materials: crushed stones, limestone, coal, sand, clay, sintered sand powder, wood chips, etc.
Agriculture And Food: Cereals (such as wheat, corn), cornflakes, grains, etc.
Chemical And Fertilizer: Fertilizers, carbon black, etc. For the transportation of fertilizers.
Other Bulk Materials: powdered, granular, small block-like, pasty and liquid materials. For example, in cement production, equipment can transport powdered cement raw materials; in food processing, pasty materials such as soybean residue can be transported.





For special working conditions, the edge-enclosed conveyor can be equipped with different types of conveyor belts to accommodate the following materials:
High-temperature Materials: For instance, in the metallurgical industry, high-temperature coke requires the use of heat-resistant edge conveyor belts, which can withstand temperatures of over 200℃.
Corrosive Materials: Such as acidic and alkaline chemical raw materials, require the use of acid and alkali-resistant conveyor belts to prevent the conveyor belts from being corroded.
Oils Or Organic Solvents: For example, oils used in the petrochemical industry, a type of conveyor belt resistant to oil should be used to prevent the conveyor belt from expanding and deforming.







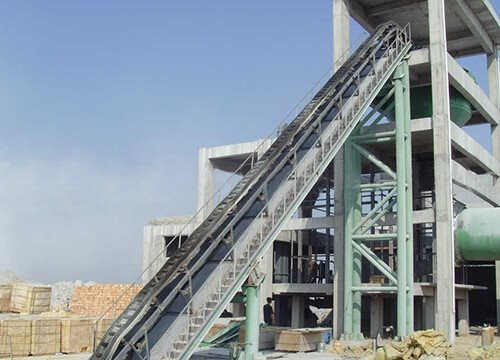

We have rich experience in the production of side wall conveyor. The following are our excellent cases in different industries at home and abroad in recent years







EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.







More and more Fortune 500 companies and large multinational companies use our products, and our products and solutions are also having a positive impact on many industries around the world.

Each of our equipment is scientifically selected, meticulously designed, high-precision manufactured , and equipped with high-quality components to ensure the high reliability of the equipment.

For the core component of the equipment, we always cooperate with well-known suppliers at home and abroad to select the best performance parts to ensure that the equipment can work normally under the worst conditions.

The use of global brand parts also makes it easy for customers to go to local agents for free replacement or maintenance when needed, saving time and cost.







For the transportation of materials with special requirements, such as those with high temperatures, containing acidic, alkaline, oily substances or organic solvents, special corrugated side-wall belts should be used. You can choose the appropriate model according to the size of your production volume.



Belt Width (mm)	Sidewall Height (mm)	Cleat Spacing (mm)	Inclination Angle
			30°	35°	40°	45°	50°	55°	60°	65°	70°	75°	80°	85°	90°
			Capacity(m³/h)
500	80	126	42	38	36	31	28	25	22	20	18	16	15	13	11
		252	23	20	18	16	14	13	12	-	-	-	-	-	-
	100	126	56	52	48	44	40	36	32	29	26	24	21	19	16
		252	34	29	26	23	21	19	17	15	-	-	-	-	-
	120	126	-	-	-	-	58	53	48	44	39	35	32	28	24
		252	49	44	39	34	31	28	25	23	20	-	-	-	-
		378	33	29	25	23	-	-	-	-	-	-	-	-	-
650	100	126	78	73	67	61	56	50	45	41	37	33	30	26	23
		252	47	41	36	32	28	26	24	21	-	-	-	-	-
	120	126	-	-	-	-	81	75	68	61	56	50	44	39	34
		252	70	61	54	48	43	39	35	32	29	-	-	-	-
		378	46	40	35	32	-	-	-	-	-	-	-	-	-
	160	252	93	84	75	67	60	54	49	44	40	36	32	28	25
		378	64	56	49	44	40	36	32	29	26	24	-	-	-
800	120	126	-	-	-	-	106	98	89	80	72	65	58	51	46
		252	93	80	71	63	56	51	46	42	38	-	-	-	-
		378	61	53	47	42	-	-	-	-	-	-	-	-	-
	160	252	127	115	103	91	82	74	67	60	54	49	44	38	34
		378	88	76	67	60	54	49	44	40	35	32	-	-	-
	200	252	-	-	-	-	135	122	110	100	90	81	72	64	55
		378	144	126	111	99	89	80	72	65	60	53	47	42	36
		504	110	96	85	75	-	-	-	-	-	-	-	-	-
1000	160	252	171	154	138	122	110	99	90	81	73	66	59	52	45
		378	118	102	91	81	72	65	59	53	48	43	-	-	-
	200	252	-	-	-	-	182	164	148	134	121	108	97	85	75
		378	193	164	149	133	119	108	98	88	79	71	64	56	48
		504	148	129	113	101	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	242	221	200	180	162	144	127	111
		378	273	248	223	199	179	161	146	132	119	107	95	84	73
		504	221	192	170	151	136	-	-	-	-	-	-	-	-
1200	160	252	214	193	173	154	138	124	112	102	92	82	73	65	57
		378	148	128	113	101	91	82	74	69	60	-	-	-	-
	200	252	-	-	-	250	228	206	185	168	152	136	121	107	93
		378	243	212	188	167	150	135	122	111	100	90	80	70	61
		504	186	161	143	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	303	278	251	226	203	181	160	136
		378	342	311	280	250	224	202	183	165	149	134	119	105	91
		504	278	241	213	190	170	-	-	-	-	-	-	-	-
	300	336	431	406	380	354	326	296	268	242	218	196	175	154	134
		504	350	312	276	246	221	199	180	163	147	132	117	104	90
1400	200	252	-	-	-	301	274	247	224	202	183	164	146	129	112
		378	292	255	226	201	181	163	147	133	120	108	96	85	73
		504	224	194	171	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	365	339	302	272	245	218	192	167
		378	412	374	337	300	270	243	220	199	180	161	143	127	110
		504	334	290	256	228	205	-	-	-	-	-	-	-	-
	300	336	526	495	463	431	397	361	326	295	266	239	213	188	163
		504	426	380	336	299	269	243	219	198	178	160	143	126	109
	400	420	756	717	678	673	595	549	500	452	408	366	327	288	250
		504	707	661	614	566	515	465	420	380	343	308	274	242	210
1600	200	252	-	-	-	352	320	289	261	236	213	191	171	150	131
		378	341	299	263	235	211	190	172	155	140	126	112	99	86
		504	261	227	200	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	427	390	353	318	286	255	225	195
		378	481	437	393	351	315	284	257	232	209	188	168	148	128
		504	390	339	299	267	239	-	-	-	-	-	-	-	-
	300	336	620	584	546	508	468	426	385	348	314	282	251	222	192
		504	503	448	396	353	317	286	259	234	211	189	169	149	129
	400	420	891	846	799	751	701	648	590	533	481	432	385	340	295
		504	834	779	724	667	608	548	496	448	404	362	324	285	247
1800	240	252	-	-	-	-	-	488	447	404	364	327	292	257	223
		378	550	501	450	401	360	325	294	266	240	215	192	169	147
	300	504	432	387	342	305	274	-	-	-	-	-	-	-	-
		336	681	641	600	558	514	467	422	382	344	309	276	243	211
		504	579	516	456	407	365	300	297	269	243	218	194	172	149
	400	420	1027	974	921	866	808	747	680	614	554	498	444	391	340
		504	960	898	835	769	700	632	571	516	466	418	373	329	286
	500	525	1259	1197	1133	1067	999	925	846	765	690	619	552	487	423
		735	1094	1006	917	826	741	669	604	546	493	442	394	348	302
