Sidewall Conveyor

A Sidewall conveyor is also called the skirt separator conveyor belt, which is composed of three parts: base, guard, and cleat. The guard edge is used to prevent material from slipping and falling. For the convenience of bypassing the drum, the edge of the file is designed to be corrugated; The role of the diaphragm is to support the material, in order to achieve large Angle conveying, using T TC type.

Layout of Sidewall Conveyor:

Sidewall conveyor in order to obtain better material and unloading conditions, more reasonable is the use of "Z" layout.  That is, the upper horizontal section, the lower horizontal section and the inclined section, and the lower horizontal section of the material, discharge in the upper horizontal section.  A convex arc frame is used to connect the upper horizontal section and the inclined section, and a concave arc frame is used to connect the lower horizontal section and the inclined section to realize the smooth transition of the conveyor belt.

1.Conveying Angle can reach 22-90 degrees;

2. Small footprint, save space, Save investment and reduce budget;

3. large throughput and higher lifting height;

4.  smooth transition from horizontal to tilt (or vertical) ;

5. Being applicable for conveying easily scattered powder, granular, small block, paste, and liquid materials;

6, low energy consumption, simple structure, high strength tape, and long service life.

Compared with the traditional ordinary flat belt conveyor, the biggest characteristic of the belt conveyor is the difference between the belt. Its wavy guard conveyor belt is also called a skirt separator conveyor belt. Its structure is to stick a free-stretching rubber wavy vertical guard (skirt) on both sides of the flat rubber conveyor belt. Between the guard (skirt) and the diaphragm with a certain strength and elasticity to form a box-shaped bucket, so that the material can be continuously transported in the bucket. The conveyor belt with a wavy rim is composed of three parts: base, sidewall, and cleat. The guard edge is used to prevent material from slipping and falling. The sidewall is used to prevent material from slipping and falling. For the convenience of bypassing the drum, the edge is designed to be corrugated. The role of the cleat is to support the material, in order to achieve large-angle conveying, T type, and TC type. The baffle and cleat are connected to the base by a secondary vulcanization method with high bonding strength.

Because of the obvious advantages of wavy guard conveyor belt, it is especially suitable for conveying with a large dip Angle and vertical 90°;

Smooth transition from horizontal to inclined (or vertical); Large throughput, higher lifting height; Especially suitable for conveying easily scattered powder, granular, small block, paste, and liquid materials.

Feature:

1. A Sidewall conveyor can be customized to meet the various customers' requirements.

2. Sidewall conveyor can achieve large angles of conveying, saving floor space.

3. Sidewall conveyor can achieve large angles or vertical conveying.

4. A Sidewall conveyor can convey the materials in a large inclination, saving space.

5. It can reach the conveying angle that can not be achieved by ordinary belt conveyors.

6. Mechanized belt conveyor conveying materials, the overall investment cost is low, about 20%-30% of the investment cost savings

7. Sidewall conveyor the phenomenon of chain transport and often appears to be stuck chain, floating chain, broken chain and bucket elevator often occur skid, drop bucket phenomenon

8. Sidewall conveyor bulk material, can greatly save equipment area, completely solve the problem of conveying Angle that ordinary, pattern belt conveyor can not reach

9. Large throughput, higher lifting height, single vertical lifting height up to 100m

Lager Angle Conveying For Reduce Conveying Lengith:

1. The Sidewall conveyor is a simple slot band conveyor, which is located on the slope. The traditional band conveyor usually does not work when the inclination angle is greater than 22 degrees, because the material on the belt slipping is a big problem. In contrast, steep slopes can transport materials at a place with a slope of up to 90 °.

2. Compared with the traditional band conveyor, the Sidewall conveyor reduces the conveying length, saves installation space, and is more suitable for occasions with limited factory space.

Products Details:

The Sidewall conveyor adopts the conveyor belt with corrugated baffle and cross partition, and the cassette-shaped bucket is formed by the cross partition with certain strength and elasticity, so that the materials can be continuously conveyed in the bucket, which is especially suitable for continuous conveying of bulk materials, and its conveying range can be a few meters high to tens of meters high.

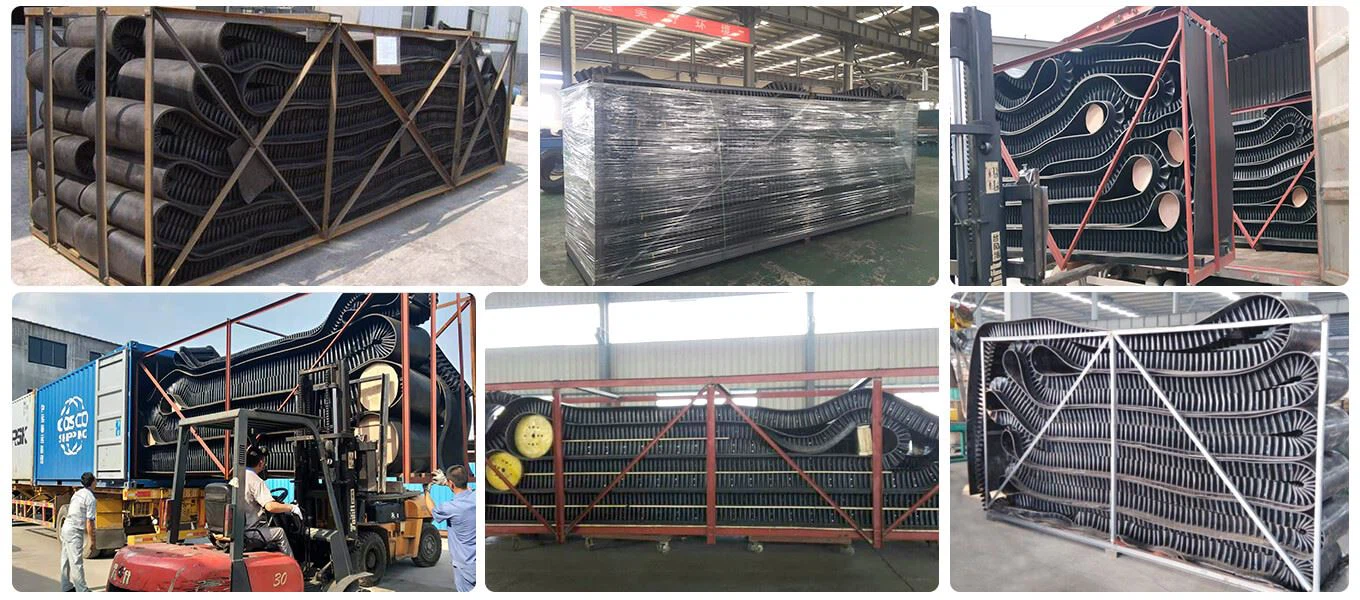

Package & Delivery:

Why Choose Us:

General Technical Parameter:



Why choose us?

• Our team of engineers and technicians has extensive knowledge and experience in conveyor technology and can provide customized solutions.
• Our business philosophy includes honesty, fairness, steadiness and creativity.
• Our company is experienced in exporting and can handle all aspects of shipping and logistics.
• Our company can provide professional consultation and answers according to the needs of customers, customize technical solutions for Sidewall Conveyor and help customers choose products. We take all aspects of product design, raw material procurement, processing, testing, packaging, etc. seriously, and forge perfect quality with heart.
• With years of experience in the industry, we have built a reputation for delivering exceptional products and services.
• Only with high-quality employees can we form a high-quality enterprise and grasp the initiative of market competition.
• We are a Chinese factory that specializes in producing high-quality Corrugated Sidewall Belt Conveyors and offering professional services.
• The company will continue to forge ahead as always, move towards a higher goal, and make its due contribution to the rational use of Sidewall Conveyor for mankind.
• Our commitment to quality and customer service is reflected in our ISO 9001 certification.
• High quality, low price is our company's permanent business philosophy, 'win-win' is our company's basic principle.

Hot Tags: sidewall conveyor, China sidewall conveyor suppliers, manufacturers, Beltwall Conveyor Belt, Sidewall Belt Conveyor, sidewall conveyor, Steep Angle Conveyor, Steep Incline Conveyor Belts, Vertical Belt Conveyor
