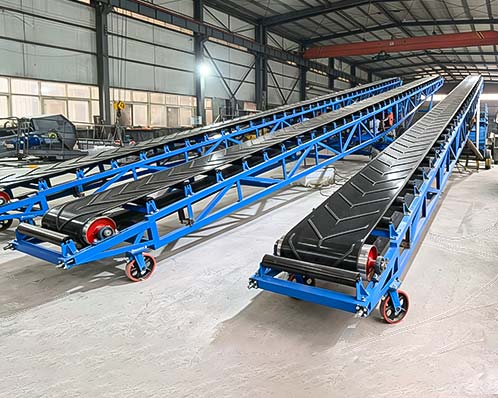

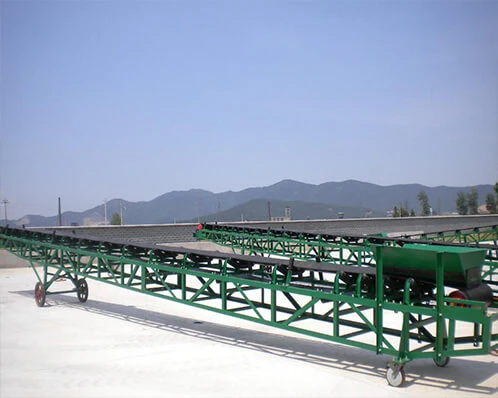

The complete machine of the portable mobile belt conveyor adopts a welded truss structure, which can ensure strength and rigidity under concentrated load. It is equipped with two types of walking wheels: pneumatic tires and steel wheels. The drive device is an electric drum. For models with a length of over 10 meters, inclination adjustment is supported. They can be divided into two types: adjustable and non-adjustable. This equipment is suitable for short-distance transportation and handling of block-like materials such as iron ore, as well as other bulk materials and single items weighing less than 100 kilograms. It is mainly used in scenarios where the operation site frequently changes, including construction sites, sand and gravel yards, mines, ports, coal yards, warehouses, etc.

Portable Mobile Belt Conveyor Working Principle

After the portable mobile belt conveyor is powered on, on one hand, the motor drives the rollers to rotate, causing the conveyor belt to move in a circular motion and completing the continuous transportation of materials;
on the other hand, the lifting device's matching motor transmits power through a reducer to the steel wire rope or chain and other transmission components, enabling the traction of the machine frame to complete the lifting and lowering actions. It can flexibly adjust the conveying height to adapt to various high and low loading and unloading operation conditions.

Portable Mobile Belt Conveyor Structure

The portable mobile belt conveyor is composed of the frame, the conveying belt, the traveling device, the universal wheel, the idler rollers, the lifting device, etc. Among them, the main frame of the machine body is usually made of steel pipes to reduce its own weight and improve the mobility and portability of the belt conveyor. The lifting device is an electrically operated lifting mechanism, which reduces the risks and labor intensity brought by manual lifting.

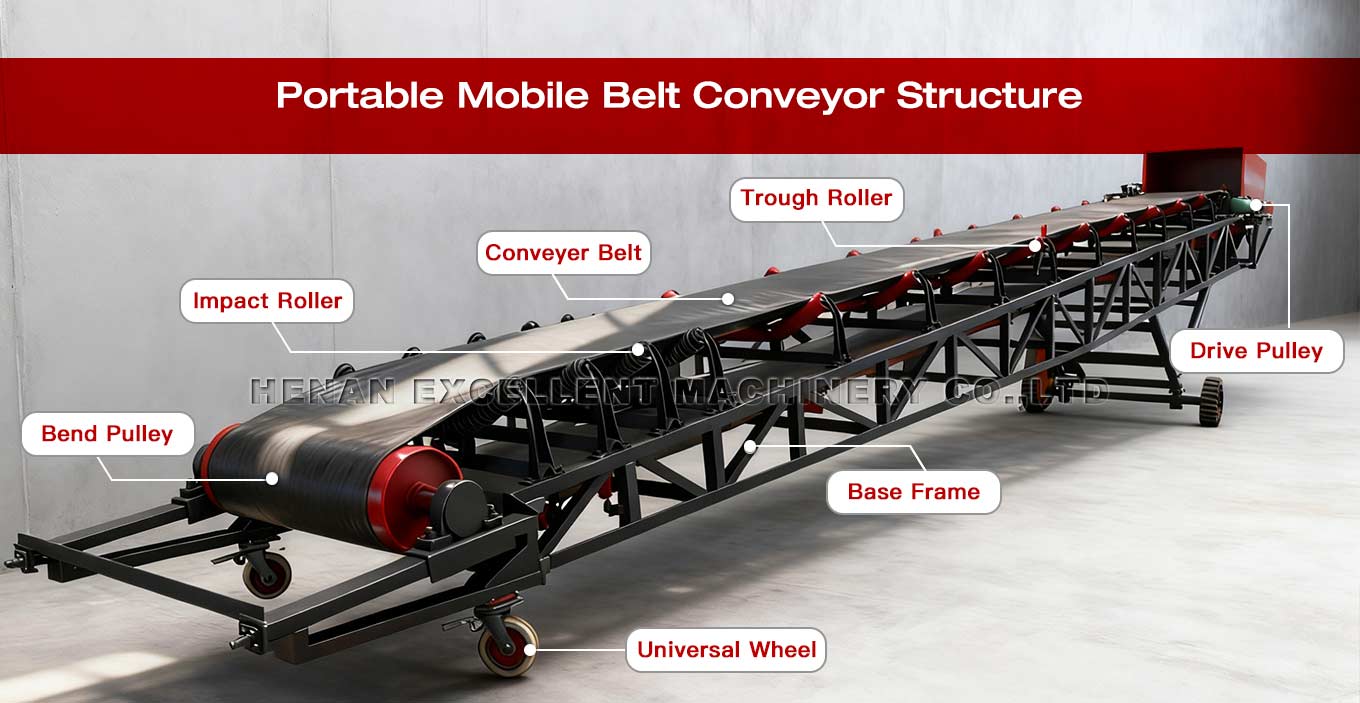

Portable Mobile Belt Conveyor Structure

Details

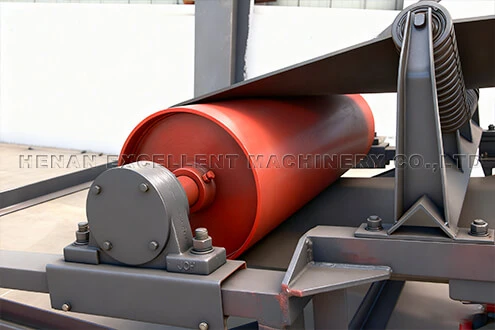

Conveyor Pulley

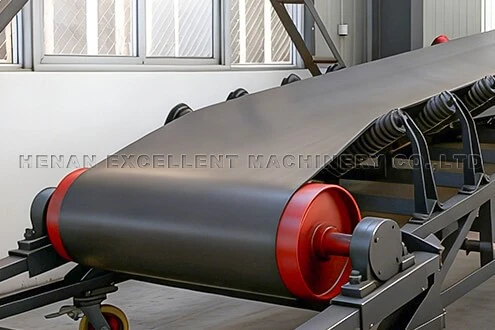

Conveyor Belt

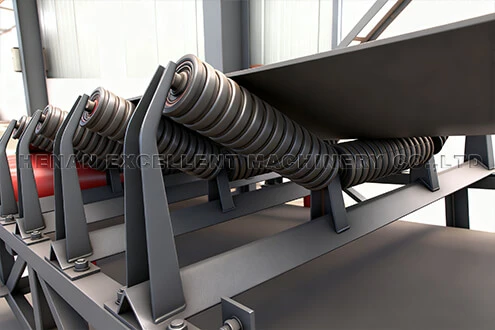

Impact Roller

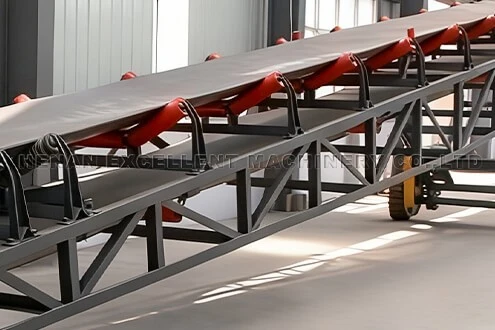

Frame Contruction

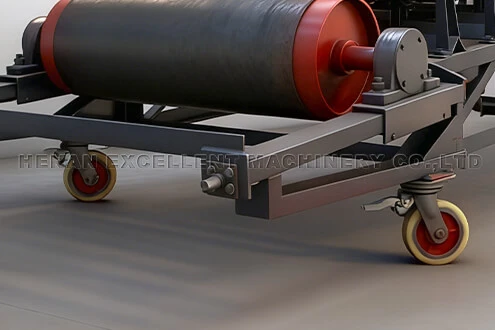

Universal Wheel

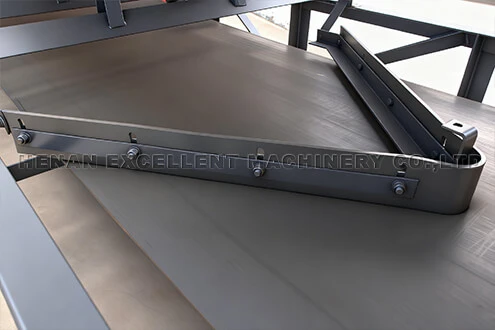

Return Belt Cleaner

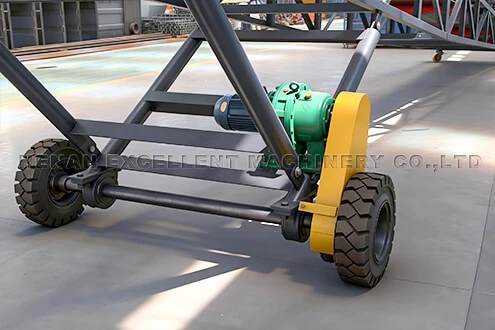

Running Gear

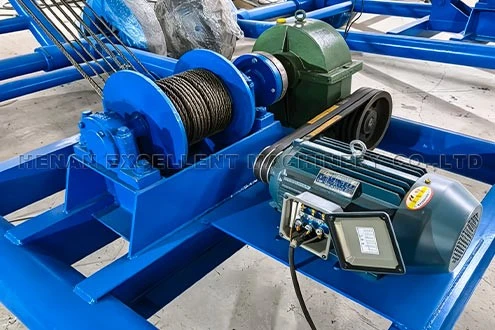

Lifting Device

Why Are Portable Mobile Belt Conveyors Ideal For Iron Ore Handling?

Flexible Transfer

The bottom of the equipment is equipped with universal wheels/walking wheels, which can move freely according to the stacking position of the materials. In large working scenarios such as iron ore storage yards and ports, one portable mobile belt conveyor can cover multiple discharge points and storage areas, eliminating the need for fixed infrastructure.

Adjustable Inclination

Equipped with a lifting device, the conveying inclination can be electrically adjusted according to actual needs. The maximum inclination is generally 22 degrees, which can meet the requirements of loading from different heights and discharging to different heights.

Durable And Shock-Resistant

Iron ore has the characteristics of high density, high wear resistance, and irregular block shape. We use steel wire rope cores or thickened rubber conveyor belts combined with wear-resistant idlers to withstand heavy loads and long-term wear, preventing tearing.

High Conveying Capacity

For the iron ore transportation operation, various equipment specifications such as bandwidth, body length, and lifting height can be flexibly customized. It can not only stably convey various types of mineral bulk materials like iron ore raw ore, powder, and crushed stones, but also transport mineral bagged auxiliary materials and small-sized mineral parts. It can adapt to the production capacity requirements of different mines and has a large overall conveying capacity.

Smooth Transportation

There is no relative movement between the iron ore and other materials and the conveyor belt. The operation is smooth with low noise. The structure is simple, energy consumption is low, and the components have a high degree of standardization and are easy to maintain.

Easy To Operate

The equipment is equipped with a control box, which includes main control switches and lifting switches, etc. The operation is simple and does not require manual supervision. It can start working immediately upon power-on, reducing the labor intensity of the operators and improving work efficiency.

Manufacturing Facilities

Idlers and pulleys are important parts of the belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.

Portable Mobile Belt Conveyor Package & Delivery

portable belt conveyor 2

Applications Materials Of Portable Mobile Belt Conveyor

The equipment not only conveys sugar bags but also processes granular materials with a particle size of ≤ 300 millimeters and other regular packaged goods.

In the grain processing industry, the surface of the conveyor belt is made of food-grade rubber material, which is suitable for the contact transportation of grains such as wheat and corn. For powder materials like fertilizers and cement, the equipment can be equipped with a fully sealed cover and dust removal device, and the dust emission concentration can be controlled below 15mg/m³.
In the mining field, the tensile strength range of the conveyor belt is from 500N/mm to 2500N/mm, meeting the transportation needs of different hardness materials such as coal and ores.
In addition, the equipment can also handle other packaged goods, such as bagged cement and fertilizers, by adjusting the conveyor belt speed and the spacing of the idlers to ensure the smooth transportation of the goods.

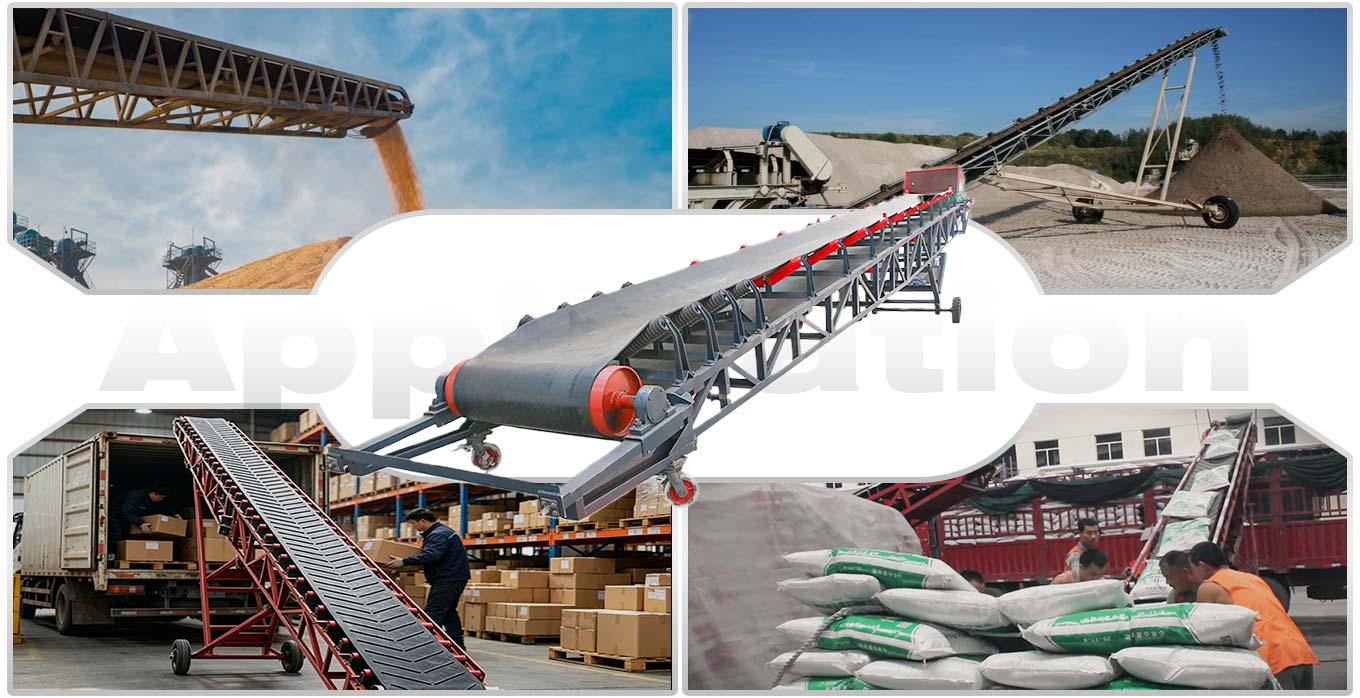

Portable Mobile Belt Conveyor Application
