On construction sites, it is often necessary to transport these construction materials from one place to another. Mobile inclined belt conveyors can help achieve rapid and efficient material transportation. Compared with manual handling, mobile inclined belt conveyors have the advantages of large conveying capacity, high speed, and low labor intensity, which can greatly improve work efficiency and reduce the burden on workers.

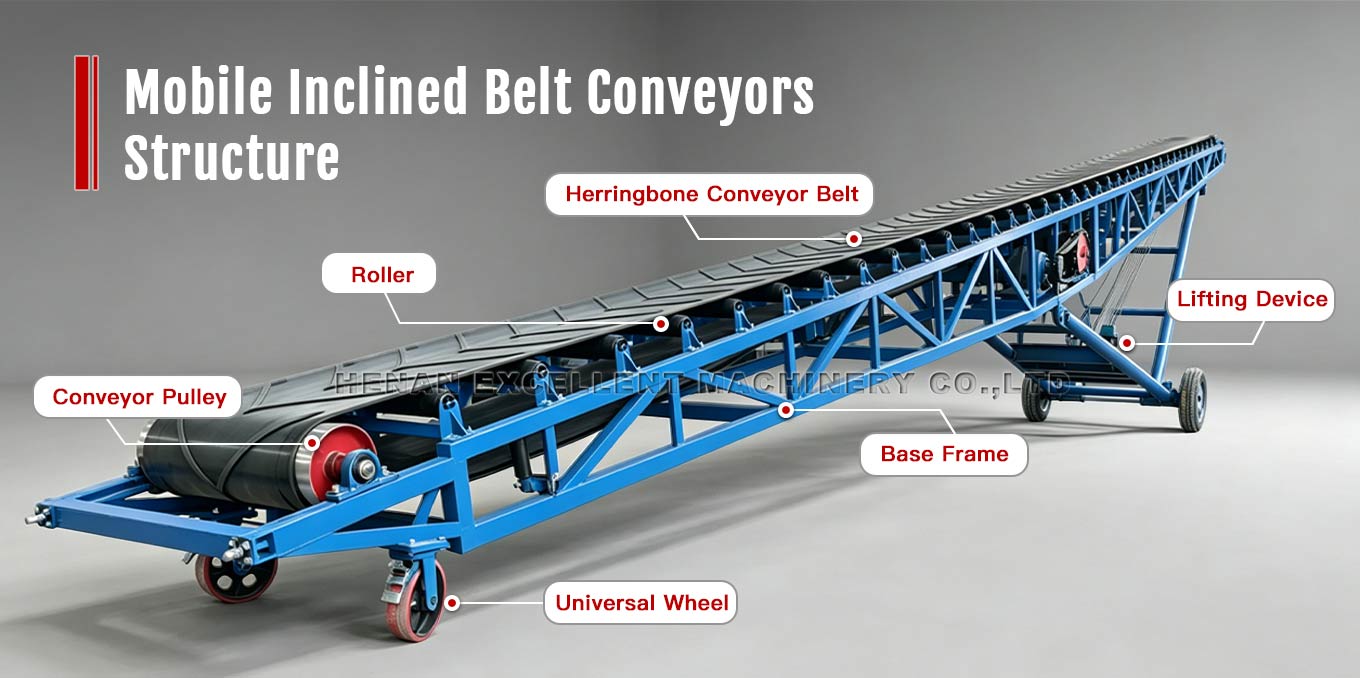

Mobile Inclined Belt Conveyors Structure

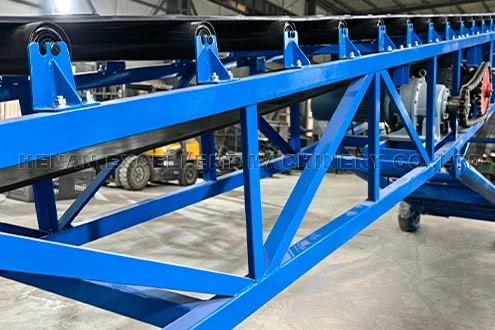

The mobile inclined belt conveyors are mainly composed of the drive unit (electric motor, reducer), the conveyor belt (made of rubber or PVC material), pulleys (drive pulley and bend pulley), idler group, frame and mobile chassis.
Mobile Inclined Belt Conveyors Working Principle
Its working principle is as follows: The motor drives the pulley to rotate through the reducer, and uses friction to drive the circular conveyor belt to operate in a circular manner. Materials fall from the feed end onto the belt and move along with the belt to the discharge end for transportation. The equipment can be arranged horizontally or at an incline according to the working conditions. The maximum inclination angle is usually no more than 22° to prevent materials from sliding. Some models can be equipped with a hydraulic lifting system, which can adjust the conveying height (for example, the construction type can reach 10 meters). And heavy-duty equipment for ports can even achieve a large inclination angle of more than 30° for conveying.
Details
Mobile Inclined Belt Conveyors Features
Flexible Movement

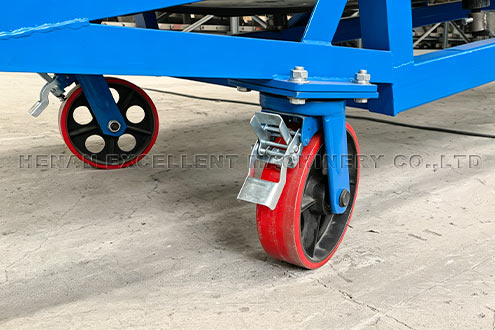

The bottom of the equipment is equipped with a high-strength universal wheel, which can be freely moved to the operation point according to the position of the materials, significantly improving the equipment utilization rate. It is highly suitable for construction sites, sand and gravel yards, warehouses, farms, production lines and other scenarios.
Efficient Transportation
Utilizing high-quality wear-resistant and anti-slip rubber conveyor belts, it has strong carrying capacity and stable operation. It can smoothly transport various block-shaped and granular building raw materials such as sand, stones, mineral powder, cement blocks, and bagged building materials.
Adjustable Conveying Inclination

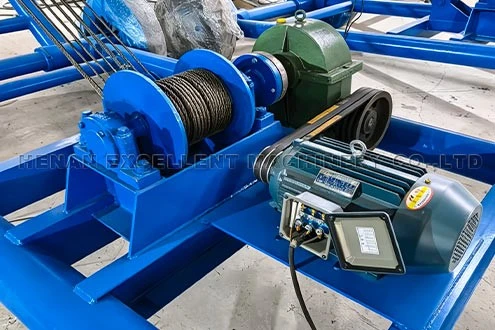

The conveying inclination can be adjusted according to actual needs. It can be raised or lowered manually or electrically. The adjustable range is 0° - 30°, fully meeting the requirements for different height operations such as loading materials, stacking, and transfer and feeding.
Easy To Operate
Electric drive design, with low power consumption and low noise. Equipped with simple operation control buttons, it can be operated independently by a single person to complete the equipment's start-stop and lifting operations.
Multiple Bandwidth Options Available
Based on the volume of your sand and gravel transportation, we offer various widths of belts for selection. Additionally, a feeding chute and a baffle can be installed at the tail of the machine to effectively prevent the waste of materials when dumping the stones, sands, and gravel powder.
Anti-Slip Design

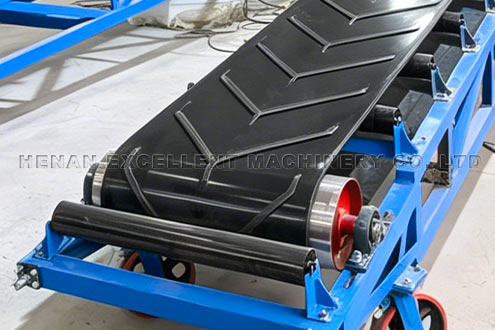

Optional use of chevron-shaped pattern conveyor belts or installation of accessories such as baffles and skirts, effectively preventing sand, dry powder, and bagged cement from sliding off during uphill transportation, ensuring a more stable conveyance.
Manufacturing Facilities

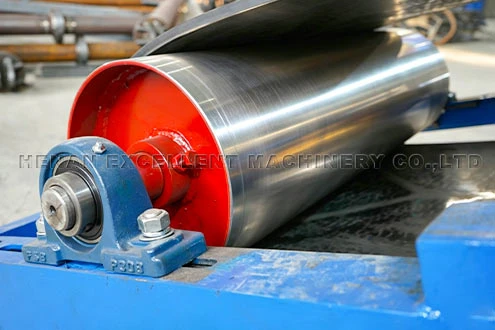

Idlers and pulleys are important parts of the belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.
Mobile Inclined Belt Conveyors Package & Delivery
Mobile Inclined Belt Conveyors Applications
Sand And Gravel Material Transportation
On construction sites, sand and gravel materials are essential building materials that need to be transported from the material yard to the mixing machines and construction sites. The transportation volume is large, and the points of transfer need to be frequently changed.
Mobile inclined belt conveyors can be flexibly moved to the sand and gravel material yard, adjust the conveying height and angle, and directly transport the sand and gravel materials to the feeding port of the mixing machine. There is no need for manual handling, which significantly improves the conveying efficiency, reduces labor costs, and at the same time avoids the scattering of sand and gravel materials, keeping the construction site clean.
Transportation Of Cement And Fly Ash
Cement and fly ash, as powdery materials, are prone to generating dust and require precise transportation to designated locations.
The mobile inclined belt conveyors use enclosed conveyor belts or add dust-proof covers, which can effectively prevent dust from spilling out, protecting the construction environment and the health of operators; they can flexibly adjust the conveying height, transporting powdery materials to silos, mixers, and other equipment, with a smooth conveying process and no material loss, meeting the powder material transportation needs of construction sites.
Construction Waste Transportation
During the construction process at a construction site, a large amount of construction waste (such as crushed bricks and concrete blocks) is generated, which needs to be promptly transported to designated stacking points to avoid occupying the construction site.
Mobile inclined belt conveyors can be flexibly moved to the construction area, suitable for the transportation of small-sized construction waste. They have high transportation efficiency and can quickly clear the construction waste, ensuring the progress of the construction; at the same time, the conveying angle can be adjusted, and the construction waste can be directly transported to the transportation vehicles, reducing the need for secondary handling.
Mobile Inclined Belt Conveyors Service
Project Feasibility Report
Site Design and Planning
Model Selection and Proposal
Model Selection Calculation
3D Modeling and Drawings
Civil Design
Installation and Commissioning
Remote Diagnosis
Training Service
Maintenance Schedule
