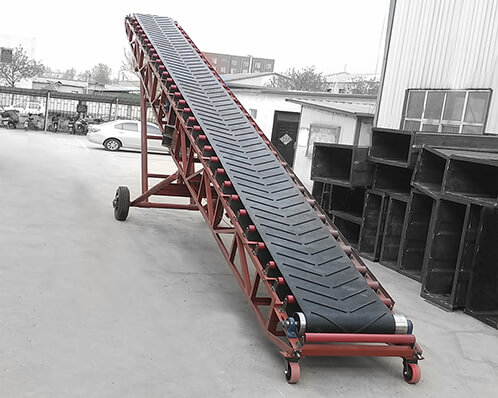

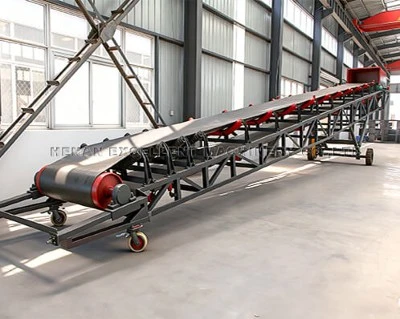

The portable belt conveyor differs from the traditional fixed-type belt conveyors in its structure. Due to the presence of universal wheels at the bottom, it is highly mobile and can be pushed manually into and out of the warehouse. It features high efficiency, simple structure, adjustable height, and convenient use and maintenance. It is widely used for transporting granular materials such as sand, coal, gravel, grains, and chemical raw materials. It can also be applied to transporting various loose materials with a density of 500-2500 kg/m³ at normal temperatures.
Portable Belt Conveyor Working Principle
- The portable belt conveyor achieves continuous transportation of bulk materials such as sand, gravel, and mineral powder through friction transmission.
- The entire machine is composed of an electric drum drive unit, a circular conveyor belt, a set of idlers, a tensioning mechanism, a walking chassis, and a lifting mechanism.

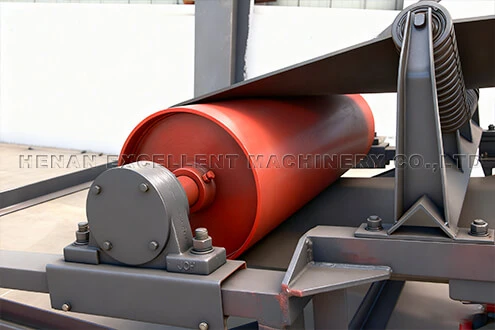

- After connecting the power supply, the motor, in combination with a reducer, drives the head drive drum to rotate. A friction force is generated between the drum and the circular conveyor belt, pulling the conveyor belt to perform a closed-loop circular motion. The U-shaped idlers on the conveyor belt support the conveyor belt and the bulk materials, preventing the materials from sliding off the sides. The tail redirecting drum completes the belt redirection, and the spiral tensioning device continuously maintains the belt tension to prevent slippage during operation.
- Bulk materials are evenly dropped from the feeding guide chute onto the running conveyor belt, and are smoothly transported along the belt to the automatic discharge end at the machine head. The equipment is equipped with walking wheels at the bottom, which can be moved as a whole. The lifting mechanism can adjust the conveying inclination angle of the entire machine to adapt to different height discharge positions such as trucks, storage bins, and pits, enabling multi-point short-distance continuous loading and unloading of bulk materials.

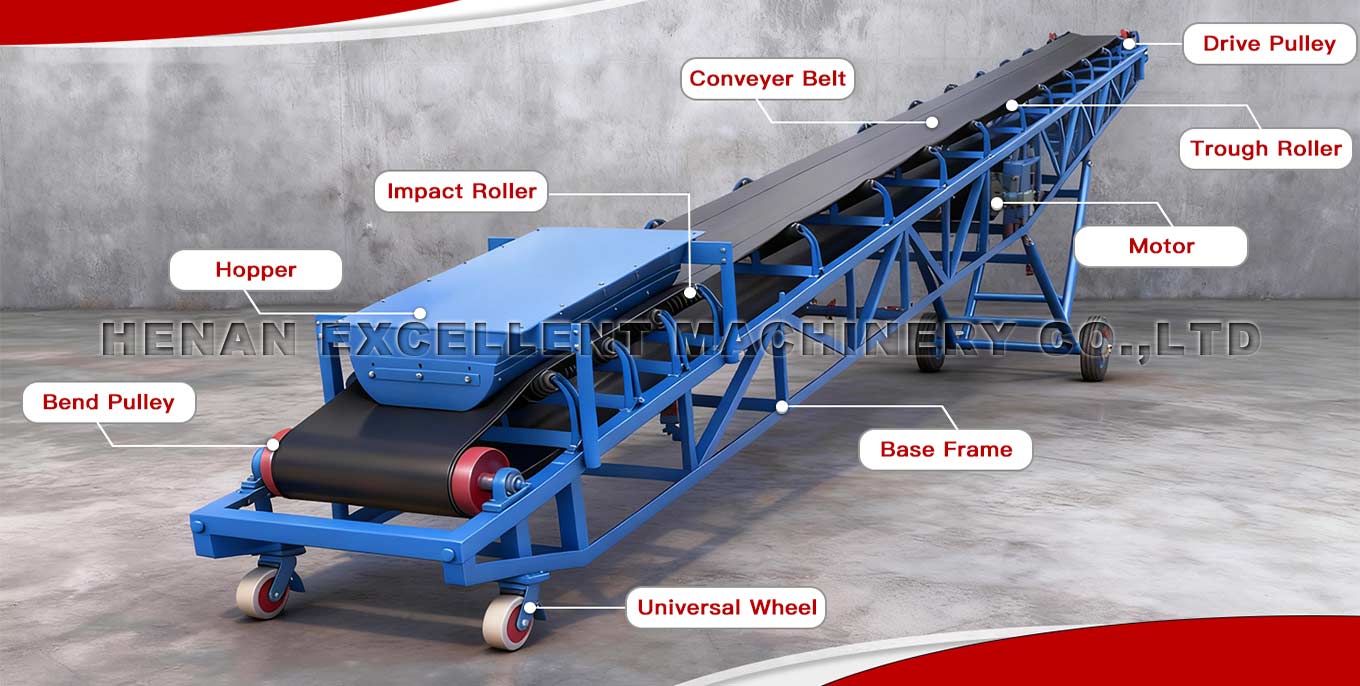

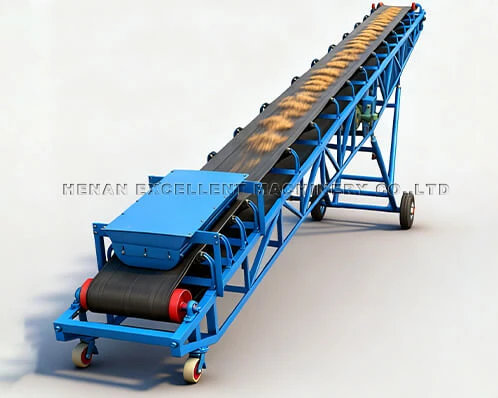

Portable Belt Conveyor Structure

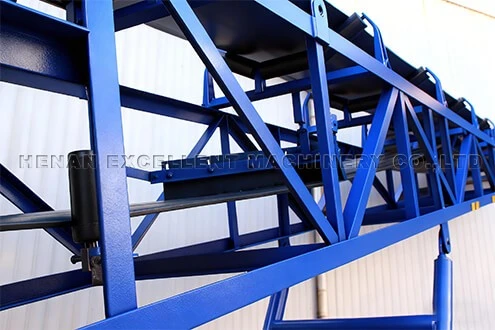

It is mainly composed of frame, universal wheels, walking device, lifting device, drive device, idler group, conveyor belt, feed hopper/distributing chute, etc. The main frame is mostly made of steel pipes, which helps reduce weight and improve mobility. The lifting device is usually electrically operated to reduce the risks and physical demands of manual operation.
Portable Belt Conveyor Details
Why Can Portable Belt Conveyors Handle Bulk Materials?
Preventing The Scattering Of Bulk Materials

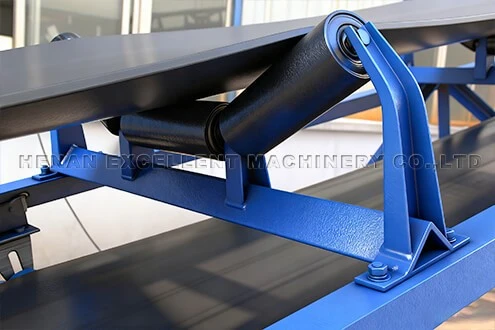

The equipment is equipped with a trough-type upper idler. It lifts the conveyor belt to form a U-shaped groove. Bulk materials such as sand, gravel, mineral powder, and construction waste fall into the groove during transportation, making it less likely to scatter to both sides. Additionally, side retaining plates and head and tail guide grooves can be added as extra measures to further prevent the leakage of fine aggregates and fine aggregates from spilling out, making it suitable for the transportation of various dry and wet bulk materials.
Smooth Operation
The electric drum drives the circular belt to rotate in a circular motion through friction. The entire belt is laid flat to support the bulk materials, without any violent impacts. Fine powder and crushed stones will not be splashed due to jolts. The uniform and continuous feeding mode can stably carry a large amount of bulk materials and will not have intermittent discharging or problems of material accumulation and blockage.
Adjustable Inclination Angle
The equipment is equipped with an electrically adjustable lifting bracket. The conveying inclination angle can be adjusted from 0° to 30°. Bulk materials rely on the friction force of the belt to overcome gravity, enabling material loading at different heights such as in pits, trucks, and silos. There will be no situation where the bulk materials roll down along the inclined surface. It can also handle various scenarios of bulk material transportation on flat ground and uphill slopes.
Flexible Transition

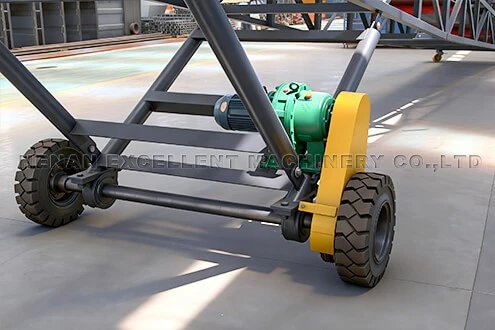

The bottom is equipped with swivel wheels and a walking mechanism, allowing the entire machine to be moved. The material stack, crushing station, mixing station, and truck loading/unloading points can be switched at any time. There is no need for a fixed foundation. Loose bulk materials scattered in mines, construction sites, and material yards can be transported nearby.
Belt Material Options
For ordinary sand and gravel, wear-resistant rubber belts are selected; for mineral powder and wet clay, anti-slip and patterned belts can be used; for dusty bulk materials, sealing covers can be paired. Various configurations such as wear-resistant, anti-slip, and dust-proof are available to accommodate different bulk materials including dry materials, wet materials, and sticky powders.
Strong Carrying Capacity
The entire machine is equipped with thickened steel pipe frame. The idlers are densely arranged to distribute the weight of the materials, enabling it to carry large quantities of heavy bulk materials such as ores and sandstones. It is not prone to deformation and can meet the high-load continuous feeding requirements in mines and construction sites.
Get The Most Suitable Product Solution And Quotation For Free!!!
Submit your requirements and talk with one of our technical engineer about your project.
Portable Belt Conveyor Manufacturing Facilities
Idlers and pulleys are important parts of belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.
Portable Belt Conveyor VS Fixed Belt Conveyor
|
Comparison Item |
Fixed Belt Conveyor |
Portable Belt Conveyor |
|
Transition flexibility |
Non-movable |
Flexible and rapid scene transitions |
|
Work continuity |
Consecutive |
Consecutive |
|
Investment cost |
High (Civil Engineering + Installation) |
Lower, no need for civil engineering work |
|
Operational efficiency |
High |
High |
|
Site adaptability |
Poor/Disappointing |
Strong |
Compared with fixed conveyor systems, portable belt conveyors can significantly reduce operating costs while offering numerous advantages in terms of environment, health and safety.

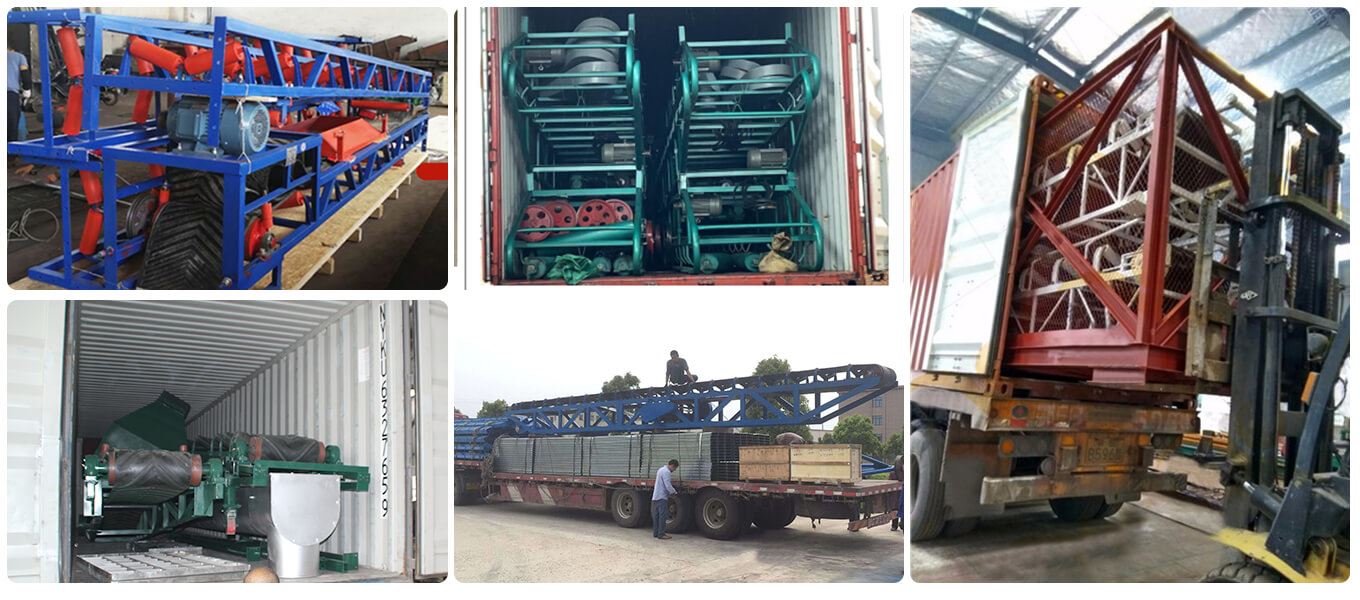

Portable Belt Conveyor Package & Delivery
We have established strict pre-shipment inspection and process regulations: Before shipment, we will conduct comprehensive tests and cleaning maintenance on the equipment to ensure that each unit meets the performance standards; subsequently, we will issue a detailed shipping list (including the main equipment, accessories, manuals, warranty cards, etc.) and simultaneously generate a logistics tracking number. Moreover, we have established long-term cooperative relationships with several large logistics companies, and have formulated the most optimal transportation plans based on your delivery address, supporting various transportation methods such as direct delivery of the entire vehicle or batch distribution, to ensure stable and reliable transportation efficiency.
Portable Belt Conveyor Maintenance Items
① Try to avoid working in humid environments and during rainy days to prevent the machine body and components from rusting and being damaged due to prolonged contact with water.
② Regularly check the direction of the conveyor belt to ensure its smooth running and avoid unnecessary losses caused by the conveyor belt deviating.
③ Regularly inspect the fasteners of the machine body to ensure the good condition of the bolts and tensioning devices, add lubricating oil in time to ensure the lubrication of the bearings, regularly inspect the idlers and other parts, replace damaged components, and ensure the normal operation of the belt conveyor.
Portable Belt Conveyor Service
Project Feasibility Report
Site Design and Planning
Model Selection and Proposal
Model Selection Calculation
3D Modeling and Drawings
Civil Design
Installation and Commissioning
Remote Diagnosis
Training Service
Maintenance Schedule
About EXCT
EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.
We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.
We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.
Aligned with evolving global economic trends, we are building an international presence focused on technological and service innovation. We cultivate versatile talent and experienced service teams to strengthen our competitiveness in the international market, delivering high-value solutions that support the advancement of national industries worldwide.
200,000
Area Cover(㎡)
1000+
Production & Testing Tools
3000+
Global Customer
60+
Existing Patent
Manufacturing Capacity
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
Five-axis Gantry Machining-center
Vertical CNC Machining Center
Vertical Machining Center
Gantry Machining Center
CNC Boring And Milling Machining Center
Laser Cutting Machine
Laser Pipe Cutting Machine
Welding Robot Workstation
Trolley Resistance Furnace
Shot-blasting Machine
Our Main Products
1. Crushers & Screening Equipment: Mineral Sizer, Feeder Breaker, Banana Screen, Roller Screen, Inclined Screen, Vibrating Screen, Trommel Screen, Linear Vibrating Screen and Vibrating Feeder etc.
2. Belt Conveyor Equipment: Trough Belt Conveyor, Pipe Conveyor, Corrugated Sidewall Belt Conveyor, Suttle Conveyor and Portable Belt Conveyor etc.
3. Bulk Material Handling Equipment: Apron Feeder, Bucket Elevator, Z Bucket Elevator,Trough/Drag Chain Conveyor, Screw Conveyor and Pan Conveyor etc.
4. Spare Parts: Conveyor Roller/Idler, UHMW-PE Idler, Conveyor Pulley, Conveyor Cover, Belt Sway Switch and Vibrating Motor etc.
Mineral Sizer
Feeder Breaker
Apron Feeder
Banana Screen
Roller Screen
Inclined Screen
Belt Conveyor
Sidewall Belt Conveyor
Trommel Screen
Bucket Elevator
Drag Chain Conveyor

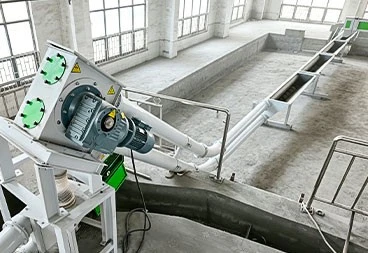

Tubular Drag Conveyors
