Chain Bucket Elevator

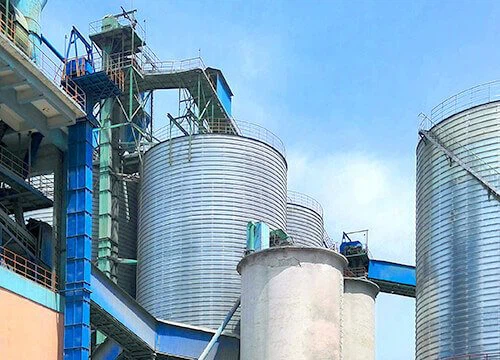

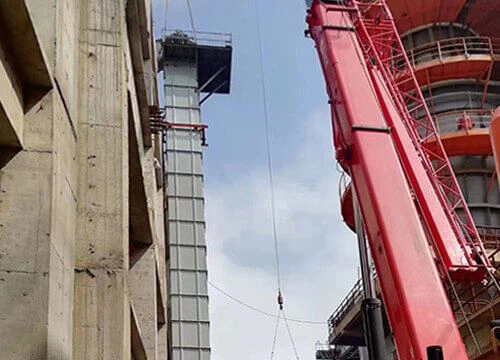

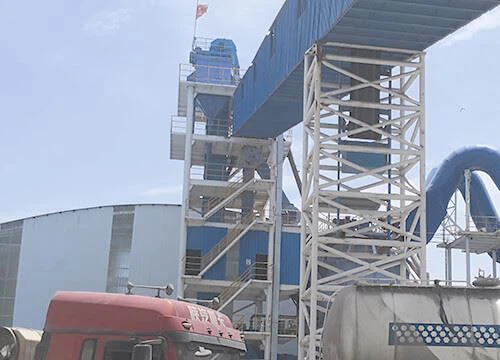

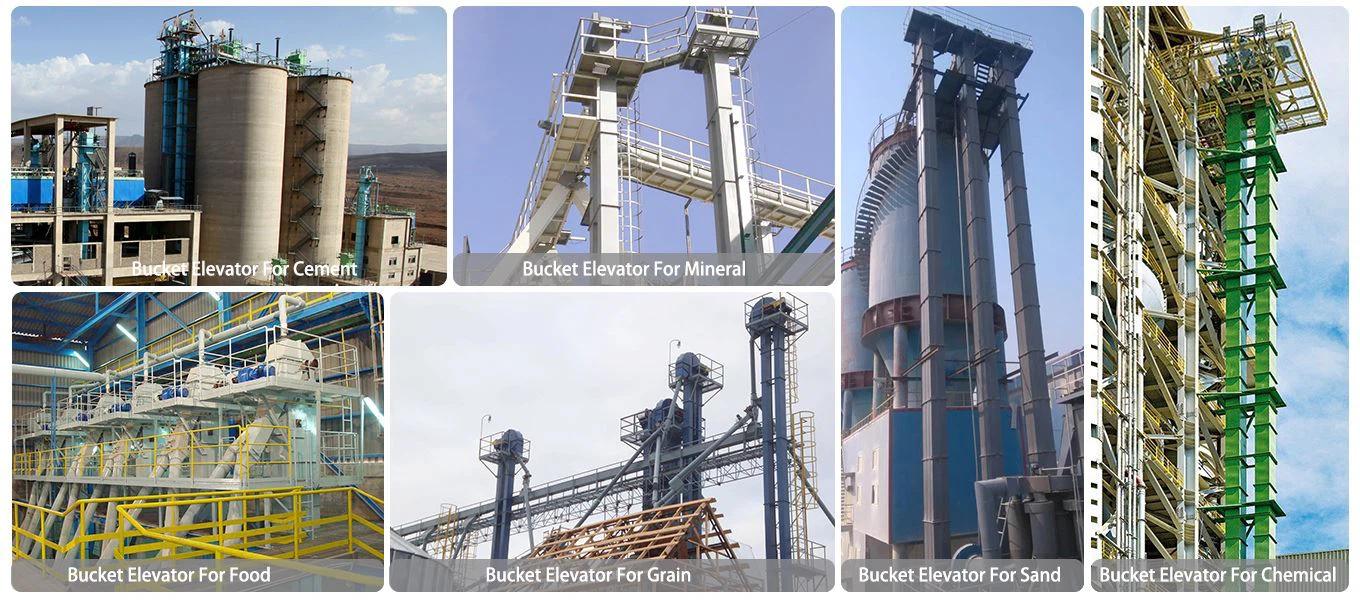

The chain bucket elevator is composed of the head section, middle casing, bottom section, plate chain bucket, transmission device, and other parts. The traction component of the chain bucket elevator is the plate chain, which adopts low alloy steel forging, quenching, and other processes to achieve higher tensile strength and wear resistance. Sprocket adopts a replaceable rim combination structure, which can save maintenance costs. The bottom of the chain bucket elevator is provided with a gravity automatic tensioning device, gravity can be adjusted according to the actual situation, this device can ensure the plate chain tensioning force, prevent the chain from slipping. Chain bucket elevator is widely used in vertical conveying of large and medium-sized abrasives such as limestone, cement clinker, gypsum, and coal.













1. Chain bucket elevator is widely used in vertical conveying of massive, granularity and powder materials

2. Chain Bucket elevator has a wide range of applications, high lifting height, and large handling capacity.

3. The chain bucket elevator wheels have bolted rims easily replaceable fabricated in wear-resistant steel.

4. Chain bucket elevator adopts heavy hammer taut, achieve to automatic tensioning, avoiding de-chaining.

5. The tail uses a gravity automatic tensioning device, can maintain proper tension, and avoids slippage.















In order to improve the processing accuracy and welding strength of the hopper, the company introduced a robot welding table to realize the automatic welding of the hopper.







Chain Type Bucket Elevator
Model	Capacity/ (m³/s)	Speed/ (m/s)	Spindle Speed/ (r/min)	Bucket			Operation Part Quality (kg/m)
				Volume/L	Width/mm	Pitch/mm
NE15	15	0.5	15.54	2.5	250	203	27.5
NE30	32		16.45	7.8	300	305	35
NE50	60		16.45	15.7	30	305	64
NE100	110		14.13	35	400	400	89
NE150	170		14.13	52.2	600	400	112.3
NE200	210		10.9	84.6	600	500	134
NE300	320		10.9	127.5	600	500	188
NE400	380		8.3	182.5	700	600	205
NE500	470		7.1	260.9	700	700	223
NE600	600		7.1	330.2	700	700	274
NE800	800		6.2	501.8	800	800	313





Why choose us?

• We offer a wide range of Bucket Elevator models to meet your specific requirements.
• We will continue to innovate and change, keep up with the development trend of international Chain Bucket Elevator, and continuously optimize our product structure.

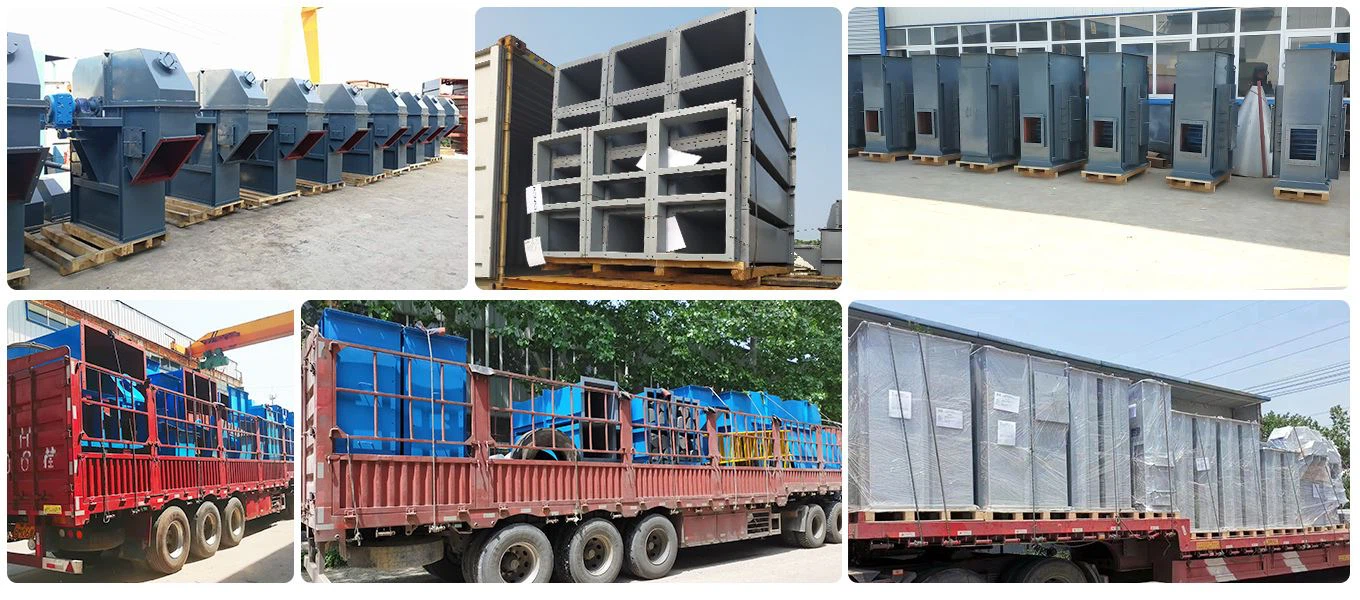

• We offer a variety of shipping options to ensure our customers receive their Bucket Elevator products in a timely and cost-effective manner.
• Our company is supported by all kinds of talents, and our enterprise value is created by all of our employees.
• We use only the finest materials and components to manufacture our Bucket Elevators, ensuring durability and long-lasting performance.
• We have fully established a complete supply and marketing network using the e-commerce platform.
• Our Bucket Elevators are built to withstand rigorous use and harsh conditions.
• Our company has strong economic strength and offers excellent sale service.
• We offer competitive prices without sacrificing quality or service.
• We pursue the common development of employees and enterprises, and we regard the success of employees as the greatest joy of enterprises.
