Fly Ash Bucket Elevator

Fly ash bucket elevators are the economical solution when it comes to vertical transport of bulk material. Bucket elevator consists of the Fly ash bucket elevator, traction components, head section, middle casing, tail section, driving unit, other components, etc. Fly ash bucket elevator is widely used in mining, metallurgy, cement, grain, chemical, power, and many kinds of industries.

"Depending on the type of material being transported, its design has a variety of options for height, capacity, speed, and construction details. The choice of the different types of bucket elevators depends entirely on their design and the type of bulk material.
  Because the bucket elevators have many advantages compared with the chain bucket elevator, the current trend is to develop the belt bucket lifting machine. When the material temperature of the bulk material to be transported continues to exceed 130℃, the chain bucket elevator will be used. This means that the continuous temperature of the bulk material to be transported is an important factor in choosing a belt or chain bucket lift.

Feature:

1. Reasonable design, advanced production technology, ensure the safety and reliability of the equipment

2. Well-tried and tested mechanical components and wear-resistant materials guarantee a long service life and high reliability.

3. The bottom uses the screw take-up, maintains the belt tensioning force to avoid skidding or off track.

4. Both ends of the belt are clamped into the aluminum cast composite box (clamp connection), thus securing the belt connection.

5. The driving unit is equipped with a backstop, preventing material backflow when shut down in an emergency.

6. A safety protection device can effectively protect the bucket elevators.

7. Available types of rollers to ensure a smooth conveyor system.

8. Antirust paint was sprayed on the surface of the bucket elevators to reduce maintenance.

9. Integrated zero-speed detector and derailment detector ensure optimal performance monitoring for trouble-free operation.

10. The elevator head has a split hood for easy maintenance and cleaning openings and a tensioning sleeve for easy access.

11. These high-capacity elevators are best suited for port terminals, inland silos, and processing plants.

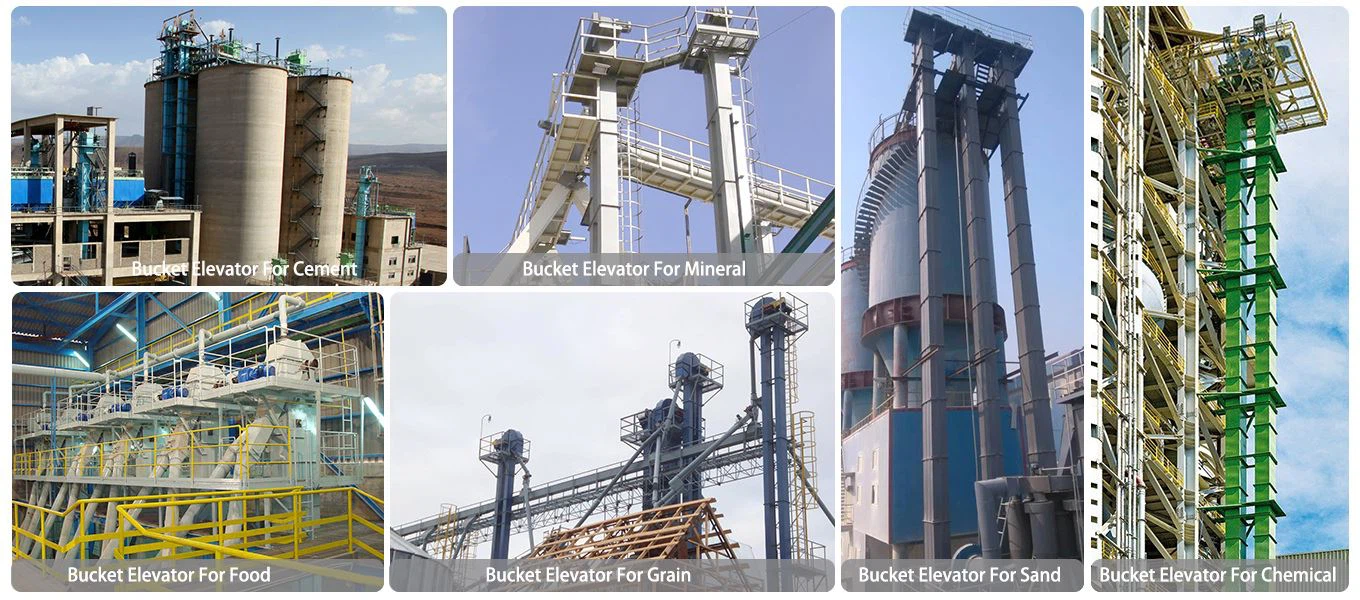

Cases:

Details:

Belt Type Bucket Elevator details

Chain Type Bucket Elevator details

Package & Delivery:

Why Choose Us:

General Technical Parameter:

Belt Type Bucket Elevator
Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG 1000	TDG 1250	TDG 1600
Capacity (m³/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume (L)	6.5	10	16	25	40	64	102	161	255
	Pitch (mm)	325	360	420	460	520	580	650	720	820
Belt & bucket weight(kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max lift height (m)		80	80	80	80	80	80	80	80	80

Chain Type Bucket Elevator
Model	Capacity/ (m³/s)	Speed/ (m/s)	Spindle Speed/ (r/min)	Bucket			Operation Part Quality (kg/m)
				Volume/L	Width/mm	Pitch/mm
NE15	15	0.5	15.54	2.5	250	203	27.5
NE30	32		16.45	7.8	300	305	35
NE50	60		16.45	15.7	30	305	64
NE100	110		14.13	35	400	400	89
NE150	170		14.13	52.2	600	400	112.3
NE200	210		10.9	84.6	600	500	134
NE300	320		10.9	127.5	600	500	188
NE400	380		8.3	182.5	700	600	205
NE500	470		7.1	260.9	700	700	223
NE600	600		7.1	330.2	700	700	274
NE800	800		6.2	501.8	800	800	313

According to experience, there are the following selection methods for reference only: In the process of using the smooth mirror or high precision specification requirements of the equipment, can choose 1-3; Asks if the machine has good cooperation degree, and to use the time is long, not leak for a long time, the parts choose 2 ~ 5, convenient low requirements for inspection and maintenance of equipment, spare parts, can choose 4 ~ 7, in addition to special circumstances, the stainless steel in the use of state next year the corrosion rate (usually do not choose more than 1 mm, the other should mark, partial corrosion resistance is not fit for the standard rules.
