Cement Bucket Elevator

Cement Bucket Elevator is an efficient conveyor for the vertical upward transfer of bulk goods. The hopper of the Cement Bucket Elevator scoops up the material from the storage below, lifts it to the top with the conveyor belt or chain, turns it downward after bypassing the top wheel, and then dumps the material into the receiving chute. According to the material, application, and local conditions as well as different application scenarios and material attributes, we can adopt Belt Cement Bucket Elevator and Chain Cement Bucket Elevator. These Cement Bucket Elevators can be used in cement, electricity, the Chemical industry, metallurgy, food, and other industries.

For conveying the mined material to processing sites or storage areas bucket elevator can be utilized. Bucket elevators can be installed in horizontal and inclined conditions and other complex working conditions. The application of bucket elevators can efficiently reduce transfer stations and employees, which can save in investment. Particularly, the equipment cost, labor cost, operation, and maintenance costs.

Feature:

1. Equipped with an observation window for easy inspection and maintenance.

2. Sectional friction linings of the drive pulley may be effortlessly exchanged without dismounting the belt.

3. Mechanical components are made of wear-resistant materials to ensure long life and high reliability.

4. Sectional friction linings of the drive pulley may be effortlessly exchanged without dismounting the belt.

5. The gearbox can be equipped with an auxiliary drive according to the need. When the main motor has an emergency failure or the Cement Bucket Elevator needs maintenance, the auxiliary drive will start and the bucket will run at a slow speed.

6. Cement Bucket elevator and material contact part of the use of special materials, conveying materials up to 250℃.

7. The tail uses a gravity automatic tensioning device, can maintain proper tension, and avoids slippage.

8. Cement bucket elevator is widely used in vertical conveying of massive, granularity, and powder materials.

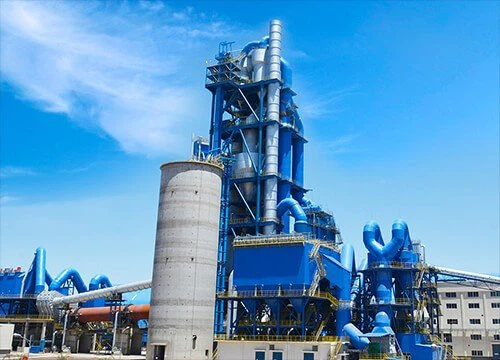

Cases:

Details:

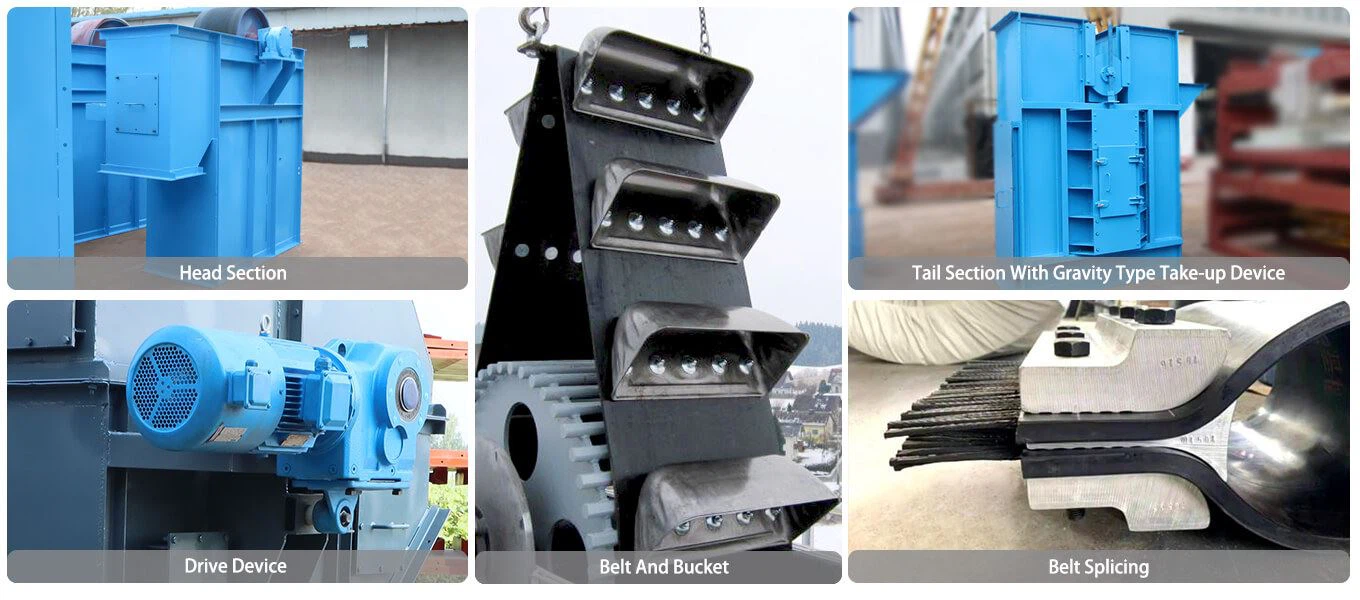

Belt Type Bucket Elevator details

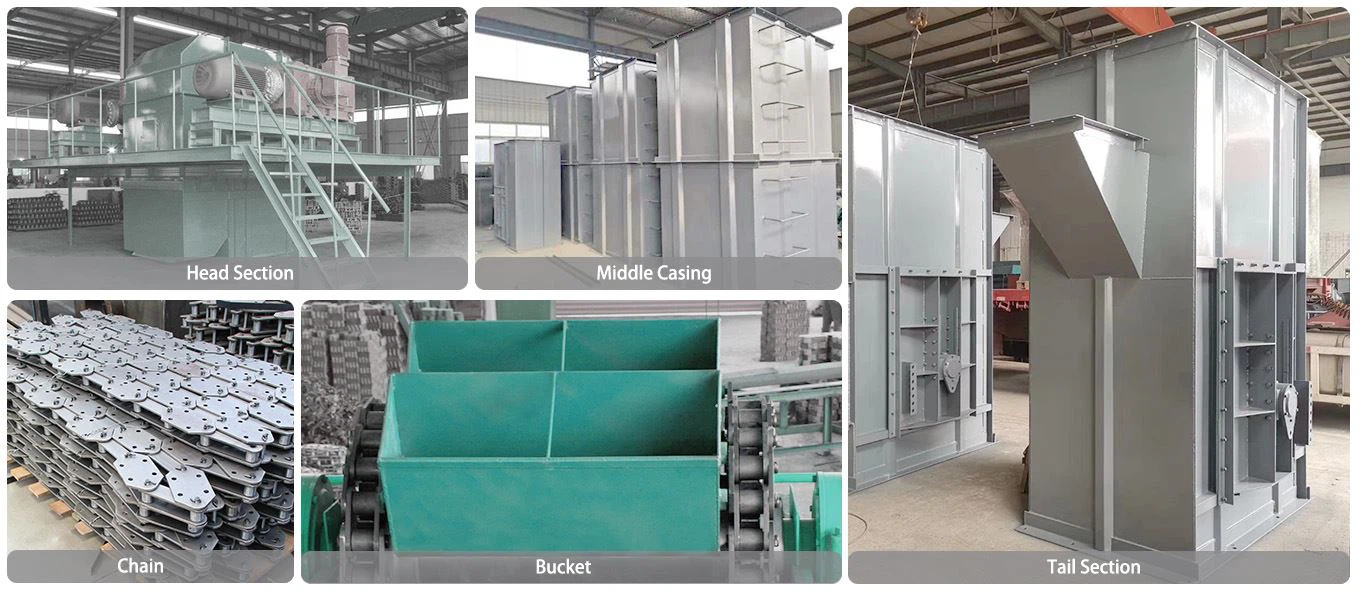

Chain Type Bucket Elevator details

Manufacturing Process:

Robot Welding Table:

To improve the processing accuracy and welding strength of the hopper, the company introduced a robot welding table to realize the automatic welding of the hopper.

Package & Delivery:

Why Choose Us:

If the equipment fault still cannot be removed, We will arrange professional after-sales service engineers to remove the fault on site.

General Technical Parameter:

Belt Type Bucket Elevator
Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG 1000	TDG 1250	TDG 1600
Capacity (m³/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume (L)	6.5	10	16	25	40	64	102	161	255
	Pitch (mm)	325	360	420	460	520	580	650	720	820
Belt & bucket weight(kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max lift height (m)		80	80	80	80	80	80	80	80	80

Chain Type Bucket Elevator
Model	Capacity/ (m³/s)	Speed/ (m/s)	Spindle Speed/ (r/min)	Bucket			Operation Part Quality (kg/m)
				Volume/L	Width/mm	Pitch/mm
NE15	15	0.5	15.54	2.5	250	203	27.5
NE30	32		16.45	7.8	300	305	35
NE50	60		16.45	15.7	30	305	64
NE100	110		14.13	35	400	400	89
NE150	170		14.13	52.2	600	400	112.3
NE200	210		10.9	84.6	600	500	134
NE300	320		10.9	127.5	600	500	188
NE400	380		8.3	182.5	700	600	205
NE500	470		7.1	260.9	700	700	223
NE600	600		7.1	330.2	700	700	274
NE800	800		6.2	501.8	800	800	313

The cement Bucket elevator is composed of the upper section, middle shell, lower section, conveyor belt with hopper and other traction parts, transmission device, and outdoor maintenance platform.
1. The lower section is composed of a feeding port, a lower casing, a reversing wheelset, and a tensioning device.
2. Middle casing (maintenance), one section for each, used for installation and maintenance of traction parts.
3. Middle casing (anti-deviation), usually place one middle casing every five sections.
4. Connecting plate, usually placed every 2 middle shells.
5. Middle casing (standard), L = 2m.
6. The connecting frame is usually placed in the middle casing every 5 sections.
7. Middle casing (non-standard), L between 0.5-2 meters. Generally installed in the upper section of the first or second section of the middle casing.
8. Upper section, including upper housing and driving drum group.
9. Drive device. It is composed of a motor, vertical shaft reducer, hydraulic coupling, reverse check device, and slow-moving device. The transmission device has right 1, right 2, left 1, left 2 points.
10. Outdoor operating platform.
