Industrial Bucket Elevator

The Industrial Bucket Elevator is a kind of economic vertical lifting equipment. it can continuously transport bulk materials to a high distance with a wide range of uses, long service life, large capacity operation, customizability, small footprint, and other advantages. Industrial Bucket Elevator is a conveying system of high commonality, widely used in mining, metallurgy, cement, grain, chemical, electric power, and other industries.

The structure of the industrial bucket elevator is usually very simple. It is consists of a  conveyor belt, pulley, idler, take-up device, belt cleaner, frame, and other parts. As the industrial bucket elevator is the most universal and the least expensive of conveyors it is the most widely used in cement plants, ports, chemicals, power plants, and other industries. The industrial bucket elevator is one of the most economical choices for transporting bulk materials from one point to another point

Feature:

1. Large processing capacity, low noise, low energy consumption, high lifting height, wide application.

2. Good sealing performance, energy-saving, and environmental protection, less maintenance.

3. Traction components adopt a specialized rubber belt of the Industrial Bucket Elevator, which is of high tensile strength, good flexibility, and long service life.

4. A gravity tension device is adopted in the tail part of the Industrial Industrial Bucket Elevator to realize the automatic tension of the belt. As long as the adjustment is in place, the constant tension can be maintained to effectively avoid the belt slipping.

5. The whole Industrial Industrial Bucket Elevator has good sealing, preventing the leakage of materials and dust, which will not cause environmental pollution.

6. Industrial bucket elevator is widely used in vertical conveying of massive, granularity   and powder materials

7. The casing of the bucket elevator is made by bending and welding high-quality steel plate, good rigidity, beautiful appearance.

8. Just replace wheel flange when sprocket wheel wears out, easy operate, less cost.

Cases:

Details:

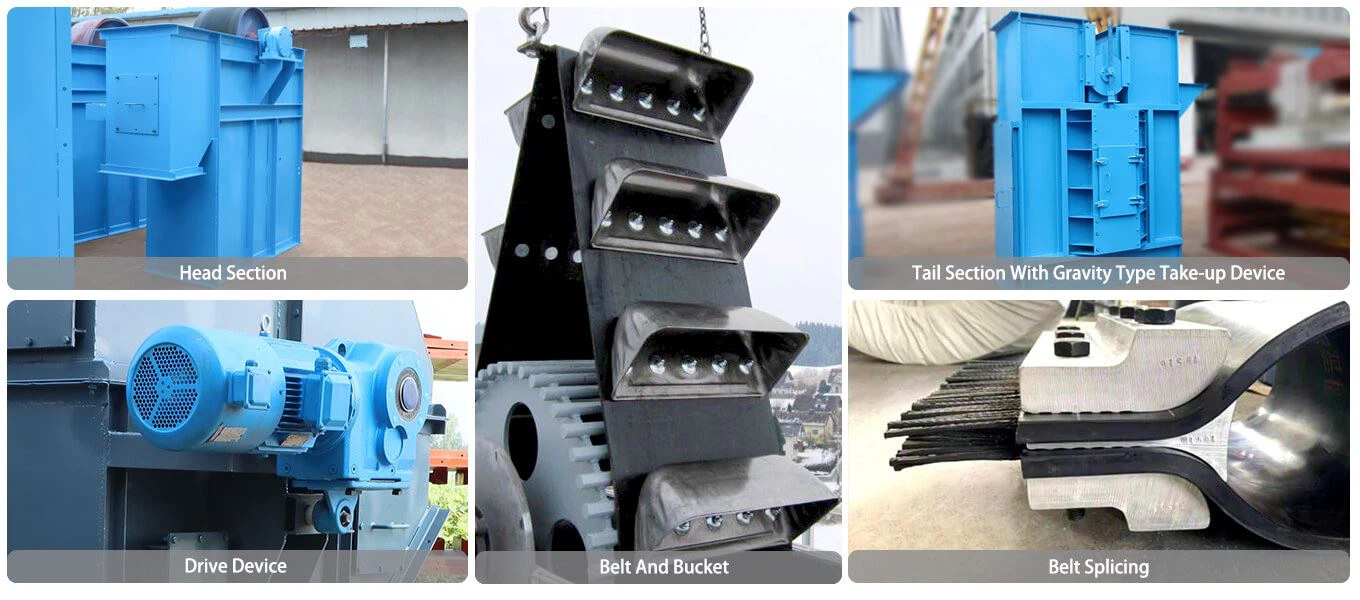

Belt Type Bucket Elevator details

Chain Type Bucket Elevator details

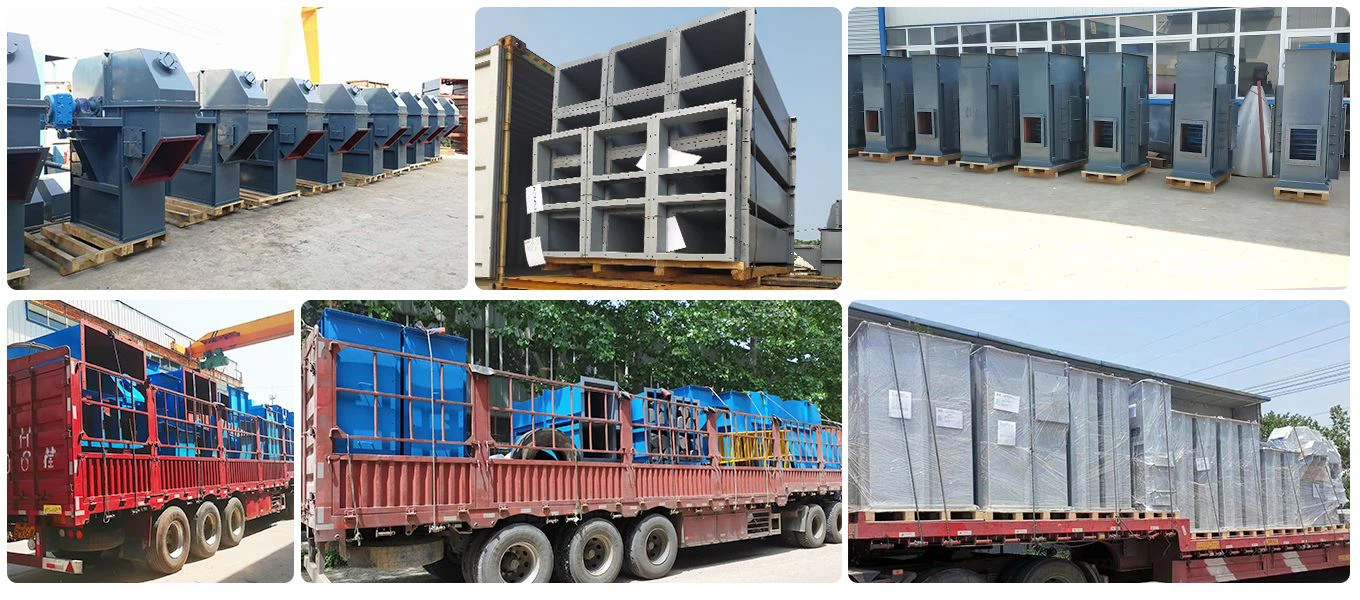

Package & Delivery:

Why Choose Us:

Excellent tooling, skilled technical workers, 30+years of production experience to ensure the quality of Industrial Bucket Elevator reliability.

Manufacturing Process:

Robot Welding Table: In order to improve the processing accuracy and welding strength of the hopper, the company introduced a robot welding table to realize the automatic welding of the hopper.

General Technical Parameter:

Belt Type Industrial Bucket Elevator
Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG 1000	TDG 1250	TDG 1600
Capacity (m3/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume (L)	6.5	10	16	25	40	64	102	161	255
	Pitch (mm)	325	360	420	460	520	580	650	720	820
Belt & bucket weight(kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max lift height (m)		80	80	80	80	80	80	80	80	80

Chain Type Industrial Bucket Elevator
Model	Capacity/ (m3/s)	Speed/ (m/s)	Spindle Speed/ (r/min)	Bucket			Operation Part Quality (kg/m)
				Volume/L	Width/mm	Pitch/mm
NE15	15	0.5	15.54	2.5	250	203	27.5
NE30	32		16.45	7.8	300	305	35
NE50	60		16.45	15.7	30	305	64
NE100	110		14.13	35	400	400	89
NE150	170		14.13	52.2	600	400	112.3
NE200	210		10.9	84.6	600	500	134
NE300	320		10.9	127.5	600	500	188
NE400	380		8.3	182.5	700	600	205
NE500	470		7.1	260.9	700	700	223
NE600	600		7.1	330.2	700	700	274
NE800	800		6.2	501.8	800	800	313

Data in the reference manual, want to note that much of these data information is just some experiments in the experimental results, and the actual medium environment tends to have larger in and out, in order to get closer to the actual conditions of using the corrosion resistance of data, usually should be in the laboratory to do the scene of the actual medium corrosion experiment or coupon test even simulator experiment contrast to do.
