Sugar Bucket Elevator

Outstanding options of the Sugar bucket elevators are high lifts and conveyance of title capacities. These superior bucket elevators are designed for continuous operation with low maintenance requirements. All drive pulleys feature exchangeable friction linings. The segments will be simply changed while not gaping the belt. within the elevator boot, a bar-type drum ensures the radio-controlled come off the belt. Precise parallel steering is obtained with the parallel tensioning device. The Sugar bucket elevator design and also the shut bucket spacing are tested assets permitting continuous material take-up and discharge. The buckets are mounted to the elevator belt with flat head screws of special design engaging within the longitudinal and cross steel cords. Utmost resistance to ripping is therefore secured for the buckets. Rubber strips are fitted between bucket and belt.

Feature:

1. Ensure that material is rarely spilled during feeding and discharge, reducing mechanical wear.

2. Good sealing performance, energy-saving, and environmental protection, less maintenance.

3. The whole bucket elevator has good sealing, preventing the leakage of materials and dust, which will not cause environmental pollution.

4. Sugar bucket elevator adopt a specialized rubber belt of the bucket elevator, which is of high tensile strength, good flexibility, and long service life.

5. Large processing capacity, low noise, low energy consumption, high lifting height, wide application.

6. The bucket elevator consumes less power that causes low operation costs.

7. The bucket elevator structure is simple and easy to maintain and it has high productivity.

8. The conveyed materials are various, bulk materials, packaged products, and so on.

9. The tail of the bucket elevator adopts a gravity tensioning device to realize automatic belt tensioning. As long as it is adjusted in place, it can maintain a constant tension and effectively avoid belt slipping.

10. The two ends of the belt are   clamped in an aluminum cast composite box (clip connection) to ensure the belt connection.

11. The bucket is installed on the belt with a specially designed flat head screw, and a rubber strip is placed between the bucket and the belt.

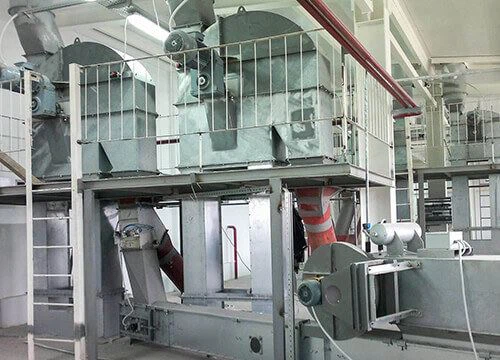

Cases:

Details:

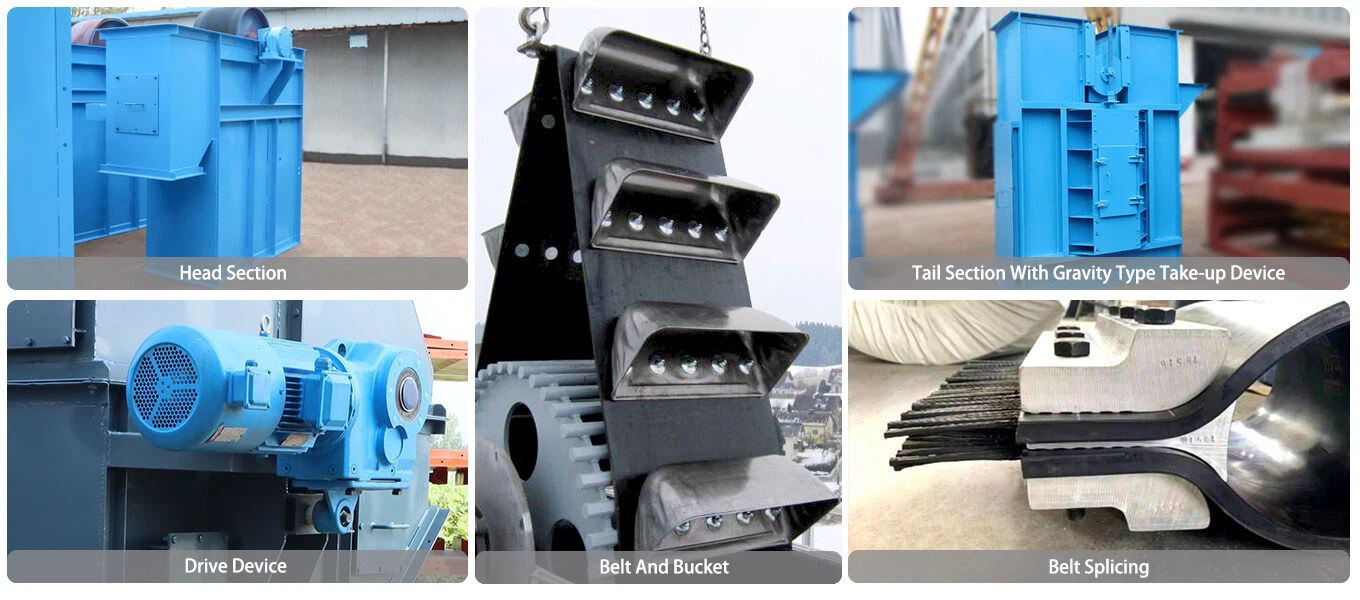

Belt Type Bucket Elevator details

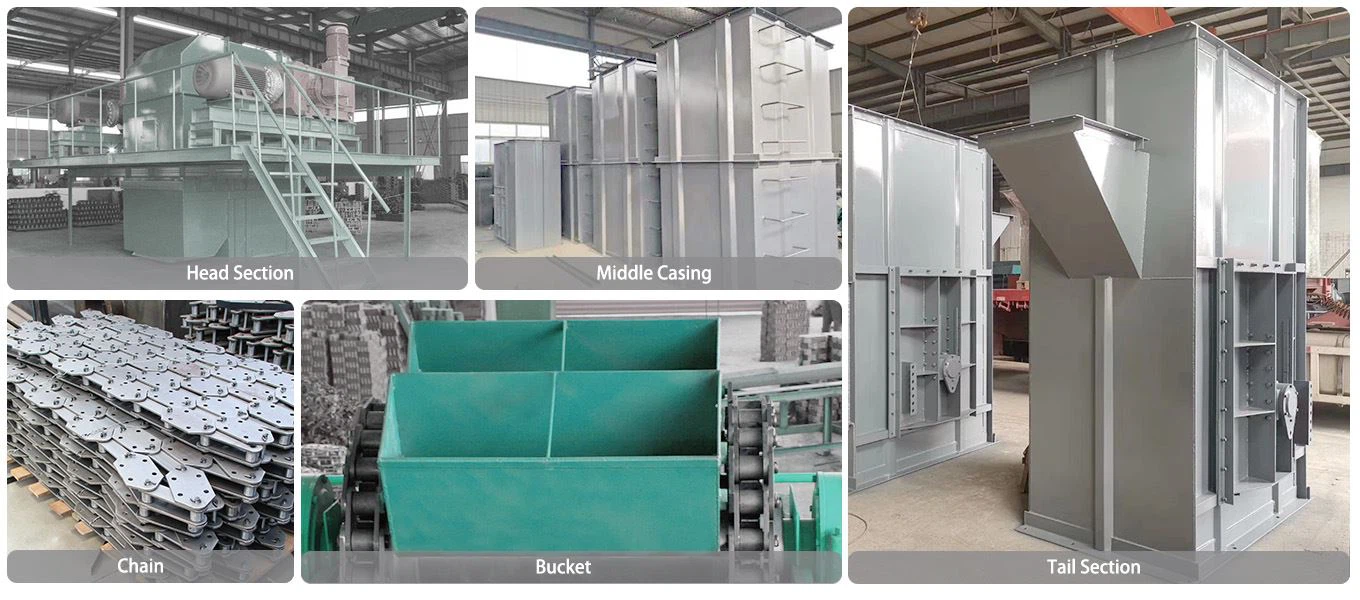

Chain Type Bucket Elevator details

Package & Delivery:

Why Choose Us:

EXCT has an experienced engineering and technical team and a perfect production management system to provide scientific and reasonable bulk material handling solutions for customers around the world.

General Technical Parameter:

Belt Type Bucket Elevator
Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG 1000	TDG 1250	TDG 1600
Capacity (m³/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume (L)	6.5	10	16	25	40	64	102	161	255
	Pitch (mm)	325	360	420	460	520	580	650	720	820
Belt & bucket weight(kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max lift height (m)		80	80	80	80	80	80	80	80	80

Chain Type Bucket Elevator
Model	Capacity/ (m³/s)	Speed/ (m/s)	Spindle Speed/ (r/min)	Bucket			Operation Part Quality (kg/m)
				Volume/L	Width/mm	Pitch/mm
NE15	15	0.5	15.54	2.5	250	203	27.5
NE30	32		16.45	7.8	300	305	35
NE50	60		16.45	15.7	30	305	64
NE100	110		14.13	35	400	400	89
NE150	170		14.13	52.2	600	400	112.3
NE200	210		10.9	84.6	600	500	134
NE300	320		10.9	127.5	600	500	188
NE400	380		8.3	182.5	700	600	205
NE500	470		7.1	260.9	700	700	223
NE600	600		7.1	330.2	700	700	274
NE800	800		6.2	501.8	800	800	313

When choosing steel materials, both the general corrosion resistance and local corrosion resistance should be considered. In some water media and chemical media, the latter needs more attention. This is because the Chain Type Bucket Elevator selection material personnel often pay more attention to the general corrosion resistance of stainless steel, and under the actual use conditions, they are less sensitive to local corrosion (such as stress corrosion hole erosion); Local corrosion of materials occurs in the general environment with good corrosion resistance. Once this happens, it often leads to sudden damage of equipment and components, resulting in much greater harm than general corrosion.
