Our company has developed a Secondary Sizer Crusher specifically engineered to meet the demands of mining, energy, metallurgy, and cement industries. Its distinctive design allows for uninterrupted, continuous operation-significantly increasing throughput and enhancing crushing efficiency.

Tailored tooth profiles and a unique pressure-control system enable our Secondary Sizer Crusher to process large, hard materials efficiently while minimizing the generation of fines. This innovation greatly reduces maintenance requirements and costs, ensuring high equipment availability and helping customers achieve their production targets more efficiently while lowering operating expenses.

The Secondary Sizer Crusher is ideally suited for the high-performance crushing of coal, clay, gypsum, various ores, and cement materials.

Secondary Sizer Crusher crusher utilizes the shear force and tensile force between the toothed rollers to break the materials.

Secondary Sizer Crusher has two inwardly rotating toothed rollers with replaceable crushing teeth. The most suitable feeding method is by apron feeder or screening equipment, which conveys the material at a uniform rate and distributes it evenly over the toothed rollers.

1.The mineral is gripped by the leading faces of opposed rotor teeth,and to be subjected to stress under the concentrated load of the rotor teeth.The stress causes mineral to be break along its natural texture.

2.Mineral is broken in tension by being subjected to a three point loading, which between the front tooth faces on one rotor and rear tooth faces on the other rotor.

3.For the mineral that has not been fully broken, through the rotor teeth and fixed teeth of the breaker bar can be further broken to ensure the 3d dimension requirements of the discharging material.

product-496-330

Drive Device

Two independent drive units, each drive units includes: motor, high-speed end coupling, gear box, low-speed end coupling. The high-speed end coupling uses a hydraulic coupling to connect the motor to the gearbox. The gearbox adopts parallel shaft helical gear structure to meet the requirements of power transmission, speed ratio and torque under extreme load of the Secondary Sizer Crusher .

Toothed Roller

Toothed roller can be divided into Primary Secondary Sizer Crusher Toothed Roller and Secondary Secondary Sizer Crusher Toothed Roller. Easy installation and disassembly of the Secondary Sizer Crusher tooth head, which can significantly reduce the maintenance time and lower the maintenance cost.

Housing

Secondary Sizer Crusher housing is designed as a rigid host frame, and the housing is made of cast steel and connected by high strength bolts. Wear-resistant plates are installed around the inside of the housing, and comb shaped wear plates are installed on both sides of the housing to prevent excessive material from adhering to the crusher tooth rollers.

Synchromesh Gear

The primary Secondary Sizer Crusher is equipped with synchronizing gears at the end of the toothed rolls. Synchronous gears and roll shafts are connected by the expansion sleeve, which can guarantee the relative stability of the biting position of the crushing teeth on the double rolls, and can force the breaking of large pieces of materials, making the material discharge size uniform.

Lubrication Device

Secondary Sizer Crusher adopts centralized automatic lubrication system, it can be more oil filling times, oil filling time Settings, reliable to ensure the effective and reliable lubrication of each part. Automatic control of oil supply interval time, oil supply pressure is large, oil supply speed is fast, the bearing is fully lubricated effectively, so that the core part of the teeth roller bearing to achieve good lubrication, greatly extend the service life of the teeth roller.

Running Gear

The tramming device is installed at the bottom of the Secondary Sizer Crusher and driven by a motor to move along a track to the maintenance access, facilitating easy maintenance and avoiding disassembly. This design allows the equipment to move smoothly between the operating and maintenance areas, reducing manual labor and minimizing downtime during maintenance, thus improving operational efficiency.

The feeding granularity of primary sizers is less than or equal to 1500mm and the discharging granularity is less than 300mm. The arrangement of crushing tooth shapes and tooth shapes are arranged by special spiral tooth shapes. The crushing teeth are cast from abrasion resistant and impact resistant alloy steel. Primary Sizer toothed roller has a unique and novel tooth design structure with deep spiral distribution for high productivity. The passing cavities are formed between the two toothed rollers and the side plate body for screening and crushing materials respectively.

product-1360-344

The Feeding size of Secondary sizer less than or equal to 300 mm (a small amount of 400mm is allowed), and the discharging granularity is less than 50mm. The connection form of the teeth plate adopts a single dovetail groove, which is complementary to the bevel of the insert clamping block, and then the crushing tooth plate is installed on the fixing seat of the teeth plate, formed a surface to surface connection, which is tightened and pressed by high-strength bolts. The function of the bolt becomes a fixed insert clamping block, avoiding the problem of the fixed lock bolt breaking, teeth plate falling off or difficult to disassemble and replace.

product-1360-344

01/ Optimized Space Utilization

Compact overall structure compared to jaw crushers, cone crushers, or gyratory crushers, reducing footprint by over 20%, saving on civil costs.

02/ Exceptional Operational Stability

Low center of gravity design ensures smoother operation with minimal vibration, extending the mineral sizer's service life.

03/ User-Friendly Maintenance Access

Strategically placed inspection doors and sight holes facilitate easy daily checks and maintenance tasks.

04/ Rock-Solid Core Support

Bearing housings are heavy-duty steel castings with multi-layer seals, offering high dust and water ingress protection (IP rating).

05/ Cost-Effective Resource Recycling

Roll bodies support hardfacing repair, extending the life cycle of core components and reducing long-term operating costs.

06/ Comprehensive Wear Protection

The shell interior is lined with replaceable wear plates (e.g., NM400 steel), protecting the main structure and reducing replacement costs.

A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.

Left And Right Side Plate Blanking Process

Front And Rear End Cover Machining Process

Front And Rear End Cover processing

Left And Right Side Plate Machining Process

Left And Right Side Plate processing

Teeth Ring Internal Surface Machining Process

Teeth Ring Internal Surface processing

Teeth Base Processing

Teeth Roller Heat Treatment

At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.

EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.

Current Detection

Voltage Detection

Shaft Temperature Detection

Vibration Detection

Noise Detection

Ultrasonic Flaw Detection

Hardness Detection

Coating Thickness Detection

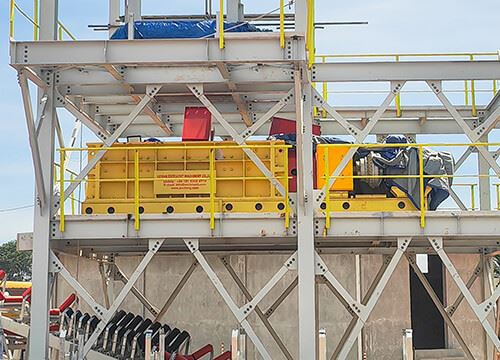

Our Secondary Sizer Crusher covers more than 20 countries and regions all over the world. They are mainly used for crushing raw coal, coal gangue, lignite, coke, topsoil and other materials, and are used in coal-related industries such as thermal power plants, coal mining, coal washing plants and so on.

Secondary Sizer Crusher are customized for each application material to provide the best configuration and meet all your requirements.engineers.

Primary Secondary Sizer Crusher s Technical Specifications
Model	2PLF800	2PLF1000	2PLF1200	2PLF1500
Teeth Roller Dia (mm)	800	1000	1200	1400
Roll length (mm)	1500-2500	1500-3000	1500-3000	2000-3500
Max feed size (mm)	800	1000	1200	1500
Output size (mm)	≤300	≤300	≤300	≤300
Capacity (t/h)	≤2000	≤3500	≤6000	≤10000

Secondary Secondary Sizer Crusher s Technical Specifications
Model	2PLS600	2PLS800	2PLS1000	2PLS1200
Teeth Roller Dia ( mm )	600	800	1000	1200
Roll length(mm)	1000-2500	1500-3000	2000-3500	2000-4000
Max feed size (mm)	200	300	350	400
Output size (mm)	50-80	50-100	50-120	50-140
Capacity ( t/h )	250-800	500-2000	600-3000	800-4000

Note: Tooth configurations vary depending on the material type, infeed size and discharge size.

Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.

1. Which material to be crushed:______
2. Handling capacity:______t/h.
3. Bulk material density: ______t/m3
4. The material compressive strength:______Mpa
5. The material HGI (hardgrove grindability index) range:
6. Material particle distribution percentage?
7. Max. grain size of the feeding material: ______mm
8. What is the grain size of the finished product after crushing?
9. What equipment is used to feed the material into the sizer?
10. What equipment is used to discharge the material from the sizer?
11. As we know,the sizer should form a system with other equipment, do you have preliminary design or hand-drawn sketch? If have, please send it to our engineer for reference.
