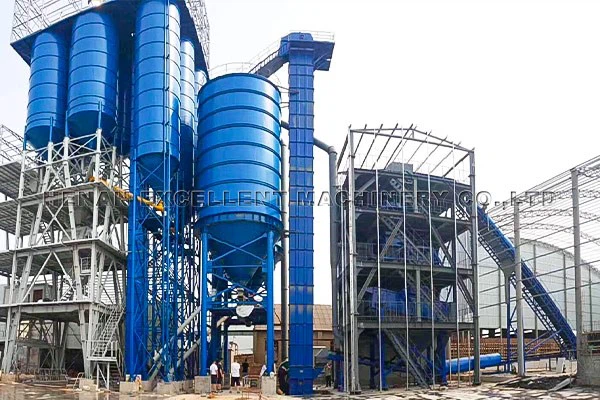

Chain Bucket Elevator is a widely used vertical conveying equipment in industrial production. The traction chain is responsible for the key task of driving the hopper to convey materials. During our long-term service with customers, we have found that chain breakage is one of the most common and significant faults. Once chain breakage, wear, or fracture occurs, it not only interrupts production and reduces efficiency, but also may cause safety hazards such as equipment damage.
Next, based on our many years of production experience and the actual feedback from a large number of customers, we will summarize the common causes of chain breakage in Chain Bucket Elevator traction chains and the corresponding solutions.
Common Causes Of Traction Chain Derailment
Insufficient Chain Tension
The insufficient tension of the chain in the bucket elevator causes chain disengagement. Adjust the tensioning device to increase the tension.
Severe Wear
If the chain and sprocket suffer severe wear resulting in chain disengagement, replace the chain and sprocket immediately.
Deviation Of The Horizontality Of The Drive Sprocket
The horizontality of the drive sprocket installation is insufficient. A level ruler can be placed on the drive sprocket, and then shims can be placed on the drive sprocket bearings to level the drive sprocket.
Chain Wheel Perpendicularity Not Met
The driving chain wheel and the tensioning chain wheel are not on the same vertical plane. Use a hanging plumb bob to check the perpendicularity of the centerlines of the driving wheel and the tensioning chain wheel, and make corresponding adjustments.
Casing Deformation
During the operation of the Chain Bucket Elevator, the casing undergoes deformation, resulting in the horizontal deviation of the drive sprocket or the non-coincidence of the drive sprocket and the tensioning sprocket on the same vertical plane. At this point, the casing of the bucket elevator should be promptly corrected.
Quick Troubleshooting Steps For Traction Chain Derailment
First, observe the tightness of the chain to determine if it is not properly tensioned.
Check the pitch of the chain and the tooth shape of the sprocket to determine if there is excessive wear.
Use a level to measure the levelness of the driving sprocket.
Use a hanging line hammer to verify if the driving wheel and the tensioning wheel are in the same plane.
Check if the casing and frame are deformed or shifted. Follow the order from simple to complex to quickly locate the fault point.
Daily Maintenance Tips to Prevent Traction Chain Derailment
Regularly inspect the tensioning device to maintain the appropriate tension of the chain.
Regularly record the wear conditions of the chain and sprocket, and replace them in advance to avoid running with faults.
Regularly adjust the levelness of the sprocket and the coaxiality of the two wheels.
Avoid overloading, uneven loading, and foreign object blockage during operation.
Regularly check the stability of the casing and frame to prevent deformation and loosening.
Establish equipment inspection records to detect and handle faults early, thereby reducing the occurrence rate of failures.
In the case of Chain Bucket Elevator, chain disengagement usually occurs due to issues such as improper tensioning, component wear, installation deviations, and casing deformation. As long as one masters the correct judgment methods and handling measures, the faults can be quickly resolved and downtime can be reduced. Conducting regular inspections and maintenance can significantly enhance the stability of equipment operation, extend its service life, and reduce the overall usage cost.
