Auger Conveyor

Auger Conveyors are economical and space saving solution for transferring powders or granular materials from a lower to a higher level. The bulk material withdrawn from a silo, hopper, conveying or feeding device may be discharged by Auger Conveyor into a weigh hopper, into one or more bins or silos, or into another conveyor or conveying system.

Feature:

1. Front and rear screw blade adopt sparse and close screw pitch, which can prevent plugging effectively.

2. The high precision making blade can ensure the material fully filled with pipe casing and increase the capacity of Auger Conveyor.

3. Simple structure, easy operation, low power consumption, flexible layout arrangement.

4. Cost-effective when compared to other conveying devices such as belt or pneumatic.

5. Whole sealing structure, no pollution to the environment, no material leakage.

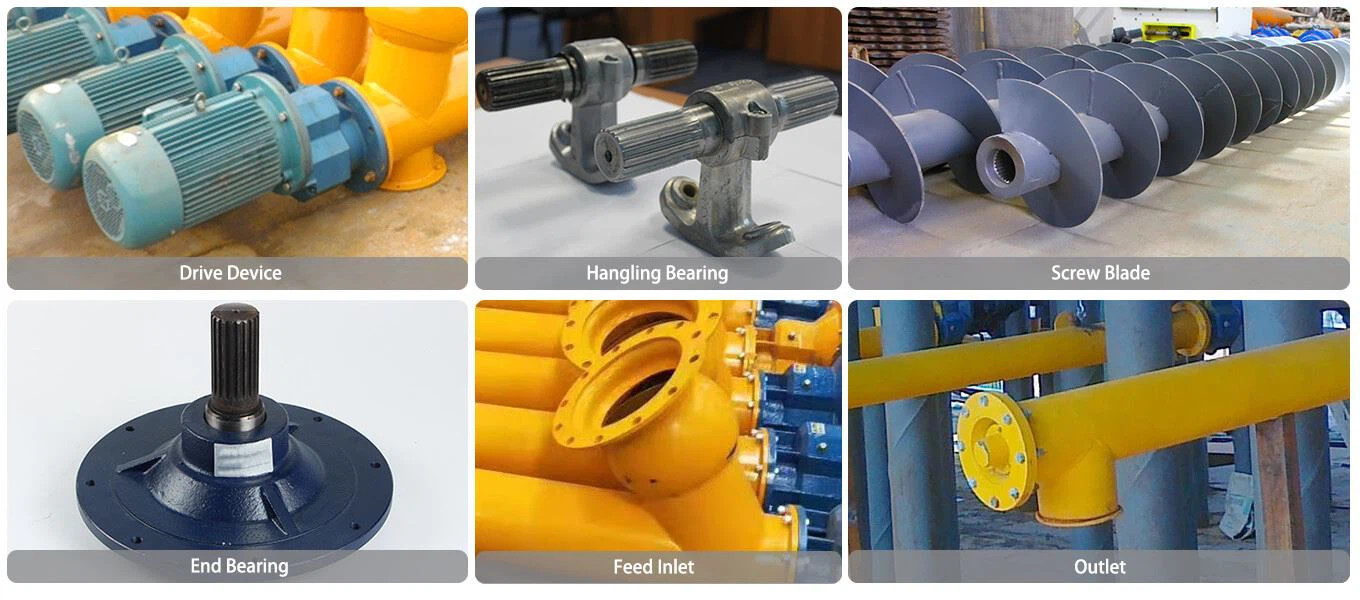

Details:

Application:

Package & Delivery:

General Technical Parameter:

Screw Conveyor Technical Specifications
Model		LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Screw diameter(mm)		100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch（mm）		100	160	200	250	315	355	400	450	500	560	630
Technical spec	n	140	112	100	90	80	71	63	50	40	32	25
	Q	2.2	8	14	24	34	64	100	145	208	300	388
	n	112	90	80	71	63	56	50	40	32	25	20
	Q	1.7	7	12	20	26	52	80	116	165	230	320
	n	90	71	63	56	50	45	40	32	25	20	16
	Q	1.4	6	10	16	21	41	64	94	130	180	260
	n	71	50	50	45	40	36	32	25	20	16	13
	Q	1.1	4	7	13	16	34	52	80	110	150	200
Remark: n＝rotate speed(rpm）; Q＝Capacity（m³/h）; Filling factor＝0.33



Why choose us?

• Our Screw Conveyor products are made from high-quality materials for maximum durability.
• Our products are mature and of high quality, our Auger Conveyor are sold well at home and abroad. We have created a large number of excellent achievements, which are well received by the majority of users, thus establishing our firm position in the industry.
• We provide fast and efficient customer service to all our clients.
• Well-run equipment, specialist income crew, and better after-sales services; We're also a unified major family, anyone stay with the organization value 'unification, determination, tolerance' for Auger Conveyor.
• Our Screw Conveyor products are designed to withstand harsh operating conditions.
• We focus on stimulating and mobilizing the enthusiasm, initiative and creativity of employees, give full play to their intelligence, and realize the common development of employees and enterprises.
• We strive to exceed your expectations when it comes to the quality of our Screw Conveyor products and services.
• Our employees have lived a full and meaningful life in the company. They have found their own value and development space while contributing to the company.
• Our Screw Conveyor products are designed to meet all your unique requirements.
• Reducing costs but never harming product quality is the bottom line of our cost view management principle.
