Why Do You Need Surface Feeders?

Are you currently facing these material handling problems:

Unstable material flow caused by truck unloading

Excessive impact on traditional feeding devices by large rocks

Expensive civil engineering required for large receiving hoppers

Frequent overload of downstream crushersImpact on production efficiency due to intermittent truck loading

Impact on production efficiency due to intermittent truck loading

Limited capacity of existing feeding systems

Our surface feeders are a ground-based solution that can directly receive and continuously supply bulk materials from trucks, wheel loaders, or piles.

Surface Feeders Introduction

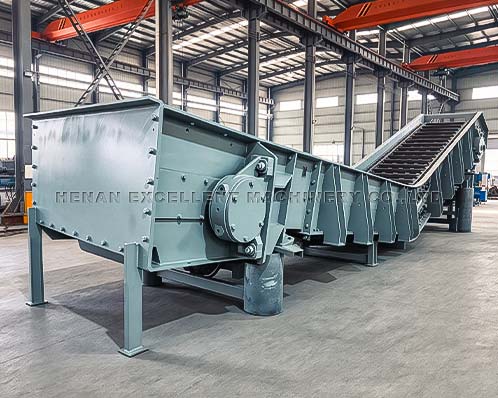

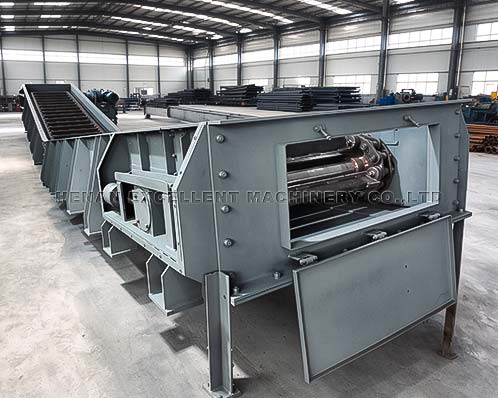

Surface Feeder is a ground-level material handling solution designed for direct receiving, stockpile reclaim and controlled transfer of bulk materials. Also known as a Reclaim Feeder, it can receive material from trucks, wheel loaders, dozers or stockpiles and continuously feed conveyors, crushers, screens and other downstream equipment.

Its low-profile arrangement provides an alternative to conventional deep receiving hoppers, offering greater flexibility for material receiving and reclaim operations. The Surface Feeder is widely used in open-pit mining, stockpile reclaim and bulk material handling applications where reliable material flow and reduced secondary handling are required.

The Surface Feeder receives material from a mobile loading source or stockpile and transfers it through a chain-driven conveying system. The flights move material toward the discharge point, where it enters the downstream conveying or processing system. In reclaim applications, the equipment functions as a Reclaim Feeder, continuously extracting material from the stockpile and regulating its flow into the process.

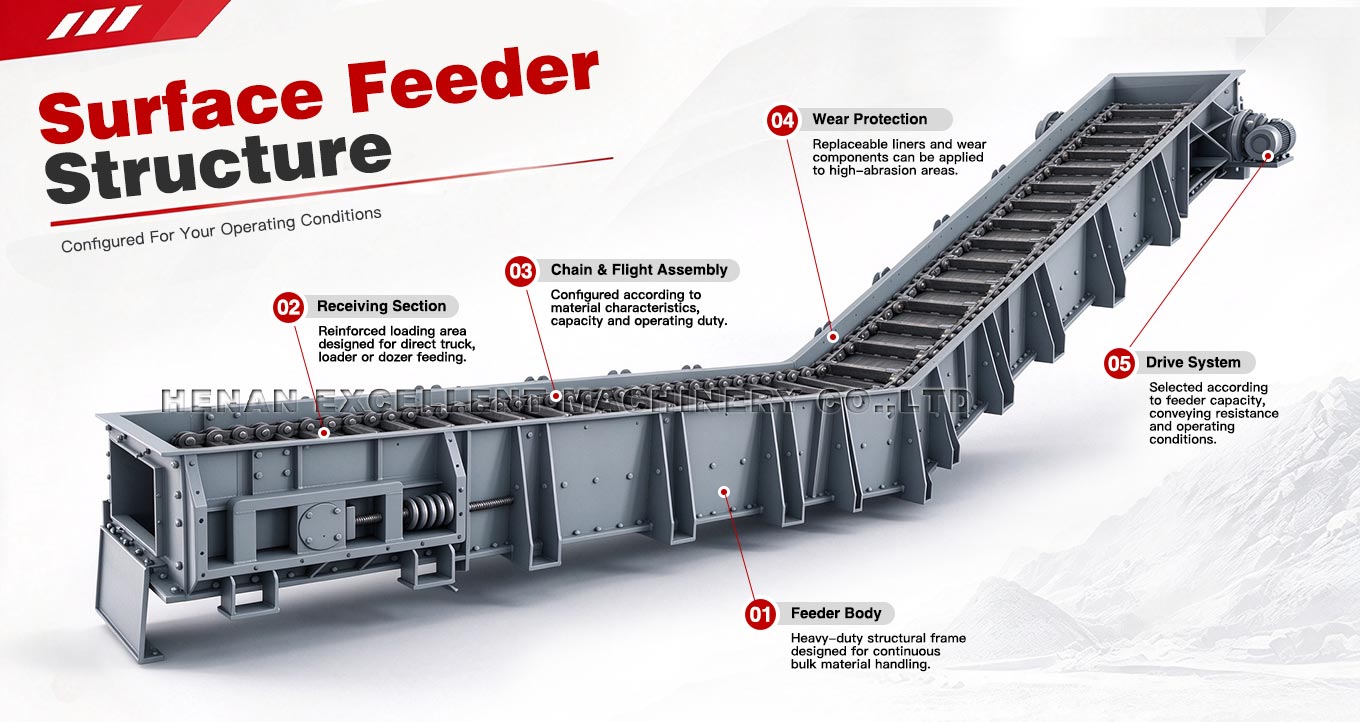

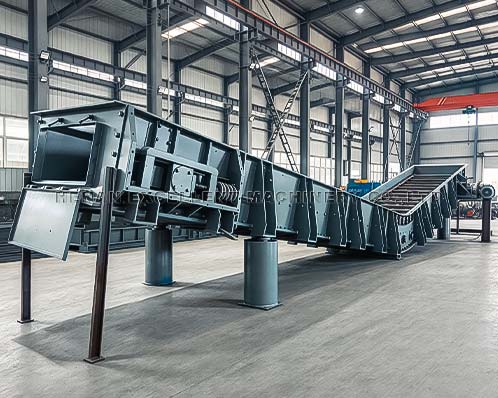

Surface Feeders Structure

Surface Feeder Structure

Configured for Your Operating Conditions

01/

Feeder Body
Heavy-duty structural frame designed for continuous bulk material handling.

02/

Receiving Section
Reinforced loading area designed for direct truck, loader or dozer feeding.

03/

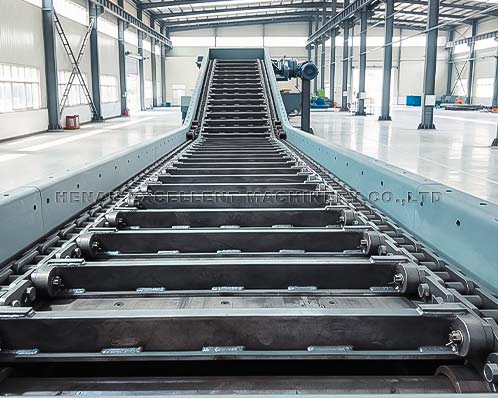

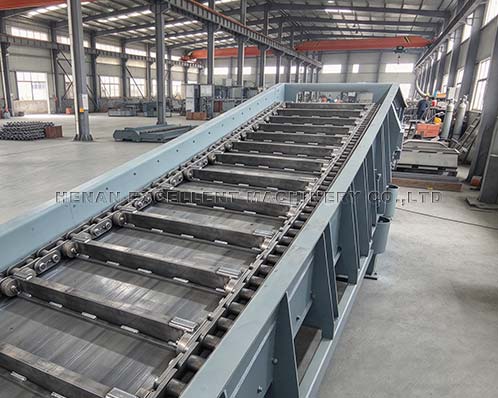

Chain & Flight Assembly
Configured according to material characteristics, capacity and operating duty.

04/

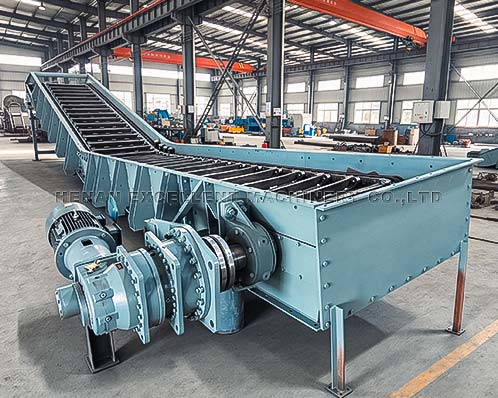

Drive System
Selected according to feeder capacity, conveying resistance and operating conditions.

05/

Wear Protection
Replaceable liners and wear components can be applied to high-abrasion areas.

06/

Discharge Arrangement
Configured for direct transfer to conveyors, crushers, screens or mineral sizers.

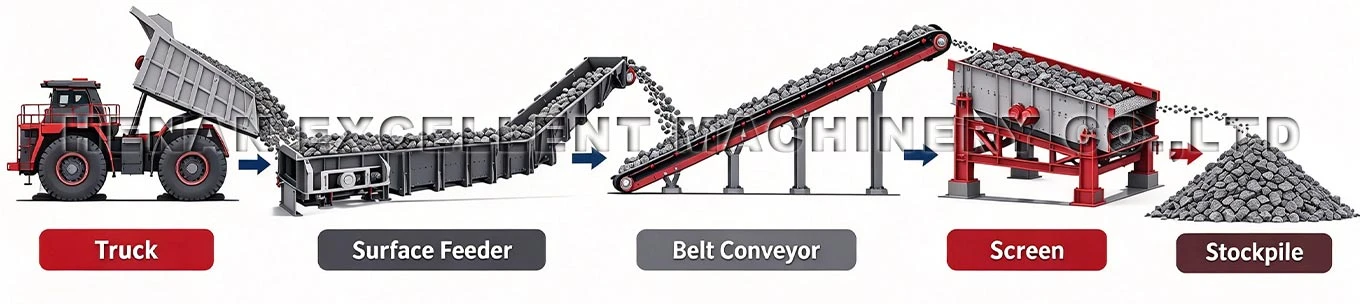

Surface Feeders Process Flow

Truck

Surface Feeder

Belt Conveyor

Screen

Stockpile

Surface Feeders Process Flow

Get Your Surface Feeders Solution For Bulk Material Feeding

Reach out to our team for quotation & technical drawing

Send Inquiry Now

Direct Receiving

Handles material from trucks, loaders and dozers at ground level.

Reliable Reclaiming

Recovers stockpiled material continuously as a Reclaim Feeder.

Controlled Flow

Maintains a consistent feed rate for downstream equipment.

Flexible Layout

Adaptable to different receiving, reclaim and transfer arrangements.

Heavy-Duty Construction

Designed for demanding bulk material handling duties.

System Integration

Connects seamlessly with conveyors, crushers, screens and mineral sizers.

Surface Feeders Technical Parameters

Item	Specification
Equipment Type	Surface Feeder / Reclaim Feeder
Capacity	Customized
Material	Coal / Potash / Soft Rock / Ore / Bulk Materials
Maximum Feed Size	Customized
Feeder Width	Customized
Feeder Length	Customized
Conveying Speed	Variable
Drive	Electric / Hydraulic
Control	Local / Remote / PLC
Installation	Surface / Stockpile
Discharge	Conveyor / Crusher / Sizer / Screen

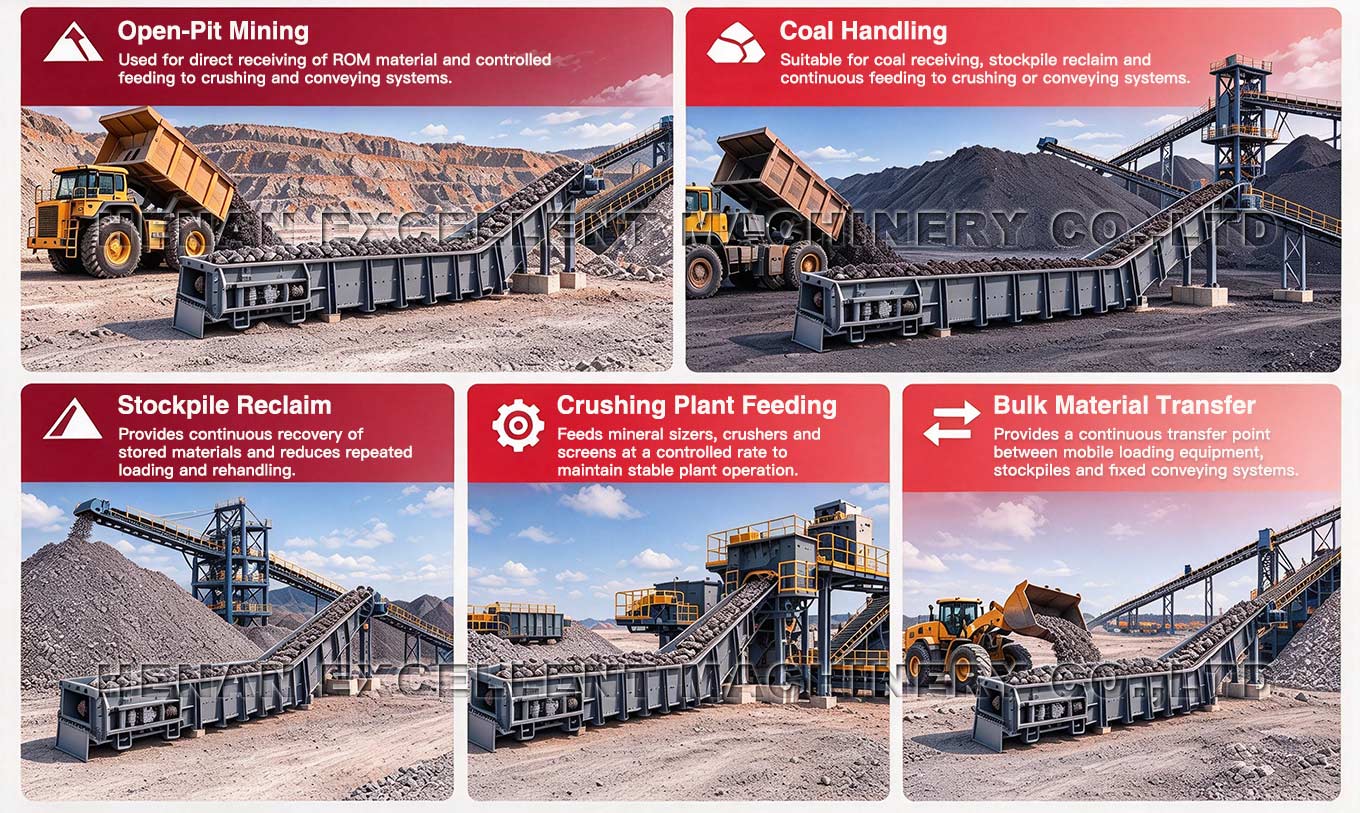

01/

Open-Pit Mining
Used for direct receiving of ROM material and controlled feeding to crushing and conveying systems.

02/

Coal Handling
Suitable for coal receiving, stockpile reclaim and continuous feeding to crushing or conveying systems.

03/

Stockpile Reclaim
Provides continuous recovery of stored materials and reduces repeated loading and rehandling.

04/

Crushing Plant Feeding
Feeds mineral sizers, crushers and screens at a controlled rate to maintain stable plant operation.

05/

Bulk Material Transfer
Provides a continuous transfer point between mobile loading equipment, stockpiles and fixed conveying systems.

Surface Feeders Applications

Materials

The Surface Feeder / Reclaim Feeder can be configured for a wide range of bulk materials, including:

Coal

Lignite

Potash

Salt

Soft Rock

Limestone

Gypsum

Petroleum Coke

Ores

Aggregates

Other bulk materials

Multi-scene Surface Feeders For Various Bulk Materials

Tell us your project requirements, get tailored technical proposal and quotation now

Send Inquiry Now

What determines Surface Feeder capacity?

Capacity depends mainly on feeder width, conveying speed, material bulk density, feed size and operating conditions.

What drive system is used on a Surface Feeder?

The feeder can be equipped with a heavy-duty electric drive system, with variable-speed control available for regulating material flow.

How is chain wear managed?

Wear-resistant and replaceable components can be applied to high-load and high-abrasion areas to simplify maintenance.

Can the Surface Feeder operate continuously?

Yes. The equipment is designed for continuous-duty bulk material handling applications when correctly selected and configured.
