Schneider Misalignment Switch

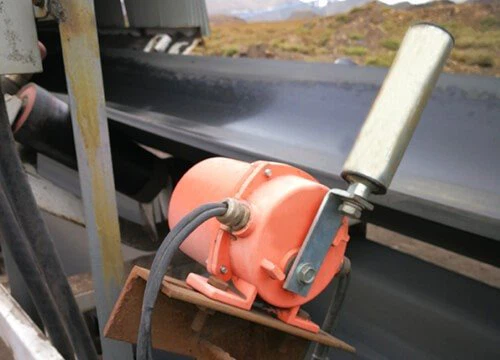

The Schneider Misalignment Switch functions in two levels: One for auto-alarm, and the other for auto-stop. During the operation of the belt conveyor, when the belt sways and touches the vertical roll, the roll turns on its axis; When the belt sways abnormally, it will squeeze the vertical roll and make it offset.

Technical Specifications

Output Contacts	1NO+1NC or 2NO+2NC Contacts Are Available As Per Customer Requirement.
Termination	Suitable To Accept 2.5 Mm Sq Conductors. Separate Earthing Studs Are Provided
Housing	Dmc Or Cast Aluminium, Dust And Water Tight To Ip – 65 Grade. Cast Iron Enclosure Available Optionally
Contact Rating	16 Amp At 440v Ac On Resistive Load. They Are Suitable For Lower Rating Also. (E.G. 5a At 240v Ac)
Service Life	Reliable Action 100,000 Times

Feature:

1. Quickly reaction, rapidly warning, effectively prevent the damage for belt conveyor system.

2. Belt swing switch adopts aluminum alloy casting shell, high strength, lightweight. Strong impact resistance.

3. The switch has its own junction box for easy wiring

4. Automatic reset after belt return to normal position.

Application:

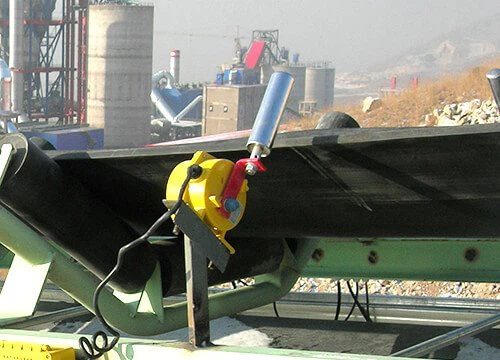

1. The Schneider Misalignment Switch shall be installed on both sides of the belt conveyor, and the position of the deviation switch should be such that the vertical roller is perpendicular to the belt side plane and the belt side edge is fixed at 1/4-1/3 of the roller in a suitable position.

2. The distance between the vertical roller and the belt should normally be within the natural offset of the belt, plus 50~100 mm.

3. The deviation switches are mounted in pairs at the head, tail, and intermediate positions. In general, three pairs of tapes having a length of 100 meters are suitable.

4. After the mounting bracket is welded or bolted to the machine frame, tighten the running switch to the mounting bracket with bolts.

Our Team

We are located in the National High-Tech Industrial Zone of Xinxiang City, and occupy an area of about 39,600 square meters. Owns 15,800 square meters of standard heavy-duty industrial facilities and more than 140 sets of advanced machining, riveting, and assembly equipment

Construction of Schneider Misalignment Switch

Touch Roller ⇒ When a deviation occurs in the running belt in touch the roller and pushes it. When the roller tilts above 35 °C, it gives an emergency stop signal to the belt conveyor and remains in this condition until the belt starts running in the proper position.
