Belt Bucket Elevator

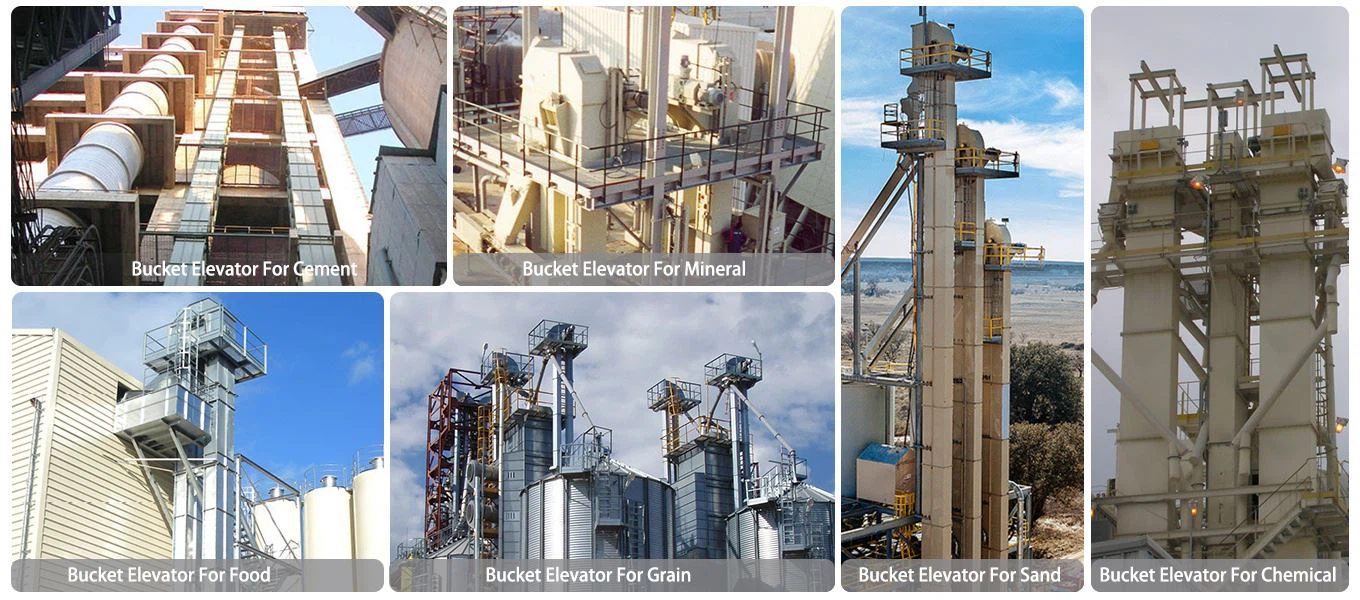

Belt Bucket Elevators are the economical solution when it comes to vertical transport of bulk material. Belt Bucket Elevator consists of the bucket, traction components, head section, middle casing, tail section, driving unit, and other components, etc. Belt Bucket elevator is widely used in mining, metallurgy, cement, grain, chemical, power, and many kinds of industries.



The structure of the bucket elevator is relatively simple, the main driving force is generated by the mechanical friction between the driving pulley and belt.   It is widely used for conveying bulk material and packaging materials. The capacity of the bucket elevator can be achieved at 20000t/h. So, it is widely used in power, construction, mining, and other industries.















• The housing of the Belt Bucket Elevator is bent to form a reinforcing rib, which can improve the strength of the housing.
• This high-capacity elevator is preferably applied in port terminals, inland silos, and processing plants.
• Bucket lifting machine drive device includes the motor, reducer, hydraulic coupler, etc., can choose international famous brands according to customer needs.
• With holdback to prevent material backflow when shut down in an emergency.
• The wing pulley was mounted within the tail section to forestall the materials from scattering on the pulley to reduce the friction between belt and pulley.



















EXCT is committed to open-pit mining (coal industry, oil shale, etc.) crushing and screening production system, EPC general contract construction and production and operation services, as well as large crushing equipment, screening equipment, conveying equipment, feeding equipment, environmental protection equipment and other special equipment research and development, manufacturing, sales and service as one of the modern high-tech enterprises.

We have more than 60 national patents and have received provincial and ministerial scientific achievement certifications. Our core products have attained performance metrics that meet leading international standards, earning multiple national and provincial technology awards.

We create value for global mining customers through advanced process technology, enhancing operational reliability, efficiency, and precision. Leveraging sophisticated equipment and deep industry knowledge, we innovate across material crushing, screening, conveying, dust removal, storage, and automation systems. Our service system offers one-stop professional support throughout the project lifecycle-from engineering consulting and scheme design to equipment production, installation, commissioning, spare parts supply, and operational support.

Aligned with evolving global economic trends, we are building an international presence focused on technological and service innovation. We cultivate versatile talent and experienced service teams to strengthen our competitiveness in the international market, delivering high-value solutions that support the advancement of national industries worldwide.









Robot Welding Table: In order to improve the processing accuracy and welding strength of the hopper, the company introduced a robot welding table to realize the automatic welding of the hopper.









Belt Type Bucket Elevator
Model		TDG250	TDG315	TDG400	TDG500	TDG630	TDG800	TDG 1000	TDG 1250	TDG 1600
Capacity (m3/h)		72	101	158	220	348	492	788	1220	1541
Bucket	Volume (L)	6.5	10	16	25	40	64	102	161	255
	Pitch (mm)	325	360	420	460	520	580	650	720	820
Belt & bucket weight(kg/m)		33	33.2	42.2	62.3	78.53	106	145	155.5	223
Speed (m/s)		1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Max lift height (m)		80	80	80	80	80	80	80	80	80



Why choose us?

• Our Bucket Elevator products are designed to be easy to install and maintain.
• Our company adopts advanced production technology and complete quality management system to ensure Belt Bucket Elevator quality.
• We offer a wide range of accessories and components for our Bucket Elevators to ensure maximum functionality.
• Our employees have always pursued the professional spirit of 'dedication, pragmatism, competitive excellence, and hard work'.
• We use state-of-the-art technology and equipment to produce the highest quality Bucket Elevator products.
• Our company has a successful business model tested by the market and a management team with excellent execution.
• Our Bucket Elevators are highly efficient and designed to help our customers save time and money.
• We firmly grasp the strategic adjustment, brand resource integration, network resource integration, and then deepen human resource management to integrate our corporate culture.
• We are a one-stop-shop for all of your Bucket Elevator needs, from manufacture to delivery.
• The pursuit of high quality is our consistent requirement for ourselves.
