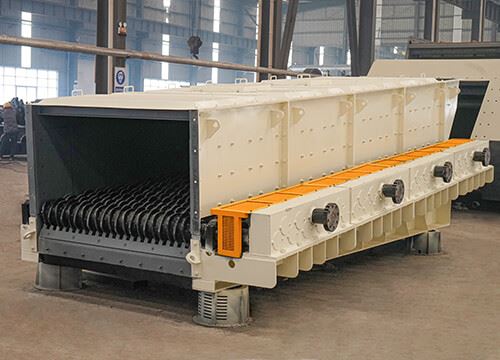

The heavy-duty roller screen is widely applicable in industries such as coal, power, metallurgy, and cement. It is particularly suitable for handling large pieces, wet and sticky, or high-humidity materials. Compared to traditional vibrating screens, the heavy-duty roller screen is less prone to clogging when grading wet and sticky materials, ensuring the processing capacity and screening effect. Moreover, it has high reliability during operation, no vibration, low noise, good dust-sealing and dust-proof performance, low bearing temperature, uniform material distribution on the screen disc, and less wear on the screen disc. It is widely used in the material screening and fine particle removal operations in multiple industries and has achieved remarkable results.
How Heavy-duty Roller Screen Work?
- The screen surface of the heavy-duty roller screen is composed of multiple sets of screen shafts rotating in the same direction. It uses the principle of one or more levels of inclined disturbance for screening.
- Each screen shaft is equipped with several equidistant screen discs. The screen discs on adjacent screen shafts are arranged crosswise, forming "dynamic sieve holes". During the rolling of the materials on the screen surface, they are continuously stratified, with small particles moving downward and large particles rolling forward.
- Small particles remain in contact with the sieve holes for a long time and complete forced sieving through the "rubbing-like" action of adjacent screen discs. Large particles are constantly impacted and disintegrated by the agglomerated particles during their rolling, and the fine particles adhering to the screen discs are automatically cleaned, achieving the purpose of self-cleaning. A self-cleaning device is installed under each screen shaft to remove residual sticky particles. During the screening process, the sieve holes remain unobstructed, ensuring no blockage, adhesion, or clogging of materials. The screening operation is completed without any jamming or sticking.
Heavy-duty Roller Screen Core Components
Our company has skilled technical workers and perfect quality management system, to ensure the high quality of the core components of the wobbler feeder crusher, to provide a guarantee for the high-performance operation of the product.
Screen Shaft Assembly
- The screen shaft assembly consists of a drive unit motor + reducer, screen shaft, screen disc, flat key, locking nut, coupling, bearing housing and bearing housing accessories. The drive motor and reducer are connected to the screen shaft through the coupling.
- The screen shaft is made of forged 42CrMo material. It undergoes CAE force analysis and is designed to be reasonable and safe, effectively avoiding phenomena such as bending or fracture of the tooth roller shaft. The screen shaft seal uses a special rubber bowl seal to prevent dust from spilling out.
- When any one of the screen shafts fails, the material can be pushed by the previous screen shaft and continue to advance beyond the faulty screen shaft, ensuring the normal operation of screening.
- The screen shaft bearing housing is installed on the outer side of the screen side plate and is convenient for disassembly.
Screen Disc
- By using small inclined roller screen discs, while ensuring the screening particle size, the disturbance ability of the roller screen discs on the stone flow is maximized, thereby increasing the screening throughput rate.
- By adopting an interlaced arrangement of roller screen discs, the design is more reasonable and novel.
- Using an integral casting of wear-resistant manganese-chromium alloy steel, it can easily withstand the impact and wear of materials smaller than 800mm, without any deformation or fracture. The surface hardness of the screen disc is HRC55, with excellent wear resistance, and the service life is not less than 12,000 hours.
Heavy-duty Roller Screen Details
Drive Device
It adopts single-axis single-motor drive or multi-axis chain combination transmission mode, reasonable power configuration and screen surface structure to evenly distribute the material load in the screen and ensure smooth operation.
The design structure of the driving device is simple, easy to install and disassemble, and the connected screen shaft is not moved when disassembling.
The driving device is compact in size, light in weight, long in life and low in maintenance cost.
Screen Disc
The heavy-duty roller screen disc is arranged in an alternating pattern, which makes the design more reasonable and resistant to impact. There will be no deformation or fracture at all.
The parabolic-shaped screen disc is well-designed, with high assembly accuracy. It can increase the screening rate and improve the screening accuracy. It has excellent wear resistance and a long service life.
Screen Box
The main body of the heavy-duty roller screen is welded with low-alloy high-strength structural steel. All screen shaft assemblies are fixed to the machine body through connecting bolts. Wear-resistant lining plates are installed on the side of the machine body to avoid direct contact between materials and the box, greatly extending the service life of the equipment. And the wear-resistant lining plate and the screen box are connected by bolts, which is easy to replace.
Protective Housing
The protective housing of the heavy-duty roller screen is welded with NM500 wear-resistant alloy steel plate, sprayed with anti-rust and anti-corrosion paint, and connected with the hopper and the outlet housing at the front and back.
The overall sealing of the screen box can effectively prevent dust pollution, reduce the impact on the environment, and meet the requirements of green construction.
The protective housing is provided with an observation window to facilitate the observation of the operation of the machine.
Wear-Resistant Lining Plate
The wear-resistant lining plate is made of alloy material, and the whole production process adopts welding, heat treatment, machining and other assembly line production, which has a long service life and strong wear resistance, toughness and impact resistance.
The inside of the screen box and the contact surface between the guide groove and the material are provided with wear-resistant lining plates, which can protect the screen box and increase the life of the guide groove. The lining plate is fixed together with the mother plate by bolts, and the replacement is convenient.
Self-cleaning Device
The self-cleaning device of the screen shaft is made of wear-resistant steel and is equipped with a cutting edge, which is inclined to the lower part of the screen shaft. Some fibrous debris and sticky materials attached to the screen will be automatically cleaned off by the cleaning device to solve the blockage of the screen surface.
Heavy-duty Roller Screen Features
Smooth Operation
The equipment can be driven by a combination of single-axis drive, multi-axis chain drive or multi-axis linkage gearbox. The motor, reducer and bearings are selected from well-known brands. The reasonable power configuration and the reasonable screen surface structure ensure that the gypsum rock load in the screen machine is evenly distributed, guaranteeing smooth operation.
Strong Anti-Clogging Performance
During the mining and crushing process of gypsum rock, fine sticky powder is easily produced. Traditional vibrating screens are prone to clogging. However, our heavy-duty roller screen adopts a small-angle cross-screen disc design, combined with a comb-shaped self-cleaning device. During operation, it automatically removes the gypsum fine powder adhering to the screen disc, ensuring no material blockage or clogging of the screen holes throughout the process, and maintaining a stable high screening capacity.
Durable And Impact-Resistant
The screen disc is cast as a single piece using high-quality wear-resistant manganese-chromium alloy steel or NM360 material. It can withstand the continuous impact and long-term frictional erosion caused by large blocks of gypsum rock, and will not undergo any deformation or fracture. The service life of the screen surface is therefore longer.
High Screening Efficiency
For the classification conditions of gypsum rock, with a classification particle size of 30mm, the screening efficiency can reach over 85%; when the classification particle size is greater than 30mm, the screening efficiency can reach 90-98%, achieving thorough separation of coarse and fine materials.
Energy Conservation & Environmental Protection
The entire machine adopts a fully enclosed structure, without vibration. This effectively prevents gypsum dust from spilling out. At the same time, it has low noise, meeting the environmental protection production requirements of mines.
Easy Maintenance
The screen shaft is designed in a modular and independent manner, allowing for single-axis drive. If a certain screen shaft fails, it will not affect the operation of the entire machine. Moreover, replacing worn parts (such as the screen disc) is relatively convenient, time-saving, and labor-saving, thereby reducing downtime losses.
Contact Us For Best Price
Submit your requirements and talk with one of our technical engineer about your project.
Heavy-duty Roller Screen Brochure Download
EXCT Manufacturing Facilities
A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.
EXCT Strict Quality Control
At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.
EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.
Heavy-duty Roller Screen Cases
heavy-duty roller screen are especially suitable for wet, sticky materials, and stripping out materials with high percentages of clay. It's used in aggregate and mining applications to sort the run-of-mine material before the primary crusher.
Submit your requirements and talk with one of our technical engineer about your project.
Get The Most Suitable Product Solution And Quotation For Free!!!
Heavy-duty Roller Screen General Technical Specifications
EXCT heavy-duty roller screen are customized for each application material to provide the best configuration and meet all your requirements. Configuration information is typical values for reference. Please contact our technical engineers for more assistance with equipment selection.
| Model | Screen Width (Mm) | Controlled Axis/Base | Graded Particle Size (Mm) | Drive Power (Kw) | Handling Capacity(T/H) |
| GZS1208 | 1200 | 8 | 10-100 | 15 | 150-300 |
| GZS1412 | 1 400 | 12 | 10-100 | 2x 15 | 200-500 |
| GZS1618 | 1600 | 18 | 10-100 | 3x 18.5 | 400-800 |
| GZS1824 | 1 800 | 24 | 10-100 | 4×22 | 600- 1000 |
| GZS2024 | 2000 | 24 | 10-100 | 4×30 | 800-1200 |
| GZS2430 | 2400 | 30 | 10-100 | 5×37 | 1000-1800 |
Note: The number of rolls can be customized according to customer requirements.
Heavy-duty Roller Screen Selection Instruction
1.Which material to be screened: ____________
2.Handling capacity: __________ (t/h)
3.Material density:___________(t/m3)
4.Max. granule size of the feeding material: ______mm
5.What is the percentage of the maximum material in the total feed materials? _________%
6.What is the size of the screen hole of the wobbler feeder crusher?__________(mm)
7.Are there any requirements for the arrangement of the wobbler feeder crusher? Is it horizontal or inclined?
8.Which kind of equipment will feed the material into wobbler feeder crusher?
9.Which kind of equipment will receive the material from wobbler feeder crusher?
10.Does the heavy-duty roller screen work alone or with other equipment to form a system? If forming a system, please provide the flow chart or layout drawing of the whole system for our engineers to reference.
Heavy-duty Roller Screen Spare Parts
Duplex Roller Chain
Screen Shaft Assembly
Bearing
Heavy-duty Roller Screen Service
Project Feasibility Report
Site Design and Planning
Model Selection and Proposal
Model Selection Calculation
3D Modeling and Drawings
Civil Design
Installation and Commissioning
Remote Diagnosis
Training Service
Maintenance Schedule
