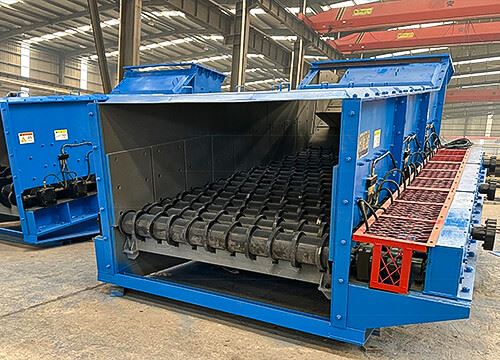

Roller Screen, Disc Screen, Wobbler Feeder For Municipal Solid Waste

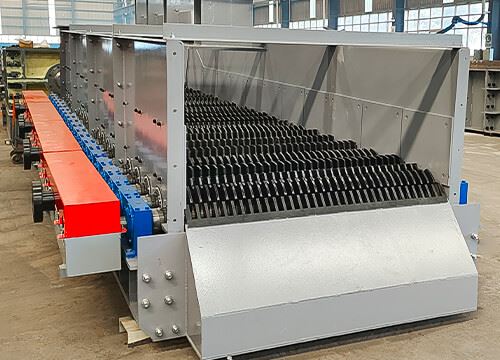

Municipal solid waste disc screen is an efficient and stable sorting equipment, suitable for urban demolition and renovation projects and large-scale construction waste storage plants where solid waste and construction waste are processed.

• The equipment adopts a combined structure of staggered screen discs to precisely control the screening gap and efficiently separate solid waste materials such as domestic garbage and construction waste with particle sizes smaller than the set standard. The processing capacity is four times that of traditional drum screens of the same volume, and the screening efficiency is twice that of drum screens.

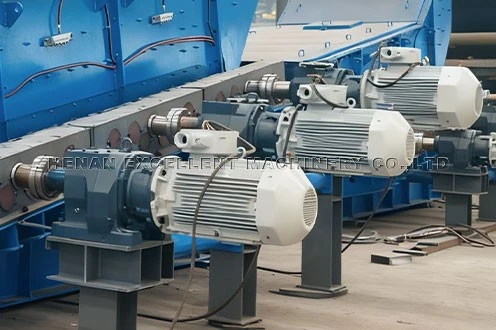

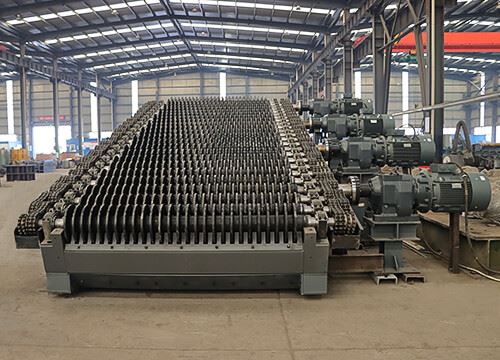

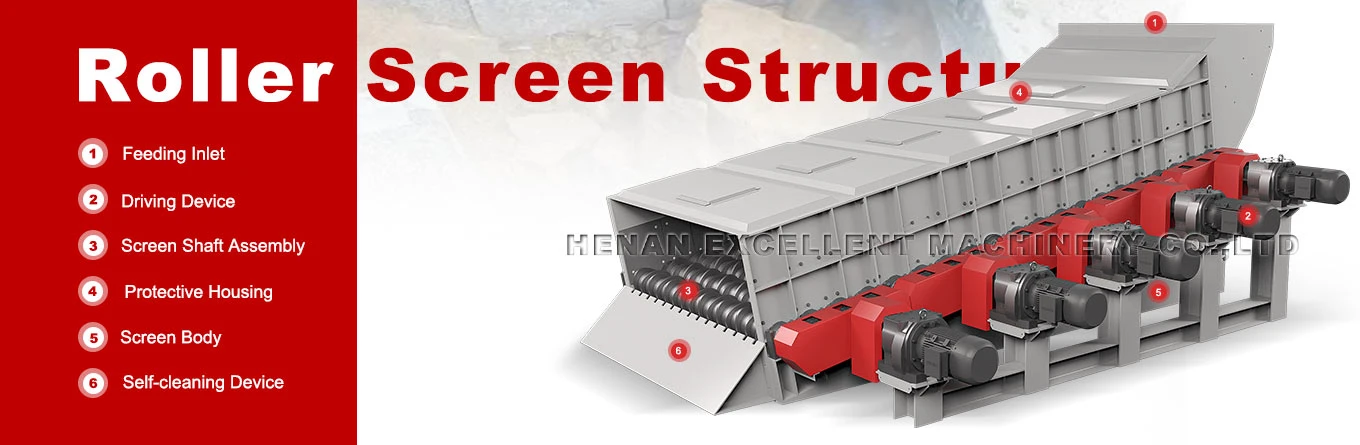

• The entire machine is driven by an electric motor and operates synchronously and at a constant speed for multiple screen shafts. The screen discs on the shafts continuously rotate and stir the surface garbage, relying on the fixed gaps between the screen discs and the self-weight and particle size of the materials to complete the classification of coarse and fine materials. Different numbers of screen shafts can be installed according to the required screening processing volume.

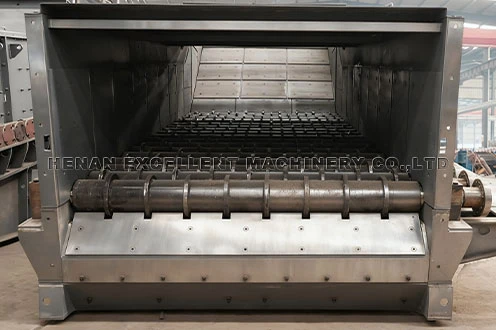

• In response to the pain points of municipal solid waste, such as high humidity and high viscosity, which make it prone to clogging and blocking, a self-cleaning device is configured under the screen discs and a continuous dynamic rotation design is adopted to fundamentally avoid the adhesion and blockage of the screen gaps, completely solving the problems of material clogging, hole clogging, and frequent machine shutdown for cleaning when processing wet garbage on ordinary screen surfaces. It can stably achieve continuous and efficient screening operations of various municipal solid wastes such as domestic garbage, construction waste, and decomposed garbage.

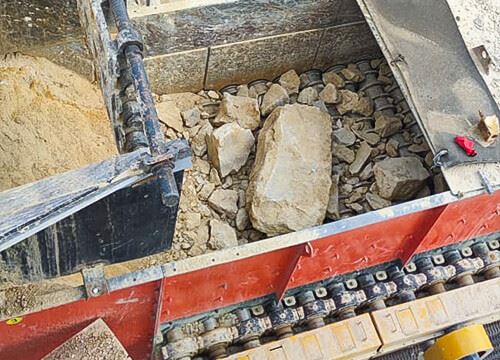

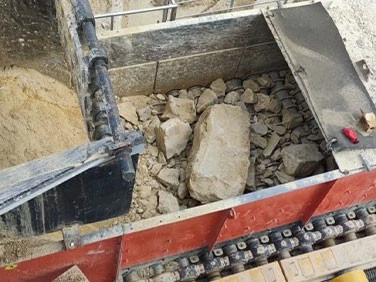

When municipal solid waste is uniformly conveyed onto the screen surface of the equipment, the motor drives the screen shaft to rotate. Due to the presence of gaps between the screen shafts and the rotational direction and speed of the screen shafts being adjustable, fine particles such as sand, stones, and soil, which are smaller than the gaps, will fall through the gaps of the screen shafts, while large blocks of materials such as bricks and concrete blocks will be continuously moved forward by the screen shafts, thereby achieving the screening and classification of solid waste of different particle sizes.









Our company has skilled technical workers and perfect quality management system, to ensure the high quality of the core components of the wobbler feeder crusher, to provide a guarantee for the high-performance operation of the product.

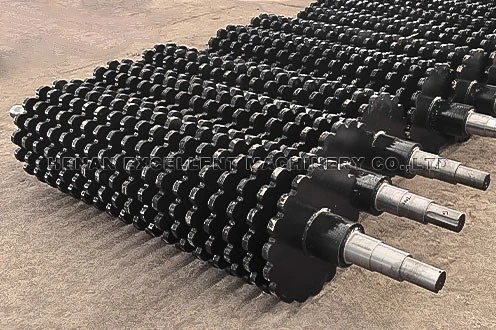

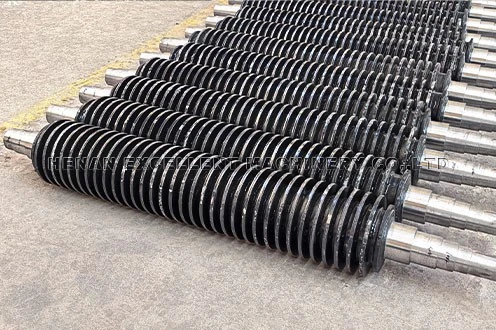

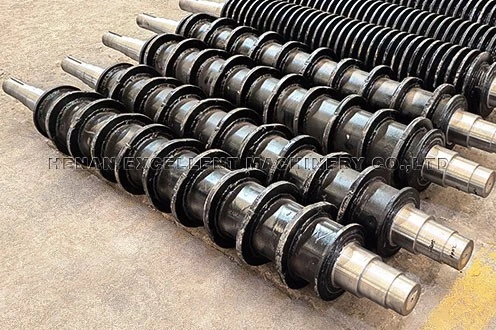

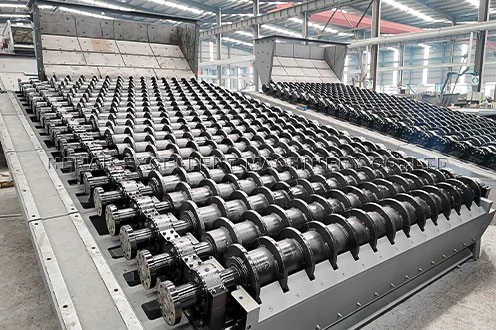

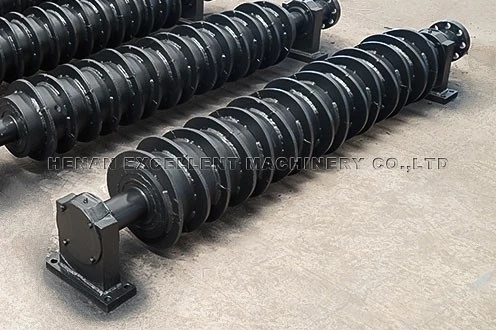

 Screen Disc

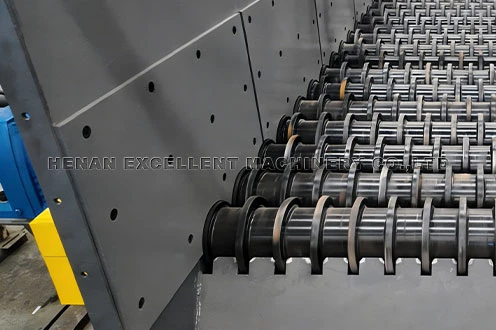

• By using small inclined roller screen discs, while ensuring the screening particle size, the disturbance ability of the roller screen discs on the stone flow is maximized, thereby increasing the screening throughput rate.
• By adopting an interlaced arrangement of roller screen discs, the design is more reasonable and novel.
• Using an integral casting of wear-resistant manganese-chromium alloy steel, it can easily withstand the impact and wear of materials smaller than 800mm, without any deformation or fracture. The surface hardness of the screen disc is HRC55, with excellent wear resistance, and the service life is not less than 12,000 hours.







A high quality mechanical products, must have excellent tooling equipment. In order to ensure its accuracy and meet the needs of large orders. Henan Excellent Machinery Co.,Ltd owns 140 sets of professional equipment, including Five-axis Gantry Machining-center, CNC Boring And Milling Machining Center, Vertical Machining Center, Vertical CNC Machining Center, Gantry Machining Center, Laser Cutting Machine, Laser Pipe Cutting Machine, Welding Robot Workstation, Lengthen Lathe, CNC Horizontal Machining Center, etc. Advanced processing and manufacturing equipment including Environmental Spraying Room and Heat Trea equipment and ultra large Surface Heat Treatment.







At present, EXCT has fully passed ISO9001-2008 international quality system certification, complete quality system make sure that from the product development and design, production, procurement and supply to sales and service process has been effective quality controlled.

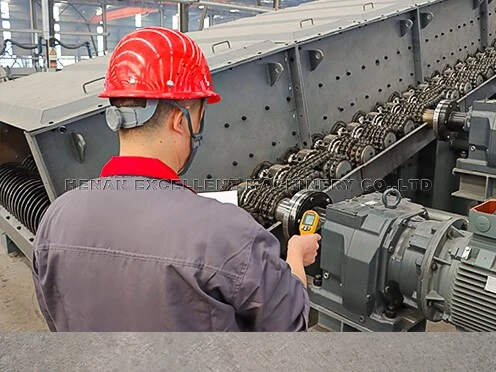

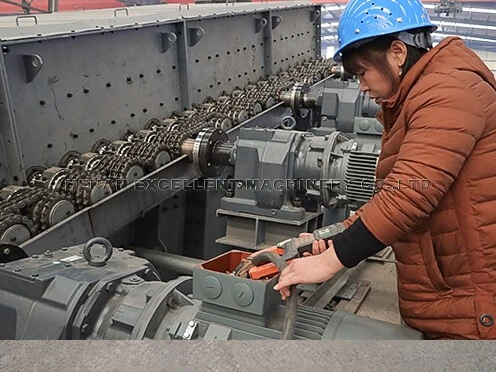

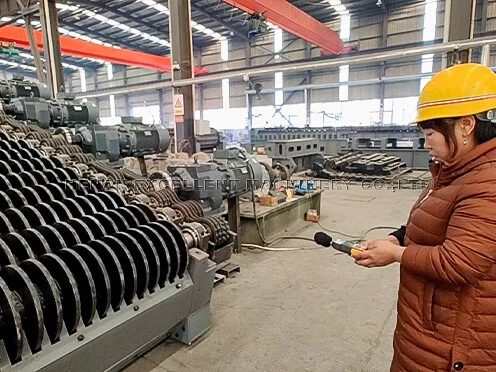

EXCT has a rigorous and skilled inspection team to ensure the success of product quality control. The quality inspection department has a strict testing process that runs through the stages of raw material procurement, production, and installation to ensure that every piece of equipment delivered to customers is qualified.







1.Which material to be screened: ____________
2.Handling capacity: __________ (t/h)
3.Material density:___________(t/m3)
4.Max. granule size of the feeding material: ______mm
5.What is the percentage of the maximum material in the total feed materials? _________%
6.What is the size of the screen hole of the wobbler feeder crusher?__________(mm)
7.Are there any requirements for the arrangement of the wobbler feeder crusher? Is it horizontal or inclined?
8.Which kind of equipment will feed the material into wobbler feeder crusher?
9.Which kind of equipment will receive the material from wobbler feeder crusher?
10.Does the municipal solid waste roller screen work alone or with other equipment to form a system? If forming a system, please provide the flow chart or layout drawing of the whole system for our engineers to reference.
