The cast iron ball sidewall belt conveyor is composed of three parts: base belt, sidewall and cleat. The sidewall is connected to the base belt through a secondary vulcanization process, and the cleat supports the materials in a T-shaped, TC-shaped or C-shaped structure. The base belt is made of cotton canvas, nylon or steel wire rope core materials and is classified into ordinary type, heat-resistant type and cold-resistant type, etc. It is suitable for transporting powdery, granular, small block-shaped and liquid materials with an inclination angle ranging from 0° to 90°. The particle size of the materials can reach 1-400 millimeters, and the conveying capacity ranges from 1 to 6000 cubic meters per hour.

Cast Iron Ball Sidewall Belt Conveyor Working Principle

The cast iron ball sidewall belt conveyor is a more advanced and flexible material conveying system. Similar to the structure and working principle of ordinary belt conveyors, it is driven by a transmission drum and uses friction to drive the conveyor belt to wrap around the head and tail drums to form a closed loop. The upper and lower idlers support the conveyor belt as the load-bearing and traction components.

Cast Iron Ball cast iron ball sidewall belt conveyor Structure

It is mainly composed of discharge hopper, drive pulley, sweeper, sidewall conveyor belt, press pulley, guard wheel, upper idler wheel, bend pulley, lower idler wheel, material guiding trough, empty section cleaner, tail drum, tensioning device, etc.

The main difference from ordinary belt conveyors lies in the structure form of the conveyor belt. The conveyor belt of the cast iron ball sidewall belt conveyor is composed of base belt, corrugated sidewall and cleat. Moreover, there are also significant differences in some parts such as bend pulley, press pulley and idler wheels between the two.

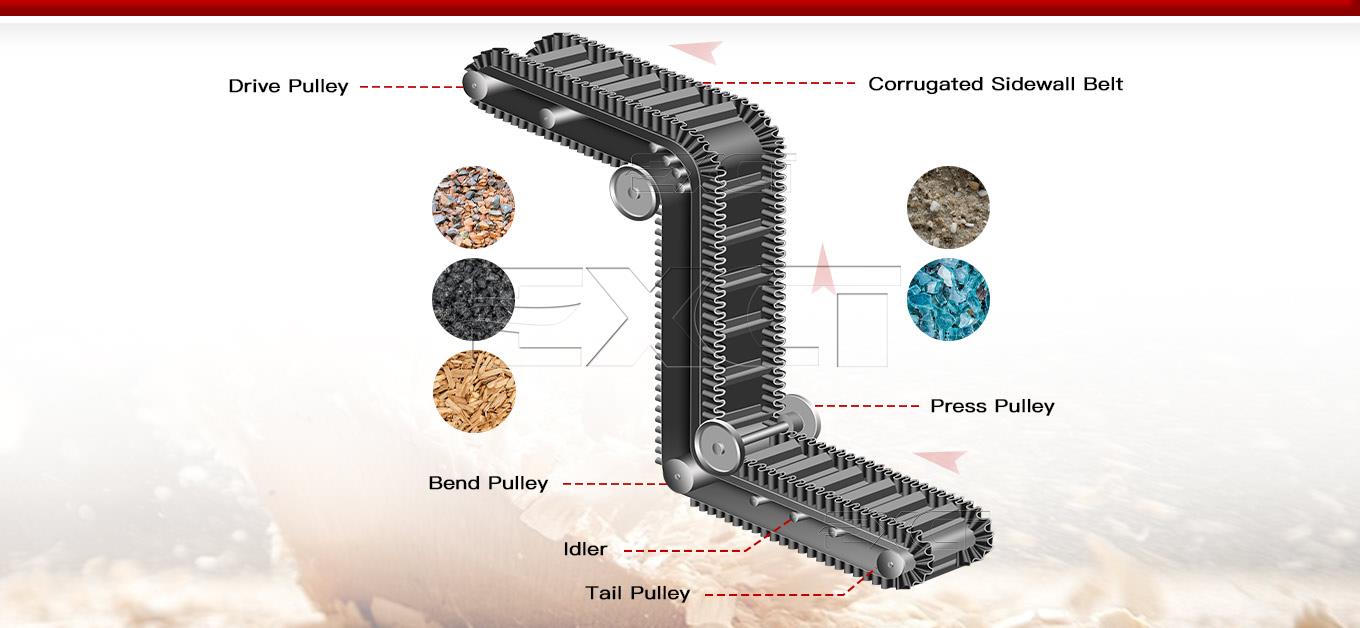

Cast Iron Ball Sidewall Belt Conveyor Structure

Cast Iron Ball cast iron ball sidewall belt conveyor Feature

Saving Floor Space

The cast iron ball sidewall belt conveyor can achieve a maximum conveying inclination angle of 90°, significantly reducing the floor space occupied by the equipment and completely solving the problem of large-angle conveying that cannot be achieved with ordinary belts.

Flexible Layout

Since the cast iron ball sidewall belt conveyor can convey iron balls within a full range of 0° - 90°, during the engineering application process, the position of the material stacking point relative to the transportation end is not restricted. It can be arranged according to specific terrain and requirements, thereby improving the utilization rate of the site and reducing the land area.

Large Conveying Capacity

The wave-shaped sidewalls on both sides of the conveyor belt increase the load area of the belt, thereby enhancing the conveying capacity while preventing iron balls from scattering. Currently, the conveying capacity of the cast iron ball sidewall belt conveyor can reach 6000t/h. The maximum lifting height of a single unit can reach 150m.

Reduce Investment Costs

Using a large-angle cast iron ball sidewall belt conveyor to transport iron balls can save investment costs by approximately 20% to 30%. This method works better in industries such as building materials, coal, and chemicals.

Comprehensive Performance Is Outstanding

Compared with ordinary belt conveyors, bucket elevators, and chain-dump conveyors, this conveyor has superior comprehensive technical performance. It has a large conveying capacity, up to 600 cubic meters per hour, a vertical lifting height of up to 200 meters, low energy consumption, simple structure, and easy maintenance.

Optional Special Conveyor Belts

For materials with special requirements such as high temperature, acidic, alkaline, oily substances or organic solvents, special conveyor belts can be used (such as heat-resistant, cold-resistant, oil-resistant, acid and alkali-resistant types).

Cast Iron Ball cast iron ball sidewall belt conveyor Package & Delivery

sidewall belt conveyor

Cast Iron Ball Cast Iron Ball Sidewall Belt Conveyor Application

We have rich experience in the production of cast iron ball sidewall belt conveyor . The following are our excellent cases in different industries at home and abroad in recent years

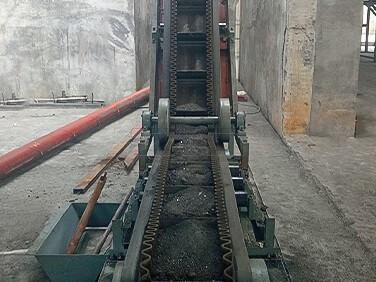

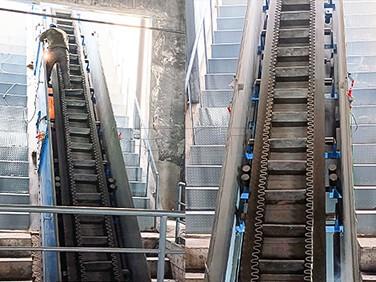

Cast Iron Ball Sidewall Belt Conveyor Site

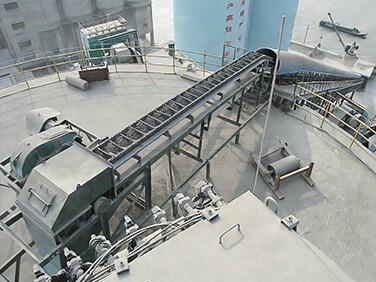

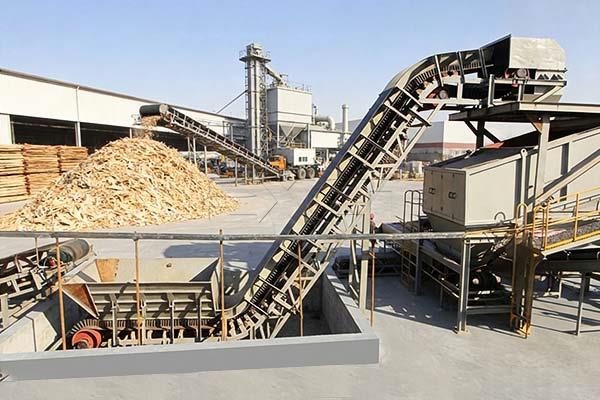

Cast Iron Ball Sidewall Belt Conveyor Site-2

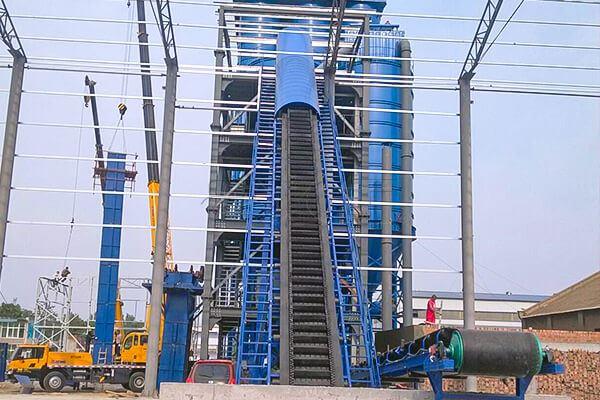

Cast Iron Ball Sidewall Belt Conveyor Site-3

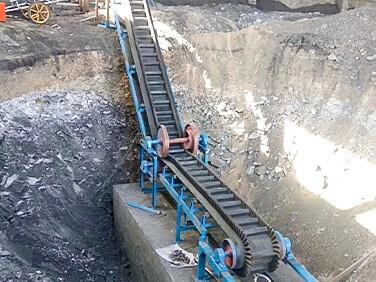

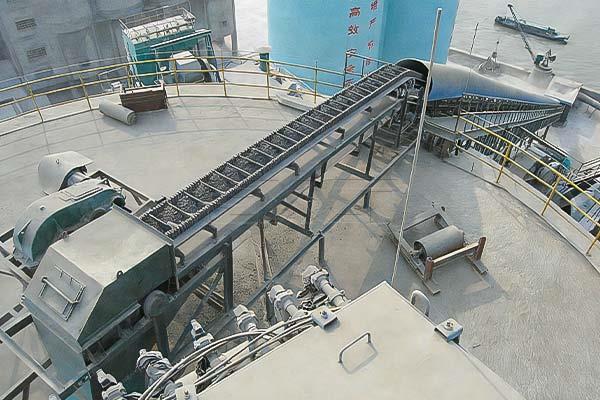

Cast Iron Ball Sidewall Belt Conveyor Site-4

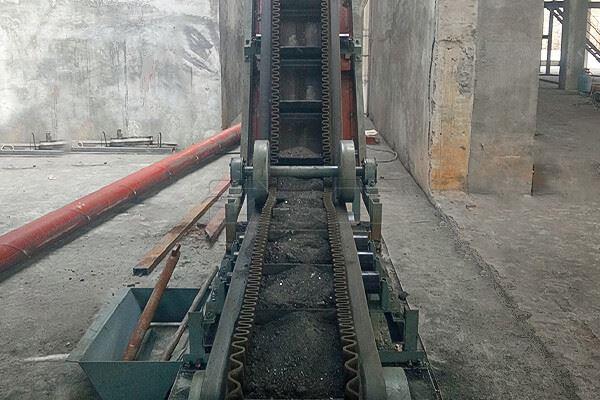

Cast Iron Ball Sidewall Belt Conveyor Site-5

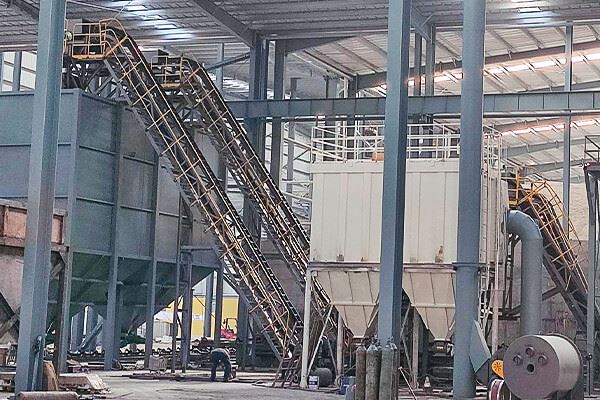

Cast Iron Ball Sidewall Belt Conveyor Site-7

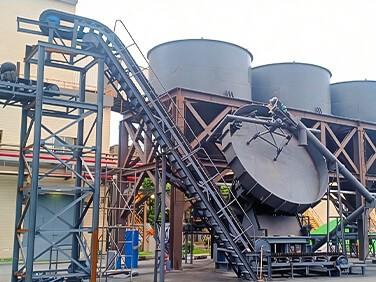

Cast Iron Ball Sidewall Belt Conveyor Site-8

Development Trends Of Sidewall Belt Conveyor

►The change in support method ensures the stable operation of the conveyor. The support method of the conveyor belt plays an important role. The unit length mass of the corrugated edge conveyor belt is greater than that of the general conveyor belt, thus making its support and guidance more flexible. Currently, there are concepts of corrugated edge conveyors with circular suspension, cableways and tracks, as well as pocket-type belt conveyors. Especially, the cableway corrugated edge conveyor has been applied in engineering practice.
►Flexible layout method The corrugated edge belt conveyor can, like the general belt conveyor, become a mobile or relocatable conveyor, that is, it can be moved or relocated, thus meeting the needs of mining operations. The combination of the characteristics of the corrugated edge belt conveyor suitable for transporting materials at large inclinations and the planar turning technology can fully adapt to the limitations of mining operations and internal space of enterprises, bringing it a wider range of application fields.
►Wide application range Due to the large incline material transportation capacity of the corrugated edge belt conveyor, the same conveyor can adapt to different incline ranges with different working requirements over a wide range, far superior to the general belt conveyor. Currently, the inclination angle has been changed for ship unloading, and this "transformer" feature will be applied in various different fields in the future, such as dam accumulation, subway engineering excavation, etc.

General Technical Parameter

Belt Width (mm)	Sidewall Height (mm)	Cleat Spacing (mm)	Inclination Angle
			30°	35°	40°	45°	50°	55°	60°	65°	70°	75°	80°	85°	90°
			Capacity(m³/h)
500	80	126	42	38	36	31	28	25	22	20	18	16	15	13	11
	80	252	23	20	18	16	14	13	12	-	-	-	-	-	-
	100	126	56	52	48	44	40	36	32	29	26	24	21	19	16
	100	252	34	29	26	23	21	19	17	15	-	-	-	-	-
	120	126	-	-	-	-	58	53	48	44	39	35	32	28	24
		252	49	44	39	34	31	28	25	23	20	-	-	-	-
		378	33	29	25	23	-	-	-	-	-	-	-	-	-
650	100	126	78	73	67	61	56	50	45	41	37	33	30	26	23
	100	252	47	41	36	32	28	26	24	21	-	-	-	-	-
	120	126	-	-	-	-	81	75	68	61	56	50	44	39	34
		252	70	61	54	48	43	39	35	32	29	-	-	-	-
		378	46	40	35	32	-	-	-	-	-	-	-	-	-
	160	252	93	84	75	67	60	54	49	44	40	36	32	28	25
	160	378	64	56	49	44	40	36	32	29	26	24	-	-	-
800	120	126	-	-	-	-	106	98	89	80	72	65	58	51	46
		252	93	80	71	63	56	51	46	42	38	-	-	-	-
		378	61	53	47	42	-	-	-	-	-	-	-	-	-
	160	252	127	115	103	91	82	74	67	60	54	49	44	38	34
	160	378	88	76	67	60	54	49	44	40	35	32	-	-	-
	200	252	-	-	-	-	135	122	110	100	90	81	72	64	55
		378	144	126	111	99	89	80	72	65	60	53	47	42	36
		504	110	96	85	75	-	-	-	-	-	-	-	-	-
1000	160	252	171	154	138	122	110	99	90	81	73	66	59	52	45
	160	378	118	102	91	81	72	65	59	53	48	43	-	-	-
	200	252	-	-	-	-	182	164	148	134	121	108	97	85	75
		378	193	164	149	133	119	108	98	88	79	71	64	56	48
		504	148	129	113	101	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	242	221	200	180	162	144	127	111
		378	273	248	223	199	179	161	146	132	119	107	95	84	73
		504	221	192	170	151	136	-	-	-	-	-	-	-	-
1200	160	252	214	193	173	154	138	124	112	102	92	82	73	65	57
	160	378	148	128	113	101	91	82	74	69	60	-	-	-	-
	200	252	-	-	-	250	228	206	185	168	152	136	121	107	93
		378	243	212	188	167	150	135	122	111	100	90	80	70	61
		504	186	161	143	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	303	278	251	226	203	181	160	136
		378	342	311	280	250	224	202	183	165	149	134	119	105	91
		504	278	241	213	190	170	-	-	-	-	-	-	-	-
	300	336	431	406	380	354	326	296	268	242	218	196	175	154	134
	300	504	350	312	276	246	221	199	180	163	147	132	117	104	90
1400	200	252	-	-	-	301	274	247	224	202	183	164	146	129	112
		378	292	255	226	201	181	163	147	133	120	108	96	85	73
		504	224	194	171	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	365	339	302	272	245	218	192	167
		378	412	374	337	300	270	243	220	199	180	161	143	127	110
		504	334	290	256	228	205	-	-	-	-	-	-	-	-
	300	336	526	495	463	431	397	361	326	295	266	239	213	188	163
	300	504	426	380	336	299	269	243	219	198	178	160	143	126	109
	400	420	756	717	678	673	595	549	500	452	408	366	327	288	250
	400	504	707	661	614	566	515	465	420	380	343	308	274	242	210
1600	200	252	-	-	-	352	320	289	261	236	213	191	171	150	131
		378	341	299	263	235	211	190	172	155	140	126	112	99	86
		504	261	227	200	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	427	390	353	318	286	255	225	195
		378	481	437	393	351	315	284	257	232	209	188	168	148	128
		504	390	339	299	267	239	-	-	-	-	-	-	-	-
	300	336	620	584	546	508	468	426	385	348	314	282	251	222	192
	300	504	503	448	396	353	317	286	259	234	211	189	169	149	129
	400	420	891	846	799	751	701	648	590	533	481	432	385	340	295
	400	504	834	779	724	667	608	548	496	448	404	362	324	285	247
1800	240	252	-	-	-	-	-	488	447	404	364	327	292	257	223
	240	378	550	501	450	401	360	325	294	266	240	215	192	169	147
	300	504	432	387	342	305	274	-	-	-	-	-	-	-	-
		336	681	641	600	558	514	467	422	382	344	309	276	243	211
		504	579	516	456	407	365	300	297	269	243	218	194	172	149
	400	420	1027	974	921	866	808	747	680	614	554	498	444	391	340
	400	504	960	898	835	769	700	632	571	516	466	418	373	329	286
	500	525	1259	1197	1133	1067	999	925	846	765	690	619	552	487	423
	500	735	1094	1006	917	826	741	669	604	546	493	442	394	348	302
