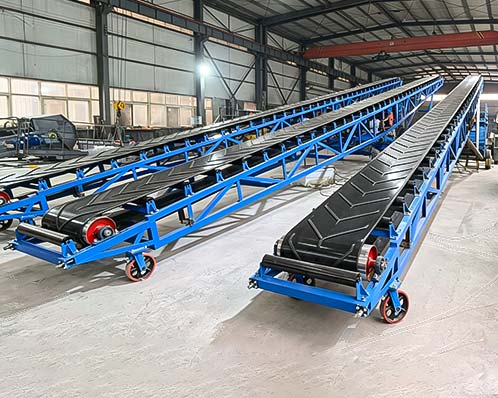

Portable Belt Conveyor For Tire Handling And Transportation

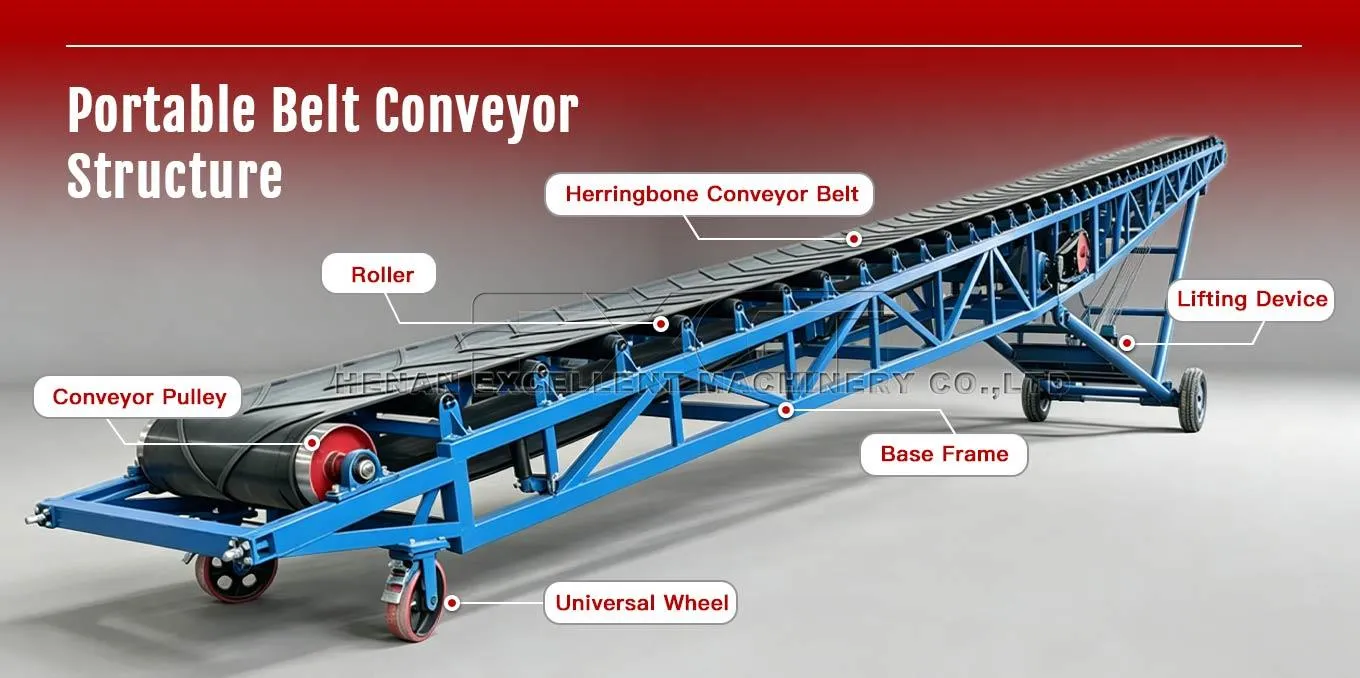

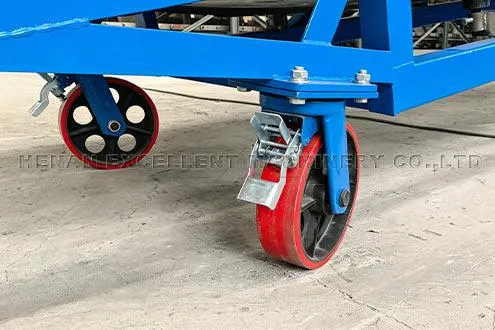

Mobile belt conveyors are used for short-distance transport of bulk materials and loading/unloading packaged goods weighing less than 100 kg per piece, typically including tires (especially finished tires). This equipment is driven by electric rollers and employs a steel pipe truss structure to ensure a lightweight, aesthetically pleasing design while maintaining sufficient rigidity and strength. The bottom is usually equipped with universal wheels and casters with solid rubber tires for easy movement and turning between different workstations within warehouses or factory areas.

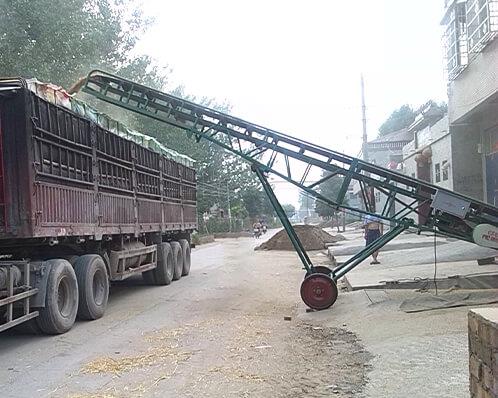

In the tire industry, this equipment is commonly used in warehousing to assist in tire receiving, shipping, and loading operations.

Furthermore, multiple conveyors can be combined to form complex handling and conveying systems, and intelligent control systems can be used to automatically start, stop, and adjust the speed of the conveyors, improving production efficiency.





The drive device is used to rotate the conveyor belt, thereby transporting tires and other materials and goods from the starting point to the destination. After the tires are placed on the conveyor belt, they are continuously pushed forward by the rotation of the belt. When the tires reach the destination, they can be unloaded through gaps or other devices.















01/Flexibility

The entire machine can be easily moved to different locations by its walking tires. It can also adjust the inclination angle of the conveyor as needed to suit different working environments and requirements, demonstrating high flexibility.

02/Multi-Scenario Application

This product can be used in various scenarios such as tire storage, logistics parks, auto parts factories, and cargo storage areas, meeting the short-distance transportation needs of large quantities of tires.

03/Quick Deployment

Compared with fixed conveyor systems, mobile belt conveyors are much easier and quicker to install and deploy, saving time and costs.

04/Save Manpower

Replace manual tire handling with automated methods, reducing the workload of manual material handling, improving the efficiency of tire loading, unloading and transportation, and lowering labor intensity.

05/Save Space

The mobile conveyor can be arranged as needed, saving space and enhancing layout flexibility. It is suitable for the compact layout of tire warehouses.

06/Multifunctionality

It can be integrated with other devices, such as loaders and stackers, to achieve a more efficient material handling process and enhance the overall production efficiency.

07/Operation Is Convenient

This machine is equipped with an independent electrical control box, which includes a main control switch, a lifting switch, and a one-button start/stop function. There is no need for manual supervision. It can start working immediately after startup and realizes the automation of the equipment.







Idlers and pulleys are important parts of the belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.













● After all the components of the Tire Handling Portable Belt Conveyor are installed, an unloaded test run should be conducted. The running time should not be less than 2 hours to check for abnormal sounds or smooth operation.
● Observe whether there is any rubbing between the rotating parts and other components, especially those rubbing against the conveyor belt. If so, it should be dealt with promptly to prevent damage to the conveyor belt.
● Check if the conveyor belt is deviating. If the deviation exceeds 5% of the belt width, adjustment should be made.
● Check for any oil leakage in the reducer and other lubrication areas.
● Check if there is any excessive or rapid temperature rise in the lubricating oil, bearings, etc.

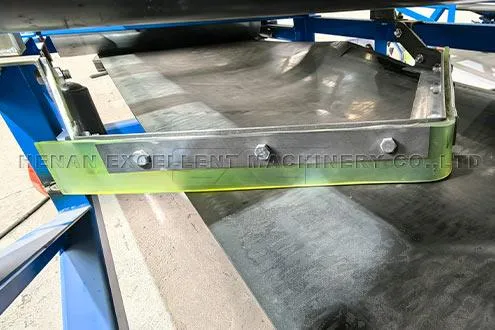

● Observe the contact situation between the scraper of the cleaning device and the conveyor belt.
● Check if the tensioning device is operating properly and if there are any jamming or other phenomena.





A：For The Bulk Material

• Material to be processed: ______
• Bulk density:______t/m3
• Handling capacity: ______t/h
• Material temperature: °C
• Material is corrosive or not:______Ps. Yes or No
• Working power supply: ______V ______HZ
• Whether the conveying height can be adjusted :______(Ps. Yes or No)
• If it can not be adjusted, please tell us the lifting height(vertical height from ground to loading point)______ m;
• If it can be adjusted, please give us the min lifting height ______m
• and the max lifting height______m
• Max. granule size of the feeding material: ______mm
• Max. Granule's percentage in whole material:______%
• Upstream equipment (using for feed the material):______
• Downstream equipment (using for discharge the material):______
• Quantity:______

B：For The Bagged Material

• Number of conveyed bags per hour:_____
• Weight of full-load bag:______kg
• Whether the conveying height can be adjusted :______(Ps.Yes or No)
• If it can not be adjusted, please tell us the lifting height :______m
• If it can be adjusted, please give us the min lifting height: ______m and the max lifting height:______m
• Please refer to the following picture and provide the relevant size of the full-load bag:L______m, W______m, H______m
• Working power supply: ______V______HZ
• Quantity :______
• ( If you can provide us the quantity, we can give you the more suitable transportation solutions to save you costs )
