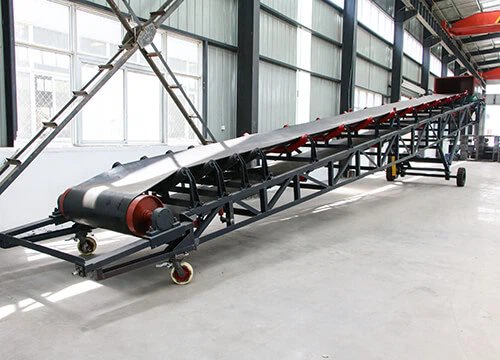

Name: Portable Incline Conveyor - China Portable Incline Conveyor Manufacturers Suppliers - EXCT
Brand: EXCT
SKU: 287027807

To cope with the complex and variable terrain conditions of outdoor operations, we have equipped the portable incline conveyors with multiple adaptive designs. The key models adopt an adjustable hydraulic leg system, which can compensate for an inclination of ±15° of the ground, ensuring that the conveyor belt can operate stably on various uneven surfaces. Some models also incorporate a lifting mechanism, allowing the conveying inclination angle to be adjusted continuously within the range of 0° to 22°. This can both accommodate horizontal transportation and meet the loading requirements for certain slopes. This design enables the same equipment to handle different height differences in operations, significantly expanding the application scope of the equipment.

Portable Incline Conveyor Working Principle

Our portable incline conveyor achieves material transportation through the coordinated transmission of the belt and the rollers:

The motor-driven active pulley rotates, using friction to propel the conveyor belt in a continuous cyclical motion. When material falls onto the conveyor belt from the inlet, it moves forward with the belt until it reaches the outlet for unloading.

The equipment is equipped with bend pulleys to change the conveyor belt's direction of travel. Idler rollers support the conveyor belt and material throughout the entire process, reducing running resistance and ensuring stable belt tension. Simultaneously, adjustable hydraulic outriggers or a mechanical leveling system assist in adjusting the machine's angle. Combined with an adjustable conveyor tilt angle of 0°-20°, it can perform both horizontal conveying and material lifting at different heights.

Universal wheels (high-strength rubber tires/all-steel wheels) give the equipment mobility. After relocation, simple leveling is all that's needed to restart operations. The overall transmission system, combined with a compact integrated frame design, ensures continuous and stable material conveying even in mobile environments.

Portable Sand Conveyor Structure

Portable Incline Conveyor Details

Conveyor Pulley

Trough Roller

Impact Roller

Frame Contruction

Running Gear

Return Belt Cleaner

01/

Flexibility And Mobility

Our portable incline conveyor boasts the greatest advantage of outstanding mobility. We equip it with high-strength rubber tires or full-steel wheels, eliminating the need for fixed tracks or complex handling equipment. It can move quickly between different work sites. This design enables the equipment to easily adapt to scenarios such as construction sites and agricultural storage yards where frequent changes of work positions are required. It truly realizes "materials following the equipment", significantly enhancing the flexibility and coverage of material handling.

02/

Intelligent Hydraulic Elevating System

Our portable incline conveyor adopts an advanced intelligent hydraulic elevating system. The lifting height can be adjusted continuously within the range of 500-2500mm. The hydraulic cylinder is designed with a double-acting mechanism and is equipped with high-precision displacement sensors, enabling precise positioning to the millimeter level. The system has an automatic balancing function, ensuring the stability of the conveying plane even on non-level ground. The lifting operation can be completed through the control panel or remote controller. A single person can complete the adjustment from the lowest position to the highest position within 3 minutes, significantly enhancing the adaptability of the operation.

03/

Multi-terrain Travel System

Our travel system specifically designed for complex terrains features independent suspension and all-terrain tires, enabling it to adapt to various ground conditions such as mud, sand, and gravel. The ground clearance of the travel system has been meticulously calculated to ensure smooth passage over uneven surfaces. Some models are also equipped with a four-wheel drive system, providing greater traction and allowing for easy movement and positioning even on steep terrains, significantly expanding the applicable environment of the equipment.

04/

Multi-functional Configuration Available

To meet diverse material handling requirements, our portable incline conveyor offers a wide range of optional features. Users can add magnetic separators, automatic weighing modules, dust removal systems, or specific material conveying belts (such as food-grade, high-temperature-resistant types) as per their needs, enabling the basic equipment to be flexibly upgraded to meet the special requirements of different industries.

05/

Humanized Operation Experience

Our portable incline conveyor is designed with ergonomics in mind. The operation panel is at an appropriate height, and the walking and turning system is lightweight and flexible. The regular inspection and maintenance points are all located in easily accessible positions, allowing most daily maintenance tasks to be completed without the need for special tools or climbing, thereby reducing the labor intensity of the operators.

06/

Wide Industry Applicability

Thanks to its flexibility and adaptability, our portable incline conveyor has been successfully applied in numerous fields such as construction, agriculture, logistics, ports, mining auxiliary operations, and light industrial manufacturing. Whether for short-distance transportation of bulk materials or temporary connections on production lines, it can provide efficient and reliable solutions.

Get The Most Suitable Product Solution And Quotation For Free!!!

Submit your requirements and talk with one of our technical engineer about your project.

Send Inquiry Now

Idlers and pulleys are important parts of belt machine, it is used to effectively support the conveyor belt and bulk materials. In addition, we have an advanced roller and drum production line, which can produce high-quality rollers and drums, to ensure the long-term stable operation of the belt machine.

Portable Incline Conveyor Application

Our Portable Incline Conveyor is widely used in construction sites, mines, ports, warehousing and logistics facilities. It is suitable for the transportation of various materials, such as sand and gravel, coal, ores, grains, etc.

In construction sites, our Portable Incline Conveyor is often used to transport concrete and mortar from one location to another, thereby improving construction efficiency.

In mines and ports and other places, our Portable Incline Conveyor can be used for the continuous transportation of large quantities of materials, thereby enhancing production efficiency.

We have established strict pre-shipment inspection and process regulations: Before shipment, we will conduct comprehensive testing and cleaning maintenance on the equipment to ensure that each unit meets the performance standards; then we will issue a detailed shipping list (including the main equipment, accessories, manuals, warranty cards, etc.) and simultaneously generate a logistics tracking number; we have also reached long-term cooperation with major logistics companies, choosing the most optimal transportation plan based on your delivery address, supporting various modes such as direct整车 delivery and consignment distribution, to ensure stable transportation efficiency.

portable belt conveyor 2

Portable Incline Conveyor Maintenance Items

① Try to avoid working in humid environments and during rainy days to prevent the machine body and components from rusting and being damaged due to prolonged contact with water.
② Regularly check the direction of the conveyor belt to ensure its smooth running and avoid unnecessary losses caused by the conveyor belt deviating.
③ Regularly inspect the fasteners of the machine body to ensure the good condition of the bolts and tensioning devices, add lubricating oil in time to ensure the lubrication of the bearings, regularly inspect the idlers and other parts, replace damaged components, and ensure the normal operation of the belt conveyor.
