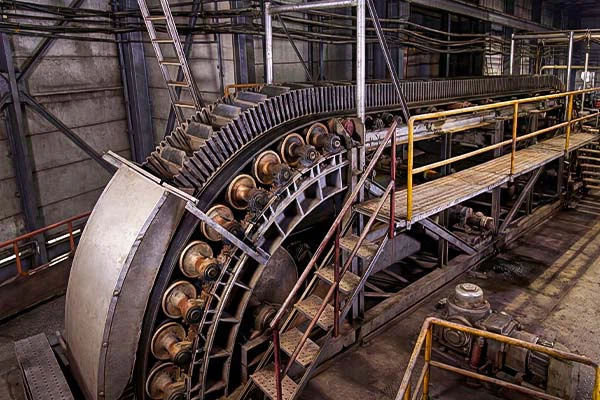

The corrugated belt conveyor is a special type of belt conveyor that adds Sidewall and Cleat to both sides of the conveyor belt. Through this special design, it can hold the materials like a "gate container", preventing the materials from sliding or falling, and achieving large-angle or even vertical transportation.

How Corrugated Belt Conveyor Work?

The traction component and the carrying component of the corrugated belt conveyor are a continuous rubber conveyor belt with side walls and cleats. The rubber belt is wound around the drive pulley and bend pulley at both ends of the frame to form a closed loop.
When the drive device drives the drive pulley to rotate, the friction between the drive pulley and the rubber belt drives the rubber belt to move along the predetermined path;
The conveyed materials are added to the rubber belt through the feeding chute, and the materials are transported to the discharge device at the head end along with the movement of the rubber belt, and finally are discharged from the discharge port under the action of centrifugal force and gravity.

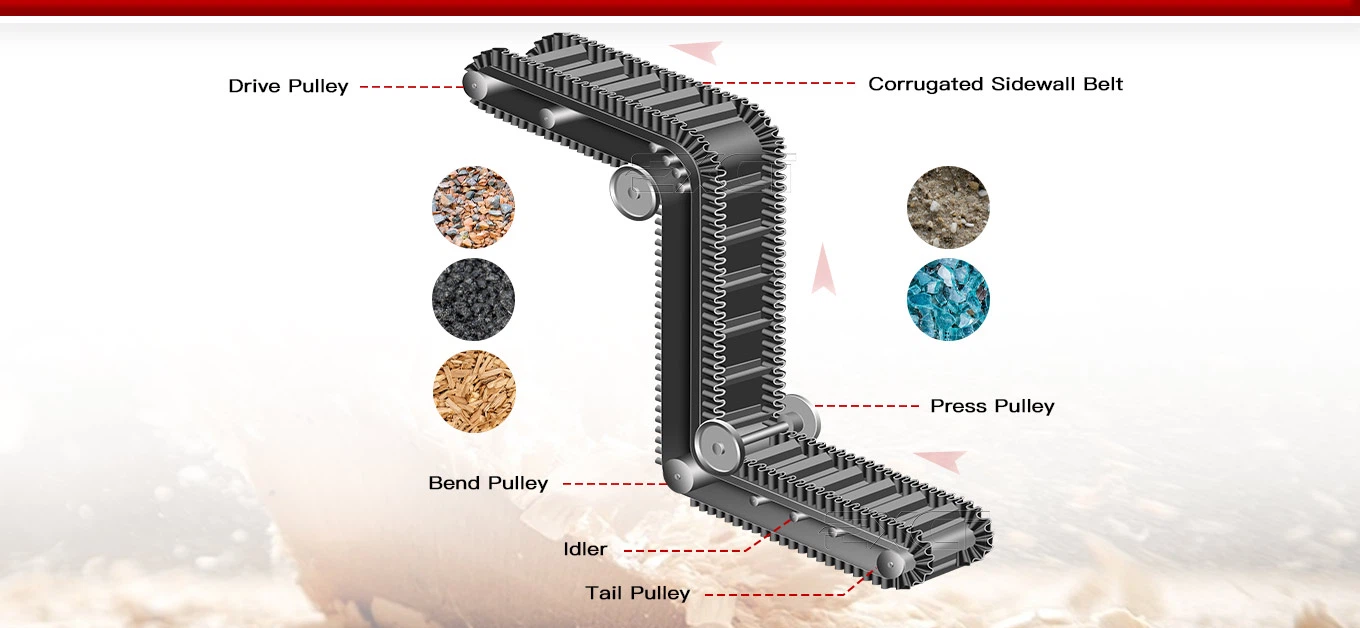

Corrugated Belt Conveyor Structure

The corrugated belt conveyor is mainly composed of corrugated side-wall belt, drive device, drive pulley, bend pulley, press pulley, idler, guide idler, cleaning device, tension device, various frames, discharge chute, discharge trough, electrical and safety protection devices, etc.
Among them, the structural forms and functions of the drive device, drive pulley, bend pulley, tension device, various frames, discharge chute, discharge trough, electrical and safety protection devices, etc. are the same as those of the traditional belt conveyor.

Corrugated Belt Conveyor Structure

Details

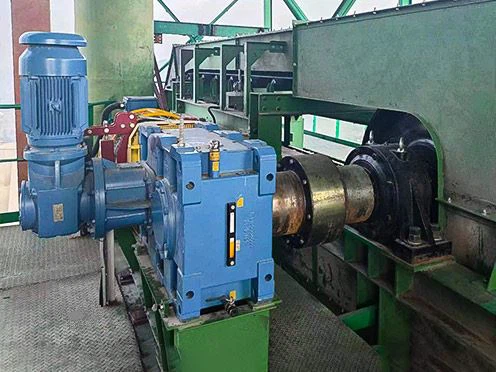

Motor

The kinetic energy part in the conveyor system has the characteristics of simple structure, high reliability and convenient maintenance.

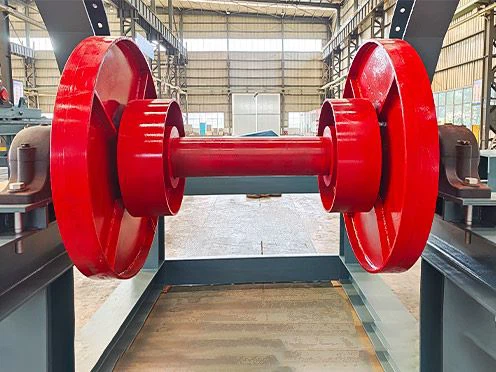

Press Pulley

It is used to change the running direction of the conveyor belt. The pressure wheel is located on the upper surface (loading surface) of the conveyor belt.

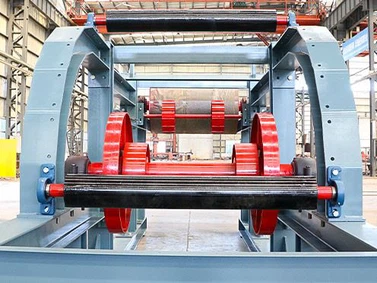

Idler

It is used to support the conveyor belt and the materials on the belt, ensuring its stable operation.

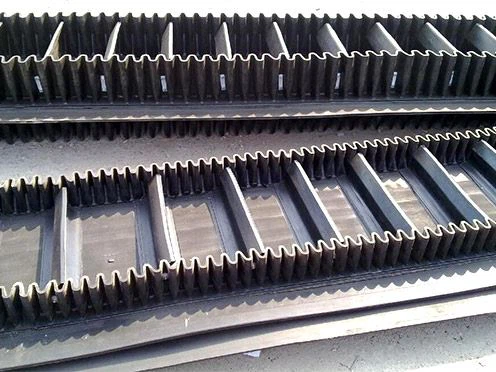

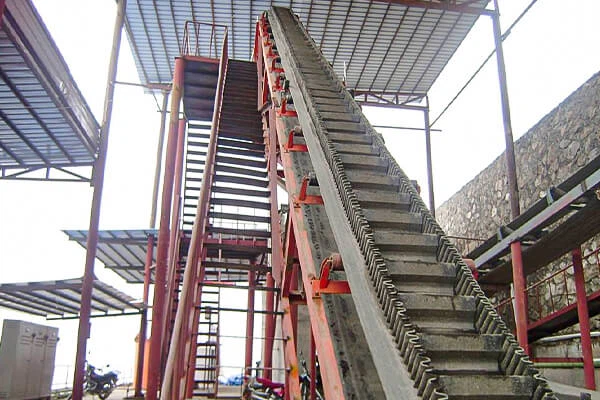

Corrugated Sidewall Belts

The corrugated sidewall, cleat and base belt form a box-shaped hopper for transporting materials, thereby enabling large-angle transportation.

Contact Us For Best Price

Submit your requirements and talk with one of our technical engineer about your project.

Send Inquiry Now

Corrugated Belt Conveyor Feature

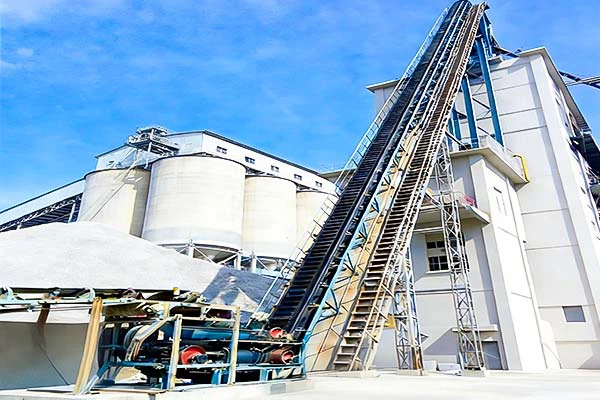

Highly inclined angle transportation

Significantly reduces the equipment's floor space requirement, achieving a transportation angle that is beyond the capabilities of ordinary and ribbed belt conveyors.

Large conveying capacity

Requires few restrictions on the types of materials, capable of transporting large quantities of goods in batches, saving labor costs, time and effort.

Wide conveying range

It can convey powder materials, small particles, and materials with relatively large crushing capacity. The operation and maintenance are quite convenient.

Low investment cost

The overall investment cost is low, and compared with ordinary belt conveyors, it can save 20% to 30% of the investment.

Optional conveyor belts

When transporting acidic, alkaline or oily materials, rubber belts or plastic belts that are resistant to oil, acid and alkali should be selected.

Simple structure

Flexible loading and unloading, high reliability, low maintenance costs, high safety, strong interchangeability and universality of main components

Corrugated Belt Conveyor Brochure Download

Corrugated Belt Conveyor Package & Delivery

Quality begins with craftsmanship and is achieved through delivery. We strictly pack each factory-finished product with high standards and strict requirements. Through multiple layers of protection and targeted reinforcement, we minimize the risk of damage during transportation. This dedication to details is solely to ensure that what you receive is not only a high-quality product, but also our consistent reliable commitment.

Corrugated Belt Conveyor Package Delivery

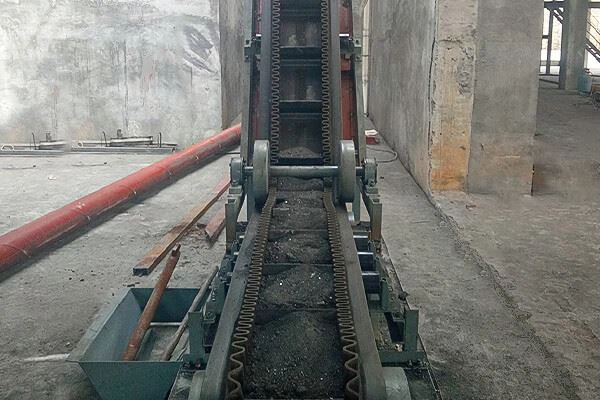

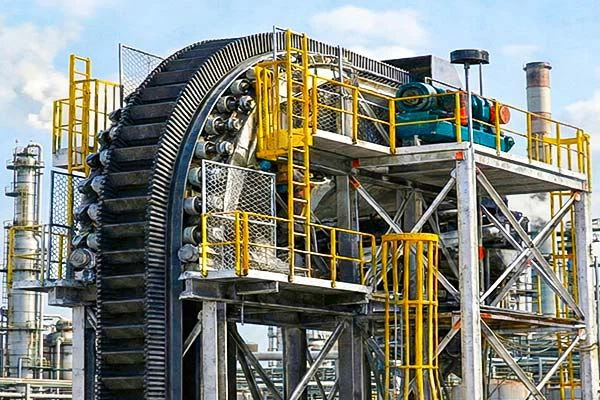

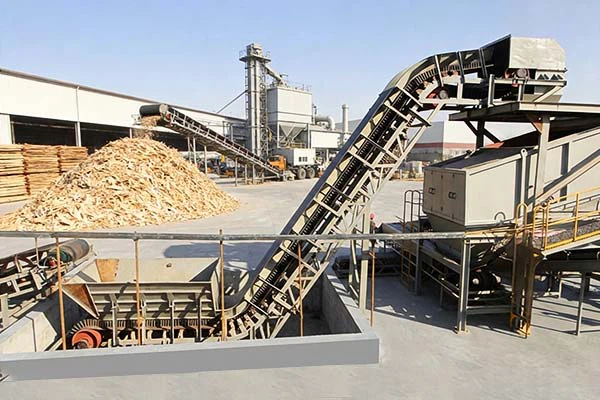

Corrugated Belt Conveyor Application

corrugated belt conveyor can be used for bulk materials such as coal, coke, sand and gravel, aggregates, sand, crushed glass, asphalt raw materials, stones, fertilizers, lime, etc.

5 Reasons to Choose EXCT Corrugated Belt Conveyor

Factory direct sales

Direct supply from the factory, eliminating the middle links, resulting in more favorable prices. The service is not discounted, allowing you to save money, worry less and work more efficiently.

Quality Assurance

We have our own physical workshop. We strictly follow national standards and conduct a complete process control from production to inspection. Products are guaranteed to be qualified and of reliable quality.

5 Reasons to Choose EXCT Corrugated Sidewall Conveyor

Professional Technical Team Support

he professional technical team meticulously designs and improves the equipment, tailoring it to your specific working conditions, and provides comprehensive technical guidance throughout the process to ensure the optimal matching of the equipment.

Uninterrupted After-sales Service

Quick response within 2 hours, solution provided within 24 hours, and arrival at the site within 48 hours; free replacement and repair within the 12-month warranty period, ensuring you have no worries.

General Technical Parameter

Belt Width (mm)	Sidewall Height (mm)	Cleat Spacing (mm)	Inclination Angle
			30°	35°	40°	45°	50°	55°	60°	65°	70°	75°	80°	85°	90°
			Capacity(m³/h)
500	80	126	42	38	36	31	28	25	22	20	18	16	15	13	11
	80	252	23	20	18	16	14	13	12	-	-	-	-	-	-
	100	126	56	52	48	44	40	36	32	29	26	24	21	19	16
	100	252	34	29	26	23	21	19	17	15	-	-	-	-	-
	120	126	-	-	-	-	58	53	48	44	39	35	32	28	24
		252	49	44	39	34	31	28	25	23	20	-	-	-	-
		378	33	29	25	23	-	-	-	-	-	-	-	-	-
650	100	126	78	73	67	61	56	50	45	41	37	33	30	26	23
	100	252	47	41	36	32	28	26	24	21	-	-	-	-	-
	120	126	-	-	-	-	81	75	68	61	56	50	44	39	34
		252	70	61	54	48	43	39	35	32	29	-	-	-	-
		378	46	40	35	32	-	-	-	-	-	-	-	-	-
	160	252	93	84	75	67	60	54	49	44	40	36	32	28	25
	160	378	64	56	49	44	40	36	32	29	26	24	-	-	-
800	120	126	-	-	-	-	106	98	89	80	72	65	58	51	46
		252	93	80	71	63	56	51	46	42	38	-	-	-	-
		378	61	53	47	42	-	-	-	-	-	-	-	-	-
	160	252	127	115	103	91	82	74	67	60	54	49	44	38	34
	160	378	88	76	67	60	54	49	44	40	35	32	-	-	-
	200	252	-	-	-	-	135	122	110	100	90	81	72	64	55
		378	144	126	111	99	89	80	72	65	60	53	47	42	36
		504	110	96	85	75	-	-	-	-	-	-	-	-	-
1000	160	252	171	154	138	122	110	99	90	81	73	66	59	52	45
	160	378	118	102	91	81	72	65	59	53	48	43	-	-	-
	200	252	-	-	-	-	182	164	148	134	121	108	97	85	75
		378	193	164	149	133	119	108	98	88	79	71	64	56	48
		504	148	129	113	101	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	242	221	200	180	162	144	127	111
		378	273	248	223	199	179	161	146	132	119	107	95	84	73
		504	221	192	170	151	136	-	-	-	-	-	-	-	-
1200	160	252	214	193	173	154	138	124	112	102	92	82	73	65	57
	160	378	148	128	113	101	91	82	74	69	60	-	-	-	-
	200	252	-	-	-	250	228	206	185	168	152	136	121	107	93
		378	243	212	188	167	150	135	122	111	100	90	80	70	61
		504	186	161	143	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	303	278	251	226	203	181	160	136
		378	342	311	280	250	224	202	183	165	149	134	119	105	91
		504	278	241	213	190	170	-	-	-	-	-	-	-	-
	300	336	431	406	380	354	326	296	268	242	218	196	175	154	134
	300	504	350	312	276	246	221	199	180	163	147	132	117	104	90
1400	200	252	-	-	-	301	274	247	224	202	183	164	146	129	112
		378	292	255	226	201	181	163	147	133	120	108	96	85	73
		504	224	194	171	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	365	339	302	272	245	218	192	167
		378	412	374	337	300	270	243	220	199	180	161	143	127	110
		504	334	290	256	228	205	-	-	-	-	-	-	-	-
	300	336	526	495	463	431	397	361	326	295	266	239	213	188	163
	300	504	426	380	336	299	269	243	219	198	178	160	143	126	109
	400	420	756	717	678	673	595	549	500	452	408	366	327	288	250
	400	504	707	661	614	566	515	465	420	380	343	308	274	242	210
1600	200	252	-	-	-	352	320	289	261	236	213	191	171	150	131
		378	341	299	263	235	211	190	172	155	140	126	112	99	86
		504	261	227	200	-	-	-	-	-	-	-	-	-	-
	240	252	-	-	-	-	-	427	390	353	318	286	255	225	195
		378	481	437	393	351	315	284	257	232	209	188	168	148	128
		504	390	339	299	267	239	-	-	-	-	-	-	-	-
	300	336	620	584	546	508	468	426	385	348	314	282	251	222	192
	300	504	503	448	396	353	317	286	259	234	211	189	169	149	129
	400	420	891	846	799	751	701	648	590	533	481	432	385	340	295
	400	504	834	779	724	667	608	548	496	448	404	362	324	285	247
1800	240	252	-	-	-	-	-	488	447	404	364	327	292	257	223
	240	378	550	501	450	401	360	325	294	266	240	215	192	169	147
	300	504	432	387	342	305	274	-	-	-	-	-	-	-	-
		336	681	641	600	558	514	467	422	382	344	309	276	243	211
		504	579	516	456	407	365	300	297	269	243	218	194	172	149
	400	420	1027	974	921	866	808	747	680	614	554	498	444	391	340
	400	504	960	898	835	769	700	632	571	516	466	418	373	329	286
	500	525	1259	1197	1133	1067	999	925	846	765	690	619	552	487	423
	500	735	1094	1006	917	826	741	669	604	546	493	442	394	348	302
